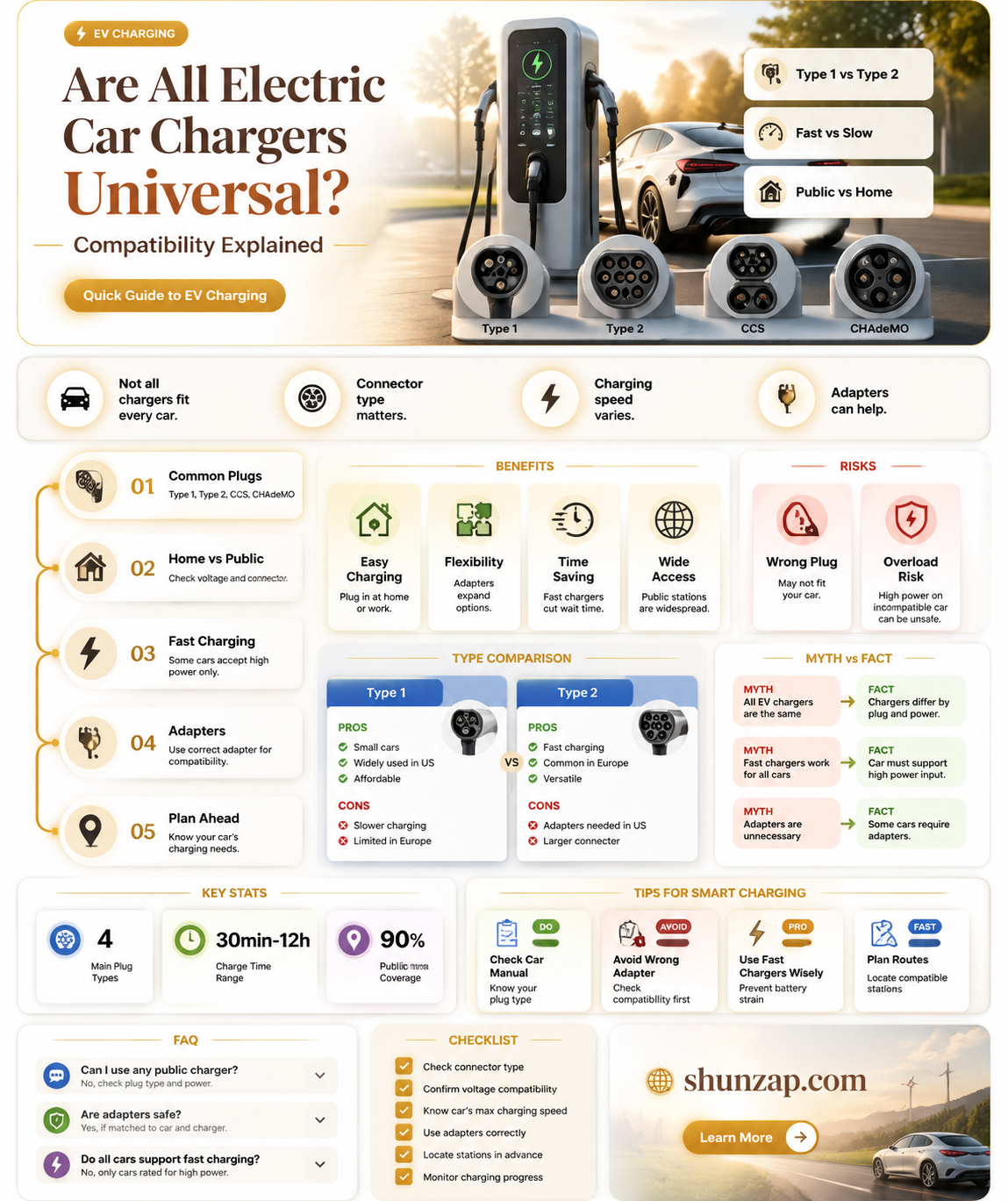

The question of whether all electric car chargers are universal is a common one among EV owners and prospective buyers. While there is a degree of standardization in charging connectors, particularly in regions like Europe with the Type 2 connector and North America with the J1772, compatibility is not entirely universal. Different electric vehicles may require specific charging standards, such as Tesla’s proprietary connector or the CCS (Combined Charging System) used for fast charging. Additionally, charging speeds and capabilities vary widely, with Level 1, Level 2, and DC fast chargers offering different power outputs. Therefore, while many chargers are interoperable, it’s essential for EV owners to understand their vehicle’s requirements and the available charging infrastructure to ensure seamless compatibility.
Explore related products
![Raylix 16A Level 1&2 EV Charger, 110V-240V Electric Car Charger with 21ft Cable [Adjustable Current & Delay Charging] Portable EV Chargers for All SAE J1772, Nema 6-20 & Nema 5-15 Plug, Accessories](https://m.media-amazon.com/images/I/71jtqSY-S4L._AC_UL320_.jpg)
What You'll Learn
- Charger Types: Different electric vehicles may require specific charger types, such as AC or DC
- Connector Standards: Various regions use distinct connector standards, like Type 1, Type 2, or CCS
- Charging Speeds: Compatibility depends on vehicle and charger power output capabilities
- Network Access: Some chargers require membership or specific apps for access
- Vehicle Compatibility: Not all electric cars can use every charging station due to technical differences
Charger Types: Different electric vehicles may require specific charger types, such as AC or DC
Electric vehicle (EV) charging is not a one-size-fits-all scenario, and understanding the different charger types is crucial for EV owners. The two primary types of chargers are AC (Alternating Current) and DC (Direct Current), each serving distinct purposes and catering to different vehicle needs. AC chargers are the most common and are typically used for home charging or public Level 2 charging stations. These chargers supply power to the vehicle’s onboard converter, which then converts the AC electricity into DC to charge the battery. Most EVs come equipped with an AC charger, making it a universal option for daily charging needs. However, AC charging is relatively slow, with Level 2 chargers typically delivering 3.7 to 22 kW, which translates to adding about 12 to 80 miles of range per hour of charging.
On the other hand, DC fast chargers are designed for rapid charging and are often found along highways or in commercial areas. Unlike AC chargers, DC chargers bypass the vehicle’s onboard converter and directly supply DC electricity to the battery, significantly reducing charging times. These chargers can deliver power at rates of 50 kW or higher, with some ultra-fast chargers reaching up to 350 kW. This allows EVs to gain 60 to 100 miles of range in as little as 20 minutes. However, not all electric vehicles are compatible with DC fast charging. Compatibility depends on the vehicle’s battery management system and whether it supports the high power levels required for DC charging. For instance, Tesla vehicles use a proprietary connector (though adapters are available), while other EVs often use the CCS (Combined Charging System) or CHAdeMO standards.
The distinction between AC and DC chargers highlights why electric car chargers are not universal. While AC chargers are widely compatible and suitable for most EVs, DC fast chargers require specific hardware and software compatibility. Additionally, the charging speed and efficiency can vary based on the vehicle’s battery capacity, temperature, and the charger’s power output. This means that even if a vehicle is technically compatible with a DC fast charger, the actual charging speed may differ depending on these factors.
Another aspect to consider is the connector type, which further complicates universality. In North America, the SAE J1772 connector is standard for AC Level 1 and Level 2 charging, while DC fast chargers often use CCS or CHAdeMO connectors. In Europe, the Type 2 connector is prevalent for AC charging, and CCS is the standard for DC fast charging. Tesla’s proprietary connector adds another layer of complexity, though the company has begun incorporating CCS ports in some regions. These variations underscore the importance of checking compatibility before attempting to charge an EV at a public station.
For EV owners, understanding these differences is essential for planning efficient charging routines. Home charging setups typically rely on AC chargers, which are convenient for overnight charging. However, for long trips, knowing the location of compatible DC fast chargers is critical. Apps and navigation systems often include filters to locate chargers by type and connector, ensuring drivers can find the right station for their vehicle. While efforts are underway to standardize charging infrastructure, the current landscape requires EV owners to be informed about their vehicle’s specific charging requirements.
In summary, the notion that all electric car chargers are universal is a misconception. The diversity in charger types, connectors, and compatibility standards means that EV owners must be aware of their vehicle’s charging capabilities. AC chargers offer broad compatibility but slower speeds, while DC fast chargers provide rapid charging for compatible vehicles. By understanding these distinctions, EV owners can navigate the charging ecosystem more effectively and ensure their vehicles are always ready for the road.
Electric Vehicle Tax Credit: Does It Include Hybrids?
You may want to see also
Explore related products
Connector Standards: Various regions use distinct connector standards, like Type 1, Type 2, or CCS
The world of electric vehicle (EV) charging is far from standardized, and one of the primary reasons is the existence of multiple connector standards across different regions. These standards dictate the physical design and compatibility of charging connectors, ensuring a secure and efficient connection between the charging station and the electric vehicle. Among the most prevalent standards are Type 1, Type 2, and Combined Charging System (CCS), each with its own unique characteristics and regional adoption.
Type 1 connectors, also known as SAE J1772, are predominantly used in North America and Japan. This standard features a five-pin design, allowing for AC charging up to 7.4 kW. Type 1 connectors are commonly found on older electric vehicles and are compatible with most Level 2 charging stations in these regions. However, their limited power capacity has led to the development and adoption of more advanced standards.
In contrast, Type 2 connectors have become the standard across Europe and many other parts of the world. This design includes seven pins and supports AC charging up to 43 kW, making it significantly more powerful than Type 1. The Type 2 standard is often referred to as the Mennekes connector, named after the company that developed it. Its widespread adoption in Europe has made it a crucial consideration for EV manufacturers targeting this market.
The Combined Charging System (CCS) is a more recent development, designed to offer both AC and DC fast charging capabilities. CCS connectors are an extension of the Type 1 and Type 2 standards, adding two additional pins for high-power DC charging. This system is widely adopted in Europe and North America, enabling rapid charging at rates up to 350 kW. CCS is particularly important for long-distance travel, as it significantly reduces charging times compared to AC charging.
These connector standards highlight the lack of universality in electric car charging infrastructure. While efforts are being made to streamline and standardize charging protocols, the current landscape requires EV owners to be aware of the specific connector types compatible with their vehicles, especially when traveling internationally. Understanding these standards is essential for a seamless charging experience and to ensure that electric vehicles can be charged efficiently wherever the journey takes them.
The variation in connector standards also presents challenges for charging network operators and EV manufacturers. They must consider the regional preferences and regulations when designing and deploying charging infrastructure and vehicles. As the electric vehicle market continues to grow globally, the push for more universal charging solutions becomes increasingly important to enhance user convenience and accelerate the widespread adoption of electric mobility.
Tesla Electric Vehicles: Understanding Their Unique Features
You may want to see also
Explore related products
Charging Speeds: Compatibility depends on vehicle and charger power output capabilities
The compatibility between electric vehicles (EVs) and chargers in terms of charging speeds is a critical aspect of the EV ownership experience. While the physical connectors might be standardized in certain regions, such as the CCS (Combined Charging System) in Europe and North America or CHAdeMO in Japan, the actual charging speed is determined by the power output capabilities of both the vehicle and the charger. This means that not all EVs can charge at the same rate, even when using the same type of charger. For instance, a high-power DC fast charger can deliver up to 350 kW, but if the EV is only capable of accepting 50 kW, the charging speed will be limited by the vehicle’s onboard charger and battery management system.
Charging speeds are influenced by the maximum power acceptance rate of the EV, which varies widely across models. Entry-level EVs often have slower onboard chargers, typically ranging from 3 kW to 7 kW for AC charging, while premium models may support up to 22 kW or higher. For DC fast charging, the disparity is even greater, with some vehicles capable of charging at 50 kW, 100 kW, or even 200 kW and beyond. The charger itself must also be capable of delivering the required power output. If a vehicle is connected to a charger with a higher power output than it can accept, the charging speed will still be limited by the vehicle’s capabilities. Conversely, connecting a high-power vehicle to a low-power charger will result in significantly slower charging times.
Another factor affecting charging speeds is the battery’s state of charge (SoC) and temperature. Most EVs charge faster when the battery is between 20% and 80% SoC, with speeds tapering off at higher and lower levels to protect the battery. Additionally, extreme temperatures can reduce charging efficiency. Cold weather, in particular, can slow down charging speeds, as the battery may need to be heated to accept a charge effectively. These variables underscore the importance of understanding both the vehicle’s and charger’s capabilities to maximize charging efficiency.
To ensure optimal charging speeds, EV owners should match their vehicles with chargers that align with their power acceptance capabilities. For example, using a 50 kW charger for a vehicle that can accept 150 kW is inefficient, as it underutilizes the vehicle’s potential. Conversely, attempting to charge a low-power vehicle on a high-power charger will not yield faster results. Public charging networks often provide chargers with varying power outputs, so drivers should select the appropriate charger based on their vehicle’s specifications. Many modern EVs also come with onboard systems or mobile apps that recommend the best charging stations based on compatibility and speed.
In summary, while physical connector standards have improved interoperability, charging speeds remain highly dependent on the power output capabilities of both the vehicle and the charger. EV owners must consider their vehicle’s maximum charging rate, battery conditions, and environmental factors to achieve the fastest and most efficient charging experience. As the EV market continues to evolve, advancements in both vehicle and charger technologies will likely reduce these compatibility gaps, but for now, understanding these dynamics is essential for a seamless charging process.
UK's Electric Vehicle Revolution: Counting the Cars
You may want to see also
Explore related products
Network Access: Some chargers require membership or specific apps for access
While the physical connectors for electric vehicle (EV) charging are largely standardized, the network access aspect introduces a layer of complexity that challenges the notion of universality. Many charging stations, particularly those operated by private networks, require membership or specific apps for access. This means that simply pulling up to a charger and plugging in isn’t always an option. For instance, networks like ChargePoint, EVgo, or Tesla’s Supercharger network often mandate that users create an account, download a proprietary app, or carry a membership card to initiate a charging session. This requirement can be a barrier for EV drivers who are unaware of these prerequisites or who prefer a more seamless, universal charging experience.
The need for membership or app-based access stems from how these networks manage payment, monitor usage, and ensure accountability. Most charging networks require users to link a payment method to their account, which is then automatically charged based on usage. While this system is convenient for regular users, it can be frustrating for occasional users or travelers who encounter a charger from an unfamiliar network. Additionally, some networks offer tiered pricing or loyalty rewards, further incentivizing membership but also complicating the process for those seeking a one-time charge without committing to a specific provider.
Another challenge arises from the lack of interoperability between charging networks. Unlike gas stations, where payment methods are universally accepted, EV charging networks often operate in silos. For example, a Tesla Supercharger is exclusively available to Tesla owners unless they use an adapter, and even then, access may require additional steps. Similarly, a ChargePoint station may not be accessible to someone who only has an account with a competing network like Electrify America. This fragmentation forces EV drivers to juggle multiple apps or memberships, which can be cumbersome and time-consuming.
To mitigate these issues, some regions are pushing for standardization in network access. Initiatives like Plug&Charge, which uses ISO 15118 standards, aim to enable automatic authentication and billing without the need for apps or cards. This technology allows EVs to communicate directly with charging stations, streamlining the process. However, widespread adoption of such standards is still in progress, and many existing chargers continue to rely on membership-based systems.
For EV drivers, the best approach is to research and plan ahead. Familiarizing oneself with the major charging networks in their area and signing up for memberships or downloading necessary apps can save time and reduce frustration. Additionally, third-party apps like PlugShare or A Better Route Planner (ABRP) aggregate information from multiple networks, providing a more unified view of available chargers and their access requirements. While network access isn’t universal, being prepared can make the charging experience more manageable.
AM Radio Interference in Electric Cars: Causes, Solutions, and Fixes
You may want to see also
Explore related products
Vehicle Compatibility: Not all electric cars can use every charging station due to technical differences
The idea that all electric car chargers are universal is a common misconception. In reality, vehicle compatibility is a critical factor when it comes to charging electric vehicles (EVs). Not all electric cars can use every charging station due to technical differences in charging standards, connector types, and power requirements. These variations can lead to confusion and inconvenience for EV owners, making it essential to understand the specifics of their vehicle’s charging capabilities.
One of the primary technical differences lies in the connector types. In North America, the SAE J1772 connector is the standard for Level 1 and Level 2 charging, while CCS (Combined Charging System) is widely used for DC fast charging. However, Tesla vehicles use a proprietary connector, though adapters are available to allow Tesla drivers to use non-Tesla chargers. In Europe, the Type 2 connector is standard for AC charging, and CCS is also used for DC fast charging. Asian markets, particularly Japan, often use the CHAdeMO connector for fast charging. These regional and manufacturer-specific differences mean that not all chargers are compatible with every EV, and drivers may need adapters or seek out specific charging stations.
Another factor affecting vehicle compatibility is the charging speed supported by the vehicle. EVs are designed to accept different levels of charging power, typically categorized as Level 1 (slow), Level 2 (medium), and DC fast charging (rapid). While most EVs can use Level 1 and Level 2 chargers, not all are equipped to handle DC fast charging. For example, some entry-level EVs may not have the necessary hardware to accept high-power DC charging, limiting their compatibility with fast-charging stations. Additionally, even among vehicles that support fast charging, the maximum power rate can vary, meaning some EVs charge faster than others at the same station.
Software and communication protocols also play a role in vehicle compatibility. Charging stations and vehicles must communicate effectively to ensure safe and efficient charging. This communication includes verifying the vehicle’s identity, negotiating the charging power, and monitoring the charging process. If the software protocols between the vehicle and the charger are not aligned, the charging session may fail or be limited to a lower power level. For instance, older EVs may not be compatible with newer charging stations that use updated communication standards.
Lastly, regional regulations and standards further complicate vehicle compatibility. Different countries and regions have adopted varying charging standards, which can affect the availability and usability of charging stations for certain EVs. For example, a European EV with a Type 2 connector may struggle to find compatible chargers in the United States without an adapter. Similarly, a vehicle designed for the CHAdeMO standard may not be able to use CCS fast-charging stations without additional equipment. These regional differences highlight the importance of researching charging infrastructure before embarking on long trips or purchasing an EV.
In summary, vehicle compatibility is a key consideration when discussing whether all electric car chargers are universal. Technical differences in connector types, charging speeds, software protocols, and regional standards mean that not every EV can use every charging station. EV owners must familiarize themselves with their vehicle’s charging capabilities and plan accordingly to ensure seamless access to charging infrastructure. As the EV market continues to evolve, standardization efforts are underway to improve compatibility, but for now, drivers must remain informed and prepared for potential limitations.
Electric Vehicles: Transforming Transport and Future Mobility
You may want to see also
Frequently asked questions
No, not all electric car chargers are universal. There are different types of connectors and charging standards, such as CCS, CHAdeMO, and Type 2, which may not be compatible with all electric vehicles.
It depends on your vehicle’s charging port and the charger’s connector type. Most modern EVs support multiple standards, but it’s essential to check compatibility to ensure proper charging.
Public charging stations often offer multiple connector types (e.g., CCS, CHAdeMO, Type 2) to accommodate various vehicles, but not all stations support every standard. Always verify compatibility before use.
