California has a comprehensive set of electrical codes that aim to ensure the safe installation and usage of electrical systems and devices. These codes are regularly updated by the California Building Standards Commission to mitigate the risk of fire and other types of damage caused by unsafe wiring practices. Non-compliance with the California Electrical Code can result in orders to replace or remove installations, and even physical disconnection of electrical services by building officials. The state's electrical codes cover a range of topics, including wiring and protection, voltage requirements, and the use of flexible cords and cables in various contexts. Given the frequent updates to these codes, it is important for residents and business owners to stay informed to ensure their electrical installations remain compliant.
Explore related products
What You'll Learn
California's electrical code
The California Electrical Code (CEC) is a set of regulations that govern electrical installations in the state of California. The code includes regulations for wiring methods, equipment installation, grounding, bonding, and electrical safety. The CEC is based on the NFPA 70, with amendments and additions specific to California.
One important aspect of the CEC is the regulation of flexible cords and cables. For example, flexible cords and cables used outdoors must be listed for extra-hard usage and wet locations and must be resistant to sunlight. Single conductor cables must be size No. 2 or larger. Open conductors are prohibited, except as part of a listed assembly or festoon lighting installed in accordance with Article 8, Outdoor Wiring.
Flexible cords and cables must also be continuous without any splices or taps between boxes or fittings. Cord connectors must not be laid on the ground unless they are listed for wet locations and must be guarded if placed in areas accessible to the public. When flexible cords and cables are run on the ground in public areas, they must be covered with approved non-conductive mats and arranged so as not to present a tripping hazard.
Another area that the CEC covers is the installation of boxes or fittings. A box or fitting must be installed at each connection point, outlet, switch point, or junction point. The CEC also includes regulations for wiring amusement rides, attractions, tents, or similar structures, which cannot be supported by another ride or structure unless specifically authorised.
Electro Swing: Does Your Chain Hang Low?
You may want to see also
Explore related products
Electrical safety orders
California has a comprehensive set of Electrical Safety Orders, which cover a range of low-voltage electrical equipment and installations. These orders are designed to ensure safe electrical practices and include specific guidelines for various electrical components and usage contexts.
One key area addressed in California's Electrical Safety Orders is flexible cords and cables. These must be "listed for extra-hard usage" and, when utilised outdoors, must also be suitable for wet locations and resistant to sunlight. Single-conductor cables, for instance, should be size No. 2 or larger. Open conductors are generally prohibited, except as part of a listed assembly or festoon lighting installed per specific guidelines. The orders also stipulate that flexible cords should be continuous without any splices or taps between boxes or fittings.
Furthermore, cord connectors must not be placed on the ground unless they are designed for wet locations. Connectors and cable connections must be kept away from areas accessible to the public and audience traffic paths, unless properly guarded. When flexible cords or cables are laid on the ground in public areas, they must be covered with approved non-conductive mats, arranged to avoid creating tripping hazards.
California's Electrical Safety Orders also cover specific contexts, such as carnivals, circuses, fairs, and similar events. For instance, wiring for amusement rides, attractions, or tents should not be supported by another ride or structure unless specifically permitted.
The orders also address a range of other electrical equipment and installations. This includes:
- Electric signs and outline lighting
- Cranes and hoists
- Elevators, escalators, and moving walks
- Electric welders
- Sound recording equipment
- Information technology equipment
- X-ray equipment
- Electric space heating equipment
- Outdoor de-icing and snow melting equipment
- Electric heating equipment for pipelines and vessels
- Motors, motor circuits, and controllers
- Transformers and transformer vaults
- Capacitors and storage batteries
- Hazardous locations, including oil and gas wells
- Emergency systems
Electric Heavy-Up: Surveying Before Upgrading Your Electrical System
You may want to see also
Explore related products
Common electrical code violations
In California, electrical codes are regularly updated, which can lead to electrical code violations being found in homes. The California Electrical Code is developed by the California Building Standards Commission, which makes updates to the code on a rolling basis. The electrical code changes every three years, but it isn't always in line with nationwide standards. For example, the 2019 California Electrical Code was based on the 2017 National Electrical Code.
Some common electrical code violations include:
- Missing GFCI circuit breakers.
- Lack of sufficient grounding.
- Forgetting to bond conductive metal, which could be energised.
- Not installing tamper-resistant receptacles.
- Receptacles in wet locations without a weatherproof cover.
- Overlamping, where a bulb draws more current than is allowed, causing wires to overheat and creating a fire hazard.
- Using extension cords and power strips, which are a fire and tripping hazard.
If electrical code violations are identified in a residence, fines may be imposed, and the building official can disconnect the electrical installation.
JR Pass: Negano Electric Railway Coverage Explained
You may want to see also
Explore related products
Electrical installation violations
One common violation is the lack of GFCI protection in areas where electricity is likely to come into contact with water, such as kitchens and bathrooms. Ground Fault Circuit Interrupters (GFCIs) protect against electrical shocks, and their absence can lead to hazardous situations. Similarly, unguarded energized conductors pose a serious electrocution risk. OSHA 1910.303 (g)(2)(i) mandates that all energized conductors over 50 volts within eight feet of the floor or a working surface must be guarded against accidental contact.
Another violation is the use of electrical equipment not suited for the environment. This includes using indoor electrical receptacles outdoors, as well as employing consumer-rated appliances, such as coffee makers and fans, in commercial or industrial settings. Consumer-rated products are typically not grounded and can lead to fires when used continuously in these settings.
Faulty or outdated electrical panels are also common issues. Older panels may not be able to handle the energy demands of modern operations, leading to outages and fire hazards. Additionally, inadequate working space around electrical equipment can obstruct the required clearance needed for safe operation and maintenance.
To ensure compliance and safety, it is recommended to consult with electrical engineers, conduct arc-flash studies, and hire qualified electrical contractors for any installation, repair, or renovation work.
Trees on Poles: Safe or Hazardous?
You may want to see also
Explore related products
Wiring and protection
Wiring Techniques and Best Practices:
- Flexible cords and cables should be listed for extra-hard usage and, when used outdoors, should be sunlight resistant and listed for wet locations.
- Single conductor cables should be size No. 2 or larger.
- Open conductors are prohibited unless they are part of a listed assembly or festoon lighting installed in accordance with outdoor wiring regulations.
- Wiring should be continuous without any splices or taps between boxes or fittings.
- Cord connectors should not be laid on the ground unless they are specifically designed for wet locations.
- Connectors and cable connections should be kept out of audience traffic paths and inaccessible to the public to prevent tripping hazards.
- When running on the ground, flexible cords accessible to the public should be covered with approved non-conductive mats.
- Install a box or fitting at each connection point, outlet, switch point, or junction point.
Protection and Safety Measures:

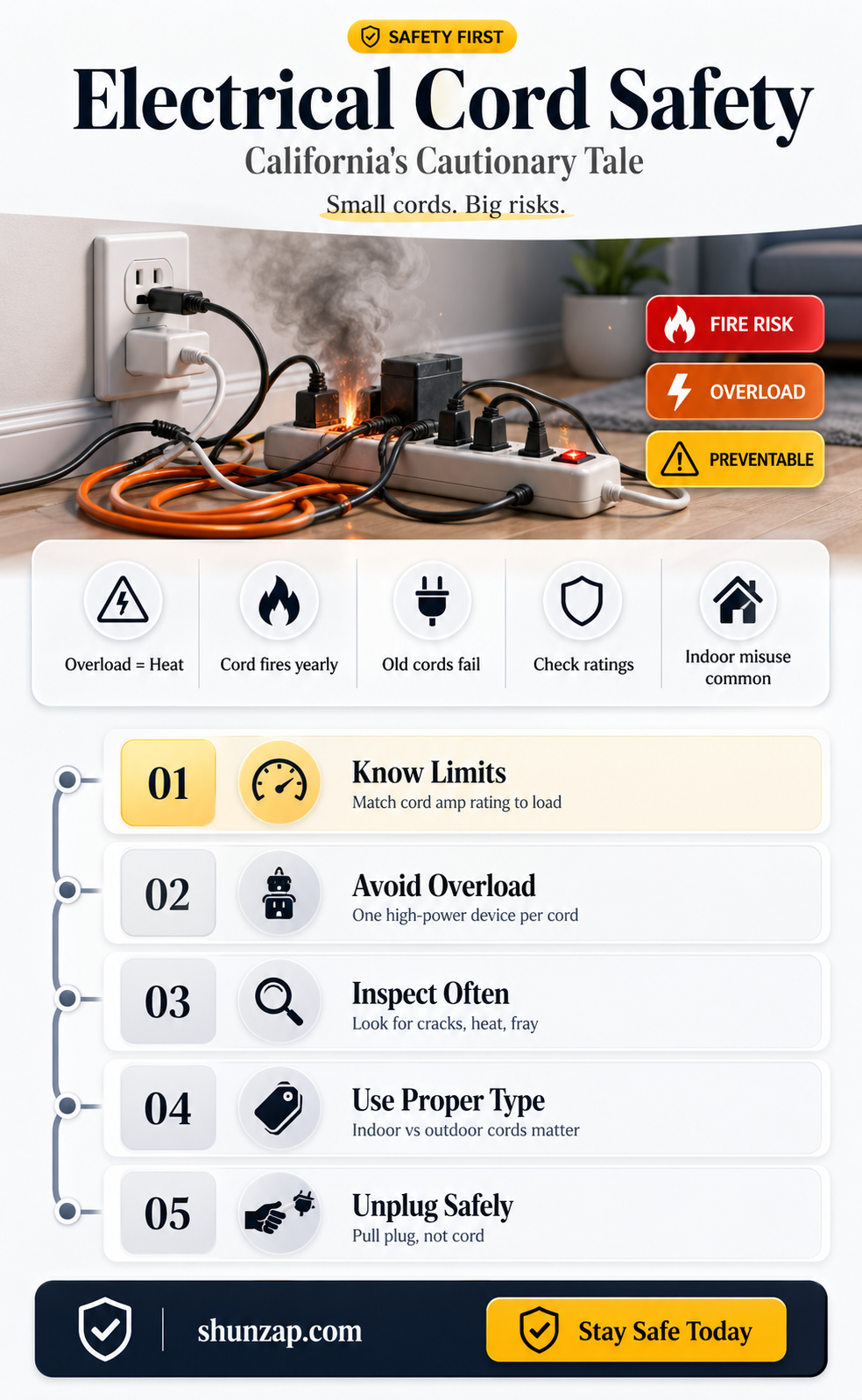

- Regularly inspect cords for damage, including fraying, broken prongs, or cracking. Replace or repair damaged cords immediately.
- Avoid using indoor extension cords outdoors.
- Keep cords away from water or snow to prevent electrical shorts and shocks.
- Do not overload power strips or plug multiple cords together.
- Avoid running cords under rugs or furniture, as this can lead to overheating and pose a tripping hazard.
- Do not bend, coil, or staple cords, and avoid attaching them to surfaces with nails or staples.
- Unplug appliances when not in use to prevent overheating and reduce energy consumption.
- Choose cords with polarized or three-prong plugs for added safety.
- Consult with a qualified electrician to ensure your electrical system meets safety standards and to add outlets if needed.
By following these wiring techniques and protection measures, you can help ensure electrical safety and reduce the risk of accidents, fires, and electrical shocks.
Brown Turkey to Perfection with an Electric Roaster
You may want to see also
Frequently asked questions
The purpose of the electrical code is to ensure that all electrical systems in homes and other buildings are installed correctly, mitigating the risk of fire or other types of damage.
The electrical code changes every three years but isn't always in line with nationwide standards. For example, the 2019 California Electrical Code was based on the 2017 National Electrical Code.
Some common violations include issues with GFCI circuits, which are required to prevent electric shock, and AFCI circuits, which are necessary in specific areas of the home. Another common violation is a lack of proper enclosure for electrical devices and equipment.
An order to replace or remove the installation will be issued by the building official, with a timeline for corrections. If the violation persists, the building official has the authority to disconnect the electrical installation and the wiring system.
