Boat trim tabs can be either hydraulic or electric. Trim tabs are a critical component for a boat's performance, and they are attached to the vertical surface of the transom. They consist of multiple moving parts, including a pair of hinged metal plates, and cylinders, pistons, or actuators that control the angle of the plates relative to the boat's running surface. The choice between electric and hydraulic trim tabs depends on various factors, such as boat size, speed, available space, ease of installation, and personal preference.

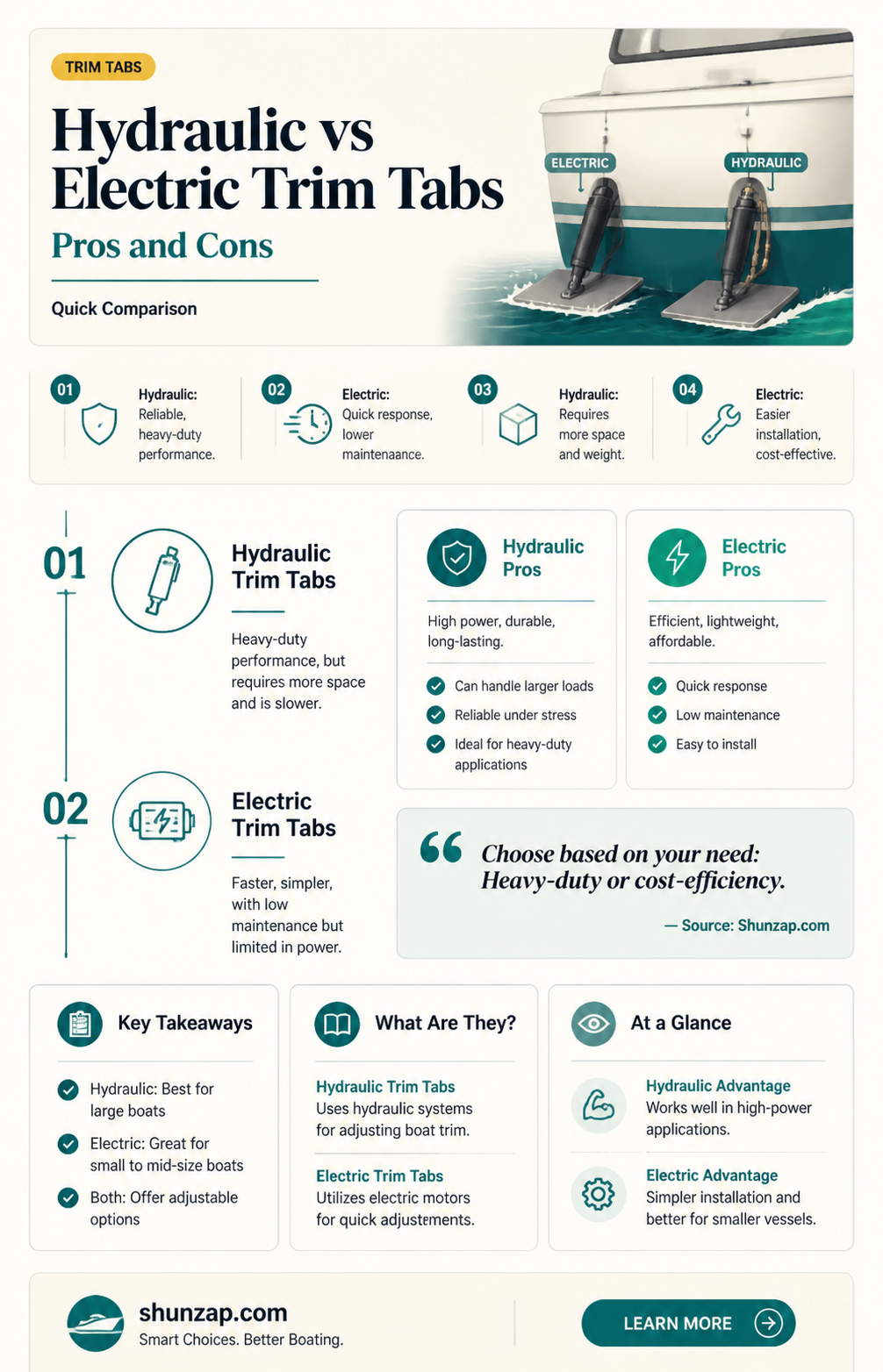

| Characteristics | Values |
|---|---|
| Installation | Electric trim tabs are easier to install than hydraulic ones. |
| Speed | Electric trim tabs are faster than hydraulic ones. |
| Maintenance | Hydraulic trim tabs require periodic fluid level checks and occasional HPU fluid level inspections. |
| Space | Hydraulic trim tabs require more space than electric ones. |
| Cost | Hydraulic trim tabs are marginally more expensive than electric ones. |
| Saltwater compatibility | Electric trim tabs are not suitable for saltwater due to the risk of saltwater leaking into the motor. |
Explore related products
What You'll Learn
Electric trim tabs are faster
While hydraulic trim tabs such as the ones made by Bennett are a good option and are not much more expensive, they are marginally more difficult to install. Electric trim tabs, on the other hand, are easier to install and are a good choice if you lack space in the bilge area for the hydraulic pump assembly.
In addition, electric trim tabs may be more convenient as they automatically retract when turned off, which can be a useful feature when trailing your boat. This is not the case with hydraulic trim tabs, which require more manual work.
However, some people may prefer hydraulic trim tabs as they don't like the idea of electric motors being submerged in saltwater. There is a small possibility of the waterproof outer shell/casing of electric trim tabs leaking saltwater into the motor, which is built into the cylinders that move the trim tabs. Nevertheless, this does not seem to be a common occurrence, and many people are happy with their electric trim tabs.
Ultimately, both types of trim tabs have their advantages and disadvantages, but electric trim tabs may be a better choice for those seeking faster and more responsive performance.
Electric Eels: Nature's Volts of Power
You may want to see also
Explore related products
Hydraulic trim tabs are marginally harder to install
Another factor that contributes to the slightly increased difficulty of installing hydraulic trim tabs is the need for periodic fluid level checks in the hydraulic systems. This involves monitoring the fluid level in the reservoir and ensuring that it remains at the recommended level, which is typically about 2 inches from the bottom. In contrast, electric trim tabs do not require such frequent fluid level checks.
Additionally, hydraulic trim tabs may require more careful consideration of the location of the HPU (pump) and control units. It is essential to mount these components in a dry location to prevent drenching and potential failure. Electric trim tabs may offer more flexibility in this regard, as they do not have the same concerns regarding moisture exposure.
The installation process for hydraulic trim tabs typically involves drilling holes in specific locations for the actuator mounting and hydraulic tubing connections. This can be a more intricate process than that of electric trim tabs, which may have simpler installation requirements.
It is worth noting that while hydraulic trim tabs may present a slightly greater challenge during installation, they are known for their exceptional reliability and performance. Many boaters prefer hydraulic systems due to their durability and dependability, especially in harsh marine environments.
Electric vs Manual Toothbrushes: Which Cleans Better?
You may want to see also
Explore related products
Electric trim tabs may be preferable for smaller boats
Boat trim tabs are used to improve the stability and efficiency of a boat. They are available in both electric and hydraulic variants. Electric trim tabs are easier to install and are a good option for smaller boats due to several reasons. Firstly, electric trim tabs are faster in response as compared to hydraulic tabs. This is because they use a servo motor that activates instantly when the switch is turned on, unlike hydraulic tabs that need to build up pressure in the pump. Secondly, electric trim tabs are more suitable for boats with limited bilge space. Hydraulic trim tabs require space for the pump assembly, which may not be available in smaller boats. Electric trim tabs also have automatic retraction when turned off, which is a useful feature for smaller boats that may be transported on trailers.
While hydraulic trim tabs are a popular choice, electric trim tabs offer several advantages for smaller boats. Electric trim tabs are available from manufacturers such as Bennett Marine and Lenco Marine, and they provide good warranty and customer support. Lenco Marine's Edge Mount Trim Tab Kit, for example, is suitable for boats ranging from 14' to 36' in length.
Another advantage of electric trim tabs is their ease of maintenance. While hydraulic systems require periodic checks of fluid levels and clean electrical connections, electric trim tabs have fewer maintenance requirements. Electric trim tabs also have a lower risk of leaks, as there are no hydraulic lines that can break. However, there is a possibility of saltwater leaking into the motor, but this is not a common occurrence.
Additionally, electric trim tabs can provide precise control over the boat's performance. Lenco Marine's Pro Control Auto feature, for example, offers auto-levelling for improved precision, control, and comfort on the water. Electric trim tabs can also compensate for changes in speed, weight, and sea state, making them suitable for powerboats.
Overall, electric trim tabs offer faster response times, easier installation, automatic retraction, and lower maintenance requirements compared to hydraulic tabs. These features make them a preferable choice for smaller boats, where space and ease of use are important considerations.
Electric Sheep Dreams: Androids and Their Cinematic Journey
You may want to see also
Explore related products
Hydraulic trim tabs may be better value
Electric or hydraulic trim tabs are available for boats, and there are pros and cons to both. While electric trim tabs are easier to install and are faster and more responsive, hydraulic trim tabs may be better value.
Hydraulic trim tabs are marginally more difficult to install and are more expensive. However, they are considered "tried and true", with most boats opting for this traditional system. They are also known for their exceptional reliability, with some users reporting up to 16 years of trouble-free use with minimal maintenance.
One of the main concerns with electric trim tabs is the potential for saltwater to leak into the motor, which is submerged in the water. This is not an issue with hydraulic systems. While hydraulic line breaks and leaks can occur, these are considered rare.
In terms of performance, hydraulic trim tabs may not respond as quickly as electric tabs, but they are still fast and reliable. The main concern with hydraulics is the potential for issues with the pump, rams, and hoses. However, this does not seem to be a common problem, and the risk can be mitigated by periodically checking the fluid level and maintaining the system.
Overall, while electric trim tabs have their advantages, hydraulic trim tabs may offer better value in the long run due to their reliability, durability, and lower maintenance requirements.
Electrical Stimulation Therapy: Nerve Damage Repair Potential
You may want to see also
Explore related products
Electric trim tabs can be more vulnerable to saltwater
Electric trim tabs are more vulnerable to saltwater than hydraulic systems. The electric motor is submerged in saltwater, which can cause issues. Electric trim tabs are also more vulnerable to marine growth, which can cut the O-ring seal, allowing water to enter the system. This can lead to costly repairs or replacements.
Hydraulic trim tabs, on the other hand, have the motor installed inside the boat in a dry environment. They do not rely on a seal where the shaft enters the cylinder body, but rather the seal is made on the piston face, inside the cylinder, where no marine growth can occur. If a seal on a hydraulic actuator breaks, the repair cost is relatively low, as only the seal needs to be replaced.
While electric trim tabs are more vulnerable to saltwater, they have their advantages. Electric actuators are easy to install and are faster than hydraulic systems. They are also a good option for boats with limited space in the bilge area for the hydraulic pump assembly.
However, the vulnerability of electric trim tabs to saltwater is a significant consideration, especially for boats that cannot be easily removed from the water. In such cases, the higher frequency of replacing electromechanical trim tabs can be a burden.
Additionally, some electric trim tab systems may lack an auto-retract feature, which can lead to issues with barnacles attaching to the stainless steel piston rods and compromising the water-tight seals. This further highlights the vulnerability of electric trim tabs to saltwater environments.
Trimming Your Beard: Using an Electric Trimmer Like a Pro
You may want to see also
Frequently asked questions
Trim tabs are hinged metal plates attached to the vertical surface of the transom, just above the running surface bottom interface. They help to control the angle of the boat and improve its performance.
Hydraulic trim tabs are marginally more difficult to install and are generally more expensive than electric trim tabs. Electric trim tabs are easier to install and are often more compact. However, hydraulic trim tabs may be more reliable as they do not require regular changes of hydraulic fluids and there is a small possibility of the electric trim tabs' waterproof outer shell leaking saltwater into the motor.
Hydraulic trim tabs are generally considered more reliable and may be more suitable for use in salt water. They may also have a longer lifespan as they do not require regular changes of hydraulic fluids.
Electric trim tabs are often faster and easier to install. They are also more compact and may be more suitable for boats with limited space in the bilge area.
