Electric fences are designed to shock animals or humans that attempt to cross them. They work by creating an electric circuit that is completed when something touches the hot wire and the ground at the same time. This circuit is closed when an animal touches the fence, allowing the electric current to flow from the energizer, through the fence wires, through the animal, into the soil moisture, to the ground rods, and back to the earth terminal on the energizer. This means that grounding is critical to the proper functioning of an electric fence.
| Characteristics | Values |
|---|---|
| Purpose | To shock animals or humans attempting to cross the boundary |
| Fence Material | Standard smooth or high-tensile wire, synthetic tape or cord, metal or plastic posts, steel T posts |
| Grounding | Grounding circuit is critical for proper functioning; ground rods are installed and wired back to the energizer |
| Ground Rods | Minimum of three, 6-foot-long, galvanized steel ground rods, spaced at least 10 feet apart and joined with galvanized wire |
| Ground Terminal | Connects to the ground rods and then to the ground wires on the fence line |
| Fence Terminal | Connects to the charged wires on the charger |
| Energizer | Converts power into a high-voltage pulse; must have a return path through the ground and Earth Spike |
| Earth Spike | Should be at least 10 meters away from an electricity supply earth rod |
| Voltage | Should be less than 400V; if above 1000V, another ground rod is needed |
| Insulation | Fencing must avoid vegetation and cannot be attached to wood or metal posts directly |
| Distance from Power Lines | Height above ground should not exceed 2 meters |
| Temporary Fencing | Spacing between posts should be no more than 12-15 feet to prevent sagging |
Explore related products
What You'll Learn
- Electric fences require a grounding circuit to function properly
- Grounding rods are essential to the grounding circuit
- The number of grounding rods depends on the length of the fence and the soil type
- The grounding circuit is completed when an animal touches both the fence and the ground
- Proper grounding prevents stray voltage and ensures livestock safety
Electric fences require a grounding circuit to function properly
Electric fences are designed to shock animals or humans who attempt to cross the boundary. A grounding circuit is critical to the proper functioning of an electric fence. The fence charger or energizer converts power into a brief high-voltage pulse, and the grounding circuit ensures that the electric current can flow safely.
The grounding circuit is an essential part of an electric fence system, completing the electrical loop. When an animal touches the electrically charged fence wire, the circuit is closed, allowing the electric current to flow from the energizer, through the fence wires, through the animal, into the soil, to the ground rods, and back to the earth terminal on the energizer. This completes the circuit and delivers a shock to the animal.
The grounding circuit also helps to ensure the safety of the electric fence. By providing a return path for the electric current, the grounding circuit prevents stray voltage, which can cause interference with telephone, internet, or television reception, or accidentally electrify water sources. Proper grounding also ensures that the shock delivered is safe for animals and humans.

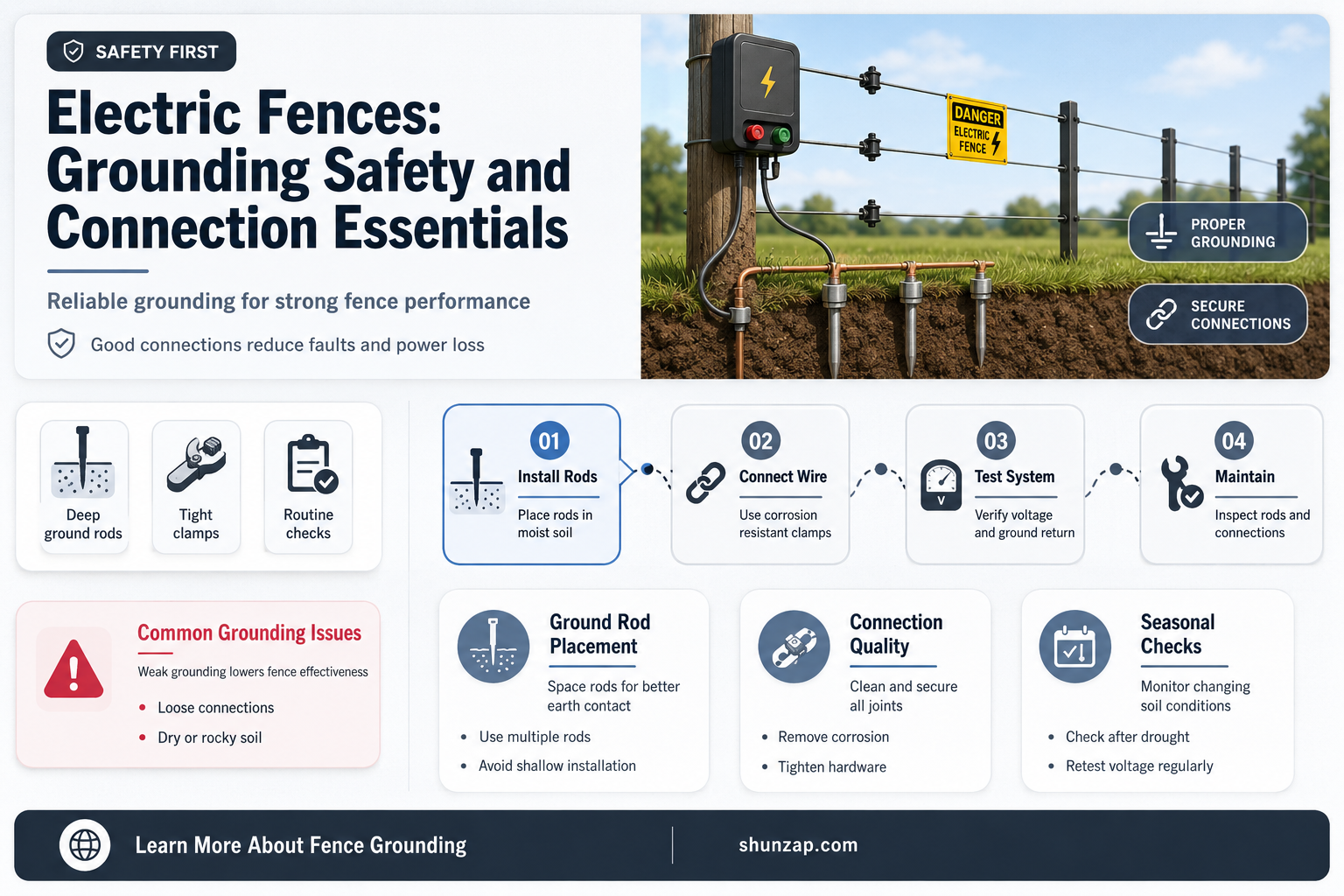

To achieve effective grounding, ground rods are installed and connected to the ground terminal of the energizer. The number and spacing of ground rods will depend on the size of the area being fenced and the soil type. Longer fences and areas with dry, rocky, or sandy soil may require additional grounding rods. The ground rods should be connected with insulated wire and ground rod clamps, forming a linear chain. The wire is then connected to the fence energizer, completing the grounding circuit.
It is important to regularly check the grounding circuit for proper functioning. One way to test the grounding is to measure the voltage between the ground and the Earth Spike with a meter. If the reading is above 200 volts, it indicates inefficient grounding, and adjustments or additional ground rods may be necessary.
Data's Electrical Signal Transformation: Understanding the Process
You may want to see also
Explore related products
Grounding rods are essential to the grounding circuit
Grounding rods are an essential component of the grounding circuit in an electric fence. They provide a safe pathway for excess electricity to dissipate into the earth, protecting people and equipment from harm caused by lightning strikes or power surges. When an animal touches an electric fence, the circuit is completed, and the animal receives a shock as the charge passes through its body and into the earth via the grounding rod.
The grounding rod, also known as an earth rod or ground electrode, is typically made of metal and implanted in the ground. It is connected to the fence's grounding circuit via a grounding wire and a grounding clamp. This circuit is essential to ensure the safe functioning of the electric fence by providing a return path for the electrical current. Without proper grounding, the electric fence may not deliver a shock as intended.
The length and thickness of grounding rods vary, but they typically must be at least eight feet long and have a minimum diameter of 3/8". In dry or resistant soil, multiple grounding rods may be necessary to ensure proper grounding. These rods should be placed at least six feet apart and joined with special clamps. It is important to note that grounding rods should not be connected to other utility grounding rods, such as those used in houses or barns.
The grounding wire, or grounding electrode conductor, connects the grounding rod to the service ground connection. This wire is typically made of copper and must be properly insulated to ensure safe and effective grounding. The grounding clamp, made of conductive material, secures the connection between the grounding wire and the grounding rod with minimal electrical resistance.
Proper installation and maintenance of grounding rods are crucial to ensure the effectiveness of the grounding circuit. This includes selecting the appropriate location, assessing soil conditions, and using the right tools and materials. Regularly measuring the voltage between the ground and the Earth Spike can help identify any issues with the grounding installation and ensure the circuit is functioning correctly.
Dremel and Chicago Electric Accessories: Interchangeable or Not?
You may want to see also
Explore related products
The number of grounding rods depends on the length of the fence and the soil type
Electric fences are designed to shock animals or humans who attempt to cross the boundary. A component called a power energizer converts power into a brief high-voltage pulse. One terminal of the power energizer releases an electrical pulse along a connected bare wire about once per second. Another terminal is connected to a metal rod implanted in the earth, called a ground or earth rod. When an animal touches the fence, the circuit is closed, allowing the electric current to flow from the energizer, through the animal, into the soil moisture, to the ground rods, and back to the earth terminal on the energizer.
The number of grounding rods required for an electric fence depends on the length of the fence and the soil type. Longer fences or areas with dry, rocky, or sandy soil may require more grounding rods. The soil type is important because it affects the conductivity of the system. For example, sandy or rocky soils are not as conductive as loamy soils, so systems installed on these types of soils may need to be an earth return type of grounding system.
The general rule of thumb is to install a minimum of 3 feet of ground rod per joule of output capacity. A 15-joule fence charger will require a minimum of 45 feet of ground rod. These rods must be installed at least 10 feet apart from each other. The lower and wetter the ground they are installed in, the better their performance will be. Ground rods should be more than 75 feet away from other grounds, water lines, or utilities.
Ground rods are typically made of either copper or galvanized metal. While copper is more conductive, it also corrodes faster. Galvanized rods will last longer than copper ones because they are protected from corrosion. It is important to use the correct type of wire to connect the energizer to the ground rod. The wire should be identical to the rod to minimize the reduction in performance from electrolysis.
Harbor Freight's Electric Paint Roller: Worth the Purchase?
You may want to see also
Explore related products
The grounding circuit is completed when an animal touches both the fence and the ground
Electric fences are designed to shock animals or humans if they attempt to cross the boundary. A grounding circuit is necessary for the proper functioning of an electric fence. The fence charger or energizer converts power into a brief high-voltage pulse. One terminal of the power energizer releases an electrical pulse along a connected bare wire about once per second. Another terminal is connected to a metal rod implanted in the earth, called a ground or earth rod.
The grounding circuit is a critical component of an electric fence. Since the earth provides half of the electric field circuit, it is crucial to have a properly installed ground circuit. The energizer, or fence charger, is designed to alter the electric charge into a power that is safe for animals and people. The ground wire is connected to the ground rods, and the ground terminal of the energizer. This way, the ground system is carried out to the animal, and the connection does not rely on dry soil.
To ensure proper grounding, the ground wire should be connected to the ground rods, and the ground terminal of the charger. The ground rods should be installed at a depth of at least 1 metre and should be totally independent of any household or domestic earthing arrangements. The grounding circuit is an essential part of the energizer's performance, as all electrical circuits must form a complete loop from positive (live) to negative (earth). The animal is the missing link that completes the loop.
USS Gerald Ford's Electric Drivetrain: Powering the Navy's Future?
You may want to see also
Explore related products
Proper grounding prevents stray voltage and ensures livestock safety
Electric fences are designed to shock animals or humans if they attempt to cross the boundary. The fencing must be kept insulated from the earth and from any materials that will conduct electricity. This means avoiding vegetation and not attaching the fence directly to wood or metal posts. Instead, wooden or metal posts are driven into the ground, and plastic or porcelain insulators are attached to them.
The grounding circuit is a critical component of an electric fence and is essential to its proper functioning. Grounding ensures that the electric currents in the fence travel through the ground instead of through living organisms, which can cause severe injury or death. The goal of grounding an electric fence is to provide a direct path for any electrical energy that may escape from the fence to travel down into the ground and disperse harmlessly.
Proper grounding prevents stray voltage, which can cause noticeable discomfort in cows and reduce milk production. Sources of stray voltage can include common electrical shorts in equipment, defective underground cables, and missing or inadequate grounding systems.
To prevent stray voltage, electrical wiring systems and equipment must be effectively grounded and bonded. A grounding electrode system or electrode is required to be connected to the grounded conductor at a site-isolating device. An equipotential plane must be installed in livestock areas and must be connected to the building electrical grounding system, which includes the grounding electrodes and the EGCs.
Fixed-Rate Electricity Plans: What's Included and What's Not?
You may want to see also
Frequently asked questions
An electric fence is a fence that is designed to shock animals or humans that attempt to cross the boundary. It is often used to confine horses and pack animals overnight or to support the practice of managed intensive grazing.
Electric fences work by creating an electric circuit. When an animal touches the fence, the circuit is closed, allowing the electric current to flow from the energizer, through the fence wires, through the animal, into the soil moisture, to the ground rods, and back to the earth terminal on the energizer.
Grounding an electric fence is simple. The wire from the ground terminal will connect directly to the ground rods and then connect to the ground wires on the fence line. The ground rods must be totally independent from any other utility grounding rods and at least 10 metres away from an electricity supply earth rod.
