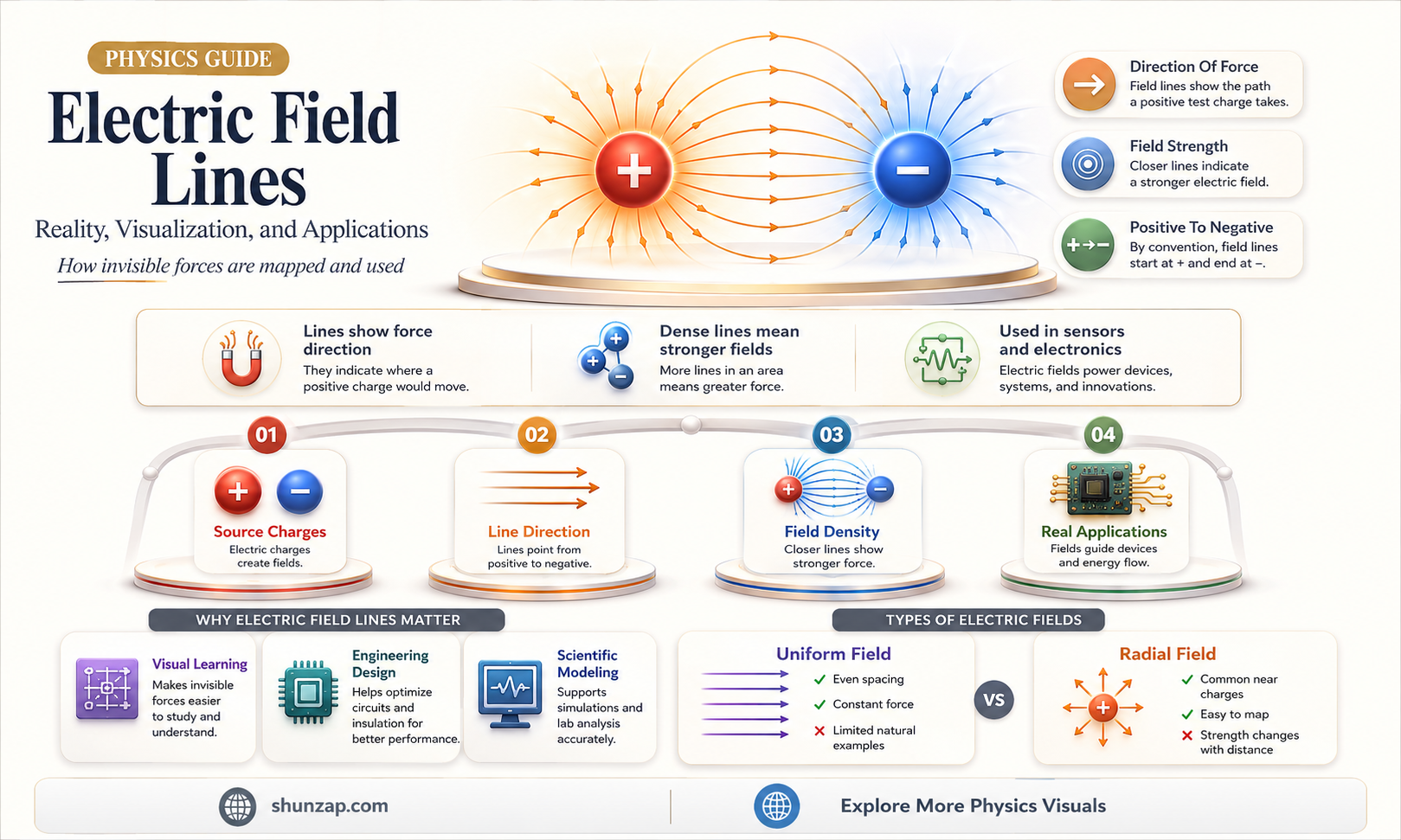

Electric field lines are a conceptual tool used to visualize and understand the direction and strength of electric fields around charged objects. While they are not physical entities that can be observed directly, they represent the path a positive test charge would follow if placed in the field. These lines originate from positive charges and terminate on negative charges, with their density indicating the field’s strength—closer lines signify a stronger field. Electric field lines are widely used in physics and engineering to analyze charge distributions, predict the behavior of charged particles, and design electrical systems, making them an indispensable aid in both theoretical and practical applications.
| Characteristics | Values |
|---|---|
| Are Electric Field Lines Real? | No, electric field lines are not physical entities. They are a conceptual tool used to visualize and understand the direction and strength of electric fields. |
| Purpose | To represent the direction and relative strength of the electric field at various points in space. |
| Direction | Point from positive charges to negative charges, indicating the direction a positive test charge would move if placed in the field. |
| Density | The density of field lines (closeness of lines) represents the strength of the electric field. More lines per unit area indicate a stronger field. |
| Never Intersect | Electric field lines never cross each other. If they did, it would imply two directions for the electric field at the same point, which is physically impossible. |
| Always Continuous | Field lines are continuous curves, reflecting the continuous nature of electric fields. |
| Start and End | Begin on positive charges and end on negative charges, or extend to infinity if there are no negative charges present. |
| Perpendicular to Surface | Electric field lines are always perpendicular to the surface of a conductor at equilibrium. |
| Applications | Used in physics education, engineering, and research to:
|
Explore related products
What You'll Learn
- Physical Reality of Field Lines: Are electric field lines tangible or just visual aids for understanding
- Direction and Density: How do field lines indicate direction and strength of electric fields
- Applications in Physics: How are field lines used to solve electrostatic problems
- Educational Tools: Role of field lines in teaching and visualizing electric fields
- Limitations and Misconceptions: Common misunderstandings about electric field lines and their usage
Physical Reality of Field Lines: Are electric field lines tangible or just visual aids for understanding?
Electric field lines, those graceful arcs and vectors we sketch in physics textbooks, are not physical entities you can touch or measure directly. They are conceptual tools, born from the necessity to visualize an invisible force. Imagine trying to explain the wind without arrows showing direction and strength—field lines serve a similar purpose, mapping the influence of electric charges in space. Yet, their abstract nature sparks a fascinating debate: Do they merely simplify complex ideas, or do they reflect a deeper, tangible reality?
To understand their role, consider how field lines are constructed. They emerge from positive charges and terminate on negative ones, their density indicating field strength. This structure isn’t arbitrary; it mirrors the mathematical framework of vector fields described by equations like Gauss’s Law. Here’s the crux: While the lines themselves aren’t physical, the forces they represent are. A charged particle placed in an electric field will move along the path dictated by these lines, confirming their predictive power. Field lines, then, are not just artistic renderings—they are precise guides rooted in empirical observation.
However, their intangibility invites skepticism. Unlike a magnetic field, which can be made visible through iron filings, electric field lines lack a direct physical analog. They are inferred, not observed. This distinction blurs the line between reality and representation. Critics argue that relying too heavily on field lines can oversimplify the nuanced behavior of electric fields, especially in complex systems like capacitors or charged distributions. Yet, even in these cases, field lines remain indispensable for intuition-building, offering a bridge between abstract theory and practical application.
The true value of field lines lies in their utility. Engineers use them to design circuits, physicists to model particle interactions, and educators to teach fundamental concepts. For instance, the symmetry of field lines around a point charge elegantly illustrates the inverse-square law. While not tangible, their predictive accuracy and pedagogical effectiveness make them as real as any tool in the scientific arsenal. They are not the territory, but the map—and a map, when well-drawn, can reveal truths about the land it represents.
In conclusion, electric field lines are neither tangible nor trivial. They are conceptual constructs that distill the behavior of electric fields into a form our minds can grasp. Their reality lies not in physical presence but in their ability to predict, explain, and inspire. Like the notes of a musical score, they don’t produce sound themselves, but they guide the creation of something profoundly real. To dismiss them as mere visual aids is to overlook their role as the language of electromagnetism—a language that, once learned, unlocks the invisible forces shaping our world.
Using PVC Electrical Conduit in Walls: Safety, Code, and Best Practices
You may want to see also
Explore related products
Direction and Density: How do field lines indicate direction and strength of electric fields?
Electric field lines are a visual tool that elegantly conveys the direction and strength of electric fields. By convention, these lines emerge from positive charges and terminate on negative charges, providing an immediate sense of the field's orientation. This directional flow is crucial for understanding how a positive test charge would move if placed within the field—always along the field lines, from positive to negative. For instance, in a simple dipole setup with a positive and negative charge, the lines radiate outward from the positive charge and converge into the negative charge, clearly illustrating the field's pathway.
The density of field lines, or how closely they are spaced, directly indicates the strength of the electric field. In regions where the lines are densely packed, the field is stronger, while sparse lines signify a weaker field. Consider a uniform electric field between two parallel plates: the lines are evenly spaced and parallel, reflecting a constant field strength. In contrast, near a point charge, the lines are closer together closer to the charge and spread out farther away, visually representing the inverse-square relationship of field strength with distance. This principle allows engineers and physicists to quickly assess field intensity without complex calculations.
To effectively use field lines for practical applications, such as designing electrical circuits or analyzing charge distributions, follow these steps: first, identify the charges creating the field and sketch their positions. Next, draw lines originating from positive charges and ending on negative charges, ensuring they never intersect or form closed loops. Finally, adjust the density of lines based on the charge magnitude and distance, with more lines indicating greater charge or closer proximity. For example, a 10 μC charge will have more lines than a 1 μC charge, and lines near a 1 cm separation will be denser than those at 10 cm.
While field lines are a powerful tool, they have limitations. They cannot represent fields in three dimensions on a 2D plane without distortion, and they do not account for the field’s absolute strength, only its relative intensity. For precise calculations, mathematical methods like Gauss’s Law or Coulomb’s Law are necessary. However, for quick visualizations and conceptual understanding, field lines remain indispensable. For instance, in teaching high school physics, using field lines to explain capacitors or charged particles in a vacuum can make abstract concepts tangible.
In summary, electric field lines serve as a dual-purpose tool: their direction reveals the path a positive charge would follow, and their density quantifies the field’s strength. By mastering their interpretation and application, one can efficiently analyze charge interactions and design systems reliant on electric fields. Whether in academic study or industrial design, this visual framework bridges the gap between theory and practice, making complex phenomena accessible and actionable.
Do Sleeping Computers Consume Electricity? Unveiling Power Usage in Sleep Mode
You may want to see also
Explore related products
Applications in Physics: How are field lines used to solve electrostatic problems?
Electric field lines are a powerful tool in physics, offering a visual and intuitive way to understand and solve complex electrostatic problems. While they are not physical entities, their conceptual framework provides invaluable insights into the behavior of electric fields. By representing the direction and strength of the field at various points in space, these lines enable physicists to analyze and predict the interactions between charged particles and objects.
Consider a simple scenario: a positive point charge in a vacuum. The electric field lines radiate outward, uniformly distributed in all directions, indicating that the field strength decreases with distance according to the inverse square law. This visualization immediately reveals that the field is strongest closest to the charge and weakens as you move away. For instance, at a distance of 1 meter from a 1 Coulomb charge, the electric field strength is approximately 9 billion Newtons per Coulomb (N/C), but at 2 meters, it drops to 2.25 billion N/C. This principle is crucial when designing systems like particle accelerators, where precise control of electric fields is essential to guide charged particles along desired paths.
In more complex setups, such as multiple charges or charged objects with irregular shapes, field lines help identify regions of high field strength, known as stress points, where dielectric breakdown or arcing might occur. For example, in a capacitor with sharp edges, field lines are denser near the edges, indicating a higher risk of electrical discharge. Engineers use this insight to modify designs, adding features like rounded edges or shielding to distribute the field more evenly. A practical tip: when working with high-voltage equipment, always ensure that sharp corners are avoided to prevent localized field intensification, which can lead to insulation failure.
Field lines also simplify the analysis of symmetry in electrostatic systems. For a uniformly charged spherical shell, the field lines outside the shell are identical to those of a point charge at the center, while inside the shell, the field is zero. This symmetry allows physicists to solve problems more efficiently by focusing on key regions rather than calculating field strengths point by point. For students, mastering this concept can significantly reduce the complexity of exam problems involving symmetric charge distributions.
Finally, field lines are instrumental in understanding and solving problems involving Gauss’s Law, a fundamental principle in electrostatics. By selecting a Gaussian surface that aligns with the symmetry of the field lines, one can easily calculate the electric flux and, consequently, the enclosed charge. For instance, in a cylindrical conductor with a uniform charge density, the field lines are perpendicular to the curved surface and parallel to the end caps. This alignment simplifies the application of Gauss’s Law, enabling quick determination of the field strength without intricate integration.
In summary, electric field lines, though abstract, are indispensable in solving electrostatic problems. They provide a clear, visual method to analyze field strength, identify critical points, exploit symmetry, and apply theoretical principles like Gauss’s Law. Whether in academic problem-solving or practical engineering, mastering the use of field lines is a cornerstone skill for anyone working with electric fields.
Does Your Electric Stove Top Smoke After Sitting Unused?
You may want to see also
Explore related products
Educational Tools: Role of field lines in teaching and visualizing electric fields
Electric field lines, though abstract, serve as indispensable tools in education, bridging the gap between theoretical concepts and tangible understanding. By representing the direction and strength of electric fields, these lines transform complex mathematical equations into visual narratives that students can grasp intuitively. For instance, in a high school physics classroom, drawing field lines around a point charge helps learners visualize how the field radiates outward, with line density indicating field strength. This visual approach not only simplifies learning but also fosters spatial reasoning, a critical skill in STEM fields.
To effectively use field lines as an educational tool, instructors should follow a structured approach. Begin by introducing the concept of field lines as a model, emphasizing their role as a simplification of real-world phenomena. Next, demonstrate how to draw field lines for basic configurations, such as dipoles or parallel plates, using colored markers or digital tools like PhET simulations. Encourage students to experiment with varying charge magnitudes and positions to observe how field lines adapt. For younger learners (ages 12–14), start with qualitative descriptions, while older students (ages 16+) can explore quantitative relationships, such as the inverse square law for point charges.
One of the most compelling aspects of field lines is their ability to reveal hidden patterns in electric fields. For example, visualizing the superposition of fields from multiple charges highlights regions of constructive and destructive interference, a concept that can be challenging to explain algebraically. This visual insight not only aids comprehension but also sparks curiosity, prompting students to ask questions like, "What happens if we add a third charge?" or "How does field strength change with distance?" Such inquiries foster a deeper engagement with the material, turning passive learners into active explorers.
However, educators must exercise caution to avoid misconceptions. Field lines, while useful, are not physical entities; they are a human construct designed to aid understanding. Stress that lines never intersect or form closed loops in the presence of static charges, as these errors are common among beginners. Additionally, remind students that the absence of field lines in a region does not imply zero field strength—it merely reflects the scale of the diagram. Pairing visual lessons with hands-on activities, such as using compasses to map fields around charged objects, can reinforce these principles and provide a tactile dimension to learning.
In conclusion, field lines are a powerful educational tool that democratizes access to complex concepts in electromagnetism. By combining visual intuition with analytical rigor, they cater to diverse learning styles and age groups, from middle schoolers sketching their first dipole to college students analyzing advanced configurations. When used thoughtfully, field lines not only teach the mechanics of electric fields but also inspire a sense of wonder about the invisible forces shaping our world. As educators, our role is to guide students in interpreting these visualizations critically, ensuring they emerge with both knowledge and curiosity intact.
Using Extension Cords for Electric Smokers: Safe or Risky?
You may want to see also
Explore related products
Limitations and Misconceptions: Common misunderstandings about electric field lines and their usage
Electric field lines, while invaluable in visualizing and understanding electric fields, are often misunderstood as physical entities. This misconception stems from their graphical representation, which can misleadingly suggest they are tangible lines of force. In reality, these lines are a conceptual tool, a mathematical construct used to map the direction and strength of electric fields. They do not exist physically; you cannot "see" or "touch" them. This fundamental misunderstanding can lead to errors in interpreting field interactions, particularly in complex systems where multiple charges are involved.
One common misconception is that electric field lines can intersect. This idea is flawed because intersecting lines would imply two directions for the electric field at a single point, which violates the principle that the electric field at any point is a vector with a unique direction. To avoid this error, always ensure that field lines are drawn such that they never cross. For instance, when visualizing the field between two opposite charges, the lines should smoothly transition from one charge to the other without any intersections, clearly showing the field's direction and strength.
Another limitation is the assumption that the density of field lines directly corresponds to the electric field strength. While it is true that closer lines indicate a stronger field, this relationship is qualitative, not quantitative. For precise calculations, one must rely on mathematical equations like Gauss's Law or Coulomb's Law. For example, if you are analyzing the field around a point charge, doubling the number of lines drawn does not double the field strength; it merely enhances the visual representation. Practical tip: Use software tools like MATLAB or Python libraries (e.g., matplotlib) to plot field lines with accurate scaling for educational or research purposes.
A pervasive misunderstanding is that electric field lines originate only from positive charges and terminate only on negative charges. While this is true for systems with opposite charges, it does not hold for like charges. In a system of two positive charges, for instance, the lines do not "end" in space; they form closed loops extending outward to infinity. This highlights the importance of context in interpreting field line diagrams. Caution: Avoid oversimplifying diagrams for like charges, as this can lead to incorrect assumptions about field behavior.
Finally, there is a tendency to equate the number of field lines drawn with the actual number of "force lines" in a system. This is a misinterpretation, as the number of lines in a diagram is arbitrary and chosen for clarity. In reality, the electric field is continuous, and the concept of discrete lines is purely for visualization. For practical applications, such as designing capacitors or understanding electron flow in circuits, focus on the principles of superposition and symmetry rather than the number of lines. Takeaway: Use field lines as a guide, but always ground your analysis in mathematical principles for accuracy.
Electric Lock Picking: Unlocking Wafer Locks with Modern Tools
You may want to see also
Frequently asked questions
No, electric field lines are not real physical objects. They are a conceptual tool used to visualize the direction and strength of electric fields around charged objects.
Electric field lines are used to represent the direction a positive test charge would move if placed in the field. They also indicate the field's strength, with closer lines signifying a stronger field.
No, electric field lines cannot intersect. If they did, it would imply two directions for the electric field at the same point, which is physically impossible.
The density of electric field lines indicates the strength of the electric field. More lines per unit area represent a stronger field, while fewer lines represent a weaker field.
Electric field lines can be either straight or curved, depending on the distribution of charges. For example, lines around a point charge are radial and straight, while those around a dipole are curved.
