Electric trailer brakes are a system that helps operate a trailer's brakes while driving a towing vehicle. They are controlled by a brake controller, which uses electricity from the tow vehicle to apply power to the trailer brakes. The controller adjusts the voltage sent to the electromagnets in the trailer's brakes, which are drawn to the hub surface of the drum, using a lever to press the brake pads against the drum, and stopping the trailer. Electric trailer brakes do not work without a brake controller, and they require a power source to function. So, when unplugged, electric trailer brakes are inactive, and the trailer is free to move.
Explore related products
What You'll Learn
Electric trailer brakes require a controller to work
Electric trailer brakes are a convenient and effective way to manage heavier loads when towing. They are also useful for correcting minor trailer sway and slowing down on a steep hill or before stops. However, electric trailer brakes require a controller to function. Without a controller, electric trailer brakes will not work.
A trailer brake controller is an electronic device that regulates the electric trailer brakes. It allows the driver to activate and monitor the trailer brake activity from the cab of the vehicle. The controller is mounted in the cab of the vehicle and has various controls, including an interface to view braking information and buttons to control the output and manual activation.
There are two basic types of brake controllers: time-delay and proportional or inertia-based. Time-delay controllers activate the trailer brakes with an increasing amount of power, fixed over time. This type of controller can be adjusted to accommodate different trailers. Proportional or inertia-based controllers use an electrical circuit called an accelerometer to sense changes in momentum. When the brake pedal is pressed, the controller applies power to the trailer brakes in proportion to the vehicle's momentum, providing smooth and efficient braking.
To use a trailer brake controller, the trailer wiring harness must be plugged into the tow vehicle. The controller will then calibrate, and adjustments can be made to the trailer brake gain and braking sensitivity. It is important to ensure that the controller is set up correctly and that the vehicle and trailer are parked on a level surface during the setup process.
In summary, electric trailer brakes require a controller to work. The controller allows the driver to activate and monitor the brakes, providing a safer and more controlled towing experience.
Neurons and Circuits: Electrical Similarities in Brain Function
You may want to see also
Explore related products
Electric trailer brakes are not active when unplugged
Electric trailer brakes work through an electrical connection with the towing vehicle and a brake controller to manage the force and timing of the trailer's brakes. The controller adjusts the voltage sent to the electromagnets in the trailer's brakes, which are drawn to the hub surface of the drum. This action uses a lever to press the brake pads against the drum, stopping the trailer. The brake controller is an electronic device that regulates the electric trailer brakes, allowing the driver to activate and monitor trailer brake activity from the cab of the vehicle.
A time-delay brake controller operates on simple electrical principles. When the driver presses the brake pedal, the time-based brake controller activates the trailer brakes, applying an increasing amount of power, fixed over time. This is called gain. The gain setting can be adjusted by the driver to accommodate each specific trailer. A proportional or inertia-based brake controller uses an electrical circuit called an accelerometer to sense changes in momentum. When the brake pedal is pressed, the brake controller applies power to the trailer brakes in proportion to the vehicle's momentum.
Electric trailer brakes do not work without a brake controller. Some trailers are equipped with surge brakes, which are a hydraulic braking system that uses the trailer's own weight and momentum to actuate the brakes. Unlike electric trailer brakes, they do not require a brake controller or an electrical connection to the vehicle.
Measuring Electromagnetic Radiation: Understanding the Fundamentals
You may want to see also
Explore related products
Electric trailer brakes can lock up while driving

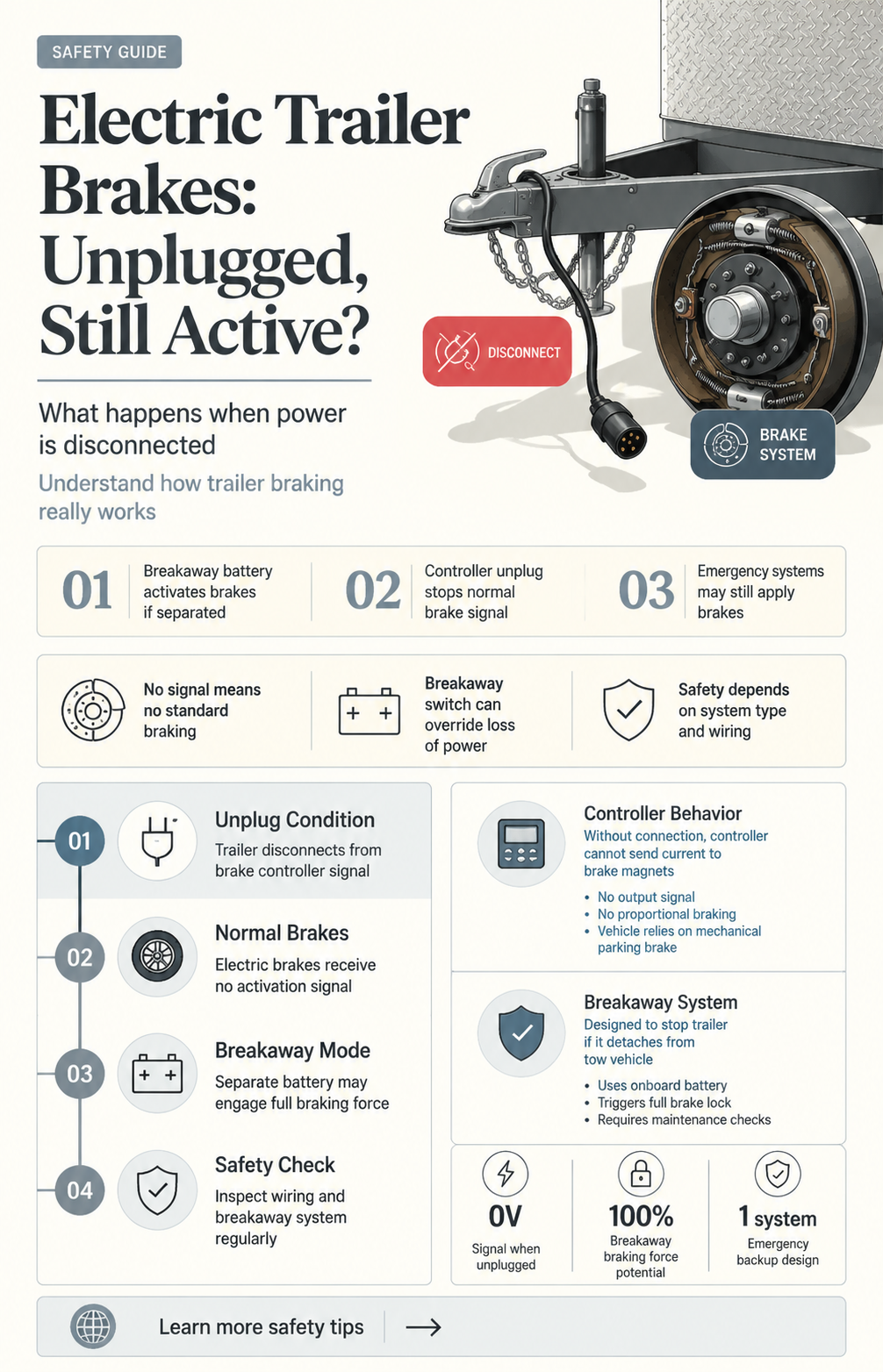

Electric trailer brakes are off by default when there is no power to them. They require a battery to function and are controlled by a brake controller. If the trailer is unplugged, the brakes will not be activated unless the breakaway system's pin has been pulled.
There are several reasons why electric trailer brakes can lock up while driving. Firstly, there could be a malfunction with the brake controller. This can be tested using a circuit tester to check for power when the manual override is applied and released. If there is no power when applying the manual override, or if there is power when releasing it, the brake controller needs to be replaced. Secondly, there could be issues with the wiring, such as exposed wires touching the metal trailer frame or a short in the system. It is important to inspect the wiring for any nicks or corrosion and ensure proper connection.
Additionally, problems with the magnets can cause brake lock-up. If the windings are visible, the magnets need to be replaced. If your trailer has a breakaway system, ensure the system battery, wiring, and pin insertion are all in good condition.
In some cases, the issue may lie in the connector on the trailer not matching the connector on the vehicle. For example, 6-way trailer connectors have two possible wiring configurations, and if the centre pin on the trailer is for brakes but the vehicle's centre pin is for 12-volt power, the brakes will lock up.
It is important to note that if you are experiencing brake lock-up, you should disconnect the trailer from the vehicle and test the connector on the vehicle side for any issues.
How Temperature Affects Electrical Flow and Speed
You may want to see also
Explore related products
Electric trailer brakes are cheaper and require less maintenance than hydraulic brakes
Electric trailer brakes are not active when unplugged. They require a power source to function. If you have a battery on your trailer and you pull the cable for the emergency disconnect, the brakes will be activated.
Electric trailer brakes are initially cheaper than hydraulic brakes and require less maintenance. Electric brakes have been the go-to option for trailers for many years due to their cost-effectiveness and ease of maintenance. They are a popular choice, especially for trailers that don't undergo heavy commercial use. Electric brakes provide fast response times and good control over the action of trailer brakes.
However, in the hotshot trucking industry, electric brakes often lead to problems due to their design and durability under extensive use. Electric brakes rely on an electromagnet to activate the brake pads, and over time, constant movement and road debris can wear down the magnet and attached wires, leading to faults and the need for replacements. This frequent usage can result in maintenance issues, frequent replacements, and higher long-term costs.
On the other hand, hydraulic brakes use the force or momentum of a slowing tow vehicle to apply the brakes on a trailer. They provide much stronger stopping power compared to electric brakes. While electric over hydraulic brakes are more expensive upfront, they offer better performance, reliability, and lower long-term costs due to their superior stopping power and ease of maintenance.
Rocklahoma RV Camping: Electric Hookups Available?
You may want to see also
Explore related products
Electric trailer brakes cannot hold a trailer in place
Electric trailer brakes are off when there is no power. They are magnets that, when energised, grab onto the spinning brake drum. This action pulls an arm that the magnet is attached to, which actuates the friction surface to push against the drum. Even if they were electrically active, they cannot hold a trailer in place. They require the drum movement to engage the brake.
Electric trailer brakes are the most common type of trailer brakes. They work through an electrical connection with the towing vehicle with a brake controller to manage the force and timing of the trailer's brakes. The controller adjusts the voltage sent to the electromagnets in the trailer's brakes, which are drawn to the hub surface of the drum. This, in turn, uses a lever to press the brake pads against the drum, stopping the trailer.
The brake controller uses electricity from the tow vehicle to apply a specific amount of power to the trailer brakes. It uses electrical circuits and trailer gain settings to regulate the amount of braking power. Some brake controllers have circuits that respond to the vehicle's momentum while towing. A time-delay brake controller, for example, operates on very simple electrical principles. As soon as the driver presses the brake pedal, the time-based brake controller activates the trailer brakes, applying an increasing amount of power, fixed over time.
However, the time-delay approach is not as precise as the proportional method. A proportional or inertia-based brake controller uses an electrical circuit called an accelerometer to sense changes in momentum. When the driver presses the brake pedal, the brake controller applies power to the trailer brakes in proportion to the vehicle's momentum. Proportional brake controllers provide smooth stops and efficient braking. This is especially apparent when braking on a hill.
Electric vs Manual Toothbrush: Which Cleans Better?
You may want to see also
Frequently asked questions
No, electric trailer brakes are not active when unplugged. They require a power source to function.
Electric trailer brakes work through an electrical connection with the towing vehicle. A brake controller regulates the electric trailer brakes by adjusting the voltage sent to the electromagnets in the trailer's brakes.
Electric trailer brakes are a popular choice due to their lower cost, ease of installation, and minimal maintenance requirements compared to hydraulic surge brakes. They also provide better control and safety during downhill and immediate stops.
Several factors could contribute to problems with electric trailer brakes. These include wiring issues, incorrect voltage, mechanical failure, or foreign objects in the brake assembly. Regular inspection and maintenance are essential to ensure proper functioning.
