Beatrice Lang

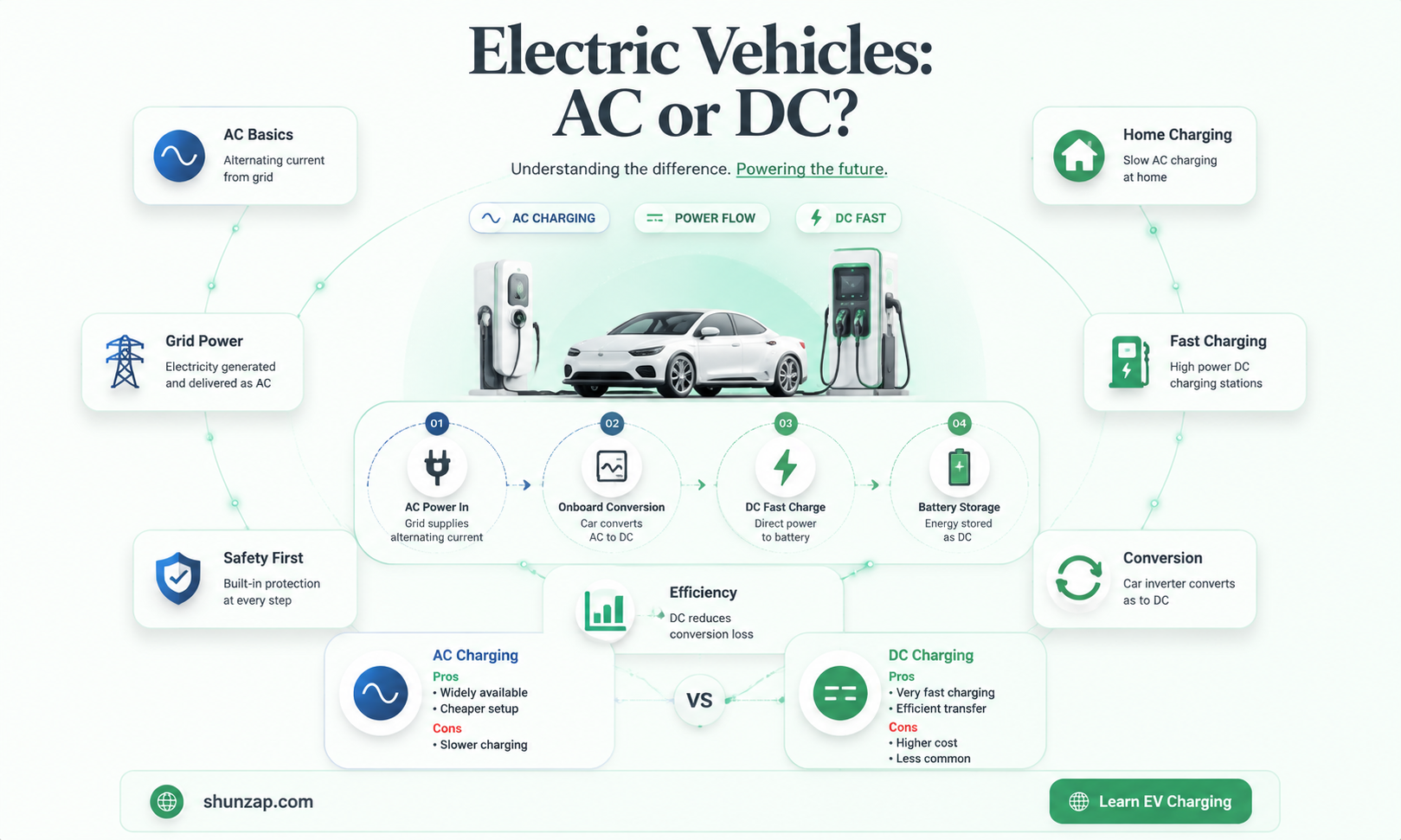

Electric vehicles (EVs) use both alternating current (AC) and direct current (DC) to run and charge. The electricity supplied to homes is AC, and this is also the current that powers the electric motor. However, the battery stores and dispenses DC current. When charging an EV, the AC current from the grid passes through an onboard charger, which converts it to DC before sending it to the battery. This process is reversed when the battery is providing power to the motor.
| Characteristics | Values |
|---|---|
| Electric vehicle charging stations | Utilize both alternating current (AC) and direct current (DC) to power EVs |
| Alternating current (AC) | The electricity supplied to your home arrives as AC; the north/south or plus/minus polarity of the power changes (alternates) 60 times per second |
| Direct current (DC) | Is what goes into and comes out of the + and - poles of every battery |
| DC power is more stable due to the consistent flow of current | |
| AC Level 2 charging is the most common form to power EVs | |
| Level 3 charging is the fastest way to power an EV |
Explore related products
What You'll Learn
- Electric vehicle charging stations use both AC and DC power
- AC power is slower but more accessible, while DC power is faster but less widespread
- AC electricity alternates its polarity, while DC electricity maintains a constant polarity and direction
- The power grid relies on AC power, so DC charging stations are larger and less common
- Electric vehicles are designed to manage both AC and DC energy
Electric vehicle charging stations use both AC and DC power
Electric vehicle charging stations use both alternating current (AC) and direct current (DC) power. The electricity supplied to homes is AC, and this is also the power that is used for Level 1 and Level 2 charging stations. Level 1 charging is inexpensive and accessible, but it is the slowest way to charge a vehicle. Level 2 charging is the most common form of charging EVs, and it is effective for most EV drivers.
Level 3 charging, also known as "fast charging" or "rapid charging", is the fastest way to power an EV. This level of charging uses high-power DC and can top up an empty EV battery in as little as 30 minutes. Level 3 chargers are a great option for fuel stations along major routes. The onboard charger in the vehicle converts the power from AC to DC and manages the voltage and current to safely charge the battery.
The power from the grid is always AC, which then passes through the electric vehicle's onboard charger and is converted to DC before being sent to the battery. However, rapid charging stations that can be found on highways, in parking lots, and on city streets carry out the AC to DC conversion process themselves, so the energy arrives in the car as DC. DC power is more stable due to its consistent flow of current, and it is faster for EV charging. The main drawback of DC power is the lack of infrastructure, as the power grid relies mainly on AC power.
Ford's Electric Vehicle Future: On Hold or Over?
You may want to see also
Explore related products
AC power is slower but more accessible, while DC power is faster but less widespread
Electric vehicles (EVs) use both alternating current (AC) and direct current (DC) to power their electric motors. AC and DC refer to the direction of the electric charge: AC periodically reverses direction, while DC flows in only one direction.
AC power is slower to charge than DC power but is more accessible. This is because the power supplied to homes and the power grid comes as AC. Therefore, AC charging stations do not require additional conversion processes, unlike DC power, which needs to be converted from AC. Level 1 and Level 2 charging use AC power, with Level 2 being the most common form of EV charging. Level 2 chargers are effective for most EV drivers and are often used for overnight charging at home.
DC power is faster at charging EVs than AC power. This is because of its consistent flow of current, which results in greater stability. However, due to the power grid relying primarily on AC power, DC charging stations are less widespread, especially for smaller-scale applications. DC power is also associated with a higher initial setup cost and construction. Level 3 "fast chargers" use DC power and can top up an empty EV battery in as little as 30 minutes, making them ideal for fuel stations along major routes.
While AC power is slower and more accessible, and DC power is faster but less widespread, the accessibility of DC power has improved. Additionally, EVs are designed to manage both AC and DC energy onboard. The battery stores and dispenses DC power, while the motor requires AC.
Electric Vehicles: Why Women Are Not Fans
You may want to see also
Explore related products
AC electricity alternates its polarity, while DC electricity maintains a constant polarity and direction
Electric vehicles (EVs) use both alternating current (AC) and direct current (DC) to power their systems. AC electricity alternates its polarity, while DC electricity maintains a constant polarity and direction.
AC electricity is supplied to homes and businesses, and it is used to power the electric motors in EVs. The rapid oscillation of AC electricity facilitates long-distance electricity transmission, making it the global standard for electrical grid infrastructure. The polarity of AC electricity switches back and forth constantly, typically 50 or 60 times per second. This alternating current occurs on the “hot” wire, while the “neutral” wire is connected to the ground. The voltage supplied by AC power varies by country. For example, in the US, a standard AC wall plug delivers 120V at 60Hz, while in the UK, a household plug provides 230V at 50Hz.
On the other hand, DC electricity is what goes into and comes out of the positive and negative poles of a battery. It is a stable source of electricity with a consistent flow of current in one direction. DC power is more stable and faster for EV charging, but it lacks the infrastructure of AC power. Additionally, DC power cannot be used with a transformer, making it challenging to transmit at high voltages over power lines. The development of electricity began with DC power, championed by Thomas Edison. However, Nikola Tesla established AC electricity to overcome the limitations of DC power.
In an EV, the battery stores and dispenses DC current, but the motor requires AC current. During Level 1 and Level 2 charging, the energy comes into the onboard charger as AC current, and during Level 3 "fast charging," it enters as DC high-voltage current. The EV's powertrain includes an inverter, a device that converts the DC electricity from the battery to AC electricity for the motor.
Arizona's Electric Vehicle Companies: Who's Leading the Charge?
You may want to see also
Explore related products
The power grid relies on AC power, so DC charging stations are larger and less common
Electric vehicle (EV) charging stations use both alternating current (AC) and direct current (DC) to power EVs. The power that comes from the grid is always AC, while the energy stored in batteries is always DC. This means that AC power from the grid must be converted into DC power for the battery. This conversion can happen in one of two places: within the vehicle or outside the vehicle at the charging station.
When the conversion from AC to DC happens within the vehicle, the AC power from the grid is sent to the vehicle's onboard charger, which then sends the power to the battery. This process is slower than DC charging.
DC charging, on the other hand, involves performing the AC to DC conversion externally at the charging station. This allows for the use of larger converters, resulting in much faster charging speeds. DC charging stations can provide up to 400 kW of power and can fully charge an EV in just a few minutes. However, they require more space, are more expensive to install and maintain, and are less common due to the lack of supporting infrastructure.
While DC charging is faster, it is not recommended for daily use. DC charging stations are typically found at public charging locations, such as highway rest stops and commercial parking lots, where they can be used for quick top-ups during long trips. AC charging, on the other hand, is ideal for home and workplace charging, with Level 1 and Level 2 chargers providing slower but more cost-effective options.
Wyoming's Proposed Ban on Electric Vehicles: What's the Story?
You may want to see also
Explore related products
Electric vehicles are designed to manage both AC and DC energy
Electric vehicles (EVs) are designed to manage both alternating current (AC) and direct current (DC) energy. The electricity supplied to homes is AC, which is also used to charge EVs. However, the battery in an EV stores and dispenses DC current, which is then converted to AC to power the motor. This is because the motor requires the alternating current to spin, as without it, the electromagnetic force would lock the north and south poles together.
The onboard charger in an EV is responsible for converting the incoming AC power to DC for the battery. This is also the case for charging stations that provide AC power, which is then converted to DC by the onboard charger. Rapid charging stations, on the other hand, carry out the AC to DC conversion themselves, sending DC power directly to the vehicle. This is faster than AC electricity outlets, but the corresponding infrastructure is lacking due to the power grid primarily relying on AC power.
The voltage of the electricity supplied to EVs is also important, as it influences the storage of energy in the battery, the performance of the motor, and the charging of the vehicle. EVs typically operate at higher voltages, ranging from 400 to 800 volts, to enable efficient energy transfer and improved performance. Higher voltage charging stations can deliver more power, resulting in faster charging times, although this also depends on the vehicle's battery management system.
There are different levels of EV charging, with Level 1 and Level 2 charging providing AC power, and Level 3 "fast charging" providing DC power. Level 2 charging is the most common form, using a transformer to increase the voltage and charging speed, while Level 3 charging is the fastest way to power an EV, able to top up an empty battery in as little as 30 minutes.
Are Electric Vehicles Exempt from Express Lane Tolls?
You may want to see also
Frequently asked questions
Alternating Current (AC) and Direct Current (DC) are two different types of electric flow. AC is called so because the north/south or plus/minus polarity of the power alternates 60 times per second. DC is when the electric charge flows in only one direction.
Electric vehicles use both AC and DC. The power from the grid is always AC, which is then converted to DC by the onboard charger. The battery stores and dispenses DC current, but the motor needs AC.
AC Level 2 charging is the most common form to power EVs. DC Level 3 charging is the fastest way to power an EV but requires more initial setup costs and construction. DC power is more stable due to the consistent flow of current, but there is a lack of infrastructure for DC charging.
