Otis Singleton

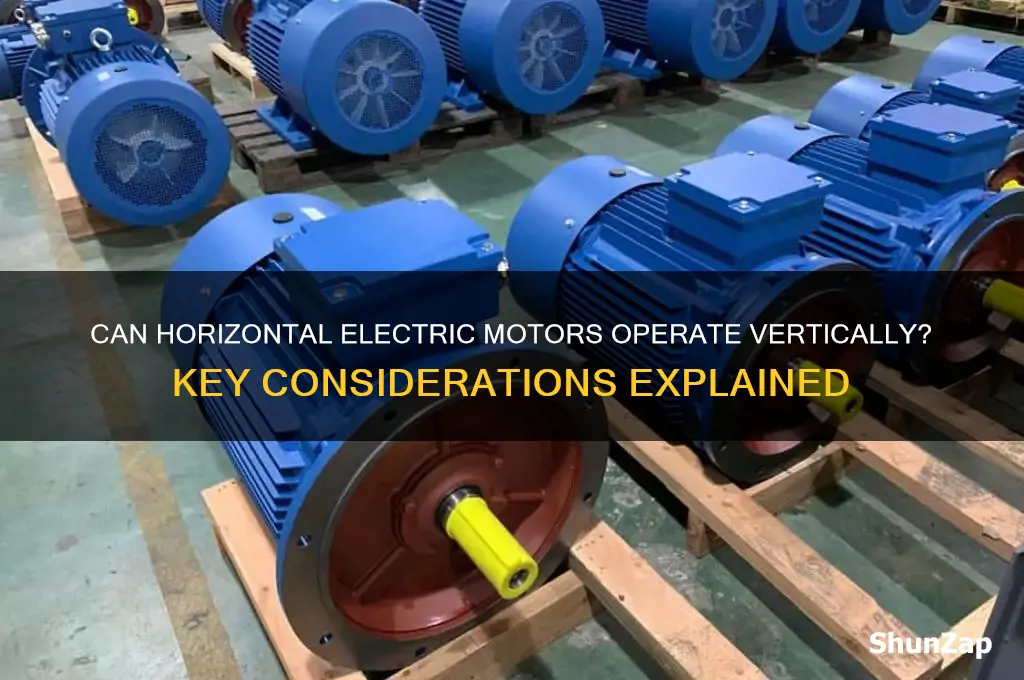

The question of whether a horizontal electric motor can be used vertically is a common one in industrial and engineering applications. While many electric motors are designed for specific orientations, some horizontal motors can indeed be adapted for vertical use, provided certain conditions are met. Key factors to consider include the motor's bearing design, lubrication system, and cooling mechanism, as these elements are often optimized for horizontal operation. Vertical installation may require modifications to ensure proper lubrication and heat dissipation, and it’s crucial to consult the manufacturer’s guidelines to avoid damage or reduced performance. Understanding these technical nuances is essential for safely and effectively repurposing a horizontal motor for vertical applications.
Explore related products
What You'll Learn
- Mounting Considerations: Proper brackets and base support are essential for vertical operation
- Bearing Load Changes: Vertical use alters bearing stress, requiring specific designs or modifications
- Cooling Efficiency: Airflow and heat dissipation may differ, impacting motor performance and lifespan
- Shaft Seal Integrity: Vertical orientation can affect seal effectiveness, risking leaks or contamination
- Vibration and Alignment: Vertical use may increase vibration, necessitating precise alignment and balancing
Mounting Considerations: Proper brackets and base support are essential for vertical operation
Mounting a horizontal electric motor for vertical operation isn’t as simple as flipping it on its side. The shift in orientation introduces new stresses, particularly on the motor’s bearings and shaft. Proper brackets and base support become critical to counteract gravitational forces that can cause misalignment, premature wear, or even failure. Without adequate mounting, the motor’s lifespan may be reduced by 30–50%, according to industry studies.
Consider the motor’s weight distribution when selecting brackets. Vertical mounting requires brackets that can handle both the static load of the motor and dynamic forces during operation. Steel brackets with a load capacity at least 1.5 times the motor’s weight are recommended. For example, a 50-pound motor should use brackets rated for 75 pounds or more. Ensure the brackets are securely anchored to a rigid base—a flimsy or vibrating foundation will amplify stress on the motor’s components.
Base support is equally vital. A flat, level surface is non-negotiable; even a slight tilt can cause uneven bearing loads. Use vibration-dampening pads or mounts to minimize resonance, which can exacerbate wear in vertical setups. For motors over 100 pounds, consider a reinforced concrete or steel base to provide the necessary stability. Regularly inspect the base for cracks or shifts, especially in environments with temperature fluctuations or heavy machinery vibrations.
Finally, alignment is key. Misalignment in a vertical setup can lead to increased friction and heat, reducing efficiency and risking damage. Use precision tools like laser aligners or straightedges to ensure the motor’s shaft is perfectly vertical. A deviation of more than 0.5 degrees can significantly impact performance. Pair this with periodic maintenance checks to tighten bolts and inspect brackets for signs of fatigue or corrosion. Proper mounting isn’t just about installation—it’s about ensuring long-term reliability in a non-standard orientation.
Using UK Electrical Products in the USA: Compatibility and Safety Guide
You may want to see also
Explore related products
Bearing Load Changes: Vertical use alters bearing stress, requiring specific designs or modifications
Electric motors designed for horizontal operation face distinct challenges when repurposed vertically due to fundamental shifts in bearing load dynamics. In a horizontal orientation, the motor’s weight is distributed along the shaft axis, with bearings primarily managing radial forces. Vertically, gravity imposes axial loads on the bearings, pushing the rotor downward. This reversal in force direction can accelerate wear, reduce lubrication effectiveness, and compromise bearing life if the motor isn’t specifically engineered for vertical use. For instance, a standard horizontal motor may experience premature failure in a vertical setup, as its bearings are not designed to withstand prolonged axial stress.
To mitigate these issues, motors intended for vertical operation often incorporate thrust bearings or reinforced designs capable of handling axial loads. Thrust bearings, positioned at the top and bottom of the rotor, counteract gravitational forces and maintain shaft stability. Additionally, modifications such as oil-lubricated bearings or specialized grease formulations may be necessary to ensure consistent lubrication under vertical conditions. Without these adaptations, the motor’s efficiency and reliability will decline, potentially leading to costly downtime or repairs.
A comparative analysis highlights the importance of bearing selection. Horizontal motors typically use deep-groove ball bearings, optimized for radial loads. Vertical applications, however, benefit from angular contact bearings or tapered roller bearings, which better manage axial forces. For example, a vertical pump motor might employ a combination of these bearings to distribute loads evenly and prevent shaft deflection. This tailored approach underscores the need for application-specific designs rather than a one-size-fits-all solution.
Practical implementation requires careful consideration of the motor’s mounting and orientation. If vertical use is unavoidable with a horizontal motor, interim measures such as adding external thrust supports or reconfiguring the load to reduce axial stress can provide temporary relief. However, these solutions are not long-term substitutes for purpose-built vertical motors. Manufacturers often specify maximum axial loads and operating angles for their products, so consulting technical documentation is essential before reorienting a motor.
In conclusion, while horizontal motors can sometimes be adapted for vertical use, the bearing load changes demand meticulous planning and modification. Ignoring these requirements risks operational failure and safety hazards. Whether through specialized bearings, lubrication enhancements, or external supports, addressing axial stress is non-negotiable for vertical applications. Always prioritize motors designed for the intended orientation to ensure optimal performance and longevity.
Juicing Mulberries: Can an Electric Juicer Handle the Task?
You may want to see also
Explore related products
$142.49 $149.99
Cooling Efficiency: Airflow and heat dissipation may differ, impacting motor performance and lifespan
Orienting a horizontal electric motor vertically isn't just a matter of mounting brackets and gravity. Heat dissipation, a critical factor in motor performance and longevity, undergoes a dramatic shift when you flip the axis. Horizontal motors rely on convection currents, where hot air rises naturally away from the motor frame. In a vertical orientation, this natural flow is disrupted. Hot air, now trapped against the motor's side, can create hotspots, accelerating insulation breakdown and bearing wear.
Think of it like a campfire: horizontal logs allow heat to escape freely, while stacking them vertically restricts airflow and intensifies the heat in specific areas.
The impact is measurable. Studies show that vertical operation can increase motor winding temperatures by 10-15°C compared to horizontal positioning. This seemingly small rise translates to a significant reduction in insulation life, potentially halving its expected lifespan. For motors operating in dusty or humid environments, the problem compounds. Dust accumulation on vertical surfaces further hinders heat dissipation, while moisture can accelerate corrosion and electrical resistance, leading to premature failure.
Mitigating these risks requires proactive measures. Firstly, consider using motors specifically designed for vertical mounting. These often feature enhanced cooling fins, strategically placed ventilation holes, or even integrated fans to combat the altered airflow dynamics. Secondly, ensure adequate clearance around the motor. A minimum of 2-3 inches on all sides allows for air circulation and prevents heat buildup. Finally, monitor motor temperature regularly. Thermal sensors and alarms can provide early warning signs of overheating, allowing for corrective action before damage occurs.
Remember, while vertical mounting is possible, it demands careful consideration of cooling efficiency. By understanding the challenges and implementing appropriate solutions, you can ensure your motor operates reliably and efficiently, regardless of its orientation.
Using Indoor Electric Fences Outdoors: Risks, Limitations, and Alternatives
You may want to see also
Explore related products
$16.7 $27.99
Shaft Seal Integrity: Vertical orientation can affect seal effectiveness, risking leaks or contamination
Vertical orientation of a horizontal electric motor introduces unique challenges to shaft seal integrity, a critical factor in preventing leaks and contamination. Unlike horizontal setups, where gravity aids in maintaining seal lubrication and alignment, vertical configurations place additional stress on seals due to the motor’s weight and fluid dynamics. Lip seals, for instance, may experience uneven wear or deformation as the shaft rotates under gravitational pull, compromising their ability to form a tight barrier. Mechanical seals, while more robust, can face increased friction and heat generation, accelerating degradation. Understanding these risks is essential for anyone considering repurposing a horizontal motor for vertical use.
To mitigate seal failure in vertical applications, careful selection and modification of sealing components are paramount. For lip seals, opt for materials with high resilience and temperature tolerance, such as Viton or silicone, which maintain flexibility under stress. Mechanical seals should incorporate advanced designs like tandem or cartridge seals, which provide redundancy and easier maintenance. Additionally, ensure proper alignment of the shaft and seal faces during installation, as misalignment exacerbates wear in vertical setups. Regular inspection intervals—every 3 to 6 months—are recommended to detect early signs of wear or leakage, especially in environments prone to dust, moisture, or chemical exposure.
A comparative analysis highlights the trade-offs between seal types in vertical applications. Lip seals, though cost-effective and easy to install, are less durable under vertical stress and may require frequent replacement. Mechanical seals, while more expensive, offer superior longevity and reliability but demand precise installation and periodic lubrication. In critical applications, such as food processing or chemical pumping, dual-seal systems with a barrier fluid can provide an added layer of protection against contamination. The choice ultimately depends on the motor’s operating conditions, load, and maintenance budget.
Practical tips for maintaining shaft seal integrity in vertical motors include monitoring operating temperatures to prevent overheating, which accelerates seal degradation. Use a thermocouple or infrared thermometer to check temperatures regularly, aiming to keep them below 180°F (82°C). Apply a light coating of compatible lubricant during installation to reduce initial friction, but avoid over-lubrication, which can attract contaminants. For motors in harsh environments, consider adding a protective housing or breather cap to shield seals from debris and moisture. Finally, document all maintenance activities to track seal performance and predict replacement needs, ensuring uninterrupted operation.
In conclusion, while horizontal electric motors can be adapted for vertical use, preserving shaft seal integrity demands proactive measures. By selecting appropriate seal types, ensuring precise installation, and adhering to rigorous maintenance practices, the risks of leaks and contamination can be significantly reduced. Vertical orientation need not be a barrier to motor functionality, provided these factors are carefully managed.
Do Automated Dispensers Use Electricity? Exploring Power Sources and Efficiency
You may want to see also
Explore related products
Vibration and Alignment: Vertical use may increase vibration, necessitating precise alignment and balancing
Vertical orientation of a horizontal electric motor inherently alters its dynamic behavior, particularly in terms of vibration. Gravity acts perpendicular to the motor’s intended rotational axis, shifting the center of mass and increasing stress on bearings and mounts. This misalignment amplifies vibration, which, if unchecked, accelerates wear on components like shafts, couplings, and housings. For instance, a horizontally designed motor used vertically in a pump application may exhibit excessive wobble at speeds above 1,200 RPM, reducing efficiency by up to 15% and halving bearing lifespan.
To mitigate vibration, precise alignment becomes non-negotiable. Start by ensuring the motor’s vertical mounting surface is flat to within 0.002 inches per foot. Use laser alignment tools to verify shaft parallelism with the driven load, aiming for misalignment under 0.001 inches per inch of coupling distance. Balancing the rotor is equally critical; even a 0.005-inch imbalance can double vibration amplitude. For motors over 5 HP, consider dynamic balancing, which corrects both static and couple unbalance by redistributing mass along the rotor.
Balancing techniques vary by motor size and application. Small motors (under 1 HP) may suffice with static balancing, where weights are added to counter heavy spots identified via trial runs. Larger units require dynamic balancing, often performed at specialized shops using high-speed analyzers to detect phase and amplitude of vibrations. For vertical installations, prioritize balancing at operating speed, as harmonic frequencies differ from horizontal setups. A rule of thumb: if vibration exceeds 0.04 inches/second RMS at operating speed, rebalance or reassess alignment.
Practical tips include selecting vibration-damping mounts rated for vertical loads, such as neoprene or rubber isolators with a deflection of 0.1 to 0.2 inches. Regularly monitor vibration using handheld analyzers, targeting baseline readings below 0.03 inches/second RMS. For retrofits, consider adding a vertical-specific baseplate with adjustable feet to fine-tune alignment. Finally, inspect couplings for wear monthly, as vertical stress accelerates fatigue in flexible elements like jaw or grid couplings.
In conclusion, vertical use of horizontal motors demands meticulous attention to alignment and balancing to counteract gravity-induced vibration. Without these measures, premature failure is inevitable. By combining precise alignment, dynamic balancing, and proactive monitoring, operators can achieve reliable performance, even in non-standard orientations. Treat vibration as an early warning system—address it promptly, and the motor’s lifespan will reflect your diligence.
Electric Therapy During Pregnancy: Safe or Risky for Expecting Moms?
You may want to see also
Frequently asked questions
Yes, a horizontal electric motor can be used vertically, but it requires careful consideration of the motor's design, mounting, and cooling system to ensure proper operation and longevity.
Modifications may include adjusting the mounting base, ensuring proper alignment, and verifying that the motor's cooling system (e.g., fans or vents) functions effectively in the vertical orientation.
Performance may be affected if the motor's cooling system is compromised or if the vertical orientation causes issues with lubrication or bearing load. Always consult the manufacturer's guidelines.
Yes, some horizontal motors, especially those with specific cooling or lubrication systems designed for horizontal operation, may not function properly or safely when used vertically.
Check the motor's datasheet or consult the manufacturer to confirm if the motor is rated for vertical operation. Pay attention to cooling, lubrication, and mounting requirements.
