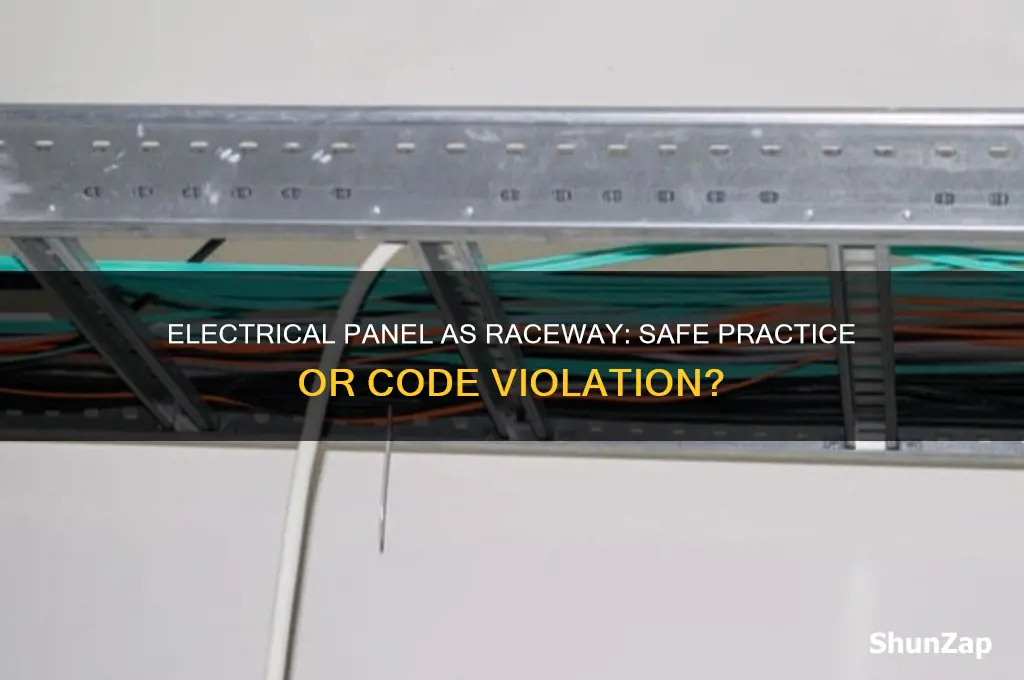

The question of whether an electrical panel can be used as a raceway is a critical one in the field of electrical installations, as it directly impacts safety, compliance, and functionality. Electrical panels are primarily designed to house and protect circuit breakers, fuses, and other electrical components, serving as a central distribution point for electrical circuits. Raceways, on the other hand, are conduits or channels specifically designed to route and protect electrical wiring between devices. While both serve essential roles in electrical systems, using an electrical panel as a raceway is generally not recommended or permitted under most electrical codes, such as the National Electrical Code (NEC). This is because panels are not designed to manage the additional wiring and potential heat dissipation that raceways handle, and doing so could compromise the panel's integrity, increase fire risks, and violate safety standards. Therefore, it is crucial to adhere to proper installation practices and use dedicated raceways for wiring runs to ensure a safe and compliant electrical system.
| Characteristics | Values |
|---|---|
| Primary Function | Electrical panels are designed for housing and distributing electrical circuits, not for acting as a raceway. |
| NEC Compliance | According to the National Electrical Code (NEC), electrical panels are not permitted to be used as raceways. Raceways must be specifically designed and listed for that purpose (NEC Article 300). |
| Physical Design | Panels lack the necessary features of raceways, such as proper conduit fittings, bend radii, and protection against physical damage. |
| Overheating Risk | Using a panel as a raceway can lead to overheating due to inadequate ventilation and increased conductor density. |
| Fire Hazard | Improper use of a panel as a raceway increases the risk of electrical fires due to potential short circuits or overheating. |
| Code Violation | Using an electrical panel as a raceway is a violation of electrical codes and standards, which can result in failed inspections and legal consequences. |
| Safety Concerns | It compromises the safety of the electrical system, posing risks to both property and personnel. |
| Alternative Solutions | Proper raceways (e.g., EMT, PVC, or flexible conduit) should be used to route conductors safely and compliantly. |
| Manufacturer Guidelines | Electrical panels are not designed or rated for raceway applications, as per manufacturer specifications. |
| Inspection and Maintenance | Improper use can complicate inspections and maintenance, as panels are not designed for easy access to conductors within a raceway. |
Explore related products
What You'll Learn
NEC Code Compliance
Electrical panels are designed to house and protect wiring, breakers, and other components, but their role as a raceway is strictly regulated by the National Electrical Code (NEC). The NEC, specifically Article 370, defines a raceway as an enclosed channel designed for holding wires, cables, or busbars. While an electrical panel may seem like a convenient raceway, the NEC prohibits using it as such unless explicitly allowed. The primary concern is ensuring that wiring remains accessible, protected, and properly supported, which is compromised when a panel is repurposed as a raceway.
One critical NEC requirement is that raceways must maintain a clear and unobstructed path for conductors. Electrical panels, however, are intended for specific functions like circuit protection and distribution, not for routing wires through them. Using a panel as a raceway can lead to overcrowding, which violates NEC Article 314.17(A) on box fill calculations. Overcrowding increases the risk of heat buildup, insulation damage, and short circuits, all of which are safety hazards the NEC aims to prevent.
Another NEC compliance issue arises from the lack of proper wire support within panels. NEC Article 300.4 mandates that conductors must be secured to prevent strain on terminals. Panels are not designed with the necessary supports or clamps to meet this requirement when used as raceways. This oversight can cause wires to pull loose over time, creating connection points that overheat or fail, potentially leading to electrical fires.
For those considering using a panel as a raceway, the NEC offers a clear alternative: install dedicated raceways such as conduit or cable trays. These systems are specifically engineered to meet NEC standards for wire protection, accessibility, and support. While it may seem cost-effective to repurpose a panel, the long-term risks of non-compliance far outweigh the initial savings. Always consult the NEC and a licensed electrician to ensure installations meet safety and legal requirements.
