Trystan Casey
The Earth's crust contains vast reserves of heat stored in deep, hot rocks, which could potentially be harnessed as a renewable and reliable energy source. Geothermal energy systems traditionally tap into shallower, naturally occurring reservoirs of steam or hot water, but advancements in technology are now exploring the feasibility of accessing deeper, hotter rocks to generate electricity. By drilling into these formations and injecting water to create steam, which then drives turbines, this approach could provide a consistent and sustainable power supply. However, challenges such as high drilling costs, geological risks, and environmental concerns must be addressed to make this method economically viable and widely applicable. If successfully developed, deeper hot rock geothermal energy could play a significant role in the global transition to cleaner energy sources.
| Characteristics | Values |
|---|---|
| Technology | Enhanced Geothermal Systems (EGS) |
| Depth Range | Typically 3-10 km (deeper than conventional geothermal) |
| Temperature Range | 150°C to 350°C (hotter than shallow geothermal resources) |
| Resource Potential | Estimated to be significantly larger than conventional geothermal, potentially supplying a substantial portion of global energy needs |
| Current Status | Emerging technology, with several pilot and demonstration projects worldwide |
| Advantages | Abundant resource, baseload power, low greenhouse gas emissions, small land footprint |
| Challenges | High drilling costs, induced seismicity, reservoir engineering complexities, water usage |
| Efficiency | Varies, but can achieve 10-20% efficiency with current technology |
| Cost | Currently higher than conventional geothermal ($3-7/W installed capacity), but expected to decrease with technological advancements |
| Examples of Projects | FORGE (Frontier Observatory for Research in Geothermal Energy) in the USA, Cooper Basin project in Australia |
| Future Outlook | Promising, with potential for widespread adoption if technical and economic challenges are overcome |
Explore related products
What You'll Learn
- Geothermal energy extraction methods from deep hot rocks
- Economic feasibility of deep geothermal power generation
- Environmental impacts of accessing deeper geothermal resources
- Technological advancements in drilling and heat extraction techniques
- Potential global regions for deep geothermal electricity production

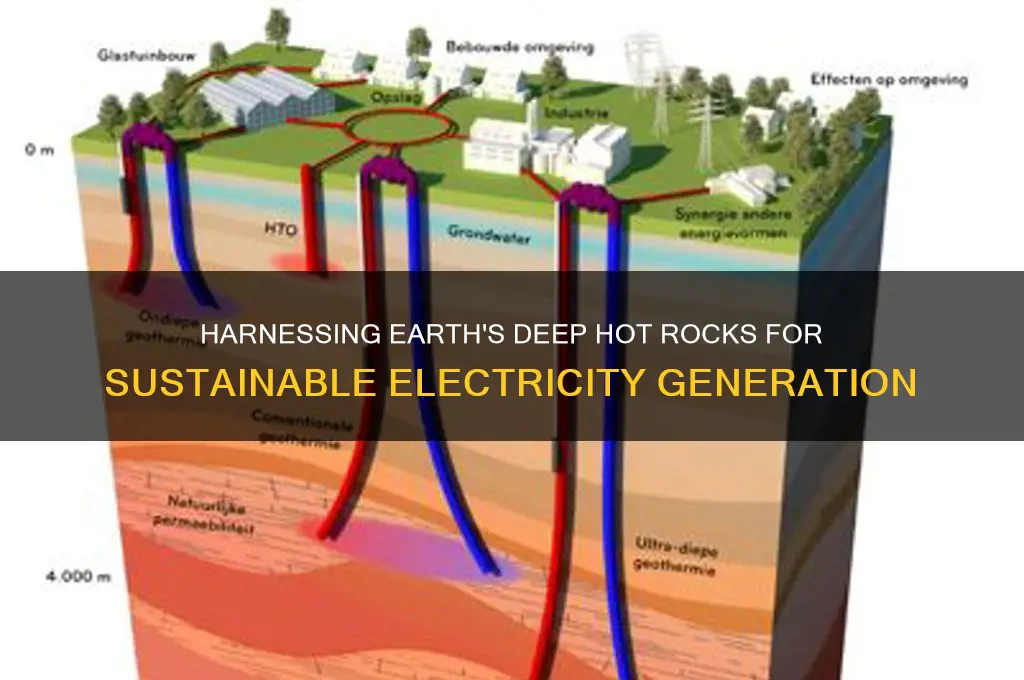

Geothermal energy extraction methods from deep hot rocks
Deep within the Earth's crust, temperatures soar to extremes, offering a vast, untapped reservoir of energy. Geothermal energy extraction from these deep hot rocks is not just a theoretical concept but a growing field with innovative methods to harness this power. One of the most promising techniques is Enhanced Geothermal Systems (EGS), which involves fracturing hot rock reservoirs to increase permeability, allowing water to circulate and capture heat. This method is particularly effective in areas where natural geothermal reservoirs are scarce, making it a game-changer for regions with abundant deep hot rocks but limited surface-level geothermal activity.
To implement EGS, engineers first identify a suitable site using advanced seismic imaging to locate deep hot rock formations. Next, injection wells are drilled into the rock, and high-pressure water is pumped in to create a network of fractures. These fractures act as pathways for water to flow through the hot rock, absorbing heat. A second set of wells, known as production wells, extracts the heated water, which is then used to drive turbines and generate electricity. The process is cyclical: the cooled water is reinjected into the reservoir, ensuring sustainability. However, EGS projects require careful monitoring to prevent induced seismicity, a common challenge when manipulating underground rock structures.
Another method gaining traction is Deep Geothermal Drilling, which targets ultra-deep reservoirs (beyond 5 kilometers) where temperatures exceed 200°C. These extreme conditions can produce supercritical fluids—water under such high pressure and temperature that it behaves like both a liquid and a gas. Supercritical fluids carry significantly more energy than conventional geothermal fluids, potentially doubling electricity output. However, drilling at such depths poses technical and financial challenges, including extreme heat, pressure, and the need for specialized materials resistant to these conditions. Despite these hurdles, countries like Iceland and the United States are investing heavily in deep drilling technologies to unlock this high-potential resource.
A comparative analysis of EGS and deep drilling reveals their complementary strengths. EGS is more adaptable to diverse geological conditions but requires extensive fracturing and monitoring. Deep drilling, while more resource-intensive, offers higher energy yields from supercritical fluids. The choice of method depends on factors like local geology, available technology, and funding. For instance, regions with shallow hot rocks might prioritize EGS, while areas with deep, high-temperature reservoirs could benefit more from deep drilling. Both methods, however, underscore the importance of innovation in tapping Earth’s internal heat.
In conclusion, extracting geothermal energy from deep hot rocks is no longer a distant dream but a tangible reality with methods like EGS and deep drilling leading the charge. While technical and environmental challenges persist, ongoing advancements in drilling technology, seismic monitoring, and materials science are paving the way for wider adoption. As the world seeks sustainable energy solutions, deep geothermal energy stands out as a reliable, baseload power source with the potential to transform energy landscapes globally.
Exploring Electric Generators: Do They Utilize Elastic Energy for Power?
You may want to see also
Explore related products
$161.46 $155
Economic feasibility of deep geothermal power generation
Deep geothermal power generation, tapping into heat from rocks kilometers below the surface, offers a tantalizing promise of baseload renewable energy. However, its economic feasibility hinges on overcoming significant technical and financial hurdles. Unlike conventional geothermal systems that rely on naturally occurring hydrothermal reservoirs, deep geothermal projects must artificially create reservoirs by fracturing hot rock and circulating water to extract heat. This process, known as Enhanced Geothermal Systems (EGS), is capital-intensive, with drilling costs alone accounting for up to 60% of total project expenses. For instance, drilling a single well to depths of 4-5 kilometers can cost between $5 million and $10 million, making upfront investments substantial.
To assess economic viability, developers must consider the Levelized Cost of Electricity (LCOE), which compares the total lifetime cost of a project to its total electricity generation. Current estimates place the LCOE of EGS projects between $100 and $200 per megawatt-hour (MWh), significantly higher than conventional geothermal ($50–$100/MWh) and competitive with other renewables like solar and wind. However, advancements in drilling technology, such as directional drilling and real-time monitoring, could reduce costs by improving efficiency and minimizing risks. Additionally, government incentives, such as tax credits or feed-in tariffs, can bridge the financial gap, as seen in countries like Germany and the United States, where subsidies have spurred EGS development.
A critical factor in economic feasibility is resource characterization. Accurate mapping of subsurface heat distribution and rock properties is essential to minimize exploration risks. Advanced geophysical techniques, such as seismic imaging and magnetotellurics, can reduce uncertainty, but these methods are expensive and time-consuming. For example, the Soultz-sous-Forêts project in France spent over a decade on exploration before achieving commercial operation. Despite these challenges, successful projects like the Cooper Basin in Australia demonstrate that with proper site selection and technological innovation, EGS can be economically viable in regions with high heat flow and favorable geology.
Finally, the long-term operational stability of EGS systems is a key determinant of economic success. Issues such as reservoir permeability decline, mineral scaling, and induced seismicity can increase maintenance costs and reduce output. Mitigation strategies, such as using corrosion-resistant materials and implementing seismic monitoring systems, are essential but add to project expenses. However, the potential for EGS to provide consistent, dispatchable power—a rare attribute among renewables—positions it as a valuable component of future energy grids. As technology matures and economies of scale are realized, deep geothermal power generation could transition from a high-risk venture to a cornerstone of sustainable energy portfolios.
Electric Bikes: Can You Ride Without Pedaling? Exploring the Options
You may want to see also
Explore related products
Environmental impacts of accessing deeper geothermal resources
Accessing deeper geothermal resources for electricity generation promises a nearly limitless, baseload renewable energy source, but it comes with environmental trade-offs that demand careful consideration. Enhanced Geothermal Systems (EGS), which fracture deep hot rock reservoirs to improve heat extraction, can trigger seismic activity. While most induced earthquakes are minor (below magnitude 2.0), larger events (up to magnitude 3.4) have occurred, as seen in Basel, Switzerland, and Pohang, South Korea. Mitigation strategies, such as real-time seismic monitoring and pressure management, are essential to minimize risks, but the potential for ground disruption remains a critical concern, particularly in densely populated areas.
Another environmental impact lies in the alteration of subsurface ecosystems and water resources. Deep geothermal drilling often intersects with groundwater aquifers, raising the risk of contamination from reinjected fluids or naturally occurring heavy metals like arsenic and mercury. For instance, a 2012 study in the Imperial Valley, California, found elevated levels of arsenic in geothermal brines, necessitating stringent treatment protocols. Additionally, the extraction of heat can lower subsurface water temperatures, potentially affecting geothermal-dependent microbial communities. Protecting these ecosystems requires robust well integrity standards and comprehensive baseline studies to understand pre-existing conditions.
The surface footprint of deep geothermal projects, though smaller than solar or wind farms, still poses ecological challenges. Construction of well pads, access roads, and transmission lines can fragment habitats and disturb wildlife. In regions like Iceland, where geothermal development has expanded rapidly, land-use conflicts with conservation areas have emerged. To mitigate this, developers should prioritize co-location with existing industrial sites, implement temporary infrastructure where possible, and restore disturbed areas post-operation. Public engagement and environmental impact assessments are critical to balancing energy needs with biodiversity preservation.
Finally, the lifecycle emissions of deep geothermal energy, while significantly lower than fossil fuels, are not negligible. Drilling and cementing operations release greenhouse gases, and the energy-intensive nature of EGS development can offset short-term carbon benefits. However, with proper management, deep geothermal can achieve emissions as low as 10–40 g CO₂-eq/kWh, comparable to solar and wind. Policymakers must incentivize low-carbon technologies in geothermal development, such as electric drilling rigs and carbon capture for cement production, to maximize its environmental advantages.
In summary, accessing deeper geothermal resources offers a transformative opportunity for clean energy, but its environmental impacts require proactive management. By addressing seismic risks, protecting water and microbial ecosystems, minimizing habitat disruption, and reducing lifecycle emissions, deep geothermal can be harnessed sustainably. As technology advances, the key lies in integrating scientific rigor, regulatory oversight, and community engagement to ensure this resource benefits both humanity and the planet.
Harnessing Power: Can Electro Magnets Generate Electricity Efficiently?
You may want to see also
Explore related products
Technological advancements in drilling and heat extraction techniques
The quest to harness geothermal energy from deeper hot rocks has been revitalized by breakthroughs in drilling and heat extraction technologies. Traditional geothermal systems rely on naturally occurring hydrothermal reservoirs, but enhanced geothermal systems (EGS) aim to tap into hotter, deeper resources by creating artificial reservoirs. This shift demands precision drilling techniques capable of withstanding extreme temperatures and pressures, often exceeding 200°C and 100 bar at depths of 5–10 kilometers. Advances in rotary steerable systems (RSS) and measurement-while-drilling (MWD) tools have improved wellbore accuracy, reducing the risk of deviations that could compromise project viability.
One of the most transformative advancements is the development of superhard materials for drill bits, such as polycrystalline diamond compact (PDC) cutters. These materials maintain their integrity at high temperatures, enabling faster penetration rates through hard rock formations. For instance, PDC bits have been shown to drill granite at rates up to 30 meters per hour, a significant improvement over conventional tungsten carbide bits. Additionally, the integration of real-time data analytics allows operators to adjust drilling parameters on the fly, optimizing performance and minimizing wear.
Heat extraction from deep reservoirs poses its own set of challenges, particularly in maintaining efficient fluid circulation. Closed-loop systems, which circulate a heat carrier fluid like supercritical CO₂, have emerged as a promising solution. Supercritical CO₂ offers higher thermal conductivity and density compared to water, enhancing heat transfer efficiency. Pilot projects, such as the FORGE initiative in the United States, have demonstrated the feasibility of this approach, achieving heat extraction rates of up to 5 MW from depths exceeding 2.5 kilometers. However, scaling these systems requires addressing issues like corrosion and scaling in wellbores, which can be mitigated through advanced material coatings and chemical inhibitors.
Another critical innovation is the application of hydraulic stimulation techniques to create fracture networks in hot rock formations. Unlike fracking in the oil and gas industry, geothermal stimulation focuses on creating permeable pathways without compromising reservoir integrity. Microseismic monitoring technologies enable operators to map fracture propagation in real time, ensuring controlled and efficient reservoir development. For example, the Deep Heat Mining project in Switzerland utilized this approach to enhance permeability by a factor of 10, significantly boosting heat extraction rates.
Despite these advancements, challenges remain, particularly in cost-effectiveness and environmental impact. Drilling deep wells can cost upwards of $10 million, and the long-term sustainability of EGS projects depends on minimizing operational risks. However, with continued research and investment, these technologies hold the potential to unlock vast geothermal resources, providing a reliable and renewable energy source for decades to come. By focusing on innovation in drilling and heat extraction, the industry is moving closer to making deep geothermal energy a cornerstone of the global energy transition.
Pedaling an E-Bike: Can You Ride Without the Battery?
You may want to see also
Explore related products
Potential global regions for deep geothermal electricity production
Deep geothermal energy, harnessing heat from Earth's crust, offers a consistent and sustainable power source. However, its viability depends on geological conditions, particularly the presence of hot rocks at accessible depths. Regions with tectonic activity, volcanic zones, and rift systems are prime candidates for deep geothermal electricity production. For instance, the Pacific Ring of Fire, encompassing countries like Indonesia, the Philippines, and New Zealand, boasts abundant geothermal potential due to its high volcanic activity. These areas can tap into reservoirs of hot rocks, often located 3–10 kilometers below the surface, to generate electricity through enhanced geothermal systems (EGS).
In contrast to shallow geothermal systems, which rely on naturally occurring hydrothermal resources, EGS technology fractures deep, dry hot rocks and injects water to create steam for power generation. This method expands the geographic scope of geothermal energy to regions without natural reservoirs. For example, the East African Rift System, stretching from Ethiopia to Mozambique, holds significant potential due to its active tectonic processes. Countries like Kenya have already made strides, with the Olkaria geothermal plant contributing over 30% of the nation’s electricity. Similarly, the Great Rift Valley in Iceland, though smaller in scale, demonstrates how deep geothermal can power entire economies, providing nearly 30% of the country’s electricity and 90% of its heating needs.
Europe, despite its lower tectonic activity, is not excluded from deep geothermal potential. The Upper Rhine Graben, a rift valley spanning France, Germany, and Switzerland, contains hot rocks at depths of 3–5 kilometers. Pilot projects, such as the Soultz-sous-Forêts plant in France, have successfully demonstrated EGS technology, producing 1.5 MW of electricity. While scalability remains a challenge, advancements in drilling and reservoir management could unlock this resource for broader use. Similarly, Australia’s Cooper Basin, with temperatures exceeding 250°C at depths of 3–4 kilometers, is being explored for deep geothermal applications, though economic and technical hurdles persist.
For regions considering deep geothermal, feasibility studies must assess rock permeability, temperature gradients, and drilling costs. For instance, a temperature gradient of 50°C/km is ideal, but lower gradients can still be viable with advanced technology. Governments can incentivize exploration through subsidies or public-private partnerships, as seen in the United States’ FORGE initiative, which funds EGS research in states like Utah and Nevada. Additionally, integrating deep geothermal with existing energy grids requires infrastructure investments, such as transmission lines and storage solutions, to ensure stability and reliability.
In conclusion, deep geothermal electricity production is not limited to traditional geothermal hotspots. By leveraging EGS technology, regions with deep hot rocks, from East Africa’s rifts to Europe’s graben systems, can tap into this baseload energy source. Success hinges on geological assessment, technological innovation, and strategic policy support. As the world seeks to decarbonize, deep geothermal stands as a promising, underutilized resource with global applicability.
Do Fans Use Electricity? Uncovering the Power Consumption Truth
You may want to see also
Frequently asked questions
Yes, deeper hot rocks can be used to generate electricity through a process called Enhanced Geothermal Systems (EGS). EGS involves drilling deep into the Earth to access hot rock formations, injecting water to create fractures, and then extracting the heated water or steam to drive turbines and produce electricity.
Deeper hot rocks offer a nearly limitless and consistent source of heat, making geothermal energy a reliable and renewable power source. Unlike solar or wind, it is not dependent on weather conditions and can provide baseload power. Additionally, EGS has the potential to be deployed in areas without natural geothermal reservoirs, expanding its geographic applicability.
The primary challenges include high drilling costs, the technical complexity of creating and maintaining fractures in deep rock formations, and potential environmental concerns such as induced seismicity. Additionally, the technology for EGS is still developing, and widespread commercial implementation is not yet fully realized.
