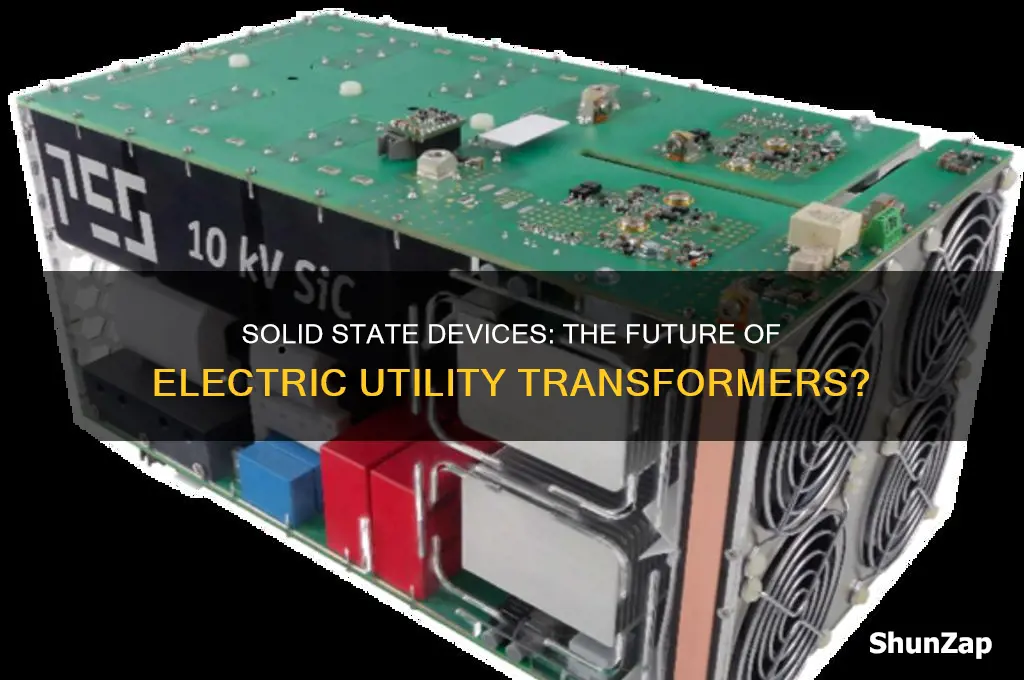

The integration of solid-state devices (SSDs) into electric utility infrastructure presents a transformative opportunity to replace traditional transformers, which have long been the backbone of power distribution. Unlike conventional transformers that rely on electromagnetic induction and moving parts, SSDs leverage semiconductor technology to achieve voltage transformation with greater efficiency, faster response times, and reduced physical footprint. This shift could address challenges such as energy losses, maintenance requirements, and grid flexibility, particularly as renewable energy sources and decentralized power systems become more prevalent. However, the adoption of SSDs in utility-scale applications faces hurdles, including cost, scalability, and the need for robust cooling systems to manage heat dissipation. As research and development advance, the potential for SSDs to revolutionize power distribution networks remains a compelling area of exploration for electric utilities seeking to modernize and optimize their infrastructure.
Explore related products
What You'll Learn
- Solid-state transformer (SST) technology advancements and feasibility for utility-scale applications
- Comparing efficiency and energy losses between SSTs and traditional transformers
- Cost analysis: Initial investment vs. long-term savings of SST adoption
- Grid integration challenges and compatibility with existing utility infrastructure
- Reliability and lifespan of SSTs in harsh environmental conditions
Solid-state transformer (SST) technology advancements and feasibility for utility-scale applications
Solid-state transformers (SSTs) are emerging as a disruptive technology in the electric utility sector, offering a potential paradigm shift from traditional iron-core transformers. Unlike their conventional counterparts, SSTs leverage power electronics to convert and condition electricity, eliminating the need for bulky, inefficient magnetic components. This fundamental difference opens doors to a host of advantages, including smaller size, lighter weight, and improved efficiency, particularly under partial load conditions.
SSTs' ability to handle a wider range of voltages and frequencies makes them inherently more adaptable to the evolving grid landscape, accommodating distributed energy resources and fluctuating renewable energy inputs.
However, the feasibility of widespread SST adoption hinges on addressing key technical and economic challenges. Firstly, the cost of power electronic components, particularly wide-bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN), remains a significant barrier. While prices are steadily declining, achieving cost parity with traditional transformers, especially for high-power applications, is crucial for utility-scale deployment. Secondly, ensuring the reliability and longevity of SSTs under the demanding conditions of the grid is paramount. High-power electronics are susceptible to thermal stress and degradation, necessitating robust thermal management systems and advanced packaging techniques.
Long-term field testing and standardized reliability metrics are essential to build confidence in SST performance.
Despite these challenges, ongoing research and development efforts are rapidly advancing SST technology. Innovations in semiconductor materials, packaging, and control algorithms are driving efficiency improvements and cost reductions. Hybrid SST designs, combining solid-state components with smaller magnetic elements, offer a promising middle ground, balancing performance and cost. Furthermore, the integration of SSTs with energy storage systems and microgrids presents exciting opportunities for enhanced grid flexibility and resilience.
As the technology matures and costs continue to decline, SSTs are poised to play a transformative role in the future of electricity distribution, enabling a more efficient, adaptable, and sustainable grid infrastructure.
In conclusion, while solid-state transformers are not yet ready for blanket replacement of traditional transformers, their potential is undeniable. Continued investment in research, development, and demonstration projects is crucial to overcome remaining hurdles and unlock the full potential of this transformative technology. The future of the grid is solid-state, and the journey towards widespread adoption is well underway.
Electric Knives in the Kitchen: Do Chefs Really Use Them?
You may want to see also
Explore related products
$48.76 $57.05
Comparing efficiency and energy losses between SSTs and traditional transformers
Solid-state transformers (SSTs) promise higher efficiency than traditional transformers, particularly under partial load conditions. Unlike their electromagnetic counterparts, SSTs use power electronics to convert and condition electricity, reducing energy losses associated with magnetic hysteresis and eddy currents. Traditional transformers, which rely on iron cores and copper windings, inherently dissipate energy as heat, especially when operating below full capacity. SSTs, however, maintain efficiency levels closer to their peak even at 20-30% load, making them advantageous in scenarios with fluctuating demand, such as residential areas or renewable energy integration.
Consider a typical 1 MVA distribution transformer with an efficiency of 97% at full load, dropping to 92% at 30% load. In contrast, an SST of similar capacity might achieve 98% efficiency at full load and sustain 96% efficiency at 30% load. This disparity widens in applications with highly variable loads, where traditional transformers’ losses escalate due to core saturation and resistive heating. SSTs’ ability to modulate power electronically minimizes these inefficiencies, translating to tangible energy savings—up to 30% reduction in losses under light-load conditions.
However, SSTs are not without trade-offs. Their reliance on semiconductor devices introduces thermal management challenges, as high-power electronics generate heat that must be dissipated efficiently. Traditional transformers, while less efficient, are inherently robust and require minimal cooling infrastructure. Utilities must weigh SSTs’ higher upfront costs against long-term energy savings, factoring in the lifespan of the equipment and the specific load profiles of their networks. For instance, deploying SSTs in data centers or urban microgrids with consistent partial loads could yield a faster return on investment compared to rural areas with stable, near-full-load operation.
To maximize SST efficiency, utilities should prioritize load monitoring and predictive analytics. Pairing SSTs with smart grid technologies enables real-time optimization, ensuring the devices operate within their most efficient ranges. For example, integrating SSTs with energy storage systems can smooth load fluctuations, keeping the transformer closer to its peak efficiency threshold. Conversely, traditional transformers, while less adaptable, remain cost-effective in environments with predictable, high-load demands, such as industrial complexes.
In conclusion, SSTs offer a compelling efficiency advantage over traditional transformers, particularly in dynamic load environments. Their ability to maintain high efficiency across varying loads positions them as a strategic solution for modern grids. Yet, their adoption requires careful consideration of thermal management, cost, and application-specific load profiles. Utilities must balance these factors to determine whether SSTs represent a transformative upgrade or an unnecessary expense in their infrastructure.
Halogen Bulbs and Dimming: Do They Really Save Energy?
You may want to see also
Explore related products
$17.25 $27.99
Cost analysis: Initial investment vs. long-term savings of SST adoption
Solid-state transformers (SSTs) promise efficiency gains and reduced maintenance compared to traditional transformers, but their higher upfront costs remain a barrier for electric utilities. Initial investment in SSTs can be 2–3 times that of conventional transformers, primarily due to the advanced semiconductor materials and control systems required. For a medium-sized utility, replacing a single 1 MVA transformer could cost upwards of $50,000 for an SST versus $20,000 for a traditional unit. This price disparity raises a critical question: when does the long-term savings of SSTs outweigh their initial expense?
To assess long-term savings, consider the operational advantages of SSTs. Their efficiency can reach 98%, compared to 94–96% for traditional transformers, translating to significant energy savings over time. For a utility with an annual energy throughput of 5 GWh, an SST could save approximately $15,000 per year in energy costs, assuming a $0.03/kWh electricity price. Additionally, SSTs have fewer moving parts, reducing maintenance costs by up to 50%. Over a 20-year lifespan, these savings could accumulate to $300,000, potentially offsetting the higher initial investment.
However, the financial viability of SST adoption depends on factors like load profiles, grid infrastructure, and regulatory incentives. Utilities with high energy throughput and peak demand charges stand to benefit most. For example, a utility in an urban area with frequent load fluctuations could recoup costs faster due to SSTs’ superior efficiency under varying conditions. Conversely, rural utilities with stable, low-load profiles may find the payback period unattractive.
A practical approach to evaluating SST adoption involves a phased rollout. Start by replacing transformers in high-demand areas or those nearing end-of-life. Pilot projects can provide real-world data on performance and savings, reducing uncertainty. Utilities should also explore grants, tax credits, or subsidies for energy-efficient technologies, which can lower the effective initial investment. For instance, a 30% federal tax credit could reduce the $50,000 SST cost to $35,000, significantly improving the payback period.
In conclusion, while SSTs demand a steeper initial investment, their long-term savings in energy efficiency and maintenance can justify the expense under the right conditions. Utilities must conduct site-specific cost-benefit analyses, factoring in load characteristics, regulatory support, and lifecycle costs. By strategically deploying SSTs, utilities can future-proof their grids while achieving financial sustainability.
High Efficiency Furnaces: Electricity Usage Explained and Debunked
You may want to see also
Explore related products
Grid integration challenges and compatibility with existing utility infrastructure
Solid-state transformers (SSTs) promise higher efficiency, faster response times, and better integration with renewable energy sources compared to traditional transformers. However, their grid integration hinges on compatibility with existing utility infrastructure, a challenge that spans technical, operational, and economic dimensions. Legacy systems, designed for the unidirectional flow of power from centralized generators, often lack the communication protocols and control mechanisms needed to interface with SSTs, which operate on digital platforms and require bidirectional power flow capabilities. Retrofitting these systems to accommodate SSTs involves significant investment and coordination, as utilities must ensure seamless interaction between old and new technologies without compromising grid stability.
One critical technical hurdle is voltage and frequency regulation. Traditional transformers rely on electromagnetic induction, which inherently stabilizes voltage levels. SSTs, on the other hand, use power electronics that require sophisticated control algorithms to maintain grid parameters within acceptable limits. Integrating SSTs into existing grids demands advanced monitoring and control systems that can communicate in real-time with both legacy infrastructure and distributed energy resources. For instance, SSTs must be able to synchronize with the grid’s frequency, which typically operates at 50 or 60 Hz, while managing variable inputs from solar or wind sources. Without such synchronization, voltage fluctuations and instability could occur, risking blackouts or equipment damage.
Operationally, utilities face the challenge of maintaining reliability during the transition period. SSTs are still in the early stages of commercialization, and their long-term performance in real-world conditions remains unproven. Utilities must balance the risk of adopting new technology with the need to ensure uninterrupted power supply. Pilot projects, such as those conducted by companies like ABB and Siemens, have demonstrated the potential of SSTs, but widespread deployment requires standardized testing and certification processes. Utilities must also train personnel to operate and maintain SSTs, which differ significantly from traditional transformers in terms of diagnostics and repair procedures.
Economically, the cost of SSTs remains a barrier to large-scale adoption. While SSTs offer long-term benefits such as reduced energy losses and lower maintenance costs, their upfront capital expenditure is significantly higher than that of traditional transformers. Utilities must weigh these costs against the potential savings and revenue opportunities, such as improved grid resilience and the ability to offer new services like demand response. Incentives, such as government grants or tax credits, could accelerate adoption, but policy support varies widely across regions. For example, utilities in regions with aggressive renewable energy targets may find SSTs more financially viable due to their ability to integrate distributed energy resources more effectively.
In conclusion, the integration of solid-state transformers into existing utility infrastructure requires a multifaceted approach that addresses technical, operational, and economic challenges. Utilities must invest in advanced control systems, ensure compatibility with legacy infrastructure, and develop strategies to manage the transition period effectively. While the path to widespread adoption is complex, the potential benefits of SSTs—enhanced efficiency, flexibility, and resilience—make them a compelling option for modernizing the grid. By tackling these challenges head-on, utilities can pave the way for a more sustainable and adaptive energy system.
One Amp, Two Guitars: Can You Use It for Both Acoustic and Electric?
You may want to see also
Explore related products
![Transformers Collaborative: Street Fighter II Mash-Up, Optimus Prime [Ryu] vs. Megatron [M. Bison]](https://m.media-amazon.com/images/I/61BkRcXZ+WL._AC_UL320_.jpg)
$91.95
Reliability and lifespan of SSTs in harsh environmental conditions
Solid-state transformers (SSTs) face unique challenges in harsh environmental conditions, where temperature extremes, humidity, and corrosive elements can compromise their reliability and lifespan. Unlike traditional transformers, SSTs rely on semiconductor devices such as IGBTs and silicon carbide (SiC) components, which are sensitive to heat and moisture. For instance, SiC devices, while more robust than silicon-based ones, still degrade at temperatures exceeding 150°C, a threshold easily surpassed in desert or industrial environments. This thermal sensitivity necessitates advanced cooling systems, such as liquid cooling or phase-change materials, to maintain operational integrity. Without these measures, SSTs risk premature failure, undermining their potential as transformer replacements in demanding settings.
To ensure longevity in harsh conditions, SSTs must be designed with environmental resilience in mind. Enclosures should be sealed to IP66 or higher ratings to prevent dust and water ingress, while conformal coatings can protect circuitry from corrosion. Additionally, wide-bandgap semiconductors like gallium nitride (GaN) or SiC offer improved thermal performance, reducing the risk of overheating. However, these materials come at a higher cost, requiring utilities to balance performance with budget constraints. Field testing in extreme climates, such as the arid conditions of the Middle East or the high humidity of Southeast Asia, can provide critical data on SST durability. For example, a pilot project in Dubai demonstrated that SSTs with liquid cooling maintained 95% efficiency over three years, compared to 85% for traditional transformers under the same conditions.
Despite these advancements, SSTs still lag behind traditional transformers in proven lifespan, particularly in harsh environments. Transformers, with their passive components and robust design, can operate reliably for 30–40 years, even in extreme conditions. SSTs, by contrast, have an estimated lifespan of 15–20 years due to semiconductor degradation and the complexity of their active components. Utilities must weigh this trade-off against the benefits of SSTs, such as higher efficiency and smaller footprint. Regular maintenance, including thermal monitoring and component replacement, can extend SST lifespan but adds operational complexity. For utilities in remote or challenging locations, this may not be feasible without significant infrastructure investment.
A persuasive argument for SST adoption in harsh environments lies in their adaptability and potential for innovation. Unlike traditional transformers, SSTs can integrate with smart grid technologies, enabling real-time monitoring and predictive maintenance. This capability reduces downtime and enhances reliability, even in adverse conditions. For example, SSTs equipped with IoT sensors can detect overheating or voltage spikes before they cause failure, allowing for proactive intervention. Furthermore, ongoing research into more resilient semiconductor materials and cooling techniques promises to address current limitations. Utilities that invest in SSTs today position themselves to benefit from these advancements, ensuring future-proof infrastructure in an increasingly demanding operational landscape.
In conclusion, while SSTs offer compelling advantages over traditional transformers, their reliability and lifespan in harsh environments remain areas of concern. Addressing these challenges requires a combination of robust design, advanced materials, and innovative maintenance strategies. Utilities must carefully evaluate their specific environmental conditions and operational needs before adopting SSTs. By doing so, they can harness the benefits of this technology while mitigating risks, paving the way for a more efficient and resilient power grid.
Manual vs. Electric: Can Dentists Recommend Traditional Toothbrushes?
You may want to see also
Frequently asked questions
Yes, electric utilities can use solid-state transformers (SSTs) to replace traditional transformers. SSTs leverage power electronics and semiconductor devices to perform voltage transformation more efficiently and with greater flexibility than conventional iron-core transformers.
Solid-state devices offer several advantages, including higher efficiency, smaller size, lighter weight, and the ability to handle bidirectional power flow, making them ideal for integrating renewable energy sources and supporting smart grid applications.
Currently, solid-state transformers are more expensive than traditional transformers due to the high cost of power electronics components. However, as technology advances and production scales up, costs are expected to decrease, making SSTs more competitive.
While solid-state transformers are capable of handling high power levels, they are currently more commonly used in medium and low-voltage applications. Research and development are ongoing to improve their capacity for high-voltage and high-power applications.
Challenges include high initial costs, reliability concerns related to semiconductor devices, and the need for advanced control systems. Additionally, integrating SSTs into existing grid infrastructure requires significant planning and investment.
