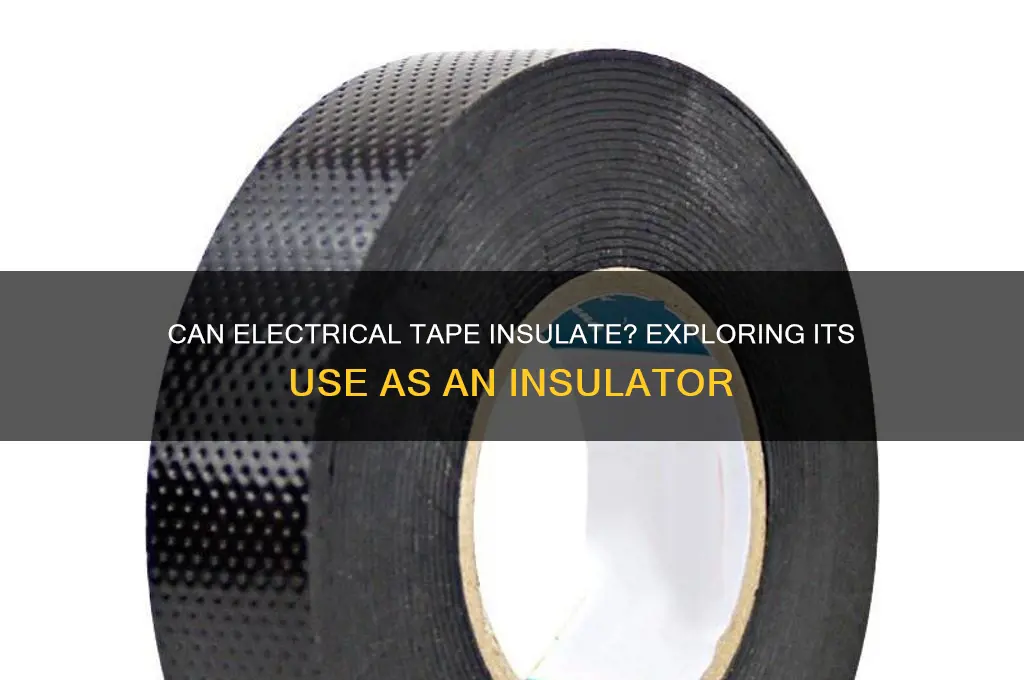

Electrical tape is a versatile tool commonly used in electrical work, but its effectiveness as an insulator is a topic of interest. While electrical tape is designed to provide a protective layer around wires and connections, its insulating properties depend on the material and thickness. Typically made from vinyl or rubber, it can prevent short circuits and insulate against low-voltage electricity. However, it is not a substitute for proper insulation materials in high-voltage or high-temperature applications. Understanding its limitations is crucial to ensure safety and functionality in electrical projects.
| Characteristics | Values |
|---|---|
| Material Type | PVC (Polyvinyl Chloride) |
| Insulation Properties | Good for low to moderate voltage applications (typically up to 600V) |
| Dielectric Strength | Varies by brand, typically around 3-5 kV/mm |
| Temperature Resistance | Usually rated for -10°C to 80°C (14°F to 176°F) |
| Chemical Resistance | Resistant to acids, alkalis, oils, and common solvents |
| Flexibility | Highly flexible, conforms well to irregular surfaces |
| Adhesive Strength | Strong adhesive, but not suitable for high-temperature or long-term applications |
| UV Resistance | Limited, can degrade over time with prolonged UV exposure |
| Flame Retardancy | Varies by brand, some are flame-retardant (e.g., UL 510 certified) |
| Thickness | Typically 0.13mm to 0.18mm (0.005" to 0.007") |
| Applications | Insulating wires, bundling cables, minor repairs, and temporary fixes |
| Limitations | Not suitable for high-voltage, high-temperature, or long-term outdoor use |
| Safety Standards | Often meets standards like UL 510, CSA, and RoHS |
| Cost | Inexpensive and widely available |
Explore related products
What You'll Learn
- Electrical tape's insulating properties compared to other materials
- Safety concerns when using electrical tape as insulation
- Types of electrical tape suitable for insulation purposes
- Limitations of electrical tape in high-voltage applications
- Proper application techniques for effective insulation with electrical tape
Electrical tape's insulating properties compared to other materials
Electrical tape, often seen in black or vibrant colors, is a common household item, but its insulating capabilities are frequently overestimated. While it can provide a basic level of insulation for low-voltage applications, it is not a substitute for specialized insulating materials. For instance, electrical tape has a breakdown voltage typically ranging from 600 to 1,000 volts, depending on the brand and thickness. In contrast, materials like PVC (Polyvinyl Chloride) insulation can withstand up to 10,000 volts, making it far superior for high-voltage environments. This disparity highlights the importance of selecting the right material for the specific electrical demand.
Consider a scenario where you need to insulate a wire carrying 240 volts. Electrical tape might suffice temporarily, but it lacks the durability and heat resistance of materials like Teflon or silicone rubber. Teflon, for example, can withstand temperatures up to 260°C, whereas electrical tape begins to degrade at around 80°C. This makes Teflon ideal for high-temperature applications, such as in industrial settings or near heat sources. For DIY enthusiasts, understanding these limitations ensures safer and more effective repairs.
From a practical standpoint, electrical tape is best used for minor repairs or bundling wires, not as a primary insulator. For instance, wrapping exposed wires in a low-voltage lamp cord is acceptable, but it should never be used on high-voltage systems like home wiring. Instead, materials like rubber or fiberglass insulation are recommended for such applications. Rubber insulation, for example, offers flexibility and resistance to abrasion, making it suitable for dynamic environments. Always follow manufacturer guidelines and local electrical codes to ensure safety.
A comparative analysis reveals that while electrical tape is versatile and convenient, it falls short in critical areas like thermal stability and voltage resistance. Materials like polyethylene or ceramic insulation outperform it in both categories. Polyethylene, for instance, is lightweight and moisture-resistant, making it ideal for outdoor applications. Ceramic insulation, on the other hand, is used in extreme conditions, such as aerospace or high-temperature industrial processes. For everyday use, electrical tape is a quick fix, but for long-term reliability, investing in appropriate insulating materials is essential.
In conclusion, while electrical tape has its place in minor electrical repairs, it cannot replace specialized insulating materials in terms of performance and safety. Understanding its limitations and knowing when to use alternatives like PVC, Teflon, or rubber insulation ensures that electrical systems remain secure and efficient. Always prioritize safety by matching the material to the application’s specific requirements.
Electric Toothbrush Use Post-Tooth Extraction: Safe or Risky?
You may want to see also
Explore related products
Safety concerns when using electrical tape as insulation
Electrical tape, while commonly used for insulating wires, is not a foolproof solution and carries inherent safety risks. Its effectiveness depends on the type of tape, the voltage involved, and environmental conditions. For instance, standard vinyl electrical tape can withstand up to 600 volts, but it degrades over time when exposed to heat, UV light, or chemicals, compromising its insulating properties. High-voltage applications or harsh environments require specialized tapes like rubber or silicone-based variants, which are more durable but still not infallible.
One critical safety concern is the tape’s adhesive. Over time, the adhesive can dry out, crack, or peel away, leaving gaps where moisture or contaminants can penetrate. This is particularly dangerous in outdoor or damp environments, where water ingress can lead to short circuits or electrical shocks. For example, using electrical tape on outdoor wiring without additional protection, such as conduit or heat shrink tubing, significantly increases the risk of failure. Always inspect taped connections regularly and reapply tape as needed, especially in high-moisture areas.
Another risk lies in improper application. Electrical tape must be stretched and wrapped tightly around wires to ensure a smooth, even layer without air pockets. Inadequate wrapping can leave voids where arcing or heat buildup occurs, potentially melting the tape or causing fires. A practical tip is to overlap each layer by half the tape’s width, ensuring full coverage. Avoid using tape as a permanent solution for damaged wires; instead, repair or replace the wire entirely to eliminate hazards.
Comparatively, electrical tape is less reliable than purpose-built insulation materials like heat shrink tubing or wire nuts. While it’s a quick fix for minor repairs, it lacks the mechanical strength and long-term stability of these alternatives. For instance, heat shrink tubing forms a tight, permanent seal when heated, providing superior protection against moisture and physical damage. If safety is paramount, prioritize professional-grade solutions over temporary fixes like electrical tape, especially in high-risk scenarios such as industrial or automotive wiring.
Finally, consider the limitations of electrical tape in extreme temperatures. Standard vinyl tape becomes brittle in cold environments (below -10°C or 14°F) and can melt or deform in temperatures exceeding 80°C (176°F). In such conditions, specialized tapes like fiberglass or silicone-based variants are essential. Always check the tape’s temperature rating before use and avoid relying on it in environments where temperatures fluctuate widely. By understanding these limitations, you can mitigate risks and ensure safer electrical insulation practices.
Using Outdoor Electrical Cords in the Rain: Safety Tips and Risks
You may want to see also
Explore related products
Types of electrical tape suitable for insulation purposes
Electrical tape is a versatile tool, but not all types are created equal when it comes to insulation. The key lies in understanding the material composition and voltage ratings. Vinyl electrical tape, for instance, is a popular choice due to its flexibility and ability to conform to irregular shapes. It’s commonly rated for voltages up to 600V, making it suitable for household wiring and low-voltage applications. However, it’s not ideal for high-temperature environments, as it can degrade over time. For such scenarios, consider silicone or rubber-based tapes, which offer superior heat resistance and are often rated for voltages exceeding 1000V.
When selecting electrical tape for insulation, consider the environment where it will be used. For outdoor applications, UV-resistant tapes are essential to prevent degradation from sunlight. These tapes typically have a thicker, more durable backing and are designed to withstand temperature extremes. Another critical factor is the adhesive. A strong, pressure-sensitive adhesive ensures the tape adheres firmly to the surface, creating a reliable barrier against moisture and contaminants. Tapes with poor adhesive quality may peel off over time, compromising insulation integrity.
One often-overlooked type is fiberglass electrical tape, which is reinforced with fiberglass strands for added strength. This tape is particularly useful in high-stress applications where mechanical durability is as important as electrical insulation. It’s commonly used in industrial settings, such as motor repairs or transformer insulation. However, it’s less flexible than vinyl tape, so it’s not ideal for tight bends or intricate wiring. Always check the manufacturer’s specifications to ensure the tape meets the required safety standards for your specific use case.
For those working with sensitive electronics, Kapton tape is a specialized option worth considering. Made from polyimide film, it offers excellent thermal and electrical insulation properties, even at high temperatures up to 260°C. While it’s more expensive than standard vinyl tape, its ability to withstand extreme conditions makes it indispensable in aerospace, automotive, and electronics manufacturing. Note that Kapton tape is not adhesive-backed, so it’s best used in conjunction with other tapes for secure bonding.
In summary, the suitability of electrical tape for insulation depends on its material, voltage rating, and environmental resistance. Vinyl tape is versatile for everyday use, while silicone and rubber tapes excel in high-temperature settings. UV-resistant and fiberglass tapes cater to outdoor and industrial needs, respectively, and Kapton tape provides unmatched performance in extreme conditions. Always match the tape’s properties to the demands of your project to ensure safety and longevity.
Using Your Electric Toothbrush in Europe: Voltage and Compatibility Guide
You may want to see also
Explore related products
Limitations of electrical tape in high-voltage applications
Electrical tape, while versatile and widely used for insulating low-voltage wires, faces critical limitations in high-voltage applications. Its primary function as an insulator relies on its ability to resist electrical current flow, but high-voltage environments demand materials with far superior dielectric strength. Electrical tape, typically made from PVC or vinyl, has a dielectric strength of around 1,000 volts per mil (0.001 inch). This means a standard tape thickness of 7 mils can theoretically withstand up to 7,000 volts. However, real-world conditions, such as temperature fluctuations, mechanical stress, and aging, significantly reduce its effectiveness, making it unsuitable for sustained high-voltage use.
One of the most significant limitations is electrical tape’s susceptibility to breakdown under high voltage. When exposed to voltages exceeding its dielectric limit, the tape can experience arcing or puncturing, leading to electrical discharge and potential equipment failure. For instance, in applications like power distribution or industrial machinery, where voltages often exceed 10,000 volts, electrical tape simply cannot provide the necessary insulation. Instead, specialized materials like silicone rubber, Teflon, or epoxy resins, with dielectric strengths ranging from 20,000 to 50,000 volts per mil, are required to ensure safety and reliability.
Another critical issue is the tape’s performance degradation over time. Exposure to heat, UV radiation, and chemicals can cause the material to become brittle, crack, or lose its adhesive properties. In high-voltage systems, where even minor defects can lead to catastrophic failure, this degradation is unacceptable. For example, in outdoor applications, electrical tape may deteriorate within months, whereas materials like cross-linked polyethylene (XLPE) can last decades without significant loss of insulation properties.
Practical considerations further highlight the tape’s inadequacy. High-voltage systems often require insulation that can withstand extreme temperatures, from -40°C to 150°C, and resist abrasion and mechanical stress. Electrical tape, with its limited temperature range (typically -18°C to 80°C) and lack of durability, falls short in these scenarios. Additionally, its adhesive can melt or degrade under heat, compromising the integrity of the insulation. For high-voltage applications, rigid or semi-rigid insulators, such as porcelain or composite materials, are far more suitable due to their robustness and stability.
In conclusion, while electrical tape serves well in low-voltage and temporary repairs, its limitations in high-voltage applications are undeniable. Its low dielectric strength, susceptibility to environmental factors, and lack of durability make it a poor choice for critical systems. Engineers and technicians must prioritize materials specifically designed for high-voltage use to ensure safety, reliability, and long-term performance. Electrical tape, in this context, is not just suboptimal—it’s a potential hazard.
Using Your Electric Smoker as a Dehydrator: Tips and Tricks
You may want to see also
Explore related products
Proper application techniques for effective insulation with electrical tape
Electrical tape, when applied correctly, can serve as a reliable insulator for wires and cables, preventing short circuits and ensuring safety. However, its effectiveness hinges on proper application techniques. The first step is to ensure the surface is clean and dry. Any dirt, grease, or moisture can compromise adhesion and reduce insulation properties. Use a mild solvent or isopropyl alcohol to clean the area, allowing it to dry completely before proceeding. This preparatory step is often overlooked but is critical for long-term performance.
Once the surface is prepared, start by stretching the tape slightly as you apply it. This tension helps the tape conform tightly to the contours of the wire or cable, minimizing air gaps that could weaken insulation. Begin at one end and wrap the tape in a spiral pattern, overlapping each layer by at least half the tape’s width. For high-voltage applications, consider using multiple layers to enhance insulation strength. Avoid overstretching the tape, as this can cause it to tear or lose elasticity over time.
A common mistake is neglecting to smooth out wrinkles or bubbles during application. These imperfections can create weak points where moisture or contaminants may penetrate. Use your fingers to press the tape firmly and evenly, ensuring a smooth finish. For complex shapes or joints, pre-cut the tape into manageable strips to achieve precise coverage without gaps. This attention to detail significantly improves the tape’s insulating capability.
Finally, inspect the finished application for any signs of damage or inadequate coverage. Pay special attention to areas where wires bend or connect, as these are prone to wear. Reapply tape as needed, particularly in environments with extreme temperatures or humidity, which can degrade the adhesive over time. While electrical tape is not a permanent solution for all insulation needs, proper application ensures it performs effectively in its intended role.
Using Electric Massage Pillows in Thailand: Legal, Safe, and Practical Tips
You may want to see also
Frequently asked questions
Yes, electrical tape is designed to act as an insulator, providing a protective barrier against electrical currents.
Electrical tape is effective for low-voltage applications but may not be as durable or heat-resistant as specialized insulating materials like rubber or silicone.
No, electrical tape is not suitable for high-voltage applications as it may break down under extreme conditions, posing a safety risk.
The lifespan of electrical tape as an insulator depends on environmental factors like temperature, moisture, and wear, but it typically lasts several years when used correctly.
