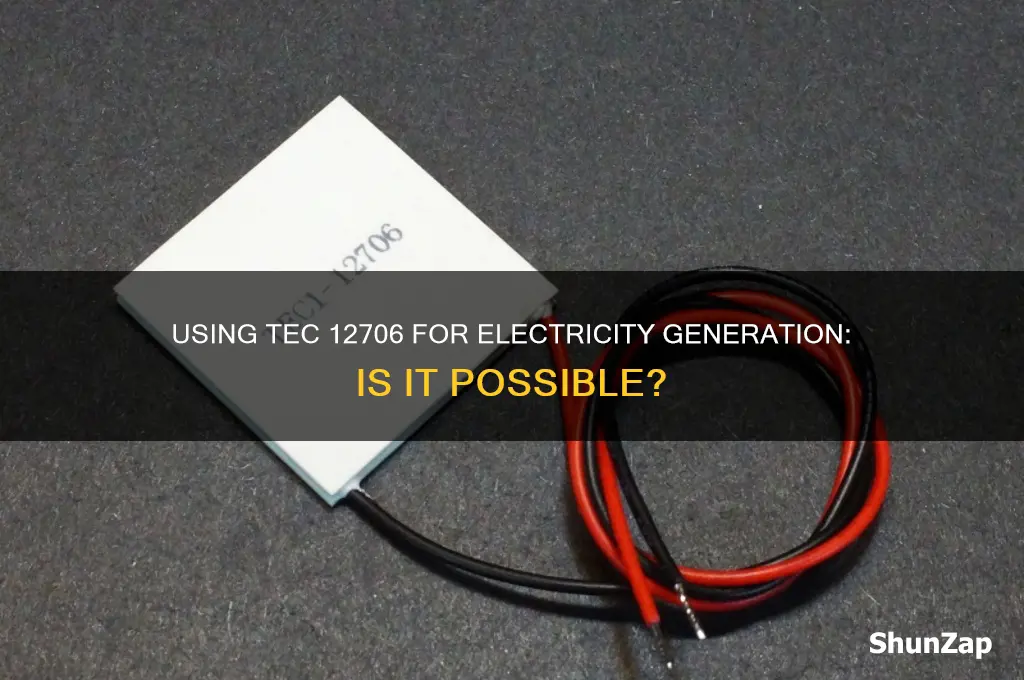

The TEC1-12706 is a thermoelectric cooler (TEC) module commonly used for cooling applications, but its potential for electricity generation has sparked curiosity. Thermoelectric devices like the TEC1-12706 operate on the Seebeck effect, which allows them to convert temperature differences into electrical energy. While primarily designed for cooling, this module can theoretically generate electricity when exposed to a temperature gradient, with one side heated and the other cooled. However, its efficiency in power generation is typically low compared to dedicated thermoelectric generators (TEGs), and practical applications may require careful consideration of heat sources, cooling mechanisms, and load requirements. Exploring the use of a TEC1-12706 for electricity generation involves understanding its limitations and optimizing conditions to maximize output.
| Characteristics | Values |
|---|---|
| TEC 12706 Type | Thermoelectric Cooler (TEC) Module |
| Primary Function | Cooling or heating based on Peltier effect |
| Electricity Generation Capability | Limited; TECs are not designed for power generation but can produce small amounts of electricity under specific conditions (Seebeck effect) |
| Maximum Power Output | Typically < 1 Watt under optimal temperature differentials |
| Efficiency | Very low for power generation (<10%); primarily designed for cooling |
| Optimal Temperature Differential | Requires a significant temperature difference (e.g., ΔT > 50°C) |
| Voltage Output | Depends on temperature difference; typically < 1V per module |
| Current Output | Low; depends on load and temperature gradient |
| Practical Use for Electricity Generation | Not feasible for practical power generation; better suited for cooling applications |
| Cost-Effectiveness | Inefficient and costly for electricity generation compared to alternatives like solar panels |
| Applications | Spot cooling, temperature control, small-scale experiments (not power generation) |
| Alternative for Power Generation | Use dedicated thermoelectric generators (TEGs) or other technologies |
Explore related products
What You'll Learn
- TEC 12706 Basics: Understanding thermoelectric cooling modules and their electricity generation potential
- Seebeck Effect Explained: How temperature differences create voltage in TEC 12706 modules
- Efficiency Limits: Analyzing the low efficiency of TEC 12706 for electricity generation
- Practical Applications: Small-scale uses of TEC 12706 for power generation in niche scenarios
- Required Setup: Heat source, cooling system, and circuitry needed to use TEC 12706
TEC 12706 Basics: Understanding thermoelectric cooling modules and their electricity generation potential
The TEC1-12706 is a thermoelectric cooling module, a solid-state device that operates based on the Peltier effect. This phenomenon allows the module to transfer heat from one side to the other when an electric current passes through it, creating a temperature differential. Conversely, when a temperature difference exists across the module, it can generate electricity—a principle known as the Seebeck effect. This dual functionality makes the TEC1-12706 a versatile component, but its efficiency in generating electricity is often a point of curiosity and experimentation.
To harness the TEC1-12706 for electricity generation, you’ll need to create a significant temperature difference across its surfaces. For instance, one side could be exposed to a heat source like a stove or solar heat, while the other side is cooled using a heat sink or cold water. The greater the temperature gradient, the higher the voltage output, typically ranging from 100mV to 500mV per module under optimal conditions. However, practical applications often require connecting multiple modules in series or parallel to achieve usable voltage levels, such as charging a small battery or powering low-voltage devices.
Efficiency is a critical factor when using the TEC1-12706 for electricity generation. Thermoelectric modules are generally less efficient than traditional power generation methods, with conversion efficiencies around 5-8% under ideal conditions. This means that for every 100 watts of heat energy applied, only 5-8 watts of electrical power are produced. To maximize efficiency, ensure proper thermal contact between the module and heat sources/sinks, minimize heat loss through insulation, and use materials with high thermal conductivity, such as aluminum or copper.
Practical applications of the TEC1-12706 for electricity generation include small-scale projects like powering sensors in remote locations, charging portable devices, or even contributing to off-grid energy systems. For example, a DIY enthusiast might use a TEC1-12706 module to capture waste heat from a camping stove, converting it into electricity to charge a smartphone. While the output may be modest, such projects demonstrate the module’s potential as a sustainable energy solution in niche scenarios.
In conclusion, while the TEC1-12706 is primarily designed for cooling, its ability to generate electricity under the right conditions makes it a fascinating component for experimentation and small-scale energy harvesting. By understanding its limitations and optimizing setup conditions, enthusiasts and engineers can explore creative ways to leverage this module for practical, low-power applications. Whether for educational purposes or real-world use, the TEC1-12706 offers a tangible way to explore the intersection of thermodynamics and renewable energy.
