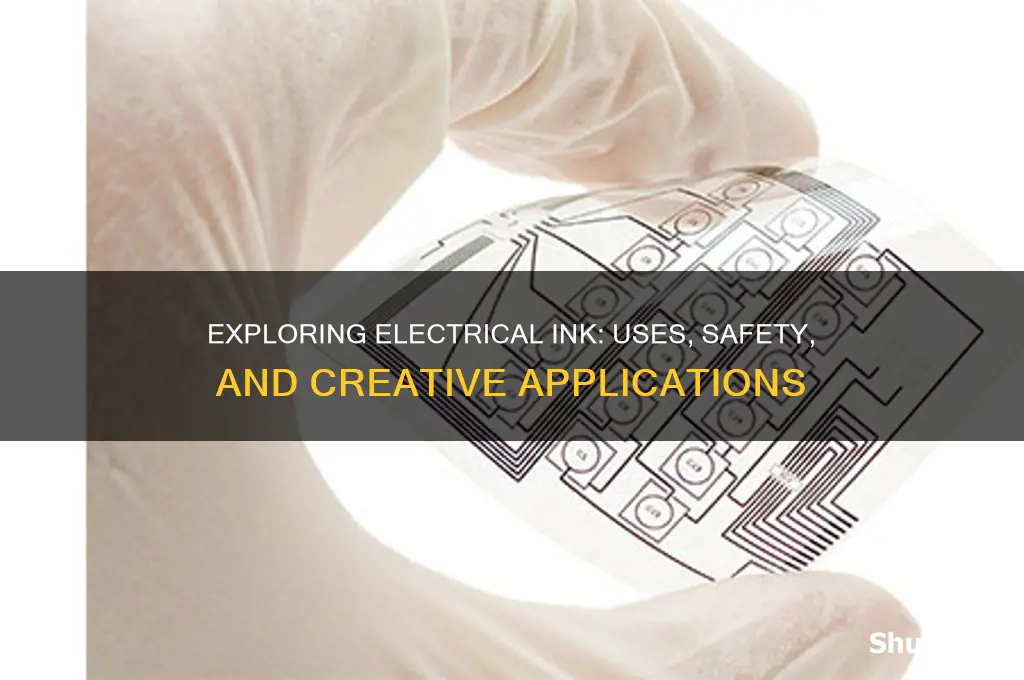

Exploring Electrical Ink: Uses, Safety, And Creative Applications

Electrical ink, also known as conductive ink, is an innovative material that combines the properties of ink with electrical conductivity, enabling the creation of flexible and customizable electronic circuits. Composed of conductive particles such as silver, copper, or graphene suspended in a carrier liquid, this ink can be applied to various surfaces using traditional printing methods like screen printing, inkjet, or even 3D printing. Its versatility has sparked interest in industries ranging from wearable technology and smart packaging to medical devices and IoT applications. However, before using electrical ink, it’s essential to consider factors such as substrate compatibility, curing requirements, and the specific conductivity needs of your project. With proper application and understanding, electrical ink opens up exciting possibilities for integrating electronics into everyday objects and designs.

Explore related products

Circuit Scribe Conductive Ink Pen: Draw Circuits Instantly

$9.99

Circuit Scribe Non-Toxic Conductive Ink Pen for Kids Circuit Building Set (2-Pack) | Silver Ink Rollerball Point Pen Kit, Science Experiment, DIY Science Projects (New & Improved Formula)

$17.99

Silver-Based Circuit Writer Pen 5 Grams

$32.65

Conductive Paint Pen, Highly Electrical Conductivity Designed Using Nanotechnology Materials, Precision Fine Tip, Multipurpose and suitable for versatile surfaces, perfect for Circuit Boards Repair and EMF shielding - Pack of 2 (10 ml each)

$15.99

Circuit Scribe Non-Toxic Conductive Ink Pen for Kids Circuit Building Set (10-Pack) | Silver Ink Rollerball Point Pen Kit, Science Experiments, DIY Science Projects (New & Improved Formula)

$69.99

CHEMTRONICS - CW2000 - Conductive Pen, Nickel, 9G (Cleva Pro.SPEC Edition)

$21.99

Safety Concerns: Is electrical ink safe for skin contact and long-term use?

Electrical ink, often used in wearable technology and flexible electronics, raises significant safety concerns when it comes to skin contact and long-term use. While these conductive inks are designed to be flexible and durable, their composition varies widely, often including materials like silver nanoparticles, carbon, or polymers. The safety of these components, especially in prolonged or direct skin contact, is not yet fully understood. For instance, silver nanoparticles, a common ingredient, have been studied for their potential to penetrate the skin barrier, though research remains inconclusive about their long-term effects on human health.

To assess safety, consider the application method and duration of contact. Temporary uses, such as in festival circuits or short-term wearables, may pose minimal risk, but long-term applications like medical sensors or permanent tattoos require stricter scrutiny. Manufacturers often claim biocompatibility, but this term can be misleading; it typically refers to short-term, non-irritating contact rather than extended exposure. Users should verify if the ink has been tested for cytotoxicity, skin sensitization, and systemic toxicity, as per ISO 10993 standards for medical devices. Without such data, long-term use remains a gamble.

Practical precautions can mitigate risks. For DIY enthusiasts or professionals, wearing gloves during application minimizes direct skin exposure. If using electrical ink for skin-contact wearables, ensure the ink is encapsulated in a non-permeable barrier, such as silicone or biocompatible polymers, to prevent particle migration. Avoid using these inks on broken or sensitive skin, and monitor for signs of irritation, redness, or allergic reactions. For children or individuals with compromised immune systems, consult a dermatologist before use, as their skin barriers may be more susceptible to absorption.

Comparatively, traditional tattoo inks have a longer safety record, though they are not without risks. Electrical inks, being a newer technology, lack this historical data. While some studies suggest silver nanoparticles may have antimicrobial properties beneficial for wound healing, others caution against their potential to generate reactive oxygen species, which can damage cells. Until more comprehensive research is available, users should approach electrical ink with caution, prioritizing products with transparent safety data and avoiding overuse in high-risk areas like the face or mucous membranes.

In conclusion, while electrical ink shows promise for innovative applications, its safety for skin contact and long-term use remains uncertain. Users should balance the desire for cutting-edge technology with the need for proven safety measures. Always opt for products from reputable manufacturers who provide detailed safety documentation, and stay informed about emerging research. As the field evolves, regulatory bodies may establish clearer guidelines, but for now, caution and informed decision-making are key.

Explore related products

Circuit Scribe Sticker Kit | Circuit Drawing Conductive Ink Pen & 11 Electronic Sticker Modules for Future Inventors | 27 Lessons Workbook | Learning & Education STEM Toy for Ages 8+

$34.99

Conductive Ink Pen, Repair Tool Easy Use Conductive Pen for Circuit Board Repair

$16.66

Silver Conductive Pen Bronze Conductive Paint Pen Circuit Designing Tool for Teacher Student Circuit Repair Accessories, 12.7cm, Copper

$9.98

Hilitand Circuit Scribe Conductive Ink Pen, Electronic Conductive Ink Pen Dry Fast Circuit Scribe Draw Instantly Remote Control Keyboard Repairing, Solid Wire

$14.42

Electric Paint Pen 10ml

$18.5 $19.5

Conductive Ink Pen Conductive Paint Metallic Utensil Gold Conductive Pen Tungsten Circuit Scribe Conductive Ink Pen

$17.31

Application Methods: How to apply electrical ink for circuits and wearable tech

Electrical ink, also known as conductive ink, has revolutionized the way we approach circuit design and wearable technology. Its application methods are as diverse as the projects it enables, from flexible electronics to smart textiles. Understanding these methods is crucial for anyone looking to harness the potential of this innovative material.

Precision Application for Circuit Design

For intricate circuit designs, precision is paramount. One of the most effective methods is screen printing, which allows for fine lines and detailed patterns. Start by preparing your substrate—whether it’s a flexible polymer or rigid PCB material—ensuring it’s clean and free of debris. Use a mesh screen with a high thread count (e.g., 300–400 LPI) to achieve sharp resolution. Apply the electrical ink evenly across the screen, using a squeegee to push the ink through the stencil. Cure the ink according to the manufacturer’s instructions, typically at temperatures between 100°C and 150°C for 10–30 minutes. This method is ideal for mass production and ensures consistent conductivity across multiple units.

Wearable Tech: Brush and Stencil Techniques

Wearable technology demands flexibility and durability. For small-scale projects or prototypes, brushing or stenciling electrical ink onto fabric or flexible substrates is highly effective. Begin by diluting the ink slightly with a compatible solvent to achieve the desired viscosity. Use a fine brush to apply the ink in thin, even layers, allowing each layer to dry before adding another. For larger areas or repetitive patterns, stencils made from acetate or vinyl work well. Secure the stencil firmly to the substrate, apply the ink with a spatula or brush, and carefully lift the stencil to avoid smudging. Test the conductivity with a multimeter after curing to ensure the circuit functions as intended.

Direct-Write Dispensing for Custom Designs

Direct-write dispensing, often done with a syringe or automated dispenser, offers unparalleled control for custom designs. This method is particularly useful for creating complex, multi-layered circuits or integrating sensors into wearable tech. Load the electrical ink into the dispenser, adjusting the nozzle size (typically 0.1–0.5 mm) based on the desired line width. Program the dispenser to follow a predetermined path, ensuring consistent pressure and speed for uniform deposition. This technique is ideal for one-off projects or small batches where precision and customization are key.

Cautions and Best Practices

While electrical ink is versatile, improper application can lead to poor conductivity or mechanical failure. Always store the ink in a cool, dry place to prevent degradation. Avoid over-diluting the ink, as this can reduce its conductivity. When working with wearable tech, test the flexibility of the cured ink by bending and stretching the substrate to ensure it can withstand real-world use. For circuits, inspect for cracks or gaps in the ink layer, as these can disrupt the flow of electricity. Finally, always follow safety guidelines, wearing gloves and working in a well-ventilated area to minimize exposure to potentially harmful components.

The application method you choose depends on your project’s scale, complexity, and end-use. Screen printing excels in mass production, while brushing and stenciling are perfect for wearables and prototypes. Direct-write dispensing offers unmatched precision for custom designs. By mastering these techniques and adhering to best practices, you can unlock the full potential of electrical ink in both circuits and wearable technology.

Explore related products

ZJchao Conductive Ink Electronic Circuit Scribe Fast AirDrying Gold Pen for Drawing Circuits

$16.38 $17.77

Electronic Conductive Ink Pen, Paint Pens Remote Keyboard Highly Fluid Excellent Electrical Condu Metallic Powder Circuit Board Trace Repair Tool for Science Experiment Projects

$13.99

Circuit Scribe Maker Kit: Conductive Rollerball Pen

$64.99

Conductive Pen, 6ML Circuit Repair Quick Drying Conductive Ink Pen, Conductive Pen Ink Paint Remote Control Keyboard Circuit Repair Physics for Science Experiment (Black)

$21.71

Conductive Pen,Conductive Ink Pen for Ideal for DIY Circuits Making Circuit Repairment Physics Class Teaching Aids for Home Conductive Pen

$8.99

Conductive Ink Pen, Electronic DIY Keyboard Circuit Repair Tool

$21.2

Material Compatibility: Which surfaces and materials work best with electrical ink?

Electrical ink, also known as conductive ink, adheres best to non-porous, smooth surfaces that provide a stable foundation for its conductive properties. Materials like glass, polyester (PET), and polyimide (PI) are ideal due to their flat, non-absorbent nature, which allows the ink to form a continuous conductive layer. For instance, PET films are commonly used in flexible electronics because they offer excellent dimensional stability and chemical resistance, ensuring the ink’s integrity over time.

When applying electrical ink to porous surfaces like paper or untreated wood, the results are often inconsistent. The ink can be absorbed unevenly, disrupting its conductivity. However, treated or coated porous materials, such as paper with a polymer layer, can sometimes work if the coating creates a barrier. For example, a thin layer of polyurethane on wood can make it compatible with electrical ink by preventing absorption and providing a smoother surface for adhesion.

Metals, while inherently conductive, are not typically used as substrates for electrical ink because the ink’s purpose is often to add conductivity to non-conductive materials. However, metals like aluminum or copper can be coated with electrical ink to repair circuits or enhance specific functionalities. The key is ensuring the metal surface is clean and free of oxides, as these can interfere with adhesion and conductivity.

For 3D objects or irregular surfaces, material compatibility becomes more complex. Electrical ink can be applied to curved surfaces like plastics (e.g., ABS or PVC) if they are pre-treated with a primer or adhesion promoter. Silicone, for instance, requires a specialized primer to ensure the ink bonds effectively. Always test a small area first to confirm compatibility and adjust application techniques as needed, such as using thinner layers or multiple coats for better coverage.

In summary, the best materials for electrical ink are smooth, non-porous substrates like glass, PET, and PI. Porous materials can work if treated, and metals are viable but require careful preparation. For 3D or irregular surfaces, primers and adhesion promoters are essential. Understanding these material compatibilities ensures successful application and optimal conductivity in your projects.

Explore related products

6ml Conductive Gold Ink Pen Circuit Marker

$12.89

Artline Electricians Markers | Twin-Nib | Professional Series | Non-Conductive Ink & Barrel | EKPR-ELFT | 0.4mm Fine/1.0 Bullet Tips | Pack of 12 | Black

$12.29 $15.01

Conductive Ink Pen Silver/Copper Ink 6ml Long-Lasting Fast-Drying Instant Circuit Drawing for STEM DIY Electronics Projects on Paper

$17.72

Circuit Works CW2000 Nickel Conductive Pen

$24.95

Brush Electronics Conductive Pen Conductive Ink Pen Gold Ink Paint Remote Control Keyboard Circuit Repair Quick Drying Conductive Pen

$21.54

Conductive Ink Pen, Metallic Powder Conductive Ink Pen Electronics Conductive Pen for Circuit Board Repair with Multilayer Circuit Drawing

$21.62

Conductivity Levels: Measuring and optimizing the conductivity of electrical ink

Electrical ink, a blend of conductive particles and binders, offers a versatile solution for creating flexible, lightweight circuits. However, its effectiveness hinges on conductivity levels, which dictate performance in applications like wearable tech, sensors, and printed electronics. Measuring and optimizing conductivity ensures reliability, whether you’re prototyping a smart fabric or mass-producing RFID tags.

Measurement Techniques: Precision Matters

To assess conductivity, start with a four-point probe method, ideal for accurate readings without substrate interference. For DIY setups, a multimeter with conductive probes can measure resistance across a fixed distance (e.g., 1 cm), which you then invert to calculate conductivity (σ = L/(R × A), where L is length, R is resistance, and A is cross-sectional area). Commercial tools like the Sigma 900 Conductivity Meter offer automated precision but come at a higher cost. Always calibrate equipment with known standards (e.g., copper foil) to ensure reliability.

Optimization Strategies: Balancing Composition and Process

Conductivity in electrical ink depends on particle concentration, size, and dispersion. Increase silver or graphene content up to 70% by weight for higher conductivity, but beware of reduced flexibility and increased cost. Ultrasonic mixing for 10–15 minutes improves particle dispersion, while curing at 120°C for 30 minutes enhances binder adhesion without degrading conductivity. For flexible substrates like PET, avoid overloading ink to prevent cracking under stress.

Trade-offs: Conductivity vs. Practicality

High conductivity isn’t always necessary. For example, a wearable health monitor requires moderate conductivity (10^4 S/m) to function, while a high-frequency antenna demands 10^6 S/m. Prioritize cost and flexibility by opting for carbon-based inks (lower conductivity but cheaper) over silver-based ones. Layering ink can boost conductivity, but test for thickness limits to avoid delamination.

Real-World Application: Case Study

A team developing a stretchable sensor for athletic wear optimized conductivity by blending 60% silver flakes with 5% graphene, achieving 5 × 10^5 S/m. They used a screen-printing process with a 150-mesh screen, curing at 100°C for 20 minutes. Post-curing, they applied a polyurethane coating to enhance durability without sacrificing conductivity. This balance enabled the sensor to withstand 100% strain while maintaining signal integrity.

By mastering conductivity measurement and optimization, you unlock electrical ink’s full potential, tailoring it to your project’s unique demands. Whether refining particle concentration or adjusting curing parameters, precision and experimentation are key to success.

Explore related products

Conductive Pen Physical Ink Paint Ink Pen Paint Pen Tool Electrically Conductive Adhesives (Black), ZIZEV6chtzdi9g0-12

$16.11

Conductive Pen, Gold Drawn Circuit Conductive Ink Pen, Highly Fluid Excellent Electrical Condu Metallic Nickel Powder for Circuit Board Repair, Circuit Graffiti, E-Cards

$21.65

Garosa Conductive Electronic Pen, Golden Ink Paint Pen for DIY Circuit Repair Draw Keyboard Circuit Board Repair Tool

$21.61

CAIG LABORATORIES CW100P CONDUCTIVE INK, PEN, 4G

$42.99

Conductive Ink Pen, Conductive Ink Pen, Electronic Circuit Scribe Draw Remote Control Keyboard Repairing, DIY Science Projects, Tungsten, Hardware

$21.82

Conductive Ink Pen, Brush Electronics Conductive Pen, Ink Paint Remote Control Keyboard Circuit Repair Quick Drying Conductive Pen for E Cards Circuit Boards Funny Electronic Graffiti

$21.89

Cost and Availability: Where to buy electrical ink and its price range

Electrical ink, also known as conductive ink, is a specialized material used in various applications, from DIY electronics to industrial manufacturing. Its cost and availability can vary widely depending on the type, quantity, and supplier. For hobbyists and small-scale projects, purchasing options are plentiful, but prices can escalate quickly for high-performance or bulk orders.

Analytical Perspective:

The price of electrical ink typically ranges from $10 to $200 per 10ml, depending on its composition and conductivity. Silver-based inks, for instance, are more expensive due to the high cost of silver nanoparticles, often priced at $50–$150 per 10ml. Graphene or carbon-based inks are more budget-friendly, usually costing $10–$30 per 10ml. Bulk purchases can reduce costs significantly, with 100ml bottles available for $200–$800. Online marketplaces like Amazon, eBay, and specialty electronics stores such as Adafruit and SparkFun are popular sources. However, industrial-grade inks, often sold by manufacturers like DuPont or Sun Chemical, can cost upwards of $1,000 per liter, targeting large-scale production rather than individual users.

Instructive Approach:

To buy electrical ink, start by identifying your project needs. For prototyping, small vials from Adafruit or Amazon suffice, costing around $20–$50. If you’re experimenting with wearable tech, consider flexible conductive inks, available at Digi-Key for $30–$70 per 10ml. For educational purposes, kits like the Bare Conductive Electric Paint (around $25 for 10ml) are ideal. Always check the ink’s compatibility with your substrate (paper, fabric, or PCB) and curing requirements. Pro tip: Compare prices across suppliers and look for discounts on bulk orders or educational bundles.

Comparative Insight:

While hobbyist-grade electrical inks are widely accessible, industrial-grade options are less so. Hobbyists can easily find products like Graphite Conductive Paint or Silver Nano Ink on platforms like Alibaba or specialty stores. In contrast, industrial users often source directly from manufacturers, requiring minimum order quantities (MOQs) of 1–5 liters. For example, a 100ml bottle of hobbyist silver ink costs $60, while an industrial-grade equivalent might start at $500 for 1 liter. The trade-off lies in conductivity and durability, with industrial inks offering superior performance but at a steeper price.

Descriptive Takeaway:

Imagine walking into a world where your circuit designs aren’t limited to rigid PCBs. Electrical ink opens doors to flexible, customizable electronics, but its cost reflects its versatility. A small tube of silver ink, shimmering like liquid metal, can transform a simple project into a high-tech marvel. Yet, its price tag reminds you of the balance between innovation and budget. Whether you’re a tinkerer or a manufacturer, understanding where and how to buy this material is key to turning your ideas into reality.

Practical Tip:

Before purchasing, test small samples to ensure compatibility with your project. Many suppliers offer trial sizes, allowing you to experiment without breaking the bank. For long-term projects, consider investing in bulk quantities or exploring alternative materials like copper or graphene inks, which offer comparable conductivity at lower costs. Always factor in shipping and handling fees, especially for international orders, as they can add significantly to the overall expense.

Frequently asked questions
