SolidWorks, primarily known as a powerful 3D CAD software for mechanical design, is not typically the first choice for creating electrical drawings, which often require specialized tools like AutoCAD Electrical or EPLAN. However, SolidWorks does offer some capabilities for electrical design through its Electrical 3D and Electrical Schematic modules, which allow users to integrate electrical components into mechanical assemblies and generate basic schematics. While it may not be as feature-rich as dedicated electrical design software, SolidWorks can still be a viable option for users looking to combine mechanical and electrical design in a single platform, particularly for simpler projects or when working within the SolidWorks ecosystem.
| Characteristics | Values |
|---|---|
| Software | SolidWorks |
| Primary Use | 3D CAD modeling and mechanical design |
| Electrical Drawing Capability | Limited native support for electrical drawings |
| Add-ons/Tools | Requires third-party add-ons like SolidWorks Electrical or integration with other software (e.g., AutoCAD Electrical) |
| Schematic Drawing | Possible with SolidWorks Electrical, not native in base SolidWorks |
| Wiring Harness Design | Supported via SolidWorks Electrical |
| PCB Design | Limited; better suited for mechanical integration of PCBs rather than design |
| Symbol Libraries | Available in SolidWorks Electrical, not in base SolidWorks |
| Compatibility | Can import/export common electrical file formats (e.g., DWG, DXF) |
| Learning Curve | Moderate to high for electrical drawing without add-ons |
| Cost | Additional cost for SolidWorks Electrical or third-party tools |
| Industry Use | More common in mechanical engineering; electrical engineers prefer specialized tools like AutoCAD Electrical or EPLAN |
| Updates | Regular updates, but electrical features are primarily through add-ons |
| Community Support | Strong for mechanical design; limited for electrical-specific queries |
| Alternatives | AutoCAD Electrical, EPLAN, Altium Designer for dedicated electrical drawing |
Explore related products
$42.99 $60.99
What You'll Learn
- SolidWorks Electrical Features: Overview of tools for creating electrical schematics and wiring diagrams
- Compatibility with Standards: Compliance with electrical drawing standards like IEC or ANSI
- Integration with CAD: Combining electrical designs with mechanical assemblies in SolidWorks
- Symbol Libraries: Access to pre-built electrical symbols and components for drawings
- Exporting Electrical Drawings: Options for saving or exporting electrical schematics in various formats

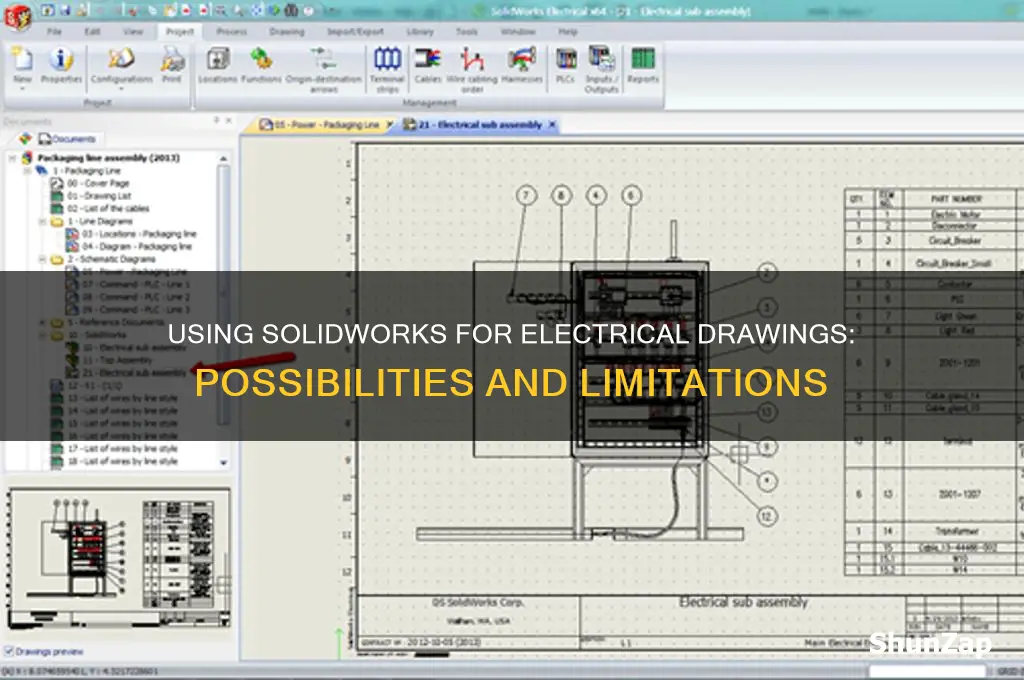

SolidWorks Electrical Features: Overview of tools for creating electrical schematics and wiring diagrams
SolidWorks Electrical is a specialized module within the SolidWorks ecosystem designed specifically for creating electrical schematics and wiring diagrams. Unlike the core SolidWorks software, which focuses on mechanical design, SolidWorks Electrical provides a suite of tools tailored to the needs of electrical engineers and designers. This module streamlines the process of designing electrical systems by offering features such as symbol libraries, automated wire routing, and real-time collaboration, making it a powerful tool for professionals in the electrical industry.
One of the standout features of SolidWorks Electrical is its extensive library of standardized electrical symbols and components. These libraries are compliant with industry standards such as IEC, ANSI, and JIC, ensuring that your designs meet global requirements. The drag-and-drop functionality allows users to quickly place components onto the schematic, while the intelligent tools automatically update connections and labels as the design evolves. This not only saves time but also reduces the likelihood of errors that can occur in manual drafting.
Another critical tool within SolidWorks Electrical is its ability to generate wiring diagrams directly from the schematic design. This feature bridges the gap between conceptual design and physical implementation by automatically creating detailed wiring diagrams that include wire lengths, terminal strips, and cable schedules. For instance, if you design a control panel schematic, the software can calculate the exact length of wires needed and generate a bill of materials, minimizing waste and ensuring accuracy in procurement and assembly.
Collaboration is a key aspect of modern engineering workflows, and SolidWorks Electrical excels in this area. The software allows multiple team members to work on the same project simultaneously, with real-time updates and version control. This is particularly useful in large-scale projects where electrical, mechanical, and software teams need to coordinate their efforts. For example, while one engineer designs the schematic, another can work on the 3D layout of the electrical components in SolidWorks, ensuring seamless integration between the electrical and mechanical systems.
While SolidWorks Electrical is a robust tool, it’s important to note that it requires some familiarity with electrical design principles and the SolidWorks interface. New users may benefit from taking advantage of the available training resources, such as tutorials and certification programs, to fully leverage the software’s capabilities. Additionally, integrating SolidWorks Electrical with other SolidWorks modules, like SolidWorks PCB, can further enhance productivity by enabling a unified approach to both electrical and printed circuit board design.
In conclusion, SolidWorks Electrical offers a comprehensive set of tools for creating electrical schematics and wiring diagrams, making it an invaluable asset for electrical engineers and designers. Its standardized libraries, automated features, and collaborative capabilities streamline the design process, while its integration with other SolidWorks modules ensures a cohesive approach to product development. Whether you’re working on a small project or a complex system, SolidWorks Electrical provides the tools needed to bring your electrical designs to life efficiently and accurately.
