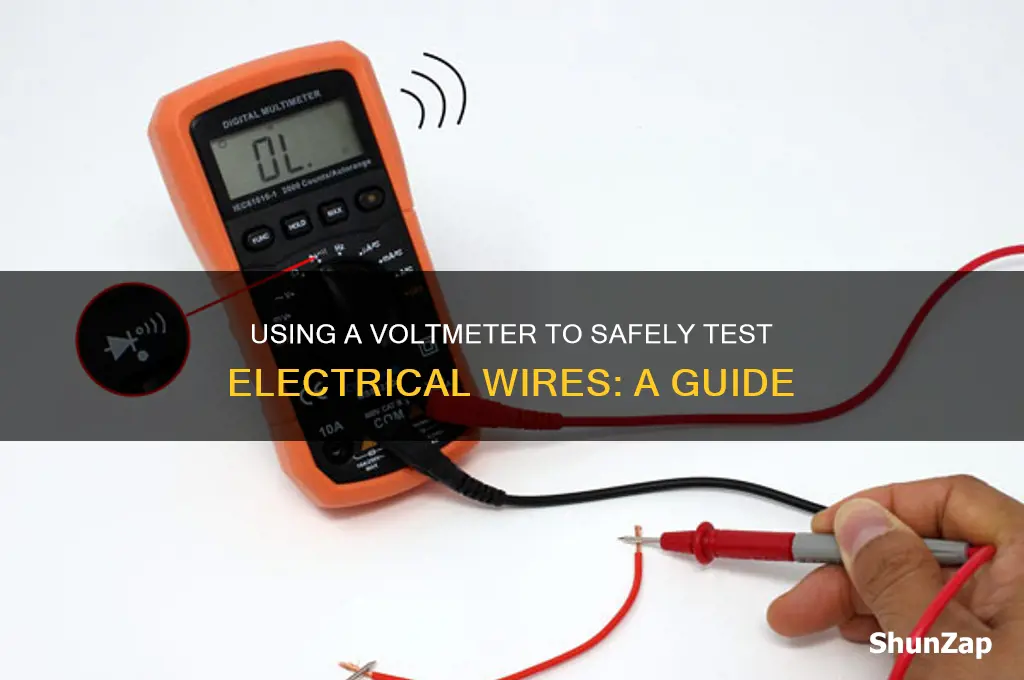

Testing electrical wires with a voltmeter is a common practice to ensure safety and functionality in electrical systems. A voltmeter measures voltage, which can help determine if a wire is live, identify potential faults, or verify proper connections. However, it’s essential to use the voltmeter correctly, selecting the appropriate voltage range and ensuring the device is in good working condition. While a voltmeter is a valuable tool for diagnosing electrical issues, it cannot detect all problems, such as continuity or resistance, which may require additional tools like a multimeter. Always prioritize safety by turning off power to the circuit before testing and using insulated tools to avoid electrical hazards.
Explore related products
What You'll Learn
Safety precautions when testing wires with a voltmeter
Testing electrical wires with a voltmeter is a straightforward task, but it demands strict adherence to safety precautions to prevent accidents. Always ensure the power source is completely de-energized before connecting the voltmeter. Even low-voltage circuits can pose risks if mishandled. Verify the absence of voltage by using a non-contact voltage tester or a reliable multimeter before proceeding. This initial step is non-negotiable, as live wires can cause severe shocks or damage equipment.
The choice of voltmeter and its settings is critical for safe testing. Use a voltmeter rated for the voltage range of the circuit you’re testing. For household wiring, a standard multimeter set to AC voltage (typically 200V or 600V) is appropriate. Avoid using a voltmeter on settings meant for higher voltage ranges unless necessary, as this can lead to inaccurate readings or equipment damage. Always inspect the voltmeter for physical damage, such as frayed leads or cracked casing, before use.
Proper technique minimizes risks during testing. Hold the voltmeter probes firmly by their insulated handles, never touching the metal tips. Connect the black probe to the common terminal and the red probe to the voltage terminal on the voltmeter. When testing wires, touch the probes to the exposed conductors or terminals, ensuring a secure connection. Avoid touching adjacent wires or metal surfaces simultaneously, as this can create unintended circuits or short circuits. Maintain a stable grip and focus to prevent accidental slippage.
Environmental factors play a significant role in safety. Test wires in dry conditions, away from water or damp surfaces, to eliminate the risk of electrical shock. Wear insulated gloves and non-conductive footwear, especially when working in areas with potential grounding hazards. If working on live circuits (though not recommended), use insulated tools and ensure the voltmeter is properly grounded. Always have a clear workspace and keep bystanders at a safe distance to prevent interference or accidents.
Finally, interpret voltmeter readings with caution. A reading of 0V does not always guarantee the circuit is safe, as residual charge or intermittent faults may still pose risks. If in doubt, retest or consult a professional. After testing, disconnect the voltmeter probes from the wires first, then turn off the device to prevent damage. Store the voltmeter in a dry, secure place, away from extreme temperatures or magnetic fields that could affect its accuracy. Following these precautions ensures both personal safety and the longevity of your equipment.
Electric Oven Voltage: 110 or 220? A Comprehensive Guide
You may want to see also
Explore related products
Identifying live wires using a voltmeter
A voltmeter is an essential tool for anyone working with electrical systems, offering a precise way to identify live wires and ensure safety. By measuring the voltage between two points, a voltmeter can quickly determine if a wire is live, carrying electrical current, or dead. This is crucial in preventing accidents such as electric shocks or short circuits during maintenance or repairs.
Understanding the Process
To identify live wires using a voltmeter, start by setting the device to the appropriate voltage range—typically AC voltage for household wiring (100–240V). Touch the voltmeter’s probes to the wire and a reference point, such as the ground or neutral wire. A reading above 0V indicates a live wire. For example, a reading of 120V in a U.S. household confirms the wire is active. Always ensure the voltmeter is properly connected and functioning before testing.
Practical Tips for Accuracy
When testing wires, ensure the voltmeter probes make firm contact with the wire’s exposed metal. Insulation or loose connections can lead to false readings. For hidden wires, use a non-contact voltage tester first to narrow down live wires before confirming with the voltmeter. Additionally, test each wire individually to avoid confusion, especially in multi-wire setups like junction boxes.
Cautions and Limitations
While a voltmeter is reliable, it’s not foolproof. Always assume wires are live until proven otherwise, and never test wires with the power on unless absolutely necessary. High-voltage systems (above 240V) require specialized equipment and expertise. Moreover, a voltmeter cannot detect residual charge in capacitors, which can still cause shocks even if the wire appears dead.
Identifying live wires with a voltmeter is a straightforward yet critical skill for electrical safety. By following proper procedures and understanding the tool’s limitations, you can confidently work with electrical systems while minimizing risks. Always prioritize safety, double-check readings, and use additional tools when needed for comprehensive testing.
Using Metal Utensils on Electric Skillets: Safe or Risky?
You may want to see also
Explore related products
Checking voltage levels in electrical wires
A voltmeter is an essential tool for anyone working with electrical systems, offering a precise way to measure voltage levels in wires. This simple device can prevent accidents, ensure proper functioning, and diagnose issues by providing critical data about the electrical current flowing through a circuit. Whether you're a professional electrician or a DIY enthusiast, understanding how to use a voltmeter correctly is key to maintaining safety and efficiency.
Steps to Check Voltage Levels:
First, ensure the power source is de-energized before connecting the voltmeter, unless you’re testing a live circuit. Set the voltmeter to the appropriate voltage range—most household circuits operate at 120V or 240V, but always verify to avoid damaging the device. Connect the black (negative) lead to the common terminal and the red (positive) lead to the voltage terminal on the voltmeter. Touch the probes to the wire’s exposed ends or use a non-contact voltage tester for insulated wires. A digital display will show the voltage reading, indicating whether the wire is functioning correctly or if there’s an issue like a short circuit or voltage drop.
Cautions and Best Practices:
Always wear insulated gloves and ensure the voltmeter is rated for the voltage you’re testing. Avoid touching probe tips together while connected to a live circuit, as this can cause arcing. For high-voltage systems (above 240V), use specialized equipment and follow strict safety protocols. Never assume a wire is dead; always test before handling. If the voltmeter reads significantly higher or lower than expected, investigate further—fluctuations can signal wiring faults or overloaded circuits.
Practical Applications and Takeaways:
Checking voltage levels is crucial for troubleshooting electrical problems, such as flickering lights or non-functioning outlets. For instance, a reading of 0V on a live wire suggests a break in the circuit, while a reading of 110V on a 120V system indicates voltage drop, often due to poor connections or undersized wiring. Regular voltage checks can also prevent overheating and fires by identifying overloads early. By mastering this skill, you’ll not only ensure safety but also extend the lifespan of your electrical systems.
Comparative Analysis:
While a voltmeter is ideal for precise voltage measurements, other tools like multimeters offer additional functionalities, such as testing current and resistance. However, for voltage checks alone, a dedicated voltmeter is more user-friendly and less prone to user error. Non-contact voltage testers are another alternative but lack the accuracy needed for detailed diagnostics. Each tool has its place, but the voltmeter remains the go-to for straightforward, reliable voltage testing in both residential and commercial settings.
Can You Convert Your Gas Dryer to Electric? A Comprehensive Guide
You may want to see also
Explore related products
Using a voltmeter to detect wire continuity
A voltmeter, while primarily designed to measure voltage, can also be a handy tool for checking wire continuity. This is particularly useful when you need to verify if a wire is intact and capable of conducting electricity without breaks or faults. By setting your voltmeter to the continuity or resistance mode, you can quickly determine whether a wire is continuous or if there’s an interruption in the circuit. This method is especially valuable in troubleshooting electrical systems where visual inspection alone isn’t sufficient.
To test wire continuity with a voltmeter, follow these steps: first, ensure the power to the circuit is turned off to avoid electrical hazards. Next, set your voltmeter to the continuity or ohms (resistance) setting, often denoted by a diode symbol or the Greek letter omega (Ω). Connect the voltmeter’s probes across the wire’s ends—one probe to each terminal. If the wire is continuous, the voltmeter will emit a beep (if it has a continuity feature) or display a low resistance value, typically close to zero ohms. If there’s no beep or the resistance reading is high, the wire is likely broken or disconnected.
While this method is effective, it’s important to note its limitations. A voltmeter’s continuity test primarily checks for a complete circuit, not the wire’s overall health or quality. For instance, it won’t detect partial breaks, corrosion, or high-resistance connections that could still allow some current to flow. For more precise diagnostics, specialized tools like a dedicated continuity tester or a multimeter with advanced features might be necessary. However, for basic checks, a voltmeter is often sufficient and readily available.
Practical tips can enhance the accuracy of your test. Always ensure the probes make firm contact with the wire terminals to avoid false readings caused by poor connections. If testing long wires, extend them straight to minimize coiling, as tight bends can introduce resistance that skews results. Additionally, if the wire is part of a complex circuit, isolate it by disconnecting it from other components to ensure the reading reflects the wire’s condition alone.
In conclusion, using a voltmeter to detect wire continuity is a straightforward and practical approach for identifying broken or disconnected wires. While it’s not a comprehensive diagnostic tool, it’s an efficient way to perform initial checks in electrical troubleshooting. By understanding its capabilities and limitations, you can leverage this method effectively in various scenarios, from home repairs to professional electrical work.
Electric Vacuum Sealers for Canning: Safe and Effective Preservation Method?
You may want to see also
Explore related products
Common mistakes to avoid while testing wires
Testing electrical wires with a voltmeter seems straightforward, but common mistakes can lead to inaccurate readings or safety hazards. One frequent error is failing to set the voltmeter to the correct range. If the voltage exceeds the selected range, the meter may display an incorrect value or become damaged. Always start with the highest voltage range and work downward to avoid overloading the device. For household circuits, begin with the 200V AC range, then adjust as needed.
Another critical mistake is not ensuring the circuit is de-energized before testing. While voltmeters are designed to measure live circuits, accidental contact with high-voltage wires can cause shocks or damage the meter. Always verify the power is off using a non-contact voltage tester before connecting the voltmeter. If testing live wires is unavoidable, use insulated tools and wear rubber gloves to minimize risk.
A less obvious but equally important error is misinterpreting the voltmeter reading. For instance, a reading of 0V does not always indicate the wire is dead; it could mean the meter is not properly connected or the circuit is open. Always double-check connections and test multiple points to confirm continuity. Additionally, fluctuating readings may suggest loose wiring or a faulty component, requiring further investigation.
Lastly, ignoring the polarity of the voltmeter leads can lead to reversed readings or damage. Most digital multimeters have marked positive and negative leads, but users often overlook this detail. Connect the red lead to the higher potential point and the black lead to the lower potential point. Reversing the leads on a DC circuit will simply invert the reading, but on AC circuits, it may not affect the display, leading to false confidence in the measurement.
By avoiding these mistakes—setting the correct range, ensuring safety precautions, interpreting readings accurately, and respecting polarity—you can use a voltmeter effectively to test electrical wires with confidence and precision.
Electric Burners and Flammable Solvents: Safe Usage Guidelines
You may want to see also
Frequently asked questions
Yes, a voltmeter can be used to test if electrical wires are live by measuring the voltage between the wires or between a wire and ground. Ensure the voltmeter is set to the appropriate voltage range and follow safety precautions.
It is generally safe to use a voltmeter to test wires without turning off the power, but extreme caution is required. Ensure the voltmeter is properly insulated, and avoid touching bare wires or conductive surfaces while testing.
A voltmeter can help identify voltage drops or irregularities that may indicate damaged or faulty wires, but it cannot directly detect physical damage. Additional tools like a multimeter or visual inspection may be needed.
A digital multimeter (DMM) with a voltmeter function is ideal for testing home electrical wires. Ensure it is rated for the voltage range in your system (typically 120V or 240V) and has proper safety certifications.
