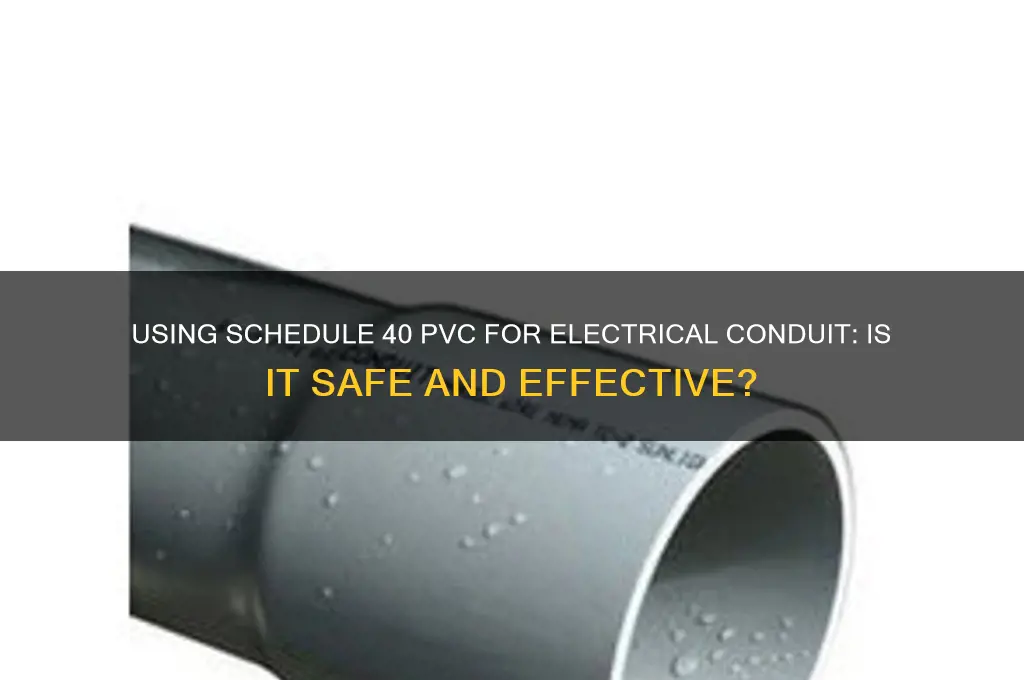

Schedule 40 PVC is a commonly used material in plumbing and construction, known for its durability and versatility. However, when it comes to electrical applications, there is often confusion about whether Schedule 40 PVC can be used as electrical conduit. While PVC is inherently non-conductive and resistant to corrosion, making it a seemingly suitable choice, its use for electrical conduit is generally not recommended. Electrical conduit must meet specific safety standards and regulations, such as those outlined by the National Electrical Code (NEC), which often require materials like rigid metal conduit (RMC) or electrical metallic tubing (EMT) for certain applications. Schedule 40 PVC may lack the necessary fire resistance, structural integrity, and compliance with electrical codes to safely contain and protect wiring. Therefore, it is crucial to consult local building codes and professional guidance before considering Schedule 40 PVC for electrical conduit purposes.
Explore related products
What You'll Learn
PVC 40 vs. 80 Conduit
Schedule 40 PVC conduit is a common choice for electrical installations due to its balance of strength and cost-effectiveness. However, when compared to Schedule 80 PVC, the differences in wall thickness and durability become critical factors in deciding which to use. Schedule 40 has thinner walls, making it lighter and easier to work with, while Schedule 80 offers greater strength and resistance to external pressures, though at a higher cost. Both are suitable for electrical conduit applications, but the choice depends on the specific demands of the installation environment.
Analytical Perspective: The primary distinction between Schedule 40 and Schedule 80 PVC conduit lies in their wall thickness. Schedule 40 has a nominal wall thickness of approximately 0.133 inches for a 1-inch diameter pipe, whereas Schedule 80 boasts a thicker wall at around 0.179 inches. This difference translates to Schedule 80 being more robust and capable of withstanding higher external stresses, such as underground installations or areas prone to physical impact. Schedule 40, while less durable, is often sufficient for indoor or less demanding outdoor applications where cost and ease of installation are priorities.
Instructive Approach: When selecting between Schedule 40 and Schedule 80 PVC conduit, consider the installation environment and local building codes. For residential or light commercial projects where the conduit is protected from significant stress, Schedule 40 is typically adequate and more economical. However, for industrial settings, buried installations, or areas with high mechanical stress, Schedule 80 is the safer choice. Always verify compliance with NEC (National Electrical Code) requirements, as some jurisdictions may mandate specific conduit types for certain applications.
Comparative Insight: While Schedule 40 PVC is lighter and more flexible, making it easier to cut and bend, Schedule 80’s rigidity can complicate installation, especially in tight spaces. Schedule 80 also has a slightly smaller inner diameter due to its thicker walls, which may affect cable pull tension calculations. Despite these trade-offs, Schedule 80’s enhanced durability often justifies its use in harsher conditions, whereas Schedule 40 remains the go-to option for standard electrical conduit needs.
Practical Tips: To maximize efficiency, use Schedule 40 for above-ground runs in protected areas and reserve Schedule 80 for high-risk environments. Always account for the conduit’s outer diameter when planning cable fills, as Schedule 80’s thicker walls reduce the available space for conductors. Additionally, consider the long-term maintenance requirements—Schedule 80’s durability may reduce future repair costs in demanding settings, offsetting its higher initial expense. By carefully evaluating these factors, you can ensure the right conduit choice for your electrical project.
Using Electrical Tape Underground: Safety, Durability, and Best Practices
You may want to see also
Explore related products
NEC Code Compliance for PVC 40
Schedule 40 PVC is a common material in construction, but its use as electrical conduit requires strict adherence to the National Electrical Code (NEC). The NEC, a benchmark for electrical safety in the United States, provides specific guidelines to ensure that materials used in electrical installations meet safety standards. For Schedule 40 PVC, compliance hinges on several factors, including the type of installation, environmental conditions, and the specific NEC articles that govern conduit usage. Understanding these requirements is crucial for electricians and contractors to avoid violations and ensure the safety of electrical systems.
One key aspect of NEC compliance for Schedule 40 PVC is its suitability for different environments. According to NEC Article 352, PVC conduit is permitted for use in dry, damp, and wet locations, but it must be listed for the specific conditions where it will be installed. For instance, Schedule 40 PVC is often used in above-ground applications, such as in garages, basements, and outdoor settings, provided it is protected from physical damage and extreme temperatures. However, it is not suitable for direct burial unless explicitly listed for that purpose, as moisture infiltration and soil conditions can compromise its integrity.
Another critical consideration is the mechanical protection and support of Schedule 40 PVC conduit. NEC Article 352.30 specifies that PVC conduit must be securely fastened to prevent movement and damage. The code requires support intervals of no more than 10 feet for horizontal runs and 6 feet for vertical runs, though local amendments may impose stricter requirements. Additionally, PVC conduit must be protected from physical damage in areas where it is exposed to potential impact, such as near doorways or in high-traffic areas, often by using protective bushings or additional shielding.
The NEC also addresses the use of Schedule 40 PVC in hazardous locations. While PVC conduit is generally not permitted in Class I, Division 1 areas where flammable gases or vapors are present, it can be used in less hazardous environments under specific conditions. For example, NEC Article 501 allows PVC conduit in Class I, Division 2 locations, provided it is part of a sealed system and meets additional safety criteria. This highlights the importance of consulting the NEC for precise guidelines tailored to the specific hazards of a location.
Finally, proper installation techniques are essential for NEC compliance. Schedule 40 PVC conduit must be installed with compatible fittings and connectors, as outlined in NEC Article 314. The use of solvent cements for joining PVC conduit is permitted, but all connections must be leak-proof and capable of withstanding the environmental conditions of the installation. Inspectors often scrutinize these details, making it imperative for installers to follow manufacturer instructions and NEC requirements meticulously. By adhering to these standards, Schedule 40 PVC can be a safe and effective choice for electrical conduit applications.
Can Electrical PVC Conduit Replace Plumbing Pipes? Pros, Cons, and Risks
You may want to see also
Explore related products
Temperature and Load Ratings
Schedule 40 PVC, a staple in plumbing, often raises questions about its suitability for electrical conduit applications. One critical factor in this assessment is its temperature and load ratings, which dictate its performance under various environmental and mechanical stresses. PVC’s maximum continuous operating temperature is typically 140°F (60°C), with short-term exposure limits up to 160°F (71°C). Exceeding these thresholds risks material degradation, including brittleness or warping, which compromises its structural integrity. For electrical conduit, this means Schedule 40 PVC is unsuitable for high-temperature environments, such as near furnaces or in industrial settings where heat buildup is common.
Load ratings are equally important, as they determine the conduit’s ability to withstand physical stress. Schedule 40 PVC has a minimum burst pressure of 450 psi, but this metric is less relevant for electrical applications than its impact resistance and crush strength. When buried underground, PVC conduit must support soil loads and resist damage from external forces like construction equipment. However, its relatively low tensile strength compared to materials like rigid metal conduit (RMC) or PVC-coated steel makes it less ideal for heavy-load scenarios. For instance, in areas with high foot traffic or vehicular loads, Schedule 40 PVC may not provide sufficient protection for electrical cables.
A comparative analysis highlights the trade-offs. While Schedule 40 PVC is lightweight, cost-effective, and resistant to corrosion, its temperature and load limitations restrict its use in demanding environments. In contrast, Schedule 80 PVC offers thicker walls and higher pressure ratings, making it more robust but also bulkier and costlier. For electrical conduit, the choice often hinges on the specific application: Schedule 40 PVC is adequate for light-duty indoor or shallow burial installations, but Schedule 80 or alternative materials like EMT (electrical metallic tubing) are preferable for high-stress or high-temperature conditions.
Practical tips for using Schedule 40 PVC as electrical conduit include avoiding direct sunlight exposure, as UV radiation accelerates material degradation, and maintaining clearance from heat sources like HVAC systems or industrial machinery. Additionally, when burying PVC conduit, ensure it is installed at depths that minimize exposure to heavy loads, typically 18–24 inches below grade, and use protective measures like sand bedding or warning tape to prevent accidental damage during excavation. Always consult local building codes, as some jurisdictions restrict PVC conduit use based on temperature or load considerations.
In conclusion, while Schedule 40 PVC can serve as electrical conduit in certain scenarios, its temperature and load ratings impose clear boundaries. Understanding these limitations ensures safe and effective installation, preventing failures that could lead to electrical hazards or costly repairs. For applications beyond its capabilities, consider upgrading to higher-rated materials or alternative conduit types.
Can Any Brush Head Fit Your Oral-B Electric Toothbrush?
You may want to see also
Explore related products
Indoor vs. Outdoor Applications
Schedule 40 PVC is a versatile material, but its suitability for electrical conduit varies significantly between indoor and outdoor environments. Indoors, where conditions are generally controlled and less harsh, Schedule 40 PVC is often the go-to choice for electrical conduit. Its lightweight nature, ease of installation, and resistance to corrosion make it ideal for routing wires through walls, ceilings, and floors. However, it’s crucial to ensure compliance with local building codes, as some jurisdictions restrict its use in specific indoor applications, such as plenum spaces, due to fire safety concerns. Always verify that the conduit is labeled for electrical use and meets NEC (National Electrical Code) standards.
Outdoors, the story changes dramatically. Schedule 40 PVC is not inherently UV-resistant, which means prolonged exposure to sunlight can degrade the material over time, leading to brittleness and potential failure. For outdoor applications, consider using PVC conduit specifically formulated with UV inhibitors or opt for alternatives like PVC-coated rigid metal conduit (PVC-RMC) or fiberglass. Additionally, outdoor environments expose conduit to temperature extremes, moisture, and physical damage, so the material must withstand these conditions without compromising safety. If Schedule 40 PVC is used outdoors, it should be buried below ground or protected from direct sunlight to extend its lifespan.
A key distinction in outdoor applications is the need for mechanical protection. Above-ground installations require conduit that can resist impact and environmental stress, which Schedule 40 PVC may not adequately provide. For instance, in areas prone to lawnmower strikes or heavy foot traffic, rigid metal conduit (RMC) or intermediate metal conduit (IMC) offers superior durability. However, if Schedule 40 PVC is the chosen material, ensure it’s installed in a way that minimizes exposure to physical damage, such as running it along protected pathways or using additional shielding.
Practical tips for both environments include proper sizing and installation techniques. Indoors, use conduit sizes that accommodate the number of wires without exceeding fill capacity, as outlined in NEC Table 1. Always secure conduit with appropriate fittings and supports to prevent strain on wires. Outdoors, bury Schedule 40 PVC conduit at least 18 inches deep to protect it from surface damage and temperature fluctuations. For above-ground runs, consider painting the conduit with UV-resistant paint or using conduit covers to shield it from sunlight.
In summary, while Schedule 40 PVC is a reliable choice for indoor electrical conduit, its outdoor use requires careful consideration and often additional measures to ensure longevity and safety. By understanding the unique challenges of each environment and adhering to best practices, you can make informed decisions that meet both functional and regulatory requirements. Always prioritize safety and compliance, as the consequences of improper conduit selection can be severe.
