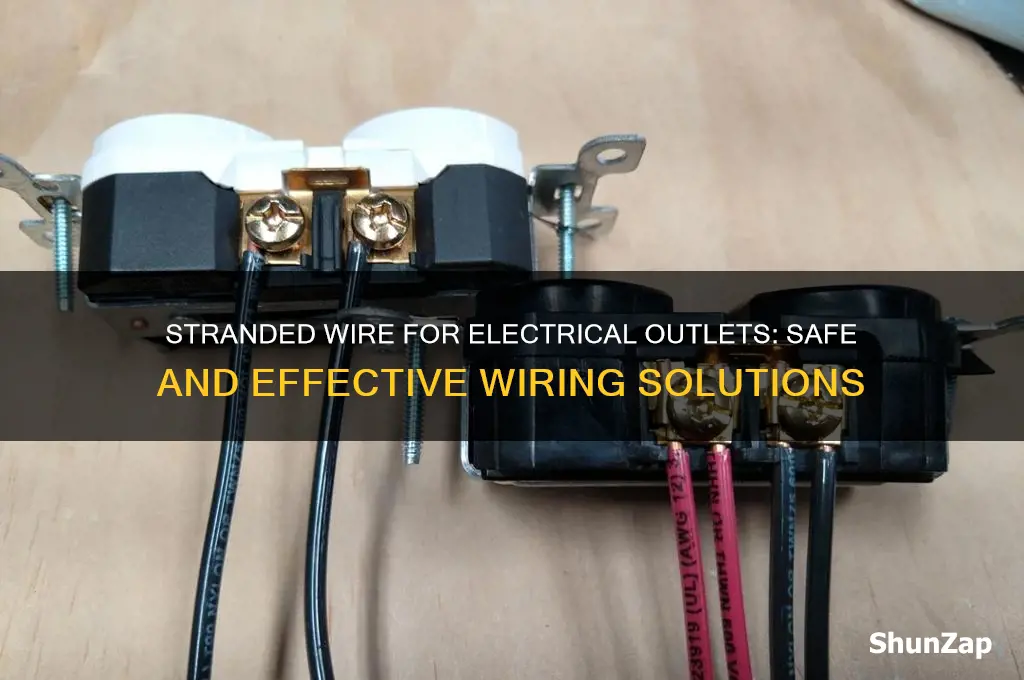

Stranded wire, composed of multiple smaller wires twisted together, is often considered for use in wiring electrical outlets due to its flexibility and ease of installation, especially in tight or confined spaces. However, its suitability depends on factors such as the gauge of the wire, the amperage requirements of the circuit, and compliance with local electrical codes. While stranded wire can be used for outlets in many residential and light commercial applications, it is essential to ensure that the wire is rated for the intended load and that proper connections are made to avoid overheating or other safety hazards. Always consult a qualified electrician or refer to local regulations to confirm compatibility and adherence to safety standards.
| Characteristics | Values |
|---|---|
| Can stranded wire be used for wiring electrical outlets? | Yes, but with considerations |
| NEC Compliance | Allowed under NEC (National Electrical Code) if properly secured and terminated |
| Wire Gauge | Must meet circuit amperage requirements (e.g., 12 AWG for 20A circuits, 14 AWG for 15A circuits) |
| Termination Method | Requires compatible screw terminals or wire connectors designed for stranded wire |
| Securing Wire | Must be securely clamped or anchored to prevent loosening over time |
| Flexibility | More flexible than solid wire, making it easier to work with in tight spaces |
| Fatigue Resistance | Less prone to breakage due to repeated bending or vibration |
| Cost | Generally more expensive than solid wire |
| Common Applications | Residential and light commercial wiring, especially in areas with frequent movement or vibration |
| Limitations | Not recommended for high-temperature environments or where wire may be subject to extreme stress |
| Best Practices | Use wire connectors rated for stranded wire, ensure proper stripping and insertion, and follow manufacturer guidelines |
Explore related products
What You'll Learn
- Stranded Wire Flexibility: Advantages of flexibility in tight spaces for outlet installations
- Ampacity Considerations: Ensuring stranded wire gauge meets outlet current requirements safely
- Connection Reliability: Proper techniques for secure connections to outlet terminals
- Code Compliance: NEC and local regulations for using stranded wire in outlets
- Durability Factors: Resistance to fatigue and vibration in outlet wiring applications
Stranded Wire Flexibility: Advantages of flexibility in tight spaces for outlet installations
Stranded wire, composed of multiple thin strands twisted together, offers a level of flexibility that solid core wire simply cannot match. This inherent pliability becomes a game-changer when navigating the often cramped and convoluted spaces behind walls, within junction boxes, and around existing wiring during outlet installations.
Imagine threading a rigid rod through a maze compared to a flexible rope – the analogy perfectly illustrates the advantage stranded wire holds in tight quarters.
This flexibility translates to several practical benefits. Firstly, it significantly reduces the risk of wire damage during installation. Rigid solid core wire is prone to kinking and breaking when bent sharply, especially in confined spaces. Stranded wire, with its ability to bend and conform, minimizes this risk, leading to a more reliable and long-lasting installation. Secondly, the flexibility allows for easier manipulation around obstacles like studs, pipes, and existing wiring. This not only saves time and frustration but also ensures a neater and more professional-looking installation.
Imagine trying to force a stiff wire around a corner without damaging it – stranded wire eliminates this struggle.
While stranded wire's flexibility is a clear advantage, it's crucial to choose the correct gauge for the specific outlet and circuit requirements. Using wire that's too thin can lead to overheating and potential fire hazards. Always consult the National Electrical Code (NEC) or a qualified electrician to determine the appropriate gauge for your project. Additionally, ensure the stranded wire is rated for the intended use, whether it's for general purpose outlets or specialized applications like GFCI outlets.
By carefully selecting the right stranded wire and leveraging its flexibility, you can achieve a safe, efficient, and professional outlet installation, even in the most challenging spaces.
Using Electric Air Compressors Indoors: Safety Tips and Best Practices
You may want to see also
Explore related products
Ampacity Considerations: Ensuring stranded wire gauge meets outlet current requirements safely
Stranded wire, with its flexible and durable nature, is often favored for electrical installations, but its use in wiring outlets demands careful consideration of ampacity—the maximum current a wire can carry safely. Unlike solid wire, stranded wire’s flexibility comes from its multiple thin strands, which can affect its current-carrying capacity. To ensure safety, the wire gauge must align with the outlet’s current requirements, typically measured in amperes (amps). For instance, a standard 15-amp outlet requires a wire gauge that can handle at least 15 amps without overheating, with 14-gauge stranded wire being a common choice. However, simply matching the gauge isn’t enough; factors like temperature, wire length, and bundle conditions must also be evaluated to prevent hazards like overheating or fires.
Ampacity tables, provided by standards like the National Electrical Code (NEC), are essential tools for determining the safe current capacity of stranded wires. These tables account for wire gauge, material (typically copper or aluminum), and environmental conditions. For example, a 12-gauge stranded copper wire can safely carry up to 20 amps, making it suitable for 20-amp outlets. However, if the wire is installed in a conduit with multiple other wires, its ampacity may derate by up to 20% due to increased heat retention. Similarly, longer wire runs increase resistance, reducing ampacity. Electricians must consult these tables and apply derating factors to ensure the wire’s capacity exceeds the outlet’s demand under all conditions.
Practical tips for ensuring safe ampacity include selecting the correct wire gauge for the intended load, avoiding overloading circuits, and using wire rated for the specific application (e.g., THHN for dry indoor use). For DIY enthusiasts, it’s critical to verify the outlet’s amperage rating and match it with the appropriate wire gauge, ensuring compatibility with the circuit breaker. For instance, a 20-amp outlet should never be wired with 14-gauge stranded wire, as it’s rated for only 15 amps. Additionally, using wire connectors rated for stranded wire and ensuring proper termination at the outlet terminals minimizes resistance and heat buildup.
Comparing stranded wire to solid wire highlights why ampacity considerations are unique. Stranded wire’s flexibility makes it ideal for tight spaces and vibration-prone areas, but its higher surface area and air gaps between strands can slightly reduce its ampacity compared to solid wire of the same gauge. This difference underscores the importance of precise selection and adherence to safety standards. While stranded wire is versatile, it’s not a one-size-fits-all solution; its use in outlets requires meticulous planning to balance flexibility with safety.
In conclusion, ensuring stranded wire gauge meets outlet current requirements safely involves more than just matching numbers. It requires a thorough understanding of ampacity, environmental factors, and derating principles. By consulting ampacity tables, applying practical tips, and respecting the unique properties of stranded wire, homeowners and professionals can confidently wire outlets that are both functional and safe. Always prioritize compliance with local electrical codes and, when in doubt, consult a licensed electrician to avoid costly mistakes or hazards.
Do Electrical Dryers Use Exhaust? Understanding Ventilation Needs
You may want to see also
Explore related products
Connection Reliability: Proper techniques for secure connections to outlet terminals
Stranded wire, with its flexible and durable nature, is indeed suitable for wiring electrical outlets, but ensuring connection reliability is paramount. The key lies in mastering proper techniques to secure connections to outlet terminals, as this directly impacts safety and performance. Unlike solid wire, stranded wire’s flexibility can sometimes lead to loose connections if not handled correctly. Therefore, understanding the nuances of terminal attachment is essential for a robust electrical system.
One critical technique is stripping the wire to the correct length. For stranded wire, strip approximately ½ inch of insulation to expose the conductors. Over-stripping can lead to exposed wires outside the terminal, increasing the risk of short circuits, while under-stripping may result in inadequate contact. After stripping, gently twist the strands together to form a compact, uniform end. This ensures maximum surface contact with the terminal screw, enhancing conductivity and reducing the likelihood of overheating.
Another vital step is selecting the appropriate terminal type. Most modern outlets feature side-wire terminals, which are ideal for stranded wire. Insert the twisted end of the wire into the terminal hole, ensuring it aligns with the screw. Tighten the screw firmly but avoid over-tightening, as this can damage the wire or terminal. For outlets with backstab connections, exercise caution, as these are less reliable for stranded wire due to the increased risk of loose connections over time. Always prioritize side-wire or pigtail connections for longevity.
A practical tip to enhance connection reliability is to use wire connectors or ferrules. Ferrules, small metal tubes crimped onto the end of stranded wire, create a solid, uniform connection point that fits securely into terminal screws. While not always necessary, they are particularly useful in high-vibration environments or when working with fine-stranded wire. Additionally, applying a small amount of electrical grease to the terminal can reduce corrosion and improve conductivity, though this is optional and should be used sparingly.
Finally, always double-check connections before finalizing the installation. Tug gently on the wire to ensure it is securely held in place. Use a multimeter to test for continuity and verify that the outlet is properly grounded. These steps, though time-consuming, are crucial for preventing hazards such as electrical fires or shocks. By adhering to these techniques, stranded wire can be a reliable and efficient choice for wiring electrical outlets, combining flexibility with safety.
Using Your Electric Piano as a MIDI Controller: A Comprehensive Guide
You may want to see also
Explore related products
Code Compliance: NEC and local regulations for using stranded wire in outlets
Stranded wire, with its flexible and durable nature, is often favored for various electrical applications. However, when it comes to wiring electrical outlets, code compliance is paramount. The National Electrical Code (NEC) provides clear guidelines on the use of stranded wire in outlets, ensuring safety and reliability. According to NEC 110.14(B), stranded wire is permitted for outlets, but it must be securely terminated using devices specifically designed for stranded conductors. This includes screw terminals marked for stranded wire or specialized wire connectors that accommodate the wire’s flexibility without compromising the connection.
Local regulations often mirror NEC standards but may include additional requirements based on regional needs. For instance, some jurisdictions mandate the use of anti-oxidant compounds on aluminum stranded wires to prevent corrosion, even if the NEC does not explicitly require it. It’s crucial to consult local building codes or a licensed electrician to ensure compliance with both national and regional standards. Failure to adhere to these regulations can result in failed inspections, safety hazards, or even legal consequences.
One practical tip for using stranded wire in outlets is to strip the wire to the correct length, ensuring no stray strands extend beyond the terminal. Over-stripping or under-stripping can lead to loose connections or short circuits. Additionally, when using wire connectors (like twist-on wire nuts), ensure they are rated for stranded wire and tightened to the manufacturer’s specifications. For outlets with push-in terminals, stranded wire is generally not recommended due to the risk of poor contact, though some modern devices are now designed to accept both solid and stranded conductors.
A comparative analysis reveals that while stranded wire is more flexible and resistant to fatigue than solid wire, it requires careful installation to meet code requirements. Solid wire, on the other hand, is simpler to terminate in outlets but less forgiving in environments with frequent movement or vibration. For residential applications, stranded wire is often used in areas like kitchens or workshops where flexibility is beneficial, but it must always comply with NEC and local codes.
In conclusion, using stranded wire for electrical outlets is permissible under the NEC and local regulations, provided proper termination methods are employed. Always verify compatibility with outlet devices, follow manufacturer guidelines, and consult local codes to ensure a safe and compliant installation. By adhering to these standards, you can leverage the advantages of stranded wire without compromising electrical safety.
Electric Longboards and Lithium Batteries: Powering Your Ride Efficiently
You may want to see also
Explore related products
Durability Factors: Resistance to fatigue and vibration in outlet wiring applications
Stranded wire, composed of multiple thin strands twisted together, inherently offers better resistance to fatigue and vibration compared to solid wire. This flexibility allows it to absorb movement without cracking or breaking, a critical advantage in environments where outlets may be subject to repeated stress. For instance, in industrial settings or areas with heavy machinery, the constant vibration can cause solid wire to weaken over time, leading to potential failures. Stranded wire, however, can withstand these conditions, making it a more durable choice for outlet wiring in such applications.
When selecting stranded wire for outlet wiring, consider the gauge and stranding configuration. A higher strand count increases flexibility and fatigue resistance but may also increase the wire's overall diameter. For standard residential outlets, a 12- or 14-gauge wire with 7 to 19 strands is typically sufficient. In more demanding environments, such as industrial or automotive applications, opt for finer strands (e.g., 30 to 40 strands) in a smaller gauge (e.g., 16 or 18 AWG) to maximize durability without compromising space.
One practical tip is to use stranded wire in areas where outlets are frequently moved or adjusted, such as in modular office spaces or temporary installations. The wire’s ability to bend repeatedly without damage ensures longevity and reduces maintenance needs. However, ensure that the wire is properly secured and not over-tightened during installation, as excessive tension can negate its flexibility advantages.
Comparatively, while solid wire is often preferred for its rigidity in static applications, stranded wire’s resistance to fatigue and vibration makes it the superior choice in dynamic environments. For example, in a workshop where power tools are frequently plugged and unplugged, stranded wire’s durability ensures consistent performance over time. Solid wire, in contrast, may develop microfractures under similar conditions, leading to intermittent connections or failures.
In conclusion, stranded wire’s resistance to fatigue and vibration is a key durability factor in outlet wiring applications, particularly in environments with movement or stress. By selecting the appropriate gauge and strand count, and ensuring proper installation, you can maximize its benefits. For those prioritizing long-term reliability in challenging conditions, stranded wire is not just an option—it’s the optimal choice.
Electrical Pulses for Leg Cellulitis: Safe and Effective Treatment Option?
You may want to see also
Frequently asked questions
Yes, stranded wire can be used for wiring electrical outlets, provided it meets the appropriate gauge and amperage requirements for the circuit.
Yes, ensure the stranded wire is rated for the intended use, and use wire connectors or terminals designed for stranded wire to secure connections properly.
While stranded wire can often be used interchangeably, it’s important to check local electrical codes and ensure the wire type is compatible with the outlet and circuit breaker.
