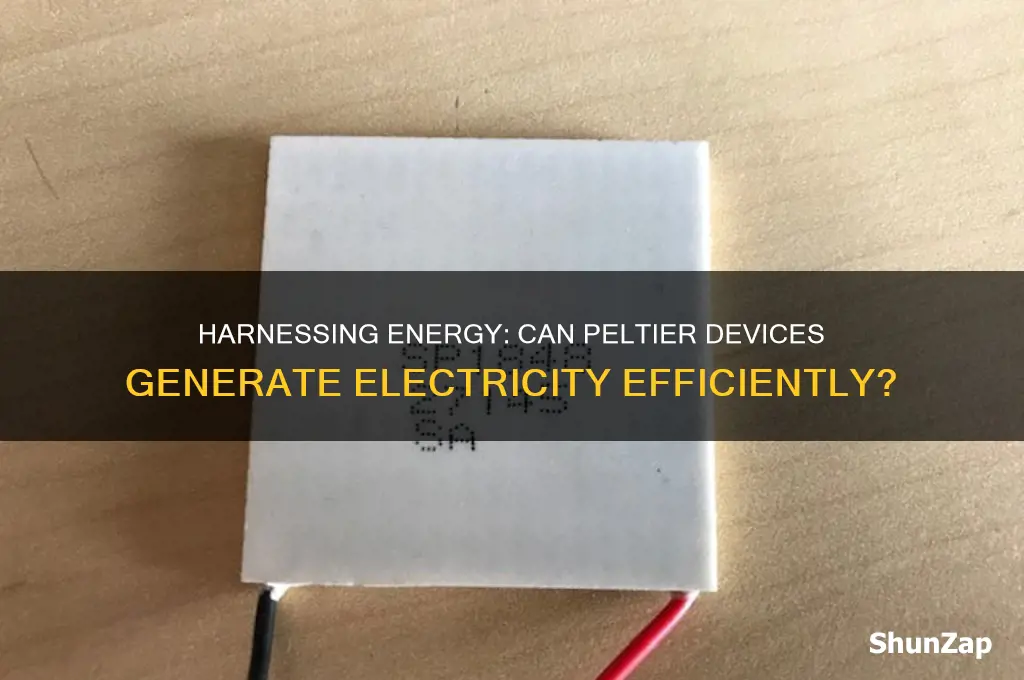

A Peltier module, also known as a thermoelectric generator (TEG), is a device that can convert temperature differences directly into electrical energy based on the Seebeck effect. This raises the question: can you use a Peltier to generate electricity? The answer is yes, but with certain limitations. Peltiers are most effective in applications where there is a significant temperature gradient, such as harnessing waste heat from industrial processes, automotive systems, or even natural sources like geothermal energy. However, their efficiency is generally lower compared to traditional power generation methods, making them more suitable for low-power applications or niche scenarios where conventional energy sources are impractical. Despite this, advancements in materials and design continue to improve their performance, expanding their potential use in renewable energy and off-grid power solutions.
| Characteristics | Values |
|---|---|
| Principle | Thermoelectric Effect (Seebeck Effect) |
| Function | Converts temperature differences directly into electrical voltage |
| Efficiency | Typically 3-15% (depends on temperature difference and module quality) |
| Power Output | Milliwatts to Watts (depends on temperature gradient and module size) |
| Common Uses | Waste heat recovery, remote power generation, small-scale energy harvesting |
| Temperature Difference Required | Generally >20°C for practical power generation |
| Material | Bismuth telluride (Bi₂Te₃) or other thermoelectric materials |
| Lifespan | Long (no moving parts, solid-state device) |
| Maintenance | Minimal (requires stable temperature difference and clean surfaces) |
| Cost | Relatively low for small-scale applications |
| Limitations | Low efficiency compared to traditional power generation methods, requires significant temperature difference |
| Environmental Impact | Low (no emissions during operation, but material production may have environmental costs) |
| Scalability | Limited (best suited for small-scale or niche applications) |
Explore related products
What You'll Learn
Peltier module efficiency in energy harvesting
Peltier modules, also known as thermoelectric generators (TEGs), can indeed convert temperature differences into electricity, making them a viable option for energy harvesting. However, their efficiency is a critical factor that determines their practicality in real-world applications. Typically, Peltier modules operate at efficiencies ranging from 5% to 15%, significantly lower than traditional power generation methods like solar panels or combustion engines. This efficiency is influenced by the thermoelectric materials used, the temperature gradient across the module, and the module’s design. For instance, bismuth telluride (Bi₂Te₃) is a common material used in Peltier modules due to its effectiveness in room-temperature applications, but advancements in materials like silicon germanium (SiGe) are pushing efficiency boundaries further.
To maximize the efficiency of a Peltier module in energy harvesting, several strategies can be employed. First, maintaining a high temperature differential is crucial. For example, placing one side of the module near a heat source (e.g., a car exhaust or industrial machinery) and the other side in a cooler environment (e.g., ambient air or a heat sink) can significantly increase power output. Second, optimizing the load resistance to match the module’s internal resistance ensures maximum power transfer, a principle known as impedance matching. Third, using multiple modules in series or parallel can scale up power generation, though this requires careful balancing to avoid inefficiencies. For DIY enthusiasts, a practical tip is to use thermal paste between the module and heat sources/sinks to minimize thermal resistance.
Despite their low efficiency compared to other technologies, Peltier modules excel in niche applications where traditional power sources are impractical. For example, they are used in remote sensors, wearable devices, and off-grid systems where small temperature differences can be harnessed. A case in point is their use in powering wireless sensors in industrial settings, where waste heat from machinery provides a consistent energy source. However, it’s essential to manage expectations: a single Peltier module with a 10°C temperature difference might generate only 1-2 watts of power, sufficient for low-energy devices but not for high-power applications.
One of the most significant challenges in improving Peltier module efficiency is the trade-off between thermal and electrical conductivity in thermoelectric materials. Materials with high electrical conductivity often have high thermal conductivity, reducing the module’s ability to maintain a temperature gradient. Researchers are addressing this by developing nanostructured materials that suppress thermal conductivity while maintaining electrical performance. For instance, skutterudites and half-Heusler alloys are being explored for their potential to achieve efficiencies above 20% under specific conditions. These advancements, though still in experimental stages, hold promise for making Peltier modules more competitive in energy harvesting.
In conclusion, while Peltier modules are not the most efficient energy harvesting technology, their unique ability to generate electricity from temperature differences makes them valuable in specific scenarios. By optimizing temperature differentials, load matching, and material selection, their efficiency can be enhanced to meet the needs of low-power applications. For those considering Peltier modules for energy harvesting, start with a clear understanding of the available temperature gradient and power requirements, and experiment with modular setups to scale power output effectively. As research progresses, these devices may become even more efficient, broadening their applicability in sustainable energy solutions.
Dimmable Ballasts: Energy Efficiency and Electricity Savings Explained
You may want to see also
Explore related products
Optimal temperature differentials for electricity generation
Peltier devices, also known as thermoelectric generators (TEGs), harness the Seebeck effect to convert temperature differences directly into electricity. The efficiency of this process hinges critically on the temperature differential across the device. While any difference will produce some voltage, maximizing power output requires a nuanced understanding of optimal differentials.
Research indicates that Peltier modules typically achieve peak efficiency at temperature gradients between 30°C and 70°C (86°F to 158°F). This range strikes a balance between exploiting the material's thermoelectric properties and minimizing internal resistance, which increases with temperature. Exceeding 70°C can lead to diminished performance due to material degradation and reduced carrier mobility within the semiconductor junctions.
Consider a practical scenario: a TEG integrated into a camping stove. The hot side, exposed to the flame, might reach 200°C (392°F), while the cold side, cooled by a heat sink and ambient air, maintains 30°C (86°F). This 170°C differential, though substantial, may not be optimal. A more efficient setup could involve a smaller flame, reducing the hot side to 150°C (302°F) and allowing for a more manageable cold side temperature of 50°C (122°F), resulting in a 100°C differential within the ideal range.
This example highlights the importance of tailoring the temperature differential to the specific Peltier module and application. Factors like material composition, module size, and desired power output all influence the optimal range.
Achieving optimal temperature differentials often involves creative heat management strategies. For low-power applications, passive cooling with heat sinks and natural convection might suffice. Higher power demands may necessitate active cooling solutions like fans or liquid cooling systems. Conversely, maximizing heat input on the hot side can be achieved through efficient heat exchangers, thermal pastes, and careful insulation to minimize losses.
Ultimately, determining the optimal temperature differential for electricity generation with a Peltier device requires a combination of theoretical understanding, practical experimentation, and consideration of the specific application's constraints. By carefully managing heat flow and selecting the appropriate module, it's possible to harness the Seebeck effect efficiently, transforming waste heat or natural temperature variations into usable electrical power.
Do Commercial Air Conditioners Rely on Electric Motors? Explained
You may want to see also
Explore related products
Practical applications of Peltier-based power systems
Peltier devices, also known as thermoelectric generators (TEGs), harness the Seebeck effect to convert temperature differences directly into electricity. While their efficiency is generally lower than traditional power generation methods, their compact size, silent operation, and ability to utilize waste heat make them ideal for niche applications. Here’s how Peltier-based power systems are being practically applied today.
Remote and Off-Grid Power Generation: In locations where traditional power sources are inaccessible or unreliable, Peltier modules offer a viable solution. For instance, hikers and campers can use portable TEGs to charge small electronics like smartphones or GPS devices by leveraging the temperature difference between a heat source (e.g., a campfire or body heat) and the ambient environment. Similarly, in remote weather stations or wildlife monitoring systems, Peltier devices can generate electricity from solar-heated surfaces or even the temperature gradient between day and night, ensuring continuous operation without batteries.
Waste Heat Recovery in Industrial Settings: Industries often generate significant amounts of waste heat, which can be converted into usable electricity using Peltier modules. For example, in automotive applications, TEGs can be integrated into exhaust systems to capture heat from engine emissions, providing additional power to reduce fuel consumption. In manufacturing plants, heat from machinery or processes can be redirected through Peltier arrays to generate electricity, improving energy efficiency and reducing operational costs. A study by the U.S. Department of Energy found that waste heat recovery systems, including those using TEGs, could potentially save up to 20% of industrial energy consumption.
Medical and Wearable Devices: The compact size and low maintenance requirements of Peltier modules make them suitable for powering medical and wearable devices. For instance, implantable medical devices like pacemakers or insulin pumps could theoretically use body heat to extend battery life, reducing the need for frequent surgeries to replace batteries. Wearable technology, such as smartwatches or fitness trackers, could incorporate TEGs to harvest energy from the wearer’s body heat, enabling longer operation times without recharging. However, challenges such as ensuring biocompatibility and optimizing efficiency at low temperature differentials remain areas of active research.
Space Exploration and Extreme Environments: In environments where conventional power sources are impractical, Peltier-based systems shine. NASA has explored using TEGs in spacecraft and rovers to generate electricity from the extreme temperature differences in space. For example, the Mars Curiosity rover uses a radioisotope thermoelectric generator (RTG), which operates on principles similar to Peltier devices, to convert heat from radioactive decay into electricity. Similarly, in polar research stations or deep-sea exploration, TEGs can harness temperature gradients between equipment and the surrounding environment to provide reliable power in conditions where solar or wind energy is infeasible.
While Peltier-based power systems are not a silver bullet for all energy needs, their versatility and adaptability make them a valuable tool in specific scenarios. By focusing on applications where their unique strengths align with practical requirements, engineers and innovators can unlock new possibilities for sustainable and efficient power generation.
Do EV Chargers Consume Electricity When Idle? Uncovering the Truth
You may want to see also
Explore related products
Comparing Peltier to traditional thermoelectric generators
Peltier devices, often referred to as thermoelectric coolers (TECs), are not just for cooling—they can indeed generate electricity when exposed to a temperature differential. This phenomenon is rooted in the Seebeck effect, where a voltage is created across a junction of two different conductors when there is a temperature difference between them. Traditional thermoelectric generators (TEGs) operate on the same principle but are specifically designed for power generation, often using optimized materials like bismuth telluride. While both Peltier modules and TEGs harness thermoelectric effects, their design, efficiency, and applications differ significantly.
From a design perspective, Peltier modules are typically smaller, more compact, and optimized for cooling applications. They consist of semiconductor pellets sandwiched between ceramic plates, with electrical leads attached for power input. In contrast, TEGs are bulkier and engineered to maximize power output, often featuring more thermocouples and robust heat exchangers. For instance, a Peltier module might generate a few milliwatts to watts under a 10°C temperature difference, while a TEG can produce tens of watts under similar conditions, depending on its size and material quality. This makes TEGs more suitable for applications like waste heat recovery in industrial settings or powering remote sensors.
Efficiency is another critical point of comparison. Peltier modules generally have lower efficiency, often around 5–15%, due to their primary focus on cooling rather than power generation. TEGs, on the other hand, can achieve efficiencies of 5–10% under ideal conditions, with advanced materials pushing this closer to 15–20%. For example, a TEG using skutterudites or half-Heusler alloys can outperform a standard Peltier module in both power output and efficiency. However, Peltier modules are more accessible and affordable for small-scale projects, making them a popular choice for DIY electricity generation experiments, such as powering low-energy devices like LED lights or charging small batteries.
Practical considerations also highlight the differences. Peltier modules are versatile and easy to integrate into compact systems, such as portable power generators or thermoelectric backpacks that harness body heat. TEGs, however, require more robust thermal management, including heat sinks and insulation, to maintain efficiency. For instance, a TEG installed in a car exhaust system can convert waste heat into electricity, but it needs careful design to handle high temperatures and vibrations. In contrast, a Peltier module could be used in a camping stove to generate power for a smartphone, but its output would be limited.
In conclusion, while both Peltier modules and traditional TEGs can generate electricity from temperature differences, their strengths lie in different domains. Peltier modules are ideal for small-scale, low-power applications where simplicity and cost-effectiveness are priorities. TEGs, with their higher efficiency and power output, are better suited for industrial or specialized applications requiring consistent energy generation. Understanding these differences allows users to choose the right technology for their specific needs, whether it’s a DIY project or a large-scale energy recovery system.
Calculus in Electrical Engineering: Essential Tool or Optional Skill?
You may want to see also
Explore related products
Cost-effectiveness of Peltier for small-scale electricity production
Peltier devices, also known as thermoelectric generators (TEGs), can indeed convert temperature differences into electricity, making them a viable option for small-scale power generation. However, their cost-effectiveness hinges on specific conditions and applications. For instance, a single Peltier module, such as the TEC1-12706, can generate around 3-5 watts of power with a temperature difference of 50°C (122°F). While this output is modest, it can be sufficient for low-power devices like sensors or LED lights in remote or off-grid settings.
To assess cost-effectiveness, consider the initial investment and operational efficiency. A standard Peltier module costs between $5 and $20, depending on size and quality. However, achieving a usable temperature differential often requires additional components like heat sinks, fans, or insulation, which can double the setup cost. For example, a DIY Peltier generator for camping might cost $50 in materials but produce only enough power to charge a smartphone over several hours. This raises the question: is the investment justified for the energy output?
Comparatively, solar panels offer a higher energy yield per dollar spent, especially in sunny climates. A 10-watt solar panel, priced around $30, can generate twice the power of a Peltier setup under optimal conditions. However, Peltier devices excel in niche scenarios where heat sources are abundant and consistent, such as near industrial machinery, car engines, or even wood-burning stoves. In these cases, the "fuel" is essentially free, making the system more cost-effective over time.
For small-scale applications, maximizing efficiency is key. Position the Peltier module where temperature gradients are naturally high, such as between a hot water pipe and ambient air. Ensure proper thermal contact using thermal paste or pads to minimize energy loss. Additionally, pair the setup with a low-power DC-DC converter to stabilize voltage output for sensitive devices. While Peltier generators may not replace traditional power sources, they offer a unique, cost-effective solution for micro-energy harvesting in specific environments.
Ultimately, the cost-effectiveness of Peltier devices for small-scale electricity production depends on the context. They are not a one-size-fits-all solution but shine in scenarios where waste heat is readily available and low-power needs are the priority. By carefully matching the application to the technology’s strengths, users can achieve a practical and economical energy solution.
Octane Fitness Machines: Powering Workouts Without Electricity
You may want to see also
Frequently asked questions
Yes, a Peltier module can generate electricity when exposed to a temperature difference across its junctions, a process known as the Seebeck effect.
Peltier modules are generally less efficient at generating electricity compared to traditional methods, with efficiencies typically ranging from 3% to 6%, depending on the temperature difference and module quality.
Peltier modules can be used in small-scale applications like powering low-energy devices, thermoelectric generators for remote sensors, or recovering waste heat from industrial processes, though their efficiency limits widespread use.
