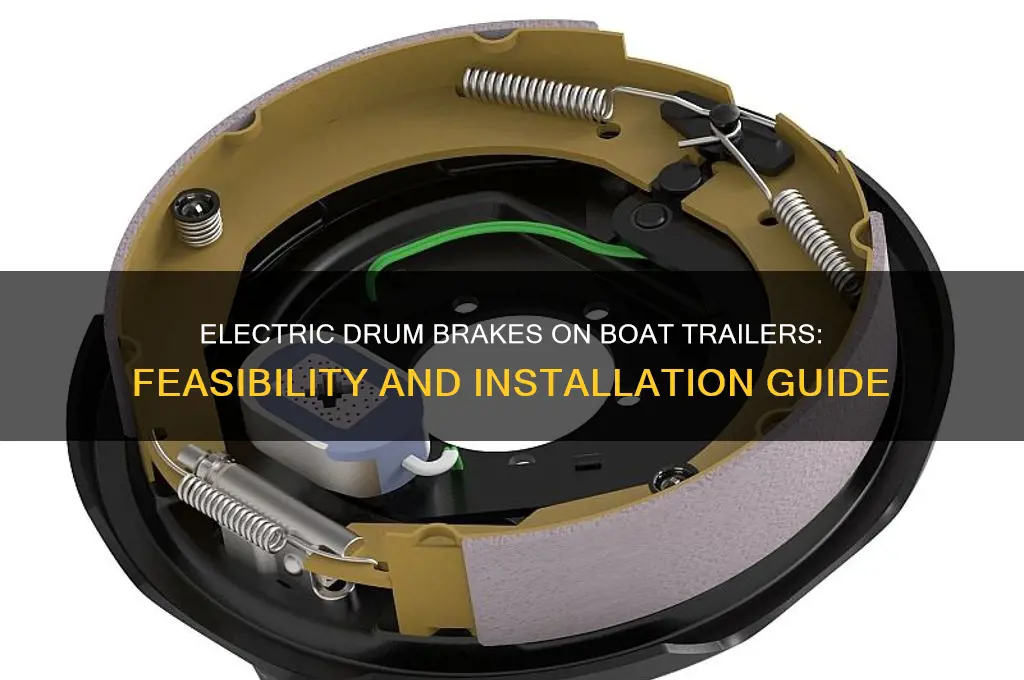

Electric drum brakes are a popular choice for boat trailers due to their reliability and ease of maintenance. These brakes use an electric actuator to apply pressure to the brake shoes inside the drum, providing stopping power for the trailer. When considering whether to use electric drum brakes on a boat trailer, it's essential to evaluate factors such as the trailer's weight, the boat's size, and the towing vehicle's capabilities. Electric drum brakes are generally suitable for boat trailers, especially those with a gross vehicle weight rating (GVWR) exceeding 3,000 pounds, as they offer better control and safety compared to surge brakes or no brakes at all. However, it's crucial to ensure proper installation, adjustment, and regular maintenance to guarantee optimal performance and safety while towing your boat.
| Characteristics | Values |
|---|---|
| Compatibility | Yes, electric drum brakes can be used on boat trailers, provided the trailer is equipped with the necessary wiring and components. |
| Weight Capacity | Suitable for trailers with a Gross Vehicle Weight Rating (GVWR) typically up to 10,000 lbs, depending on the brake model. |
| Installation | Requires professional installation to ensure proper wiring, brake controller setup, and brake adjustment. |
| Power Source | Operates on a 12-volt electrical system, powered by the towing vehicle’s battery. |
| Brake Controller | A brake controller is required in the towing vehicle to activate the electric brakes. |
| Maintenance | Regular inspection and adjustment of brake shoes, magnets, and wiring to ensure optimal performance. |
| Water Resistance | Designed to be water-resistant, but prolonged exposure to saltwater may require additional corrosion protection. |
| Cost | Generally more expensive upfront compared to mechanical brakes but offers better control and ease of use. |
| Legal Requirements | Check local regulations, as some areas mandate electric brakes for trailers above certain weight limits. |
| Performance | Provides smoother and more consistent braking compared to mechanical surge brakes, especially on slippery surfaces. |
| Ease of Use | Easier to operate and adjust compared to mechanical brakes, with less physical effort required during towing. |
| Durability | Durable but may require more frequent maintenance in harsh marine environments. |
Explore related products
What You'll Learn
Compatibility with boat trailer axles
Electric drum brakes can indeed be used on boat trailers, but compatibility with the trailer’s axles is critical for safety and performance. Axles must be rated to accommodate the additional weight and stress introduced by braking systems. Most boat trailer axles are designed to support either surge or electric brakes, but not all are pre-configured for electric drum brakes. Verify the axle’s specifications, typically stamped on the axle itself or provided by the manufacturer, to ensure it meets the load capacity and braking requirements. Axles rated for 3,500 lbs or higher are commonly compatible, but always cross-reference with the brake kit’s specifications.
Retrofitting electric drum brakes onto an existing axle requires careful consideration of the axle’s mounting points and spindle size. The spindle, which connects the axle to the wheel hub, must match the brake assembly’s mounting dimensions. Standard spindle sizes for boat trailers include 1-inch and 1.05-inch diameters, but discrepancies can render the brakes inoperable or unsafe. Measure the spindle diameter and consult the brake manufacturer’s compatibility chart to avoid mismatches. Additionally, ensure the axle has pre-drilled holes for brake wiring or be prepared to modify it safely.
Another factor in compatibility is the axle’s braking capacity relative to the trailer’s Gross Vehicle Weight Rating (GVWR). Electric drum brakes are typically available in 10-inch and 12-inch diameters, with larger brakes offering greater stopping power. For boat trailers exceeding 5,000 lbs GVWR, 12-inch brakes are recommended to handle the increased load. However, the axle must be rated to support the brake size and torque. Overloading an axle with brakes beyond its capacity can lead to failure, particularly in saltwater environments where corrosion accelerates wear.
Practical installation tips include aligning the brake magnets with the backing plate to ensure proper engagement and testing the brakes before towing. Use marine-grade wiring and connectors to protect against moisture, and apply dielectric grease to electrical connections. Regularly inspect the axle and brakes for signs of wear, especially after exposure to saltwater. While electric drum brakes offer precise control and ease of use, their compatibility with your boat trailer’s axles hinges on meticulous matching of specifications and adherence to safety standards. Always consult a professional if unsure about axle compatibility or installation procedures.
Natural Gas Furnace Operation: Can It Work Without Electricity?
You may want to see also
Explore related products
Electrical system requirements for drum brakes
Electric drum brakes on a boat trailer demand a robust electrical system to ensure safe and reliable operation. The system must deliver consistent power to the brake magnets, which activate the braking mechanism. A 12-volt DC power supply is standard, typically sourced from the towing vehicle’s battery. However, the amperage draw is critical; electric drum brakes often require 20–30 amps per axle, depending on the brake size and load. Insufficient power can lead to weak or unresponsive brakes, while overloading the system risks damage to wiring or fuses. Always verify the brake manufacturer’s specifications to match the electrical supply to the brake’s needs.
Wiring quality and gauge are non-negotiable components of this system. Use marine-grade, weatherproof wiring rated for the expected amperage to prevent corrosion and ensure longevity in wet environments. A common mistake is underestimating wire gauge, leading to voltage drop and reduced brake performance. For instance, a 10-gauge wire is suitable for short runs (under 10 feet), but longer distances require thicker wiring (e.g., 8-gauge) to maintain power integrity. Grounding is equally crucial; a clean, solid ground connection to the trailer frame minimizes resistance and ensures consistent brake activation.
The brake controller is the brain of the electrical system, regulating power delivery to the brakes based on the towing vehicle’s deceleration. Choose a controller compatible with electric drum brakes and calibrated for the trailer’s weight. Manual-adjust controllers offer simplicity but require periodic tuning, while time-based or pendulum-style controllers provide automatic adjustment for smoother braking. Installation must follow the manufacturer’s guidelines, including proper mounting and wiring connections. Test the controller at various speeds and loads to ensure it activates the brakes proportionally and without delay.
Maintenance of the electrical system is as vital as its initial setup. Regularly inspect wiring for fraying, corrosion, or loose connections, especially after exposure to saltwater. Clean and grease brake magnets and wiring terminals to prevent oxidation. Test the brakes before each trip by activating them manually with the controller; a weak response indicates a potential electrical issue. Keep a spare fuse and wiring connectors in your trailer kit for roadside repairs. Proactive maintenance not only extends the system’s lifespan but also ensures safety during critical braking situations.
Finally, consider the integration of safety features to complement the electrical system. A breakaway kit, which activates the brakes if the trailer disconnects from the vehicle, is a legal requirement in many regions and relies on a separate battery and switch. Surge protectors can safeguard the system from voltage spikes, while LED indicators on the dashboard provide real-time feedback on brake functionality. While these additions increase complexity, they significantly enhance safety and peace of mind, especially when hauling heavy or valuable loads like boats.
Electric Heaters vs. AC: Which Consumes More Power?
You may want to see also
Explore related products
Installation process and tools needed
Electric drum brakes can indeed be installed on a boat trailer, offering improved stopping power and safety, especially for heavier loads. However, the installation process requires careful planning, the right tools, and a methodical approach to ensure functionality and reliability. Here’s a detailed breakdown of the steps and tools needed to accomplish this task effectively.
Steps for Installation:
- Prepare the Trailer Axle: Begin by ensuring the trailer axle is compatible with electric drum brakes. Measure the axle diameter and verify it matches the brake specifications. Remove the existing hubs or drums if present, using a lug wrench and hammer. Clean the axle spindle thoroughly to prevent debris from interfering with the new brakes.
- Install the Brake Assemblies: Position the electric drum brake assemblies onto the axle, ensuring the magnets face inward. Secure them with the provided mounting bolts, tightening to the manufacturer’s torque specifications (typically 50-60 ft-lbs). Double-check alignment to avoid uneven braking.
- Wire the Brake System: Connect the brake wires to the trailer’s electrical system. Use a 12-gauge wire for the brake circuit and a waterproof connector to link the trailer to the tow vehicle. Test the wiring with a multimeter to confirm continuity and proper grounding.
- Adjust the Brakes: With the drums installed, adjust the brake shoes using the star wheel or manual adjuster. Rotate the wheel to ensure the shoes make even contact with the drum without dragging. Proper adjustment is critical for performance and longevity.
Tools Required:
- Lug wrench and socket set for removing and installing wheels and bolts.
- Hammer and punch for hub removal or alignment.
- Torque wrench for securing brake assemblies.
- Wire strippers, crimping tool, and multimeter for electrical connections.
- Adjustable wrench or pliers for brake adjustments.
- Safety wire or zip ties for organizing wiring.
Cautions and Tips:
Always disconnect the trailer battery before working on the electrical system to prevent short circuits. Use dielectric grease on electrical connections to protect against corrosion, especially in marine environments. Test the brakes in a controlled area before towing to ensure they engage and release properly. Regularly inspect brake components for wear, as saltwater exposure can accelerate deterioration.
By following these steps and using the appropriate tools, installing electric drum brakes on a boat trailer becomes a manageable task that enhances safety and control. Proper installation and maintenance ensure the system performs reliably, even under demanding conditions.
Mercury in 1834 Electric Motors: Fact or Fiction?
You may want to see also
Explore related products
Maintenance tips for electric drum brakes
Electric drum brakes are a reliable choice for boat trailers, offering consistent stopping power and ease of maintenance compared to hydraulic systems. However, their longevity depends on regular care tailored to their unique components. Start by inspecting the brake magnets and armatures for wear or corrosion every 5,000 miles or annually, whichever comes first. These components generate friction to slow the trailer, and any damage can compromise braking efficiency. Clean them with a wire brush and apply a light coat of dielectric grease to prevent moisture buildup, ensuring smooth operation.
Another critical aspect is the brake wiring, which is susceptible to corrosion from saltwater exposure. Use a multimeter to test the circuit for continuity and inspect the wires for fraying or cracks. Replace damaged wiring with marine-grade, submersible cable rated for at least 10 amps to handle the current draw of the brakes. Additionally, waterproof all connections with heat-shrink tubing and dielectric grease to protect against the harsh marine environment.
Brake shoes and drums require periodic adjustment and replacement. Measure the drum’s internal diameter with a micrometer; if it exceeds the manufacturer’s specifications (typically 12.5 inches for standard boat trailer drums), replace the drum to maintain proper contact with the shoes. Inspect the shoes for uneven wear or thinning—replace them if the lining is less than 1/8 inch thick. Adjust the brakes using the star wheel mechanism until there’s a slight drag when rotating the wheel by hand, ensuring balanced braking without excessive heat buildup.
Finally, the actuator—the component linking the trailer’s brakes to the tow vehicle—demands attention. Lubricate the moving parts with silicone-based grease to prevent binding, and check the breakaway cable for tension and integrity. Test the breakaway system monthly by manually activating it to ensure it engages the brakes in case of a trailer disconnect. Regularly clean the actuator with freshwater to remove salt residue, and inspect the seals for leaks, replacing them if necessary to maintain hydraulic pressure.
By following these targeted maintenance steps, electric drum brakes on boat trailers can provide years of dependable service, enhancing safety and peace of mind during transport. Neglecting these practices risks brake failure, which could lead to costly repairs or accidents. Prioritize consistency in inspections and proactive replacements to maximize performance and longevity.
Garage Heaters: Electricity Usage Explained for Energy-Efficient Heating
You may want to see also
Explore related products
Legal regulations for trailer brake systems
Trailer brake systems, including electric drum brakes, are subject to strict legal regulations that vary by jurisdiction. In the United States, for instance, the Federal Motor Carrier Safety Administration (FMCSA) and the Department of Transportation (DOT) set standards for trailer brakes based on the trailer's gross vehicle weight rating (GVWR). Trailers with a GVWR exceeding 3,000 pounds typically require brakes on at least one axle. Electric drum brakes, commonly used on boat trailers, must comply with these regulations to ensure safety and functionality. Always verify local laws, as states like California and New York may impose additional requirements beyond federal standards.
When installing electric drum brakes on a boat trailer, adherence to wiring and grounding regulations is critical. The National Highway Traffic Safety Administration (NHTSA) mandates that brake systems be wired with a dedicated circuit, using a 12-volt power supply and a ground connection to the trailer frame. Improper wiring can lead to brake failure or electrical shorts, resulting in legal penalties or accidents. Additionally, breakaway systems—required for trailers over 3,000 pounds—must activate the brakes if the trailer disconnects from the tow vehicle. Ensure your setup includes a fully charged battery or a direct connection to the tow vehicle’s battery to meet these standards.
Material and maintenance regulations further dictate the legality of electric drum brakes. The DOT requires brake components to be made of corrosion-resistant materials, particularly for boat trailers frequently exposed to water. Regular inspections, as outlined in the FMCSA’s guidelines, are mandatory to check for wear, proper adjustment, and functionality. For example, brake shoes should have a minimum thickness of 1/16 inch, and magnets must engage fully. Failure to maintain these standards can result in fines or impoundment of the trailer. Keep detailed records of inspections and repairs to demonstrate compliance during roadside checks.
Comparatively, electric drum brakes offer advantages over hydraulic systems in terms of legal compliance for boat trailers. They are easier to install and maintain, reducing the risk of non-compliance due to complex setups. However, they require specific adjustments, such as setting the brake magnet gap to 0.030 inches, to ensure optimal performance. Unlike hydraulic brakes, electric systems do not need fluid lines, which eliminates the risk of leaks but requires careful attention to electrical connections. Weighing these factors, electric drum brakes are a legally sound choice for boat trailers when installed and maintained according to regulations.
Finally, understanding the interplay between federal and state laws is essential for legal operation. While federal regulations provide a baseline, states often add layers of specificity. For example, Florida requires annual safety inspections for trailers over 2,000 pounds, while Texas mandates brake systems on all axles for trailers over 4,500 pounds. Researching and adhering to these layered regulations ensures your electric drum brake system remains compliant. Ignorance of local laws is not a defense, so consult state DMV or DOT websites for precise requirements before modifying or using your boat trailer.
Power Converters and Electric Blankets: Safe Usage Guide
You may want to see also
Frequently asked questions
Yes, electric drum brakes can be used on a boat trailer, provided the trailer is equipped with the necessary wiring and components to support electric brake systems.
Electric drum brakes can be used in saltwater environments, but it’s essential to choose marine-grade or corrosion-resistant components and perform regular maintenance to prevent rust and damage.
Yes, a breakaway kit is required for electric drum brakes on a boat trailer to ensure the brakes engage if the trailer disconnects from the towing vehicle.
Yes, you can convert a boat trailer from hydraulic to electric drum brakes, but it requires installing a new brake controller, wiring harness, and compatible electric brake assemblies.
Electric drum brakes are generally reliable and easier to maintain than hydraulic brakes, but their effectiveness depends on proper installation, wiring, and regular inspection to ensure they function correctly.
