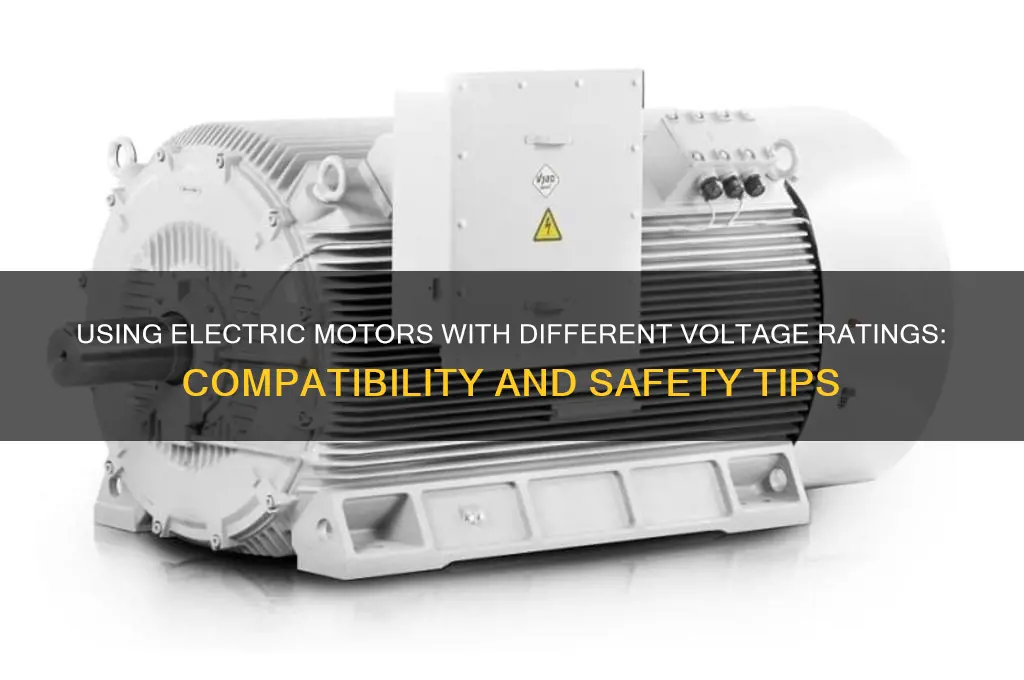

Electric motors are designed to operate at specific voltage ratings, but the question of whether you can use them with different voltage levels is a common one. While it might be tempting to interchange motors with varying voltage requirements, doing so requires careful consideration. Using an electric motor with a voltage rating higher than its design can lead to excessive current draw, overheating, and potential damage to the motor's insulation and windings. Conversely, operating a motor at a lower voltage than specified may result in reduced performance, insufficient torque, and inefficient operation. However, some motors can tolerate slight voltage variations, and voltage regulators or transformers can sometimes be used to match the supply voltage to the motor's requirements. Ultimately, consulting the manufacturer's specifications and guidelines is essential to ensure safe and optimal performance when considering the use of electric motors with different voltage ratings.
| Characteristics | Values |
|---|---|
| Can you use electric motors with different voltage ratings? | Yes, but with limitations and considerations. |
| Key Factors | - Motor Design: Some motors are designed for a specific voltage range. - Insulation: Higher voltage requires higher insulation class. - Current Draw: Lower voltage may increase current draw, potentially overheating the motor. < - Speed: Voltage directly affects motor speed (RPM). - Torque: Torque may decrease at lower voltages. |
| Voltage Tolerance | Typically, motors can handle a voltage variation of ±10% without significant issues. |
| Consequences of Mismatched Voltage | - Under-voltage: Reduced speed, torque, and efficiency; potential overheating due to increased current draw. - Over-voltage: Insulation breakdown, shortened motor life, potential damage to windings. |
| Solutions for Voltage Mismatch | - Variable Frequency Drives (VFDs): Allow adjusting voltage and frequency to match motor requirements. - Transformers: Step up or down voltage to match motor rating. - Motor Rewinding: Modify motor windings for different voltage operation (specialized service). |
| Important Considerations | - Always consult the motor's datasheet and manufacturer recommendations. - Ensure proper ventilation and cooling for the motor. - Monitor motor performance and temperature when operating at non-rated voltages. |
Explore related products
$9.68
What You'll Learn
Compatibility of Motors and Power Supplies
Electric motors and power supplies must align in voltage to ensure optimal performance and longevity. Using a motor with a voltage rating different from the power supply can lead to inefficiency, overheating, or even permanent damage. For instance, a 12V motor connected to a 24V power supply will draw excessive current, causing the motor to burn out prematurely. Conversely, underpowering a motor—such as connecting a 24V motor to a 12V supply—results in insufficient torque and speed, rendering the motor ineffective for its intended task.
Compatibility hinges on understanding the relationship between voltage, current, and power. Motors are designed to operate within specific voltage ranges, typically with a tolerance of ±10%. Exceeding this range disrupts the motor’s electromagnetic field, leading to erratic performance. For example, a 48V motor paired with a 60V supply will experience a 25% voltage increase, far beyond its design limits. To mitigate risks, use a voltage regulator or transformer to match the supply to the motor’s rating. Alternatively, select a motor with a voltage rating that aligns with your available power source.
Practical scenarios highlight the importance of compatibility. In automotive applications, a 12V starter motor relies on precise voltage delivery to function reliably. Industrial settings often use 220V or 440V motors, requiring power supplies that match these ratings exactly. For hobbyists working with small DC motors, a common mistake is powering a 3V motor with a 9V battery, which can destroy the motor within seconds. Always verify voltage compatibility before connecting any motor to a power source.
To ensure compatibility, follow these steps: First, identify the motor’s voltage rating, typically marked on its label or datasheet. Second, confirm the power supply’s output voltage using a multimeter. Third, calculate the power requirements using the formula \( P = V \times I \), where \( P \) is power, \( V \) is voltage, and \( I \) is current. If the motor’s power draw exceeds the supply’s capacity, upgrade the power source or choose a motor with lower requirements. Lastly, test the setup under load to verify stability and performance.
In summary, compatibility between motors and power supplies is non-negotiable for safe and efficient operation. Mismatched voltages lead to operational failures or irreversible damage. By understanding voltage relationships, verifying ratings, and using appropriate tools, users can avoid costly mistakes and ensure their systems function as intended. Always prioritize compatibility to maximize the lifespan and efficiency of electric motors.
Spring vs. Electric Airsoft: Which One Suits Your Playstyle Best?
You may want to see also
Explore related products
Voltage Matching for Optimal Performance
Electric motors are designed to operate within specific voltage ranges, and using a motor with a mismatched voltage can lead to inefficiency, overheating, or even permanent damage. Voltage matching is critical for ensuring optimal performance, longevity, and safety. For instance, a motor rated for 120V will not perform efficiently if connected to a 240V power supply, as the excessive voltage can cause the windings to overheat and fail prematurely. Conversely, underpowering a motor by supplying it with a voltage lower than its rating will result in reduced torque, slower speeds, and increased energy consumption.
To achieve voltage matching, start by identifying the motor’s rated voltage, typically found on its nameplate or in the manufacturer’s specifications. If the available power supply voltage differs, consider using a variable frequency drive (VFD) or a transformer to adjust the voltage to the motor’s requirements. For example, a 240V motor can be safely operated on a 208V supply using a VFD, which not only matches the voltage but also allows for speed control and energy savings. However, ensure the VFD is compatible with the motor’s horsepower and amperage to avoid overloading.
Another practical approach is to select a motor with a voltage rating that aligns with your power supply. If your facility operates on a 480V system, opt for a motor rated at 480V rather than attempting to adapt a 240V motor. While this may seem straightforward, it’s essential to account for voltage drop in long cable runs, which can reduce the effective voltage reaching the motor. In such cases, oversizing the cable or using a higher voltage motor with a VFD can mitigate these losses.
Caution must be exercised when experimenting with voltage mismatches, even if temporary. Running a motor at 10% above its rated voltage, for instance, can reduce its lifespan by up to 50% due to increased heat and insulation breakdown. Similarly, operating a motor at 20% below its rated voltage can lead to stalling and mechanical stress. Always prioritize voltage matching to avoid these risks and ensure consistent performance.
In summary, voltage matching is not just a technical detail but a cornerstone of electric motor efficiency and reliability. By understanding the motor’s voltage requirements, utilizing appropriate voltage adjustment tools, and avoiding common pitfalls, you can maximize performance while safeguarding your equipment. Whether in industrial applications or DIY projects, precise voltage matching is the key to unlocking a motor’s full potential.
Whitening Toothpaste and Electric Toothbrushes: A Perfect Match or Not?
You may want to see also
Explore related products
Risks of Overvoltage and Undervoltage
Electric motors are designed to operate within specific voltage ranges, and deviating from these can lead to significant risks. Overvoltage occurs when the motor receives a higher voltage than its rated value, causing excessive current flow. This surge can lead to overheating, insulation breakdown, and premature failure of components like windings or bearings. For instance, a motor rated for 240V subjected to 280V may experience a 15–20% increase in current, drastically reducing its lifespan from years to mere months. Undervoltage, conversely, happens when the supply voltage drops below the motor’s rating, resulting in insufficient torque and inefficient operation. A motor designed for 480V running at 400V may struggle to start loads or run at reduced speeds, increasing mechanical stress and energy consumption.
Analyzing these risks reveals a delicate balance between voltage and motor performance. Overvoltage accelerates wear by pushing components beyond their thermal limits, while undervoltage strains the motor through prolonged operation under stress. For example, a 3-phase motor rated at 460V operating at 500V can experience winding temperatures exceeding safe thresholds by 20–30°C, leading to insulation failure within weeks. Similarly, undervoltage in a 12V DC motor can cause it to draw excessive current to compensate, overheating the commutator and brushes. Both scenarios highlight the importance of voltage regulation to prevent catastrophic failures.
To mitigate these risks, practical steps include using voltage stabilizers or transformers to match the supply to the motor’s rating. For overvoltage protection, install surge suppressors or varistors to clamp voltage spikes. In undervoltage scenarios, ensure power sources are stable and consider adding capacitors to improve power factor. Regularly monitor voltage levels with multimeters or smart sensors, especially in industrial settings where fluctuations are common. For motors operating in remote or unstable power grids, invest in uninterruptible power supplies (UPS) to maintain consistent voltage.
Comparing overvoltage and undervoltage risks underscores the need for proactive measures. While overvoltage is more immediately destructive, undervoltage can be insidious, causing gradual damage that goes unnoticed until failure occurs. For instance, a motor running at 80% of its rated voltage may appear functional but could be operating at 120% of its current capacity, silently degrading its components. In contrast, overvoltage often triggers immediate symptoms like burning smells or tripped breakers, prompting swift action. Understanding these differences allows for tailored solutions, such as prioritizing overvoltage protection in high-voltage environments and focusing on stability in low-voltage applications.
Ultimately, the risks of overvoltage and undervoltage are avoidable with careful planning and monitoring. By adhering to voltage ratings, using protective devices, and maintaining stable power supplies, motor longevity and efficiency can be preserved. Ignoring these risks not only shortens motor life but also poses safety hazards, from electrical fires to mechanical failures. Whether in a home appliance or industrial machinery, voltage compatibility is non-negotiable for reliable operation. Treat voltage as a critical parameter, and your motors will reward you with years of trouble-free service.
Honeywell Air Conditioners: Electricity Usage and Energy Efficiency Explained
You may want to see also
Explore related products
Using Transformers or Converters
Electric motors are designed to operate at specific voltage ratings, but real-world applications often require flexibility. Transformers and converters emerge as essential tools to bridge the gap between a motor’s voltage requirements and the available power supply. By stepping up or stepping down voltage levels, these devices enable motors to function efficiently across diverse electrical systems. However, their application isn’t one-size-fits-all—it demands careful consideration of motor type, load, and power supply characteristics.
Steps to Implement Transformers or Converters:
- Identify Voltage Mismatch: Determine the motor’s rated voltage and compare it to the available power supply. For instance, a 220V motor cannot run directly on a 110V supply without intervention.
- Select the Right Device: Use a transformer for AC motors to adjust voltage levels proportionally. For DC motors or variable frequency drives, a converter (such as an AC-to-DC rectifier or DC-to-DC converter) is necessary.
- Calculate Power Requirements: Ensure the transformer or converter’s power rating exceeds the motor’s maximum load. For example, a 1.5 kW motor requires a device rated at least 1.5 kW, with a 20% buffer for safety.
- Install Safeguards: Incorporate fuses, circuit breakers, or thermal protection to prevent overloading. Transformers should be housed in well-ventilated enclosures to dissipate heat effectively.
Cautions and Limitations:
Transformers and converters introduce efficiency losses, typically 1–5%, depending on the device’s quality. Overloading can lead to overheating or damage, so avoid running motors at more than 80% of the device’s rated capacity. Additionally, transformers are ineffective for motors requiring frequency adjustments, such as those in variable-speed applications. In such cases, a variable frequency drive (VFD) paired with a converter is more suitable.
Practical Tips for Optimal Performance:
- Use high-efficiency transformers (e.g., Class 1 or better) to minimize energy loss.
- For portable applications, opt for lightweight, compact converters with built-in cooling systems.
- Regularly inspect connections for corrosion or loose wiring, as these can degrade performance over time.
- When using converters, ensure the output waveform matches the motor’s requirements—DC motors, for instance, may require a smooth, ripple-free DC supply.
By leveraging transformers or converters thoughtfully, users can adapt electric motors to diverse voltage environments without compromising performance or safety. This approach not only extends the motor’s versatility but also optimizes energy usage in mismatched systems.
Super Glue for Electrical Connections: Safe or Risky Repair?
You may want to see also
Explore related products
Motor Efficiency at Different Voltages
Electric motors are designed to operate at specific voltage ratings, but their efficiency can vary significantly when subjected to different voltage levels. Understanding this relationship is crucial for optimizing performance and energy consumption. At the core, motor efficiency is a measure of how effectively electrical energy is converted into mechanical work. When a motor operates at its rated voltage, it typically achieves peak efficiency, often around 85-95% for high-quality models. However, deviations from this voltage can lead to inefficiencies, such as increased heat generation or reduced torque output. For instance, running a 24V motor at 12V may cause it to draw more current to maintain the same load, leading to higher energy losses and potential overheating.
Analyzing the impact of voltage on efficiency reveals a non-linear relationship. Below the rated voltage, efficiency drops sharply due to increased current draw and higher resistive losses in the windings. Conversely, operating a motor above its rated voltage can lead to insulation breakdown, reduced lifespan, and inefficient operation due to magnetic saturation in the core. For example, a 120V motor operated at 150V may experience excessive heat buildup, causing the windings to degrade prematurely. Practical applications often involve variable voltage scenarios, such as in battery-powered systems where voltage drops under load. In such cases, motors with wide operating voltage ranges (e.g., 10-30V for a 24V motor) are preferred to maintain efficiency across varying conditions.
To maximize efficiency at different voltages, consider using voltage regulators or variable frequency drives (VFDs). VFDs are particularly effective for AC motors, as they allow precise control of voltage and frequency, ensuring optimal performance across a range of loads. For DC motors, pulse-width modulation (PWM) controllers can adjust the effective voltage, enabling efficient operation at partial loads. For example, a PWM controller can reduce the average voltage supplied to a 48V motor when running at 50% load, minimizing energy waste. Additionally, selecting motors with higher efficiency ratings (e.g., IE4 or NEMA Premium) can provide better performance across voltage variations.
A comparative analysis of motor types highlights differences in voltage sensitivity. Brushless DC (BLDC) motors, for instance, are less affected by voltage variations due to their electronic commutation, making them suitable for applications with fluctuating power supplies. In contrast, brushed DC motors and induction motors are more sensitive to voltage changes, requiring careful voltage management. For instance, a brushed DC motor used in a solar-powered water pump may need a voltage stabilizer to maintain efficiency as battery voltage drops throughout the day. Understanding these differences allows engineers to choose the right motor for specific voltage environments.
In conclusion, motor efficiency at different voltages is a critical factor in system design and operation. By understanding the effects of under- and over-voltage conditions, employing voltage regulation techniques, and selecting appropriate motor types, it is possible to maintain high efficiency even in variable voltage scenarios. Practical steps include using VFDs for AC motors, PWM controllers for DC motors, and prioritizing motors with wide operating voltage ranges. Such measures not only optimize energy consumption but also extend motor lifespan, ensuring reliable performance in diverse applications.
Choosing Your Electric Provider: Can You Switch to Any Company?
You may want to see also
Frequently asked questions
No, using a motor with a voltage rating higher than the available power supply will result in insufficient power delivery, causing the motor to run inefficiently or not at all.
No, applying a voltage higher than the motor’s rating can cause overheating, insulation breakdown, and permanent damage to the motor.
Yes, if you match the power supply voltage to the motor’s rated voltage, you can safely use the motor. Ensure compatibility to avoid damage.
Yes, voltage adapters or transformers can be used to step up or step down the voltage to match the motor’s rating, but ensure the adapter/transformer is appropriately sized for the motor’s power requirements.
