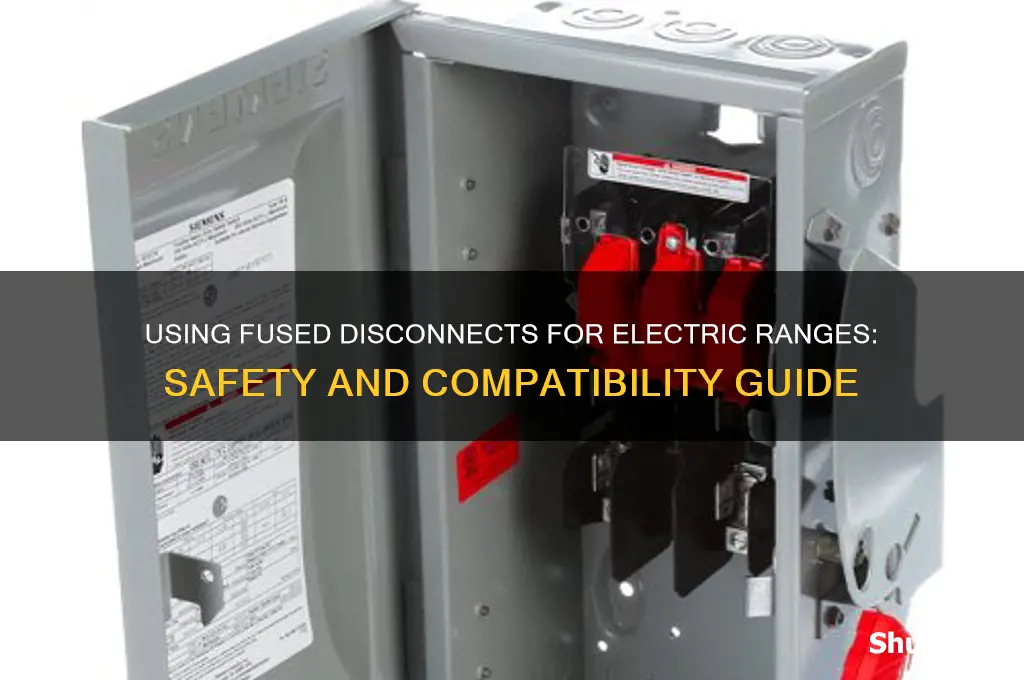

When considering the installation or upgrade of an electric range, one important component to evaluate is the use of a fused disconnect. A fused disconnect is a safety device that combines a disconnect switch with a fuse, allowing for the safe isolation of an electrical circuit while also providing overcurrent protection. For electric ranges, which typically draw significant power, a fused disconnect can be a suitable option as it ensures that the appliance can be quickly and safely disconnected from the power supply in case of an emergency or for maintenance. However, it’s essential to verify that the fused disconnect is rated for the specific amperage and voltage requirements of the electric range and complies with local electrical codes. Consulting a licensed electrician is recommended to ensure proper installation and adherence to safety standards.
| Characteristics | Values |
|---|---|
| Purpose | A fused disconnect is primarily used as a safety device to isolate an electric range from the power supply for maintenance or in case of an emergency. |
| Compatibility | Yes, fused disconnects can be used for electric ranges, provided they are rated for the appropriate voltage (typically 240V) and amperage (usually 40-50A) required by the range. |
| Rating | Must match the electrical requirements of the electric range, typically 240V, 40-50A. |
| Type | Commonly used types include non-fusible (with circuit breakers) or fusible (with fuses) disconnects. For electric ranges, non-fusible is more common due to higher amperage requirements. |
| Installation | Must be installed in accordance with local electrical codes (e.g., NEC in the U.S.) and by a licensed electrician. |
| Location | Should be installed within sight of the electric range and easily accessible for quick disconnection. |
| Safety Features | Provides a visible break in the circuit, ensuring the range is completely de-energized during maintenance or emergencies. |
| Alternatives | Circuit breakers in the main electrical panel can also serve as a disconnect, but a dedicated fused disconnect offers additional safety and convenience. |
| Cost | Typically ranges from $50 to $200, depending on the brand, type, and features. |
| Maintenance | Requires periodic inspection to ensure proper functioning and to replace fuses or breakers if necessary. |
| Code Compliance | Must comply with local electrical codes, which often require a disconnecting means within sight of the appliance. |
Explore related products
What You'll Learn
- Fused Disconnect Basics: Understanding the function and purpose of a fused disconnect in electrical systems
- Compatibility with Ranges: Checking if fused disconnects meet electric range voltage and amperage requirements
- Safety Considerations: Ensuring proper installation and compliance with electrical codes for safe operation
- Installation Process: Step-by-step guide to installing a fused disconnect for an electric range
- Alternatives to Fused Disconnects: Exploring other devices like circuit breakers for electric range connections
Fused Disconnect Basics: Understanding the function and purpose of a fused disconnect in electrical systems
A fused disconnect is a critical safety device in electrical systems, combining a disconnect switch with a fuse to provide both isolation and overcurrent protection. Its primary function is to allow for the safe disconnection of power to a circuit or appliance, such as an electric range, while also protecting against electrical faults like short circuits or overloads. This dual purpose makes it an essential component in residential, commercial, and industrial settings where reliable power management is crucial.
To understand its application for an electric range, consider the specific requirements of such appliances. Electric ranges typically draw high currents, often exceeding 40 amperes, depending on the model and usage. A fused disconnect ensures that if a fault occurs—say, a heating element malfunctions—the fuse will interrupt the circuit, preventing damage to the appliance or electrical system. Simultaneously, the disconnect switch allows for manual isolation of the range during maintenance or emergencies, ensuring no live power remains connected.
When installing a fused disconnect for an electric range, it’s imperative to match the device’s specifications to the appliance’s electrical demands. For instance, a range rated at 50 amperes requires a fused disconnect with a corresponding ampacity and compatible fuse size, typically a time-delay fuse to handle the appliance’s inrush current. Improper sizing can lead to nuisance tripping or inadequate protection, compromising safety. Always consult the appliance’s manual and local electrical codes to ensure compliance.
One practical tip is to position the fused disconnect within sight of the electric range, as required by the National Electrical Code (NEC), to facilitate quick access in emergencies. Additionally, ensure the disconnect is rated for the voltage and environmental conditions of its installation location. For outdoor or damp areas, use a weatherproof enclosure to protect the device from moisture and debris. Regularly inspect the fuse and switch mechanism for signs of wear or damage, replacing components as needed to maintain reliability.
In summary, a fused disconnect is not just a regulatory requirement but a vital safeguard for electric ranges and other high-power appliances. Its ability to provide both isolation and overcurrent protection makes it indispensable in modern electrical systems. By understanding its function, selecting the appropriate device, and adhering to installation best practices, homeowners and professionals can ensure safe and efficient operation of electric ranges while minimizing the risk of electrical hazards.
Crock Pots vs. Electricity: Are Slow Cookers Energy Efficient?
You may want to see also
Explore related products
Compatibility with Ranges: Checking if fused disconnects meet electric range voltage and amperage requirements
Electric ranges typically require a dedicated 240-volt circuit with a minimum amperage rating of 40 or 50 amps, depending on the model. Before installing a fused disconnect, verify the range’s electrical specifications, usually found on the appliance label or in the user manual. Fused disconnects must match these requirements precisely; using an undersized unit risks overheating, while an oversized one may fail to provide adequate protection. Always cross-reference the range’s voltage and amperage with the disconnect’s ratings to ensure compatibility.
To check compatibility, start by identifying the range’s power consumption in watts, often listed on the appliance. Divide this value by the circuit voltage (240 volts) to calculate the required amperage. For example, a 9,600-watt range would need 40 amps (9,600 ÷ 240 = 40). Next, inspect the fused disconnect’s label to confirm it supports 240 volts and meets or exceeds the calculated amperage. If the disconnect uses fuses, ensure they are rated for the same amperage as the circuit. Mismatched ratings can lead to tripped breakers, damaged wiring, or fire hazards.
Practical installation tips include positioning the fused disconnect within sight of the range, as required by the National Electrical Code (NEC). Use a disconnect with a horsepower (HP) rating suitable for electric ranges, typically 5 HP or higher for residential models. Always hire a licensed electrician if unsure about compatibility or wiring, as improper installation voids warranties and violates safety codes. Regularly inspect the disconnect for signs of wear, such as melted fuses or discolored terminals, and replace components as needed.
A comparative analysis reveals that fused disconnects are more cost-effective than circuit breakers for electric ranges, offering both overcurrent protection and a manual shutoff point. However, they are less common in modern installations, where breaker panels dominate. If opting for a fused disconnect, prioritize models with non-time-delay fuses for immediate fault protection. Alternatively, consider a combination unit with a built-in ground fault circuit interrupter (GFCI) for added safety in damp environments, though this is rare in range applications.
In conclusion, compatibility hinges on precise voltage and amperage alignment between the electric range and fused disconnect. Treat this as a critical safety step, not an afterthought. By meticulously matching specifications and following installation best practices, homeowners can ensure a reliable and code-compliant setup. Always prioritize safety over convenience, as electrical errors in high-power appliances carry significant risks.
Using Three-in-One Oil on Electric Motors: Safe or Risky?
You may want to see also
Explore related products
Safety Considerations: Ensuring proper installation and compliance with electrical codes for safe operation
Using a fused disconnect for an electric range requires meticulous attention to safety, as improper installation can lead to electrical hazards such as overheating, fires, or shocks. The National Electrical Code (NEC) mandates specific requirements for these installations, including the use of a disconnecting means within sight of the appliance and rated for the range’s amperage. For instance, a typical 30-inch electric range draws 40–50 amps, necessitating a fused disconnect with a minimum 50-amp rating and compatible wire gauge (e.g., 8 AWG for copper). Always verify the range’s electrical specifications before selecting a disconnect to ensure compatibility.
Compliance with electrical codes is non-negotiable, as it safeguards both the appliance and the occupants. The NEC requires that the fused disconnect be readily accessible and located no more than 6 feet from the range, allowing for quick shutoff in emergencies. Additionally, the disconnect must be installed in a dry, indoor location to prevent moisture-related failures. For example, placing it in a garage or outdoor area without proper protection violates code and increases risk. Always consult local building authorities or a licensed electrician to confirm adherence to regional regulations, as some areas may impose stricter standards.
Proper installation involves more than just connecting wires; it demands precision and adherence to best practices. Start by turning off power at the main panel before beginning work. Secure the disconnect box to a sturdy surface, ensuring it’s level and firmly mounted. Use wire connectors rated for the specific wire gauge and torque screws to manufacturer specifications to avoid loose connections. Grounding is critical—connect the range’s grounding wire to the disconnect’s grounding terminal and ensure the box itself is grounded to the electrical system. A multimeter can verify continuity and proper grounding before restoring power.
One often-overlooked safety consideration is the condition of existing wiring and the electrical panel’s capacity. Older homes may have outdated wiring that cannot handle the load of a modern electric range, increasing the risk of overheating or tripped breakers. If the panel lacks sufficient amperage or space for a new circuit, upgrading the service may be necessary. For example, a 100-amp panel might require replacement with a 200-amp panel to accommodate additional appliances safely. Always involve a professional electrician for such assessments to avoid costly mistakes or hazards.
Finally, regular maintenance and inspections are essential to ensure long-term safety. Periodically check the fused disconnect for signs of wear, corrosion, or overheating, such as discolored terminals or a burning odor. Test the disconnect’s functionality by turning it off and confirming the range loses power. Keep the area around the disconnect clear of obstructions for easy access in emergencies. By combining proper installation, code compliance, and proactive maintenance, homeowners can confidently use a fused disconnect for their electric range while minimizing risks.
Electric Mops on Hardwood Floors: Safe Cleaning Tips and Tricks
You may want to see also
Explore related products
Installation Process: Step-by-step guide to installing a fused disconnect for an electric range
A fused disconnect is a critical safety device for electric ranges, providing a means to cut power quickly in case of emergencies or maintenance. While it’s not always required by code, installing one is a smart precaution. Here’s a step-by-step guide to ensure a safe and effective installation.
Step 1: Gather Materials and Tools
Before starting, ensure you have the necessary components: a fused disconnect rated for your range’s amperage (typically 40–60 amps), appropriate circuit breakers, wire connectors, and a mounting bracket. Tools required include a screwdriver, wire strippers, voltage tester, and a drill with masonry bits if mounting on a wall. Always verify the disconnect’s compatibility with your electric range’s specifications, as mismatched ratings can lead to overheating or failure.
Step 2: Turn Off Power and Verify
Safety first: shut off power to the circuit at the main panel. Use a voltage tester to confirm no current is flowing to the range’s wiring. Failure to do this can result in severe electrical shock. Once confirmed, remove the existing wiring from the range’s terminal box, labeling wires to avoid confusion during reconnection.
Step 3: Mount the Disconnect
Position the fused disconnect near the electric range, ensuring it’s easily accessible but out of reach from water sources. Secure it to the wall or a nearby surface using the provided bracket and screws. The disconnect should be mounted at a height that allows comfortable operation, typically between 48–60 inches from the floor. Double-check that it’s level and firmly attached.
Step 4: Connect Wiring
Strip the ends of the range’s power wires and connect them to the disconnect’s load terminals, matching wire colors (black to brass, white to silver, green or bare copper to ground). Use wire connectors to secure the connections. Next, run a new cable from the main panel to the disconnect’s line terminals, ensuring it’s the correct gauge for the amperage. Install the appropriate fuses into the disconnect, following the manufacturer’s instructions.
Step 5: Test and Finalize
Restore power at the main panel and test the disconnect by flipping its switch. The range should power off immediately. Verify all connections are tight and there are no signs of overheating. Label the disconnect clearly to indicate its purpose. If any issues arise, such as tripped breakers or flickering lights, recheck wiring and consult a professional if needed.
By following these steps, you’ll ensure a safe and functional installation, enhancing both convenience and safety in your kitchen. Always prioritize accuracy and adherence to local electrical codes to avoid hazards.
Can Electrical Tape Safely Replace Ground Wire in Electrical Repairs?
You may want to see also
Explore related products
Alternatives to Fused Disconnects: Exploring other devices like circuit breakers for electric range connections
Electric ranges demand robust and reliable disconnect methods to ensure safety and compliance with electrical codes. While fused disconnects have been traditionally used, their limitations—such as single-use fuses and potential overheating—prompt the exploration of alternatives. Circuit breakers, for instance, offer reusable protection and can handle higher amperage ratings, making them a viable option for modern electric ranges. This shift not only enhances safety but also aligns with evolving electrical standards.
When considering alternatives, circuit breakers stand out due to their resettable nature and ability to interrupt fault currents effectively. For electric ranges, which typically require 40- to 50-amp circuits, a double-pole circuit breaker installed in the main panel provides a compact and efficient solution. Unlike fused disconnects, which require manual fuse replacement after a trip, circuit breakers can be reset instantly, minimizing downtime. However, proper sizing is critical—always match the breaker’s amperage rating to the range’s specifications to avoid overheating or electrical hazards.
Another alternative is the use of a safety switch with a built-in circuit breaker, often referred to as a "safety disconnect switch." These devices combine the functionality of a disconnect switch and a breaker in one unit, offering both manual disconnection and overcurrent protection. They are particularly useful in installations where space is limited or where a visible, accessible disconnect is required by code. For example, a 60-amp safety switch can be paired with a 50-amp range, providing a buffer for inrush currents during startup.
For those seeking a more advanced solution, ground fault circuit interrupters (GFCIs) or arc fault circuit interrupters (AFCIs) can be integrated into the disconnect system. While not standalone alternatives, these devices add an extra layer of protection against electrical shocks and fires, respectively. However, they are typically used in conjunction with circuit breakers rather than replacing them entirely. Always consult local electrical codes, as some jurisdictions mandate GFCI or AFCI protection for kitchen circuits.
In summary, while fused disconnects remain a functional option for electric ranges, alternatives like circuit breakers, safety switches, and advanced protective devices offer enhanced safety, convenience, and compliance. Each option has its merits, and the choice depends on factors such as space, budget, and specific electrical requirements. Always prioritize professional installation and adherence to local codes to ensure a safe and efficient setup.
Using Water in Electric Saunas: Safety Tips and Best Practices
You may want to see also
Frequently asked questions
Yes, a fused disconnect can be used for an electric range, provided it meets the specific electrical requirements, such as voltage, amperage, and safety standards.
A fused disconnect provides a safe way to disconnect power to the electric range for maintenance or emergencies while also offering overcurrent protection through the integrated fuses.
Yes, the fuse size must match the electrical load of the range, typically ranging from 30 to 60 amps, depending on the appliance's specifications.
In some cases, a fused disconnect can serve as an alternative to a circuit breaker, but it must comply with local electrical codes and provide adequate protection for the range.
It is not recommended to install a fused disconnect yourself unless you are a licensed electrician, as improper installation can pose serious safety risks and violate electrical codes.
