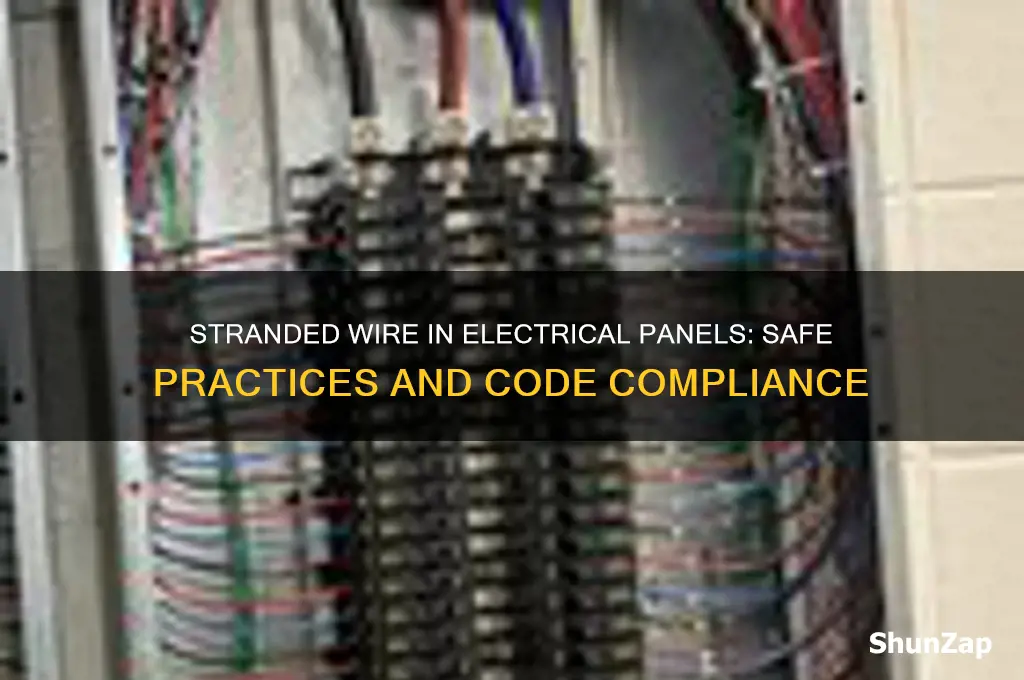

When considering the use of stranded wire in an electrical panel, it is essential to understand the compatibility and safety implications. Stranded wire, composed of multiple smaller wires twisted together, offers flexibility and durability, making it suitable for certain applications. However, electrical panels typically require solid wire due to their design and the need for secure connections at terminals. While some modern panels may accommodate stranded wire with the use of appropriate wire nuts or terminal blocks, it is crucial to consult the panel’s manufacturer guidelines and local electrical codes to ensure compliance and prevent potential hazards such as loose connections or overheating. Always prioritize safety and professional advice when making such modifications.
| Characteristics | Values |
|---|---|
| Permissibility | Stranded wire is generally permitted in electrical panels, provided it meets specific requirements and is installed correctly. |
| NEC Compliance | Must comply with the National Electrical Code (NEC), particularly Article 110.14 and 310.10, which address termination and conductor types. |
| Wire Gauge | Typically allowed for gauges #12 AWG and larger, depending on the panel and terminal design. |
| Terminal Compatibility | Terminals must be rated for stranded wire; dual-rated terminals (for both solid and stranded) are recommended. |
| Termination Method | Stranded wire often requires ferrules or special lugs to ensure secure connections and prevent fraying. |
| Torque Specifications | Proper torque must be applied during termination to avoid loose connections or damage to the wire. |
| Panel Manufacturer Guidelines | Always follow the panel manufacturer's instructions for stranded wire compatibility and installation. |
| Temperature Rating | Ensure the stranded wire's temperature rating matches or exceeds the panel's requirements. |
| Flexibility Advantage | Stranded wire is more flexible, making it easier to route in tight spaces within the panel. |
| Vibration Resistance | Better suited for environments with vibration due to its flexibility and reduced risk of fatigue. |
| Cost Consideration | Stranded wire is often more expensive than solid wire, which may impact project costs. |
| Inspection Requirements | Connections must be inspected to ensure compliance with safety standards and proper installation. |
Explore related products
What You'll Learn
- NEC Code Compliance: Check if stranded wire meets National Electrical Code standards for panel use
- Terminal Compatibility: Ensure panel terminals are designed to securely hold stranded wire
- Wire Gauge Requirements: Verify if the stranded wire gauge matches panel specifications
- Installation Techniques: Use proper methods like ferrules or terminal blocks for stranded wire
- Safety Concerns: Assess risks of loose strands causing overheating or poor connections
NEC Code Compliance: Check if stranded wire meets National Electrical Code standards for panel use
When considering the use of stranded wire in an electrical panel, it is crucial to ensure compliance with the National Electrical Code (NEC) to maintain safety and functionality. The NEC provides specific guidelines regarding the types of wires that can be used in electrical panels, and stranded wire is indeed permissible under certain conditions. According to NEC 110.14(B), stranded conductors are allowed in panels, provided they are installed correctly and meet the necessary requirements. This section emphasizes the importance of using terminals or connectors specifically designed for stranded wires to ensure secure and reliable connections.
One key aspect of NEC compliance is the compatibility of stranded wire with the panel's terminations. NEC 110.14(C) requires that stranded conductors must be terminated using devices rated for stranded wires or by using appropriate ferrules or terminal lugs. Ferrules are metal tubes that are crimped onto the end of the stranded wire to create a solid, unified termination point. This ensures that the strands do not fray or separate when connected to screw terminals or other devices within the panel. Failure to use proper terminations can lead to loose connections, overheating, and potential electrical hazards.
Another important consideration is the size and ampacity of the stranded wire. NEC Table 310.15(B)(16) provides ampacity ratings for stranded conductors, which must be adhered to for safe operation. The wire gauge and strand count must be appropriate for the intended load and must not exceed the panel's rated capacity. Additionally, NEC 110.14(A) requires that all conductors, including stranded wires, must be securely fastened in place to prevent movement that could cause damage or disconnection over time.
Inspectors and electricians should also verify that the stranded wire is properly stripped and inserted into the panel terminations. NEC 110.14(B) mandates that stranded conductors must have sufficient strands to fill the terminal opening and ensure a tight fit. Over-stripping or under-stripping the wire can compromise the connection and violate NEC standards. Using wire strippers with the correct gauge setting and following manufacturer recommendations for terminal connections are essential practices to ensure compliance.
Lastly, it is important to consult the specific requirements of the electrical panel and equipment being used, as some manufacturers may have additional guidelines beyond the NEC. For instance, certain panels may require specific types of stranded wire or connectors to ensure optimal performance. By adhering to both NEC standards and manufacturer specifications, electricians can confidently use stranded wire in electrical panels while maintaining safety, reliability, and code compliance. Regular inspections and maintenance of these connections are also recommended to prevent issues over the long term.
Using Plumbing PVC for Electrical: Safe or Risky Choice?
You may want to see also
Explore related products
Terminal Compatibility: Ensure panel terminals are designed to securely hold stranded wire
When considering the use of stranded wire in an electrical panel, terminal compatibility is a critical factor to ensure safety and reliability. Electrical panels are often designed with specific types of wire in mind, and not all terminal blocks or connectors are suited to securely hold stranded wire. Stranded wire, composed of multiple smaller strands, has a different physical structure compared to solid wire, which is a single, solid conductor. This difference in structure means that terminals must be specifically designed to accommodate the flexibility and increased surface area of stranded wire. Before installing stranded wire, it is essential to verify that the panel terminals are compatible. Many modern panels and terminal blocks are labeled or rated for use with stranded wire, often indicated by markings such as "AWG" followed by a range of sizes, which may include stranded options.
One key aspect of terminal compatibility is the clamping mechanism. Terminals designed for stranded wire typically feature a stronger clamping force or a serrated surface to ensure the wire strands are securely held in place. Inadequate clamping can lead to loose connections, which may cause overheating, arcing, or intermittent power loss. For example, screw terminals with a simple flat surface may not grip stranded wire effectively, whereas terminals with a U-shaped groove or a spring-loaded mechanism are better suited. It is also important to check if the terminal requires the use of a ferrules—small metal tubes crimped onto the end of the wire—to improve the connection and prevent the strands from fraying.
Another consideration is the terminal size and wire gauge compatibility. Stranded wire is often more flexible and can compress more easily than solid wire, which means the terminal must be appropriately sized to match the wire gauge. Using a terminal that is too large can result in insufficient contact pressure, while a terminal that is too small may damage the wire. Manufacturers typically provide specifications for the wire gauges their terminals can accommodate, including whether they are suitable for stranded wire. Always refer to these specifications to ensure a proper fit.
Installation techniques also play a role in terminal compatibility. When inserting stranded wire into a terminal, it is crucial to strip the insulation to the correct length and ensure the strands are neatly arranged. Twisted or frayed strands can compromise the connection. Some terminals may require the wire to be pre-tinned (coated with solder) to improve conductivity and ease of insertion, though this practice should only be used if recommended by the manufacturer. Proper torque settings for screw terminals are equally important, as over-tightening can damage the wire, while under-tightening can lead to loose connections.
Finally, compliance with electrical codes and standards is non-negotiable. The National Electrical Code (NEC) and other regional regulations often provide guidelines on the use of stranded wire in electrical panels. For instance, the NEC specifies that stranded wire must be terminated in a manner that ensures a secure and durable connection. Using terminals that are not rated for stranded wire can violate these codes, posing safety risks and potentially voiding insurance coverage. Always consult the relevant standards and seek professional advice if unsure about compatibility.
In summary, ensuring terminal compatibility is a fundamental step when using stranded wire in an electrical panel. By verifying that the terminals are designed to securely hold stranded wire, checking the clamping mechanism, matching the terminal size to the wire gauge, following proper installation techniques, and adhering to electrical codes, you can achieve a safe and reliable connection. Ignoring these factors can lead to hazardous conditions, emphasizing the importance of careful planning and execution in electrical installations.
Charging EVs with Portable Generators: Feasibility and Practical Tips
You may want to see also
Explore related products
Wire Gauge Requirements: Verify if the stranded wire gauge matches panel specifications
When considering the use of stranded wire in an electrical panel, one of the most critical aspects to address is Wire Gauge Requirements: Verify if the stranded wire gauge matches panel specifications. Electrical panels are designed to work with specific wire gauges, and using an incorrect gauge can lead to overheating, voltage drop, or even electrical fires. Stranded wire, composed of multiple smaller wires twisted together, is often more flexible and easier to work with than solid wire, but it must still meet the panel’s gauge requirements. The first step is to consult the electrical panel’s documentation or manufacturer specifications to determine the acceptable wire gauges for each circuit. This ensures compatibility and safety.
To verify if the stranded wire gauge matches panel specifications, start by understanding the American Wire Gauge (AWG) system, which standardizes wire sizes. Stranded wire gauges are typically denoted with an AWG number followed by the number of strands (e.g., 12 AWG 7 strands). The AWG rating must align with the panel’s requirements, but it’s also essential to consider the total cross-sectional area of the wire. Stranded wire with the same AWG as solid wire may have a slightly different diameter due to the air gaps between strands, so ensure the stranded wire meets or exceeds the minimum cross-sectional area specified by the panel. Using a wire gauge calculator or chart can help confirm compliance.
Another critical factor is the panel’s terminal connections. Electrical panels are often designed with specific terminals that accommodate either solid or stranded wire, or both. For stranded wire, terminals may require a wire nut, ferrules, or special connectors to ensure a secure and reliable connection. If the panel’s terminals are not compatible with stranded wire, using it could result in loose connections, arcing, or other hazards. Always inspect the panel’s terminals and follow the manufacturer’s guidelines for stranded wire installation.
Additionally, consider the amperage rating of the circuit when verifying wire gauge compatibility. Stranded wire must be rated to handle the maximum current of the circuit it serves. For example, a 20-amp circuit requires a wire gauge that can safely carry that load without overheating. Refer to the National Electrical Code (NEC) or local electrical codes for guidance on wire gauge and amperage ratings. Using a wire gauge that is too small for the circuit can lead to dangerous conditions, even if it physically fits in the panel.
Finally, when in doubt, consult a licensed electrician or the panel manufacturer for clarification. While stranded wire can be used in electrical panels, it must meet all gauge, connection, and safety requirements. Proper verification ensures the electrical system operates efficiently and safely, reducing the risk of malfunctions or hazards. Always prioritize compliance with codes and specifications to maintain the integrity of the electrical panel.
Electric Razor and Shave Oil: A Compatible Grooming Combo?
You may want to see also
Explore related products
Installation Techniques: Use proper methods like ferrules or terminal blocks for stranded wire
When using stranded wire in an electrical panel, it's crucial to employ proper installation techniques to ensure a secure and reliable connection. Stranded wire, composed of multiple smaller strands, offers flexibility but can present challenges when terminating in panel terminals. One effective method is using ferrules, which are metal tubes crimped onto the wire end. Ferrules consolidate the individual strands into a single, solid point of contact, preventing fraying and ensuring a tight connection. To use ferrules, strip the wire to the appropriate length, insert the strands into the ferrule, and crimp it securely using a specialized crimping tool. This method is particularly useful for screw terminals, where the ferrule-terminated wire can be easily secured under a screw.
Another reliable technique for stranded wire in electrical panels is the use of terminal blocks. Terminal blocks are modular connectors designed to accommodate both solid and stranded wires. They typically feature spring-loaded clamps or screw terminals that securely hold the wire in place. When using terminal blocks, strip the stranded wire and insert it into the designated port, ensuring the strands are fully captured by the clamp or screw mechanism. Terminal blocks are ideal for applications requiring multiple connections or easy reconfiguration, as they allow for quick and safe wire termination without the need for additional components like ferrules.
Regardless of the method chosen, it's essential to follow manufacturer guidelines and industry standards, such as those outlined in the National Electrical Code (NEC). For example, the NEC specifies that stranded wires must be terminated in a manner that prevents loosening or disconnection over time. This often involves using terminals rated explicitly for stranded wire or employing additional measures like anti-rotation locks. Properly securing the wire ensures that vibrations or thermal expansion do not compromise the connection, which could lead to overheating or equipment failure.
In addition to ferrules and terminal blocks, some installations may benefit from the use of wire lugs or ring terminals. These components are crimped onto the stranded wire and provide a solid connection point for bolt-on terminals. When using wire lugs, ensure the lug size matches the wire gauge and terminal stud. Crimp the lug onto the wire using a hydraulic or ratcheting crimper to achieve a professional and secure termination. This method is commonly used in higher-current applications where a robust mechanical and electrical connection is critical.
Lastly, always inspect the terminated connections for quality and correctness before energizing the panel. Verify that the wire strands are fully contained within the ferrule, terminal block, or lug and that the connection is tight and free of damage. Properly installed stranded wire, when terminated using these techniques, can perform as reliably as solid wire in electrical panels, provided the correct methods and components are used. By adhering to these installation techniques, electricians can ensure the safety, efficiency, and longevity of the electrical system.
Using SH 40 PVC for Electrical: Safe or Risky Choice?
You may want to see also
Explore related products
Safety Concerns: Assess risks of loose strands causing overheating or poor connections
When considering the use of stranded wire in an electrical panel, one of the primary safety concerns is the risk of loose strands causing overheating or poor connections. Stranded wire consists of multiple smaller wires twisted together, which can sometimes fray or become loose, especially during installation or over time due to vibration or movement. These loose strands can increase resistance at the connection points, leading to localized overheating. Overheating is a significant hazard as it can degrade insulation, melt components, or even ignite nearby materials, posing a fire risk. Therefore, ensuring that all strands are securely terminated and contained within the terminal or connector is critical to prevent this issue.
Another risk associated with loose strands is the potential for poor electrical connections. If strands are not properly secured, they can shift or break free, leading to intermittent or incomplete contact with the terminal. Poor connections result in increased electrical resistance, which not only causes overheating but also leads to voltage drops and inefficient power distribution. In an electrical panel, where reliability is paramount, such issues can disrupt the entire system, causing equipment failure or unsafe operating conditions. Proper installation techniques, such as using wire ferrules or ensuring the correct torque on terminal screws, can mitigate this risk by holding the strands firmly in place.
The flexibility of stranded wire, while advantageous in some applications, can exacerbate the problem of loose strands in an electrical panel. Unlike solid wire, stranded wire is more prone to fraying when stripped or inserted into terminals, especially if the installer is inexperienced or uses improper tools. Additionally, repeated opening and closing of panel doors or exposure to environmental factors like humidity can cause the strands to loosen over time. Regular inspections and maintenance are essential to identify and address loose strands before they lead to overheating or connection failures. Using high-quality terminals and connectors designed for stranded wire can also reduce the likelihood of these issues.
Furthermore, the consequences of loose strands in an electrical panel extend beyond immediate overheating or poor connections. Over time, arcing can occur at the point of poor contact, creating a spark that could ignite surrounding materials or damage adjacent components. This arcing can also lead to the degradation of the wire itself, further increasing resistance and compounding the problem. In industrial or commercial settings, where electrical panels often operate under high loads, the risks are amplified, making it crucial to adhere to best practices for stranded wire installation. Following manufacturer guidelines and industry standards, such as those from the National Electrical Code (NEC), ensures that stranded wire is used safely and effectively in panel applications.
Lastly, while stranded wire can be used in electrical panels, it requires careful handling and attention to detail to avoid safety risks. Installers must ensure that all strands are properly stripped, aligned, and inserted into terminals without any protruding or loose ends. Using wire ferrules or dual-rated terminals specifically designed for stranded wire can provide additional security. Educating installers about the risks of loose strands and the importance of proper termination techniques is equally vital. By addressing these concerns proactively, the risks of overheating and poor connections can be minimized, allowing stranded wire to be a safe and effective choice for electrical panel applications.
Powering Christmas Lights with Static Electricity: A Feasible Holiday Hack?
You may want to see also
Frequently asked questions
Yes, stranded wire can be used in an electrical panel, provided it is rated for the application and complies with local electrical codes.
Yes, many electrical panels have terminals that accept stranded wire, but it’s essential to check the panel’s specifications and use the correct terminal type.
Stranded wires often require wire nuts, ferrules, or dual-rated terminals to ensure secure connections, as their flexibility can cause loose connections if not properly terminated.
When installed correctly and in compliance with codes, stranded wire is as safe as solid wire. However, improper termination can lead to safety issues.
Yes, stranded wire can be used for high-amperage circuits, but it must be the correct gauge and rated for the specific application to ensure safety and performance.
