Travel trailer brakes are an important safety feature, and while not all travel trailers have brakes, most do. The need for brakes depends on various factors, including trailer weight, traffic conditions, and local laws. Electric brakes are the most common type, with two control methods: a surge device on the trailer or a remote brake controller in the towing vehicle. Electric brakes use an electromagnet instead of hydraulic brake fluid, and the controller sends a voltage to the electromagnet in the brake when activated. Other types of trailer brakes include hydraulic and air brakes.
| Characteristics | Values |
|---|---|
| Do all travel trailers have brakes? | No, but most do. |
| What factors determine if travel trailers have brakes? | The gross weight of the travel trailer and the state's weight limit requirements. |
| What are the types of brakes used in travel trailers? | Electric brakes, hydraulic brakes, and surge brakes. |
| How do electric brakes work? | Electric brakes are controlled by either a surge device on the trailer or a remote brake controller in the towing vehicle. They use an electromagnet instead of hydraulic brake fluid. |
| What is a brake controller? | A device that regulates the amount of braking power by sensing changes in momentum or applying power on a fixed scale. |
| Are there different types of brake controllers? | Yes, proportional and time-delayed brake controllers. |
| How much do brake controllers cost? | Depending on the model and features, brake controllers can cost around $50 to $200. |
| How often should trailer brakes be inspected and maintained? | It is recommended to inspect the brakes before each trip and replace the brake pads every 12 months or 12,000 miles. |
Explore related products
What You'll Learn

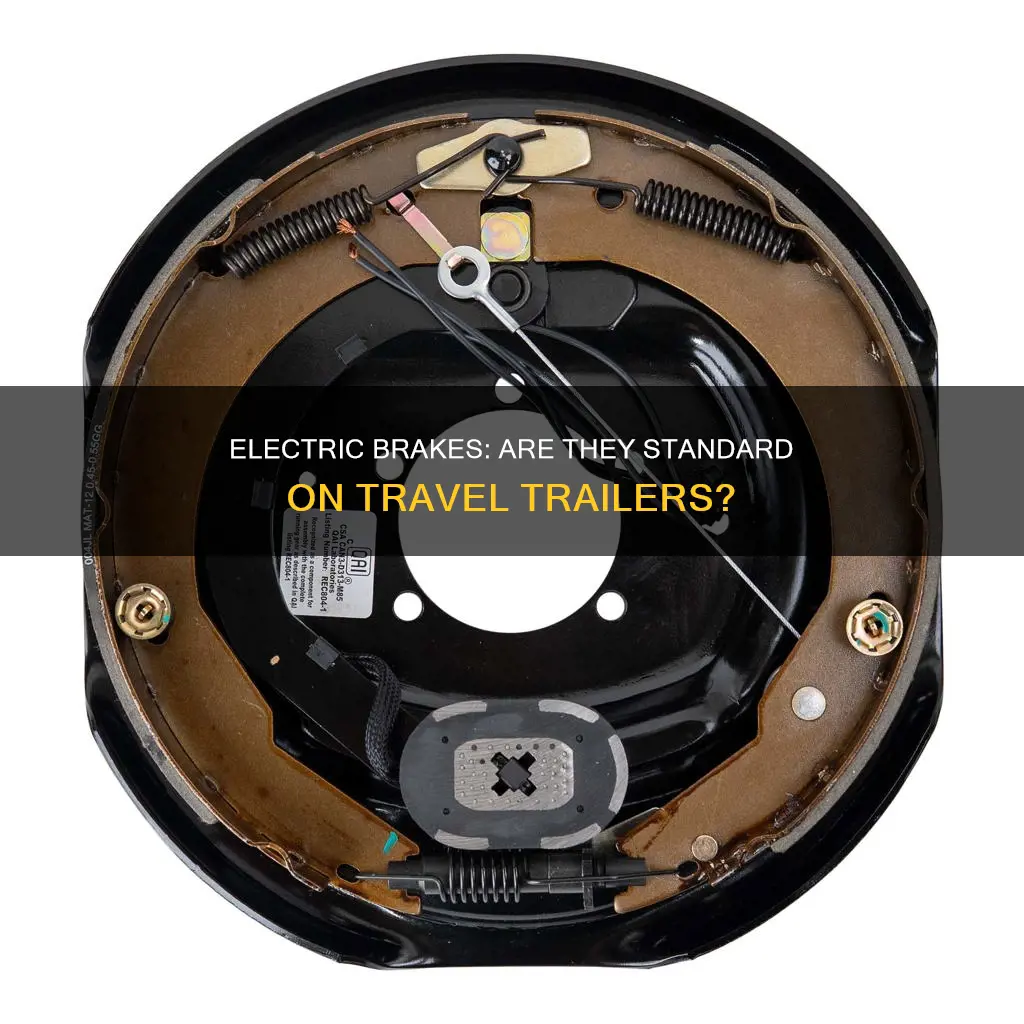

Electric brakes are the most common type
There are two components to electric brakes. The first is the brake controller, which is located within the vehicle. This can control the camper brakes automatically when the vehicle's brakes are depressed or manually through a hand-operated control. The second component is the electromagnetic drum, which is actuated by the controller. The controller uses the electric energy from the towing vehicle to help stop the trailer.
The electric braking system uses an electromagnet rather than hydraulic brake fluid. Once the brake controller is activated, it sends a voltage back to the electromagnet in the brake. The magnets, once energised, stick to the armature area of the brake drum. The spinning of the drums pulls the brake shoes and pads against the inside of the drum, slowing down the trailer.
There are a variety of brake controllers available, including proportional brake controllers and time-delayed brake controllers. Proportional brake controllers are the easiest to use and are recommended for all new camper brake controller installs. They provide smooth stops and efficient braking, particularly when braking on a hill. Time-delayed brake controllers, on the other hand, are manually set to apply a specific amount of pressure each time the vehicle's brakes are depressed.
Medicaid Coverage for Electric Wheelchairs in Arizona
You may want to see also
Explore related products
Some trailers use hydraulic brakes
While electric brakes are common in travel trailers, they are not the only option. Some trailers use hydraulic brakes, also known as hydraulic surge brakes. These brakes are extremely common in boat trailers and rental or leisure trailers. They are popular because the entire system is contained within the trailer itself, and they do not require a brake controller or an electrical connection to the tow vehicle.
Hydraulic surge brakes work by using the trailer's own weight and momentum to activate the brakes. When the load gets heavy, a rod extends between the two parts of the trailer neck, and the weight is distributed between them. This action increases the fluid pressure in the brake lines, and pressurised brake fluid flows to each brake drum or rotor through individual brake lines.
Surge brakes are also popular because they require no setup or knowledge of the braking system to operate. They activate automatically whenever the driver slows down the tow vehicle. Maintenance is required, but it is usually simple and just involves the brake pads, brake lines, or brake fluid levels.
One disadvantage of electric brakes is that they do not apply as much force against the tow vehicle as hydraulic brakes. By using a brake controller, you can adjust the amount of pressure going to the trailer brakes. This can be useful if you have a heavy load or are moving downhill, as you can set the gain on the brake controller to a higher setting.
Electrical Fuses: Are They Standard in Mobile Homes?
You may want to see also
Explore related products
Brakes are controlled by a brake controller
Electric trailer brakes must be connected to the tow vehicle's power and controlled by a brake control unit or electric brake controller. A brake controller is an electronic device that controls the electric brakes of a trailer. It can be activated when the vehicle's brakes are depressed or manually through a hand-operated control. The device has two components: an interface positioned within the driver's reach and a central part responsible for activating the trailer's brakes.
There are several types of brake controllers, including non-proportional, time-based, proportional, and inertia-based. Older non-proportional electric brake controllers are activated when the driver presses the car's brakes, applying braking force over time based on a chosen setting. Time-based brake controllers are manually set to apply a specific amount of pressure when the vehicle's brakes are depressed. The gain setting can be adjusted by the driver to accommodate each specific trailer, but this type of controller is not as precise as the proportional method.
Proportional controllers, on the other hand, have a direct, linear relationship between the tow vehicle's brakes and the trailer's brakes. They use accelerometers to sense the tow vehicle's deceleration and determine the appropriate brake force. Proportional controllers are generally preferred for their improved brake response and safer towing experience. Inertia-based brake controllers sense that the vehicle is slowing down and adjust the trailer's braking power accordingly, which is useful when going downhill to decrease brake wear.
Recent innovations in electric brake controllers include the Australian-designed Elecbrakes, which is installed directly on the trailer rather than within the tow vehicle. This system uses a smartphone app to control the trailer brakes and eliminates the need to modify each vehicle used for towing.
Birmingham Zoo: Electric Carts Available?
You may want to see also
Explore related products
The weight of the trailer determines if brakes are needed
The weight of the trailer is a crucial factor in determining whether brakes are required. While not all travel trailers have brakes, most do. The gross weight of the trailer is a significant determinant of whether brakes are necessary, and this varies across states. Some states, like Maine, mandate trailer brakes for overall weights exceeding 3,000 lbs, while in Massachusetts, the requirement is for unloaded weights above 10,000 lbs. Michigan requires trailer brakes for weights over 15,000 lbs, and Nevada demands brakes on each wheel for weights above 1,500 lbs. Thus, it is imperative to consult the specific regulations in your state.
Federal laws in the United States require travel trailers to have a breakaway system that engages the brakes if the trailer becomes detached from the towing vehicle. This system ensures that the trailer can stop independently, preventing potential accidents. Most travel trailers use electric brakes, which are activated through an electrical connection from the towing vehicle. These electric brakes often utilise a controller located on the brake pedal of the towing vehicle, allowing for seamless activation.
The type of brake system also influences the need for brakes. Electric brakes, for example, may be installed on only one axle, but certain states mandate both axles to have them. Additionally, the road and traffic conditions play a role in the necessity of trailer brakes. Travelling on narrow, dusty, or mountainous roads, or navigating through high-traffic areas, warrants the use of trailer brakes for added safety and control.
When towing a trailer, it is essential to consider the braking system and adhere to state regulations. Trailer brakes significantly reduce the stopping distance, enhancing safety and minimising wear and tear on the towing vehicle's brakes and tyres. Proportional brake controllers, which ensure that the tow vehicle and trailer exert the same braking force, are a safer option that prolongs the lifespan of the braking system.
Electric vs Hybrid: Tesla's All-Electric Revolution
You may want to see also
Explore related products
Different states have different laws on trailer brakes
Trailer brake laws vary from state to state, making it difficult to keep track of the requirements for trailer brakes. These laws are typically based on gross vehicle weight rating (GVWR) and/or stopping distance. For example, North Carolina mandates brakes on trailers with a GVWR of 1,000 pounds or more, while North Dakota requires brakes or safety chains on all trailers. Missouri has a unique law that only requires brakes on fifth-wheel trailers or HAZMAT trailers weighing over 3,000 pounds.
Colorado, Connecticut, and Nebraska have distinct rules for commercial and personal trailer towing. Connecticut also differentiates between interstate and intrastate towing, with varying brake requirements. Federal regulations permit surge brakes for commercial/interstate use on trailers up to 12,000 pounds GVWR when towed by a vehicle weighing a minimum of 57.14% of the trailer GVWR.
The type of trailer brakes also varies, with electric brakes being the most common. These brakes require a tow vehicle controller that outputs 3-12 volts based on the force applied to the brake pedal, activating magnets inside the brake drum to stop the trailer. Other types of brakes include hydraulic, electrically powered hydraulic, and air brakes.
To comply with state laws and ensure safety, it is essential to understand the specific requirements for trailer brakes in your state. This may include considerations such as trailer weight, the number of axles, and the type of braking system installed. By familiarizing yourself with the relevant laws and regulations, you can confidently tow your trailer, knowing that you meet the necessary standards for safe braking.
Carmen Electra's Infidelity: Cheating on Dennis Rodman?
You may want to see also
Frequently asked questions
No, not all travel trailers have electric brakes. Whether or not a trailer has brakes depends on the trailer weight and the state you are in. Most trailers above 2,000-3,000 lbs are required to have brakes installed.
You can determine whether your trailer has electric brakes by looking behind the tires. If you see wires hanging or connected, then your trailer has electric brakes.
Electric trailer brakes are activated via an electrical connection from the towing vehicle to the trailer. A brake controller in the towing vehicle senses when braking is being applied and activates the trailer's brakes. Electric brakes use an electromagnet instead of hydraulic brake fluid. Once the brake controller is activated, it sends a voltage back to the electromagnet in the brake. The magnets, once energised, stick to the armature area of the brake drum, slowing down the trailer.
A brake controller is a device that regulates the amount of braking power. It can be set up to apply a specific amount of pressure each time the vehicle's brakes are depressed. It can also have circuits that respond to the vehicle's momentum while towing.
