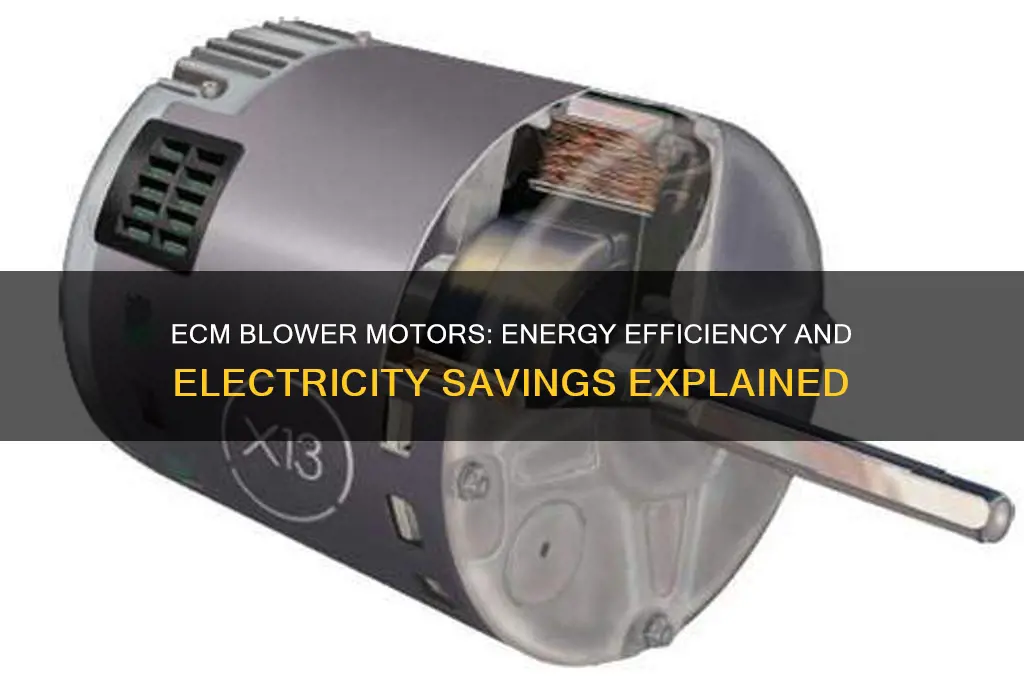

ECM (Electronically Commutated Motor) blower motors are designed to be more energy-efficient compared to traditional PSC (Permanent Split Capacitor) motors. By utilizing advanced electronic controls and variable speed capabilities, ECM motors adjust their speed based on demand, reducing unnecessary energy consumption. This results in lower electricity usage, especially in HVAC systems where the motor operates for extended periods. Studies show that ECM motors can consume up to 70% less electricity than their PSC counterparts, making them a cost-effective and environmentally friendly choice for homeowners and businesses alike.
| Characteristics | Values |
|---|---|
| Energy Efficiency | ECM (Electronically Commutated Motor) blower motors use 60-70% less electricity compared to traditional PSC (Permanent Split Capacitor) motors. |
| Power Consumption | ECM motors typically consume 10-20 watts in low-speed operation, while PSC motors consume 50-100 watts. |
| Variable Speed Capability | ECM motors can adjust speed based on demand, optimizing energy use; PSC motors run at a fixed speed. |
| Lifespan | ECM motors last 3-5 times longer than PSC motors due to reduced wear and tear from variable speed operation. |
| Noise Level | ECM motors operate more quietly, especially at lower speeds, compared to PSC motors. |
| Cost | Higher upfront cost for ECM motors (2-3 times more than PSC), but savings on energy bills offset this over time. |
| Compatibility | ECM motors are compatible with modern HVAC systems and smart thermostats for enhanced efficiency. |
| Environmental Impact | Reduced energy consumption leads to lower greenhouse gas emissions compared to PSC motors. |
| Maintenance Requirements | Lower maintenance needs due to fewer moving parts and reduced mechanical stress. |
| Rebates and Incentives | Many regions offer rebates or tax incentives for installing energy-efficient ECM motors. |
| Performance Consistency | ECM motors maintain consistent airflow and temperature control, improving overall HVAC system efficiency. |
Explore related products
What You'll Learn
Energy Efficiency Comparison: ECM vs PSC Motors
ECM (Electronically Commutated Motor) blower motors are designed to consume significantly less electricity than their PSC (Permanent Split Capacitor) counterparts. This efficiency stems from ECMs' ability to modulate speed based on demand, using microprocessors to adjust power consumption dynamically. In contrast, PSC motors run at a fixed speed, wasting energy when full capacity isn't required. For instance, an ECM motor can reduce its speed during mild weather, cutting energy use by up to 70% compared to a PSC motor operating under the same conditions. This adaptability makes ECMs particularly effective in HVAC systems, where variable airflow needs are common.
To illustrate the energy savings, consider a typical residential HVAC system running for 2,000 hours annually. A PSC motor might consume around 1,200 kWh in this period, while an ECM motor could reduce that to approximately 400 kWh. This translates to an annual savings of roughly $100–$150, depending on electricity rates. Over the motor's lifespan, this difference compounds, often offsetting the higher upfront cost of ECM technology. Additionally, ECMs generate less heat during operation, reducing the load on the cooling system and further enhancing efficiency.
Despite their advantages, ECM motors require careful installation and maintenance to maximize their benefits. Technicians must ensure proper wiring and compatibility with existing HVAC systems, as ECMs rely on advanced controls. Homeowners should also be aware that while ECMs are more expensive initially, rebates and incentives from utility companies or government programs can offset this cost. For example, ENERGY STAR-certified HVAC systems with ECM motors often qualify for significant rebates, making the switch more financially viable.
In practical terms, upgrading from a PSC to an ECM motor is a straightforward way to improve a home's energy efficiency. Start by consulting an HVAC professional to assess compatibility and potential savings. Next, explore available rebates to reduce upfront costs. Finally, monitor energy bills post-installation to track the return on investment. While the transition requires an initial outlay, the long-term energy savings and environmental benefits make ECM motors a compelling choice for modern HVAC systems.
Do Automated Dispensers Use Electricity? Exploring Power Sources and Efficiency
You may want to see also
Explore related products
Power Consumption in Variable Speed Operation
Variable speed operation in ECM (Electronically Commutated Motor) blower motors significantly reduces power consumption by adjusting the motor's speed to match the exact heating or cooling demand. Unlike traditional fixed-speed motors that run at full capacity regardless of need, ECM motors use advanced electronics to modulate speed, ensuring energy is expended only as required. For instance, during mild weather or low-demand periods, an ECM motor might operate at 30% to 50% of its maximum speed, consuming a fraction of the electricity compared to a full-speed run. This dynamic adjustment is key to their energy efficiency.
Analyzing the mechanics, ECM motors achieve lower power consumption through their brushless design and integrated control algorithms. Traditional motors rely on mechanical brushes, which generate friction and energy loss. In contrast, ECM motors use electronic switching, reducing waste heat and improving efficiency by up to 70%. Additionally, the variable frequency drive (VFD) in ECM motors allows for seamless speed adjustments, ensuring the motor draws only the necessary power. For example, a 1/3 HP ECM motor operating at 50% speed might consume as little as 50 watts, compared to 150 watts for a fixed-speed motor running at full capacity.
Practical implementation of variable speed operation requires proper system design and programming. HVAC technicians must ensure the motor is matched to the system's airflow requirements and that the control settings are optimized for efficiency. For residential systems, this might involve setting minimum and maximum speed limits based on the home's size and insulation. Commercial applications may require more complex programming, such as integrating the motor with building automation systems for real-time adjustments. Regular maintenance, including cleaning filters and ensuring proper airflow, is also critical to maintaining efficiency.
Comparatively, the energy savings from variable speed operation are most pronounced in systems with fluctuating demands. In a typical household, an ECM blower motor can reduce annual electricity consumption by 20% to 40% compared to a fixed-speed model. This translates to tangible cost savings, with some homeowners reporting reductions of $100 to $200 per year on their energy bills. For larger commercial systems, the savings can be even more substantial, often offsetting the higher upfront cost of ECM motors within a few years. Case studies from schools and office buildings show energy reductions of up to 50% in HVAC systems equipped with ECM motors.
In conclusion, the power consumption benefits of variable speed operation in ECM blower motors are rooted in their ability to match output to demand precisely. By eliminating inefficiencies associated with fixed-speed operation and leveraging advanced electronic controls, these motors deliver significant energy savings across residential and commercial applications. For those looking to reduce their carbon footprint or lower utility costs, upgrading to an ECM motor with variable speed capabilities is a practical and effective solution.
Outdoor Electrical Safety: Can Metal Boxes Be Used Outside?
You may want to see also
Explore related products
$508.95
$550.95
Impact of ECM on Electricity Bills
ECM blower motors, or Electronically Commutated Motors, are designed to modulate their speed based on demand, a stark contrast to traditional PSC (Permanent Split Capacitor) motors that run at full speed regardless of need. This variable-speed capability directly translates to energy savings, as the motor consumes only the electricity required for the task at hand. For instance, during mild weather, an ECM motor might operate at 30% capacity, drawing significantly less power than a PSC motor running at 100%. This efficiency is not just theoretical; real-world data shows that ECM motors can reduce energy consumption by 60-70% compared to their PSC counterparts, a difference that becomes tangible on monthly electricity bills.
Consider a typical residential HVAC system running for 2,000 hours annually. A PSC motor might consume around 750 watts at full speed, totaling 1,500 kWh per year. In contrast, an ECM motor, with its ability to scale down, might average 250 watts, consuming only 500 kWh annually. At an average electricity rate of $0.12 per kWh, this translates to a savings of $120 per year—a substantial reduction for a single household. Multiply this by millions of homes, and the collective impact on energy consumption and costs becomes clear. However, the initial investment in an ECM motor is higher, typically $200-$300 more than a PSC motor, meaning the payback period is roughly 2-3 years, after which the savings continue to accrue.
The impact of ECM motors extends beyond direct energy savings. Their ability to operate at lower speeds reduces wear and tear on the system, leading to fewer maintenance calls and longer equipment lifespans. For example, a motor running at 60% speed experiences less stress on bearings and capacitors, potentially doubling its operational life. This reliability factor, while not directly tied to electricity bills, indirectly contributes to cost savings by minimizing repair expenses and system downtime. Additionally, ECM motors often come with advanced diagnostics, allowing homeowners to identify inefficiencies early, further optimizing energy use.
To maximize the benefits of an ECM motor, homeowners should ensure proper installation and system matching. An oversized or undersized motor can negate efficiency gains, so consulting with an HVAC professional is crucial. Regular maintenance, such as cleaning air filters and ducts, ensures the system operates at peak efficiency. For those in regions with tiered electricity pricing, programming the thermostat to reduce HVAC usage during peak hours can amplify savings. Finally, pairing an ECM motor with a smart thermostat allows for precise control, leveraging the motor’s variable-speed capabilities to align with occupancy patterns and weather conditions, further reducing unnecessary energy use.
In summary, the impact of ECM motors on electricity bills is profound, driven by their ability to match energy consumption to actual demand. While the upfront cost is higher, the long-term savings in energy and maintenance expenses make them a wise investment. By understanding their operation and implementing complementary strategies, homeowners can unlock the full potential of ECM technology, contributing to both financial savings and environmental sustainability.
Do Chillers Use Electricity? Understanding Their Power Consumption
You may want to see also
Explore related products
ECM Motor Startup Energy Usage
ECM blower motors, known for their energy efficiency during steady-state operation, exhibit unique characteristics during startup that warrant closer examination. Unlike traditional PSC (Permanent Split Capacitor) motors, ECMs use electronic commutation and variable speed drives, which influence their initial energy draw. During startup, an ECM motor consumes a temporary surge of electricity as it ramps up to the desired speed. This surge is typically higher than the motor’s rated operational wattage but is short-lived, lasting only a few seconds. For instance, a 1/3 HP ECM motor might draw up to 500 watts during startup, compared to its steady-state consumption of around 150 watts. Understanding this startup behavior is crucial for assessing overall energy efficiency and system design.
The startup energy usage of ECM motors is influenced by several factors, including motor size, load conditions, and control algorithms. Larger motors generally require more energy to overcome inertia and reach operational speed, while smaller motors may exhibit a less pronounced surge. Additionally, the startup profile can vary based on the motor’s programming—some ECMs are designed to accelerate quickly, while others prioritize a gradual ramp-up to reduce stress on the system. For HVAC systems, this startup energy must be factored into calculations, especially in applications with frequent cycling, as it can impact total energy consumption and wear on components.
To minimize the impact of startup energy usage, system designers and homeowners can implement practical strategies. One effective approach is to reduce unnecessary cycling by using programmable thermostats with longer run times or by optimizing ductwork to maintain consistent airflow. Another tip is to ensure the motor is properly sized for the application, as oversized motors may consume more energy during startup without providing additional benefits. For retrofits, pairing an ECM motor with a soft-start module can further reduce the initial surge, though this adds complexity and cost. These measures not only improve energy efficiency but also extend the motor’s lifespan by reducing mechanical stress.
Comparing ECM startup energy to that of PSC motors reveals a trade-off. While PSC motors have a simpler startup process with a fixed torque and speed, they often draw a higher locked rotor amperage (LRA) relative to their running load amperage (RLA). ECMs, despite their temporary surge, typically have a lower LRA-to-RLA ratio due to their controlled acceleration. Over time, the reduced operational energy consumption of ECMs outweighs the minor startup inefficiency, especially in systems that run for extended periods. This comparison underscores the importance of evaluating motors based on their full operational cycle rather than startup alone.
In conclusion, ECM motor startup energy usage is a critical but often overlooked aspect of their efficiency profile. While the initial surge is higher than steady-state consumption, it is brief and can be mitigated through thoughtful system design and operational practices. By understanding these dynamics, users can maximize the energy-saving benefits of ECM motors while minimizing their drawbacks. This knowledge is particularly valuable in residential and commercial HVAC systems, where energy efficiency directly translates to cost savings and environmental impact.
Harnessing Solar Power: Mercury's Potential in Sun-to-Electricity Conversion
You may want to see also
Explore related products
Long-Term Energy Savings with ECM Technology
ECM blower motors, or Electronically Commutated Motors, are a game-changer for energy efficiency in HVAC systems. Unlike traditional PSC (Permanent Split Capacitor) motors, ECMs use advanced electronics to control motor speed and torque, allowing them to operate at variable speeds based on demand. This adaptability translates to significant energy savings, particularly in the long term. For instance, studies show that ECMs can reduce energy consumption by up to 70% compared to PSC motors, especially in systems that run frequently or for extended periods. This efficiency is not just a theoretical benefit—it directly impacts utility bills, making ECMs a smart investment for homeowners and businesses alike.
To understand the long-term savings, consider the operational lifecycle of an HVAC system. A typical residential HVAC system runs for 2,000 to 3,000 hours annually, depending on climate and usage. Over a 15-year lifespan, this accumulates to 30,000 to 45,000 hours of operation. An ECM motor, with its ability to modulate speed and consume only the necessary energy, can save hundreds of dollars per year in electricity costs. For example, if a PSC motor consumes 400 watts on average, an ECM might use only 150 watts under similar conditions. Over 3,000 hours, this difference amounts to approximately 750 kWh saved annually—a substantial reduction when compounded over years.
Implementing ECM technology requires a strategic approach to maximize savings. Start by assessing your current HVAC system’s energy usage and comparing it to ECM-equipped models. Look for ENERGY STAR-certified units, as they meet strict efficiency guidelines. Next, factor in installation costs, which may be higher than traditional systems but are offset by long-term savings. For optimal performance, pair ECM motors with programmable thermostats or smart HVAC controls to further reduce unnecessary energy use. Regular maintenance, such as cleaning filters and ensuring proper airflow, is also critical to maintaining efficiency.
One practical tip for homeowners is to monitor energy bills before and after upgrading to an ECM system. Many utility companies offer rebates or incentives for energy-efficient upgrades, so check for available programs in your area. Additionally, consider the environmental impact: reduced energy consumption means lower greenhouse gas emissions, contributing to sustainability goals. For commercial buildings, ECMs can also improve indoor air quality by maintaining consistent airflow, which is particularly beneficial in spaces with high occupancy.
In conclusion, ECM blower motors are not just a short-term fix but a long-term solution for energy efficiency. Their ability to adapt to varying demands ensures that energy is used only when and where it’s needed, leading to substantial savings over the life of an HVAC system. By investing in ECM technology, homeowners and businesses can reduce their carbon footprint, lower utility costs, and enjoy a more comfortable indoor environment. The initial cost may be higher, but the return on investment is clear—ECM motors are a smart choice for anyone looking to future-proof their energy usage.
Using Torque Sticks with Electric Impact: Best Practices and Safety Tips
You may want to see also
Frequently asked questions
Yes, ECM (Electronically Commutated Motor) blower motors use significantly less electricity than traditional PSC (Permanent Split Capacitor) motors due to their variable speed capabilities and higher efficiency.
ECM blower motors can save up to 60-70% on electricity consumption compared to PSC motors, depending on usage patterns and system design.
Yes, ECM blower motors are generally more expensive upfront, but their energy savings over time often offset the higher initial cost.
Yes, ECM blower motors can be retrofitted into older HVAC systems, though compatibility and installation requirements should be checked by a professional.
Yes, ECM blower motors typically have a longer lifespan than PSC motors due to their brushless design and reduced mechanical wear.
