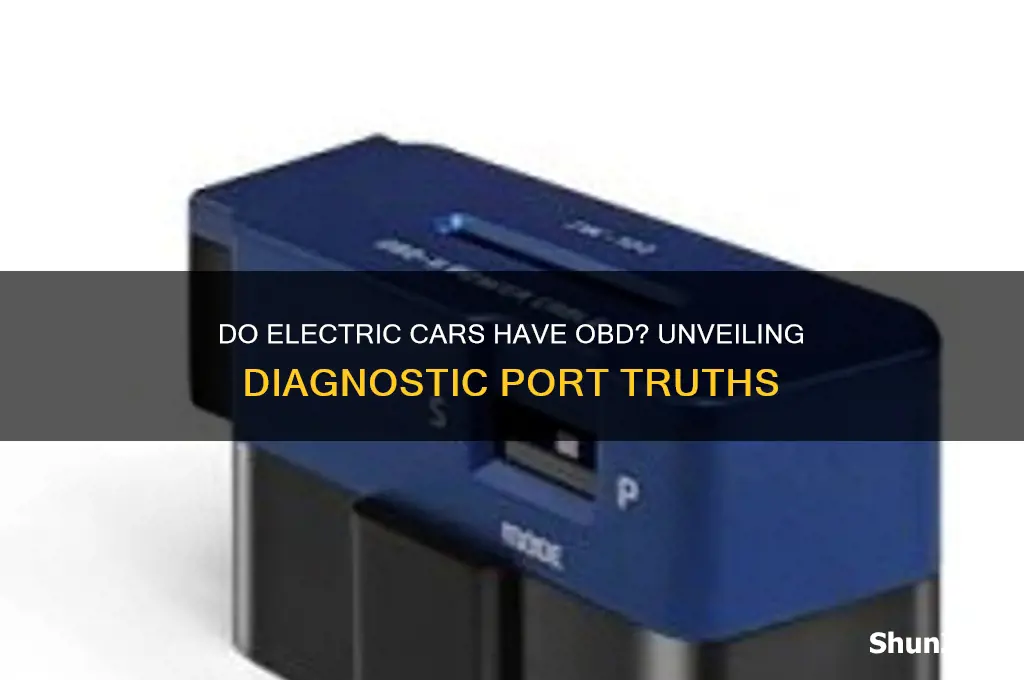

Electric cars, like their traditional internal combustion engine counterparts, are equipped with On-Board Diagnostics (OBD) systems to monitor and report vehicle performance, emissions, and potential issues. The OBD system in electric vehicles (EVs) serves a similar purpose but is tailored to the unique components of electric powertrains, such as the battery management system, electric motor, and regenerative braking. While the specific parameters and codes may differ, EVs use OBD-II ports, the standard diagnostic interface, allowing technicians and owners to access real-time data, diagnose faults, and ensure compliance with environmental regulations. This integration highlights the adaptability of OBD technology to the evolving automotive landscape.
| Characteristics | Values |
|---|---|
| Do Electric Cars Have OBD? | Yes, most electric vehicles (EVs) are equipped with OBD (On-Board Diagnostics) systems. |
| OBD Standard | OBD-II (SAE J1962) is the standard used in modern EVs, similar to traditional gasoline vehicles. |
| Purpose | Monitors vehicle performance, emissions, battery health, and other critical systems. |
| Diagnostic Connector Location | Typically found near the driver's side dashboard or under the steering column. |
| Supported Protocols | CAN (Controller Area Network) is the primary protocol used in EVs. |
| Data Monitoring | Includes battery status, motor performance, charging system, and thermal management. |
| Emissions Monitoring | EVs do not produce tailpipe emissions, but OBD monitors battery and system efficiency. |
| Compatibility with Scan Tools | Works with standard OBD-II scan tools and EV-specific diagnostic software. |
| Regulatory Compliance | Required by regulations in regions like the U.S., EU, and others for diagnostics and reporting. |
| Unique EV Parameters | Additional parameters like state of charge (SoC), battery voltage, and regenerative braking efficiency. |
| Remote Diagnostics | Many EVs support remote diagnostics via telematics systems. |
| Firmware Updates | OBD systems in EVs can receive over-the-air (OTA) updates for improved performance. |
Explore related products
What You'll Learn
- OBD Port Location in EVs: Where to find the OBD-II port in electric vehicles for diagnostics
- EV-Specific OBD Codes: Unique diagnostic trouble codes (DTCs) for electric car systems
- OBD Compatibility in EVs: Do all electric cars support standard OBD-II scanners
- Battery Health Monitoring: Using OBD to check EV battery status and performance
- OBD for Hybrid Vehicles: How OBD functions in hybrid electric vehicles (HEVs)
OBD Port Location in EVs: Where to find the OBD-II port in electric vehicles for diagnostics
Electric vehicles (EVs) are equipped with OBD-II ports, just like their internal combustion engine (ICE) counterparts, to monitor and diagnose vehicle systems. However, locating the OBD-II port in an EV can be less intuitive due to differences in design and layout. Typically, the port is situated within reach of the driver’s area, but its exact location varies by manufacturer and model. For instance, in Tesla vehicles, the OBD-II port is often found beneath the dashboard on the driver’s side, near the steering column, while in the Nissan Leaf, it’s located in the center console, hidden behind a removable panel. Understanding these variations is crucial for technicians and EV owners who need to access diagnostic tools.
To locate the OBD-II port in your EV, start by consulting the vehicle’s manual, which often includes a diagram or description of its position. If the manual is unavailable, a systematic approach can help. Begin by inspecting the driver’s side lower dashboard, as this is a common location across many EVs. For example, the Chevrolet Bolt places its OBD-II port here, tucked behind a small access panel. If not found, move to the center console area, where some manufacturers, like Hyundai with the Kona Electric, position the port for easier access. Less commonly, the port may be located in the glove compartment or under the hood, though this is rare in passenger EVs.
One practical tip is to use online resources or forums specific to your EV model, as owners often share detailed photos and instructions for locating the OBD-II port. For instance, BMW i3 owners frequently note that the port is hidden behind a flap near the driver’s left knee, while the Audi e-tron’s port is in the footwell, covered by a small plastic panel. These community insights can save time and frustration, especially for first-time EV owners unfamiliar with the vehicle’s layout.
When accessing the OBD-II port, ensure the vehicle is powered off to avoid electrical interference. Once located, connect your diagnostic tool securely, as loose connections can lead to inaccurate readings. For EVs with less accessible ports, consider using extension cables or adapters to simplify the process. Regularly checking the OBD-II port for damage or corrosion is also advisable, as exposure to moisture or debris can affect its functionality. By familiarizing yourself with your EV’s specific design, you can streamline diagnostics and maintain optimal vehicle performance.
Electric Car Ownership: Do Stipends Exist for EV Drivers?
You may want to see also
Explore related products
EV-Specific OBD Codes: Unique diagnostic trouble codes (DTCs) for electric car systems
Electric vehicles (EVs) rely on a distinct set of components compared to internal combustion engine (ICE) vehicles, and this difference extends to their diagnostic systems. While both use On-Board Diagnostics (OBD) systems, EVs have unique Diagnostic Trouble Codes (DTCs) tailored to their specific technologies. These EV-specific OBD codes address issues related to battery management, electric motors, and power electronics, ensuring accurate troubleshooting for technicians and owners alike.
Understanding EV-Specific DTCs
EV-specific DTCs fall under the broader OBD-II standard but are categorized separately to reflect the unique challenges of electric powertrains. For instance, codes like P3400 to P3499 are reserved for hybrid and EV systems, covering issues such as battery temperature anomalies, cell imbalances, or motor controller faults. Unlike ICE codes, which focus on emissions and fuel systems, EV codes prioritize energy efficiency, thermal management, and high-voltage safety. Technicians must familiarize themselves with these ranges to diagnose problems effectively.
Practical Examples and Their Implications
Consider the code P340A, which indicates a malfunction in the battery pack cooling system. This could stem from a clogged coolant line or a failing pump, both critical for preventing thermal runaway. Another example is P342F, signaling a high-voltage interlock fault, which may require inspecting the charging port or high-voltage cables for damage. Ignoring these codes can lead to reduced range, battery degradation, or even safety hazards, underscoring the importance of prompt resolution.
Tools and Tips for EV Diagnostics
To decode EV-specific DTCs, technicians need specialized tools like CAN (Controller Area Network) scanners or manufacturer-specific diagnostic software. For DIY enthusiasts, apps like Torque Pro or LeafSpy Pro (for Nissan Leaf owners) can read EV-specific codes via Bluetooth OBD-II adapters. Always ensure the vehicle is in a safe, powered-down state before accessing the OBD port, especially in high-voltage systems. Regularly clearing codes without addressing the root cause is a common mistake—focus on fixing the issue first.
The Future of EV Diagnostics
As EV technology evolves, so will the complexity of DTCs. Emerging systems like bidirectional charging and solid-state batteries will introduce new codes, requiring continuous training for technicians. Manufacturers are also integrating predictive diagnostics, using AI to anticipate failures before they occur. For EV owners, staying informed about these advancements ensures longevity and optimal performance of their vehicles. Understanding EV-specific OBD codes isn’t just a technical necessity—it’s a step toward embracing the future of automotive diagnostics.
Colombia's Electrical Plug Type: A Comprehensive Guide for Travelers
You may want to see also
Explore related products
OBD Compatibility in EVs: Do all electric cars support standard OBD-II scanners?
Electric vehicles (EVs) are increasingly adopting OBD-II compatibility, but not all models support standard scanners universally. Most modern EVs, such as the Tesla Model 3, Nissan Leaf, and Chevrolet Bolt, include an OBD-II port compliant with SAE J1962 standards. However, Tesla vehicles require a proprietary adapter to access diagnostic data, as their systems are not directly compatible with off-the-shelf OBD-II scanners. This highlights a critical distinction: while the physical port may be present, software compatibility varies by manufacturer.
For EV owners and technicians, understanding these nuances is essential. Standard OBD-II scanners work seamlessly with many EVs, providing access to basic diagnostics like battery health, motor efficiency, and error codes. However, advanced features like regenerative braking data or battery management system (BMS) diagnostics often require manufacturer-specific tools or third-party software. For instance, tools like the ScanTool JD1850 or FORScan offer broader compatibility with EVs, but even these have limitations depending on the vehicle’s make and model.
A practical tip for EV owners is to verify OBD-II compatibility before purchasing a scanner. Check the vehicle’s manual or contact the manufacturer to confirm supported protocols (e.g., CAN, ISO 15765). For Tesla owners, investing in a Tesla-specific adapter or using apps like ScanMyTesla can unlock diagnostic capabilities. Additionally, third-party apps like Torque Pro, when paired with a Bluetooth OBD-II adapter, can provide real-time data for compatible EVs, though functionality varies.
Despite growing standardization, OBD-II compatibility in EVs remains fragmented. While the OBD-II port is mandated by regulations in regions like the U.S. and EU, manufacturers often implement proprietary protocols for advanced diagnostics. This creates a barrier for independent repair shops and DIY enthusiasts, who may need specialized tools or subscriptions to access full diagnostic capabilities. As the EV market evolves, interoperability will likely improve, but for now, due diligence is key to ensuring your scanner meets your EV’s needs.
Versatile Electric Skillet Uses: Cooking, Baking, and Beyond Explained
You may want to see also
Explore related products
Battery Health Monitoring: Using OBD to check EV battery status and performance
Electric vehicles (EVs) rely heavily on their battery packs for performance, range, and longevity. Monitoring battery health is crucial for maintaining efficiency and avoiding unexpected failures. Fortunately, On-Board Diagnostics (OBD) systems, traditionally used in internal combustion engine vehicles, have evolved to support EVs, offering a powerful tool for battery health monitoring. By leveraging OBD, EV owners and technicians can access critical data points such as state of charge (SOC), state of health (SOH), temperature, and voltage levels, providing a comprehensive view of battery performance.
To begin monitoring your EV’s battery health using OBD, you’ll need an OBD-II scanner compatible with electric vehicles. Plug the scanner into the OBD port, typically located under the dashboard, and access the battery-specific diagnostic trouble codes (DTCs) and live data streams. Focus on parameters like SOH, which indicates the battery’s capacity relative to its original state (e.g., 85% SOH means the battery holds 85% of its original charge). A sudden drop in SOH or consistent high temperatures could signal degradation or overheating, requiring immediate attention.
Comparing OBD-based battery monitoring to other methods, such as manufacturer-specific apps or third-party tools, highlights its advantages. OBD provides real-time, standardized data directly from the vehicle’s systems, whereas apps may rely on less granular or delayed information. For instance, while an app might show estimated range, OBD can reveal underlying issues like cell imbalance or voltage inconsistencies that affect performance. However, OBD’s effectiveness depends on the vehicle’s compliance with OBD-II standards and the scanner’s compatibility with EV-specific protocols.
A practical tip for EV owners is to establish a routine battery health check using OBD every 3–6 months or after significant usage changes, such as frequent fast charging or extreme weather exposure. Keep a log of SOH, temperature trends, and DTCs to track degradation over time. If SOH drops below 70%, consider consulting a technician, as this threshold often indicates significant wear. Additionally, monitor temperature spikes, as prolonged exposure to temperatures above 40°C (104°F) can accelerate battery aging.
In conclusion, OBD systems offer a precise and accessible way to monitor EV battery health, empowering owners to proactively address issues before they escalate. By understanding key metrics and integrating regular checks into maintenance routines, EV drivers can maximize their battery’s lifespan and ensure optimal performance. While OBD is not a replacement for professional diagnostics, it serves as an invaluable tool for informed, data-driven vehicle care.
Electric Cars: A Sustainable Future or Environmental Myth?
You may want to see also
Explore related products
OBD for Hybrid Vehicles: How OBD functions in hybrid electric vehicles (HEVs)
Hybrid electric vehicles (HEVs) integrate both internal combustion engines (ICEs) and electric propulsion systems, creating a complex interplay of components that require precise monitoring and diagnostics. On-Board Diagnostics (OBD) systems in HEVs are specifically designed to manage this duality, ensuring both the ICE and electric systems operate efficiently and comply with emissions standards. Unlike traditional OBD systems, which focus solely on ICE parameters, HEV OBD must monitor additional elements such as battery health, electric motor performance, and regenerative braking efficiency. This expanded functionality is critical for maintaining the vehicle’s hybrid synergy and diagnosing issues unique to hybrid technology.
One key aspect of OBD in HEVs is its ability to track the state of charge (SOC) and state of health (SOH) of the high-voltage battery pack. The OBD system continuously evaluates battery voltage, temperature, and current flow, providing real-time data to the vehicle’s control unit. For example, if the battery’s SOC drops below a certain threshold or if the SOH indicates degradation, the OBD system triggers a diagnostic trouble code (DTC), alerting the driver to potential issues. This proactive monitoring is essential for preventing sudden power loss or battery failure, ensuring the vehicle’s reliability and safety.
Another critical function of OBD in HEVs is its role in emissions control. Hybrid vehicles are subject to stringent emissions regulations, and the OBD system must ensure compliance by monitoring both ICE emissions and the efficiency of the electric system. For instance, the OBD tracks exhaust gas recirculation (EGR) performance, catalytic converter efficiency, and the seamless transition between electric and ICE modes. If the system detects anomalies, such as excessive emissions during ICE operation or inefficient energy recovery during regenerative braking, it logs a DTC and may activate a warning light on the dashboard.
Practical tips for HEV owners include regularly checking for OBD-generated DTCs using a compatible scan tool, especially if the vehicle exhibits unusual behavior, such as reduced fuel efficiency or erratic switching between power sources. Additionally, keeping the high-voltage battery within its optimal temperature range (typically 20°C to 30°C) can enhance OBD accuracy and prolong battery life. For older HEVs, periodic software updates from the manufacturer can improve OBD functionality, ensuring the system adapts to evolving diagnostic standards.
In summary, OBD systems in HEVs are sophisticated tools that bridge the gap between traditional ICE diagnostics and the unique demands of hybrid technology. By monitoring both electric and combustion components, they play a pivotal role in maintaining performance, ensuring compliance, and extending the lifespan of hybrid vehicles. Understanding how OBD functions in HEVs empowers owners to address issues promptly and maximize the benefits of their hybrid investment.
Is Silver a Key Component in Electric Car Technology?
You may want to see also
Frequently asked questions
Yes, electric cars are equipped with OBD systems, similar to traditional gasoline vehicles. These systems monitor the vehicle's performance, emissions, and other critical functions, ensuring compliance with regulatory standards and aiding in diagnostics.
While the core function of OBD systems remains the same, electric cars' OBD systems focus on monitoring battery health, electric motor performance, and other EV-specific components, in addition to standard diagnostics.
Many standard OBD scanners work with electric cars, but some EV-specific codes and diagnostics may require specialized tools or software. Always check compatibility with your vehicle's make and model.
