Beatrice Lang

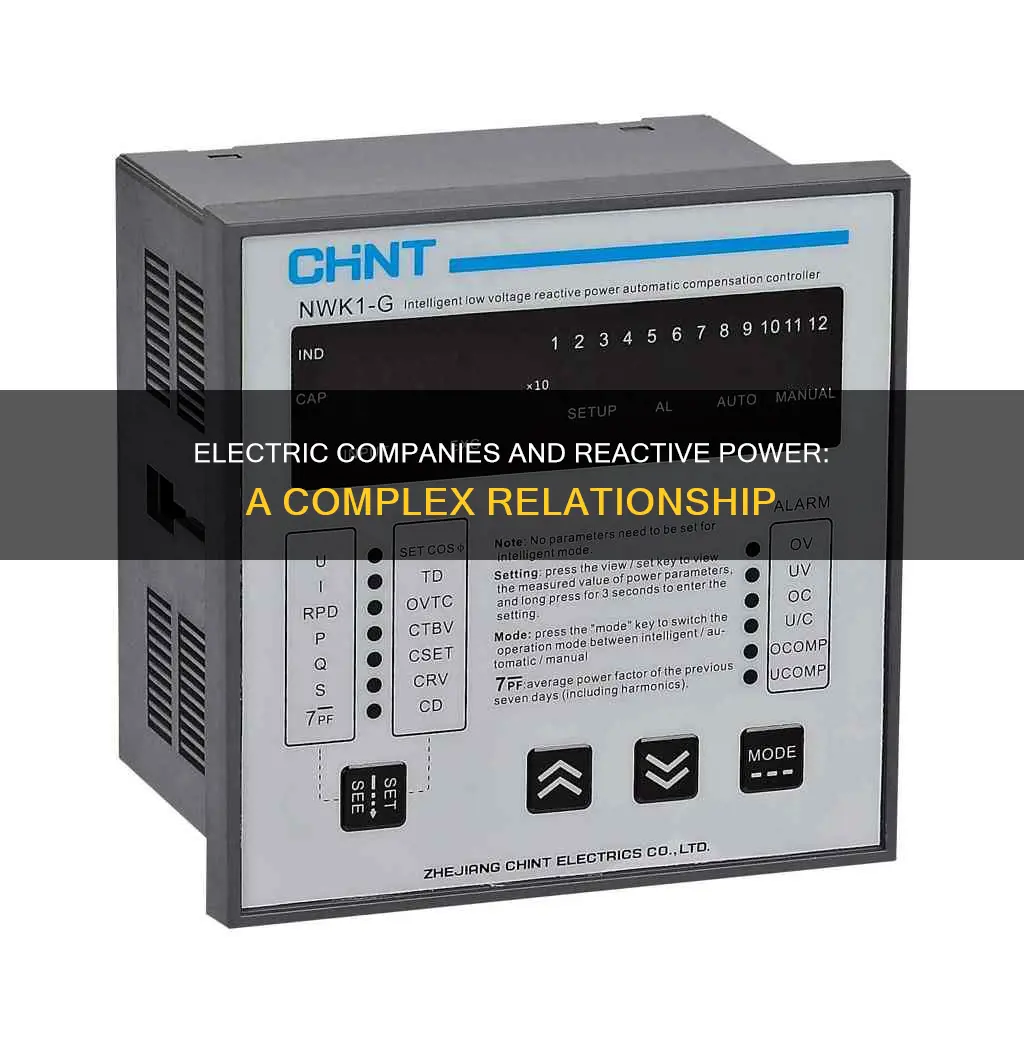

Electric companies supply active power, which is the usable or consumed electrical energy in an AC circuit. However, reactive power, which is created when electrical circuits have inductive or capacitive elements, is also essential to the power system. While it does not contribute to the device's function, it is necessary to maintain the voltage and current levels in the circuit and create electromagnetic fields used by devices like transformers and motors. Reactive power is not billed by utility companies, but it does create inefficiencies and losses in the system, increasing operating costs. Therefore, electric companies must carefully manage reactive power to ensure grid stability and efficient power transmission.
| Characteristics | Values |
|---|---|
| Definition | Reactive power is the component of electrical power that oscillates between the load and the source without performing any useful work. |
| Occurrence | Reactive power occurs when the voltage and current are out of phase in an AC circuit. |
| Measurement | Reactive power is measured in volt-ampere reactive (VAR). |
| Direction of Flow | Reactive power flows back and forth, resulting in power moving in both directions around the circuit or reacting back on itself. |
| Positive and Negative Reactive Power | Reactive power is positive when flowing from the source to the load and negative when flowing from the load to the source. |
| Function | Reactive power does not contribute to the device's function but can be used to measure a circuit's power factor. |
| Electromagnetic Fields | Reactive power creates electromagnetic fields that can be used by devices such as transformers, motors, and fluorescent lights. |
| AC Circuits | Reactive power is only defined for AC circuits and is represented by Q. |
| Compensation | Reactive power compensation is required in AC power systems to control reactive components. |
| Voltage Stability | Reactive power helps maintain power system voltage stability, ensuring that transformers and motors operate efficiently and reliably. |
| Power Factor | Power Factor is a key parameter used by power system operators to manage voltage and regulate the operation of generators on the grid. |
| Local Grid Service | Reactive power does not "travel well" over long transmission lines, so it must be supplied near where it is needed on the power grid. |
| Grid Voltage Control | Planning and control of reactive power is essential to grid voltage control and stability. |
| Capacitor Banks | Capacitor banks are used to compensate for reactive power by introducing capacitive reactive power, which helps reduce or cancel out overall reactive power. |
| Power Factor Improvement | Introducing capacitive reactive power can improve the power factor, reducing losses within the system and increasing effective capacity. |
Explore related products
What You'll Learn
- Reactive power is needed to maintain voltage stability and prevent blackouts
- It is not useful to the circuit but is essential for the performance of AC circuits
- Reactive power is not billed by utility companies
- It is created when an electrical circuit has inductive or capacitive elements
- Reactive power can be compensated for through capacitor banks
Reactive power is needed to maintain voltage stability and prevent blackouts
Reactive power is a crucial component of electrical power systems, but it does not perform any useful work in the circuit. It occurs when there is a phase difference between voltage and current waveforms in AC circuits, resulting from the presence of inductive or capacitive elements. While reactive power does not contribute directly to the device's function, it is essential for maintaining voltage stability and preventing blackouts.
Voltage stability is critical in power systems to ensure a consistent and reliable supply of electricity. Voltage instability can lead to voltage sags, fluctuations, or even voltage collapse, which can have significant impacts on the operation of sensitive equipment and power quality. Insufficient reactive power can lead to voltage collapse, as seen in several major blackouts worldwide, including the United States in 1996 and 2003.
Reactive power affects the voltage levels in a circuit. When the demand for reactive power exceeds the supply, the system enters a state of voltage instability. This can lead to a progressive and uncontrollable drop in voltage, eventually resulting in a blackout. To prevent this, it is essential to have sufficient reactive power reserves (RPRs) and effective reactive power management.
One way to manage reactive power is through capacitor banks, which introduce capacitive reactive power. This type of power has the opposite effect of inductive reactive power and can help reduce or cancel out overall reactive power. Synchronous condensers and static VAR compensators (SVCs) are also used to regulate voltage and maintain a stable power system. By employing these compensation devices, voltage levels can be controlled, and the stability of the electrical system can be improved.
Additionally, advanced grid control systems enable real-time reactive power management, allowing operators to optimize the grid's performance and respond to changing conditions. This proactive approach helps maintain voltage stability and prevent blackouts by quickly detecting and adjusting to system events. In summary, reactive power is essential for maintaining voltage stability and preventing blackouts in electrical power systems. By understanding and effectively managing reactive power, engineers can ensure the reliable and consistent delivery of electricity to consumers.
Electric Company Options in Augusta, Georgia
You may want to see also
Explore related products
It is not useful to the circuit but is essential for the performance of AC circuits
Reactive power is a critical component of AC circuits, but it does not contribute directly to the circuit's functionality. It is the power that oscillates between the load and the source, flowing back and forth without performing any useful work. This power is essential to maintain the voltage and current levels in the circuit. It occurs when there is a phase difference between voltage and current waveforms, which is often caused by inductive or capacitive elements in the circuit.
While reactive power itself is not useful to the circuit, it is necessary to sustain the electromagnetic fields associated with these inductive and capacitive elements. Inductive devices, such as transformers and motors, store energy in magnetic fields and release it back into the circuit when the current changes. This creates a lagging phase shift between voltage and current, and reactive power is required to maintain this shift. Capacitors, on the other hand, cause a leading phase shift, and reactive power is needed to sustain this as well.
The presence of reactive power in a circuit can create inefficiencies and energy losses. It increases the apparent power, promoting a greater flow of current. This can lead to increased operating costs and reduced system efficiency. Additionally, reactive power takes up space on transmission lines, requiring larger conductors and transformers, which further adds to the cost.
Managing reactive power is crucial for grid voltage control and stability. Capacitor banks, for instance, can be used to introduce capacitive reactive power, which helps reduce or cancel out overall reactive power. By improving the power factor, losses within the system, including transmission lines, transformers, and other components, can be minimised. Therefore, while reactive power is not useful to the circuit in terms of performing work, it is essential for the overall performance and stability of AC circuits.
Who Powers 8924 North Exeter, Portland? Electric Company Services Guide
You may want to see also
Explore related products
Reactive power is not billed by utility companies
Reactive power is a component of electrical power that flows back and forth between the load and the source without performing any useful work. It is created when there is a phase difference between voltage and current waveforms in an AC circuit, which can be caused by inductive or capacitive elements in the circuit. Reactive power is necessary to maintain the voltage and current levels in the circuit, but it does not contribute to the device's function.
While reactive power is an important aspect of electrical power, it is not directly billed by utility companies. Instead, what utility companies charge for is the active power or real power, which refers to the electrical energy that is actually consumed and used by devices. This is the power that performs useful work, such as lighting LED lights and light bulbs. Active power is measured in watts (W) or kilowatts (kW) and is billed by utility companies accordingly.
However, it is important to note that reactive power can still impact the costs of electricity for consumers. While it is not directly billed, reactive power can lead to inefficiencies and losses in the electrical system. When there is a shortage of reactive power, voltage drops, current increases, and breakers may trip, potentially leading to blackouts. In some cases, Distribution Network Operators (DNOs) may apply Reactive Power Charges to encourage customers to improve their power factor and reduce the current demand at their site. These charges are applied when a customer's average power factor is below a certain threshold, typically below 0.95.
Additionally, some utilities may bill demand charges based on kilovolt-amperes (kVA), which includes both real power and reactive power. This means that customers are paying for the total power supplied, regardless of how much is actually converted into useful power. In some cases, utilities may use a factor, such as 0.9 times the measured kVA, to calculate the charges. By improving the power factor, customers can reduce the kVA Maximum Demand and free up electrical capacity, potentially avoiding or minimizing Reactive Power Charges.
Switching Electric Companies: A Guide to Changing Providers
You may want to see also
Explore related products
It is created when an electrical circuit has inductive or capacitive elements
Reactive power is a complex concept in electricity, and it is created when an electrical circuit has inductive or capacitive elements. It is the power flowing back and forth in a circuit, generated by the rotation of synchronous turbines, which creates electricity with a varying current and voltage. This power is not consumed in the circuit but is returned to the source, and it is described as energy that moves back and forth within a circuit.
In a circuit with only resistance, the current and voltage waveforms are in phase, reaching their maxima and minima simultaneously. However, in circuits with capacitance and inductance, the maxima and minima of the current and voltage occur at different times and are out of phase. This out-of-phase relationship between voltage and current leads to the generation of reactive power.
Devices with inductors, such as motors, store energy in their magnetic fields. Inductors attempt to keep the current constant by expanding and collapsing their magnetic fields. When the magnetic field expands, energy is stored in it, and when it collapses, the energy is returned to the source. This energy transfer is what creates reactive power. Capacitors, on the other hand, generate reactive power by storing energy in electric fields.
Reactive power affects the voltage in a circuit and can lead to inefficiencies and energy losses. It can also cause issues like voltage drops and distortions in the voltage waveform. To control reactive power, power generators can be used to absorb or produce Volt-Amp-Reactive (VARs), which are the units of reactive power. By adjusting the generator's field excitation, the voltage can be regulated, and reactive power can be balanced.
Overall, reactive power is an essential concept in power systems, and its understanding helps manage and optimise electrical circuits and grids.
The Electric Company's Catchy Educational Song
You may want to see also
Explore related products
Reactive power can be compensated for through capacitor banks
Reactive power is the component of electrical power that oscillates between the load and the source without performing any useful work. It is created when an electrical circuit has inductive or capacitive elements, causing a phase difference between voltage and current waveforms in AC circuits. This results in power moving in both directions around the circuit or reacting back on itself. While reactive power is necessary to maintain electromagnetic fields, it does not contribute to the device's function or the energy consumed or transmitted.
Capacitor banks are storage devices consisting of multiple capacitors of the same rating connected in series or parallel, depending on the desired rating. They are used to store and condition large amounts of electrical energy flow and compensate for reactive power. When connected to the electric system, capacitor banks introduce capacitive reactive power, which has the opposite effect of inductive reactive power and helps reduce or cancel out the overall reactive power.
There are two main types of capacitor banks used for reactive power compensation: shunt capacitors and switched capacitor banks. Shunt capacitors are the most frequently used electrical compensation device in power distribution systems and are primarily used for voltage regulation and power factor correction. They are effective in compensating for voltage drop and fluctuations, but their value is diminished when the reactive power requirements of the load are small. Switched capacitor banks, on the other hand, are used to manage voltage during heavy and light load conditions. During heavy load conditions, the capacitors are switched in, adding the capacitive current to the inductive current, reducing total current, voltage drop, and electrical losses.
By using capacitor banks to compensate for reactive power, electric companies can improve the power factor of their systems, reduce losses, and increase the effective capacity of the electrical system, allowing for more active power to be transmitted and utilized within the same system constraints.
Electric Company Services in Cottonwood: Who Powers the Town?
You may want to see also
Frequently asked questions
Reactive power is the component of electrical power that oscillates between the load and the source without performing any useful work. It occurs when the voltage and current are out of phase in an AC circuit.
Reactive power is needed to maintain power system voltage stability. It helps to keep voltage and current in balance so that transformers and motors operate efficiently and reliably. Electric companies must supply reactive power near where it is needed as it does not "travel well" over long transmission lines.
Reactive power is not directly billed to the customer. Only active power, the power that is actually absorbed or consumed in the circuit, is billed by the utility company. However, reactive power can increase apparent power, which promotes a greater flow of current, leading to higher active power consumption and costs.
Reactive power can be managed through capacitor banks, inverters, or a combination of both. Capacitor banks, consisting of multiple capacitors, can introduce capacitive reactive power, which helps reduce or cancel out overall reactive power. Inverters, on the other hand, ensure the delivery of the intended active power without decreasing reactive power.
