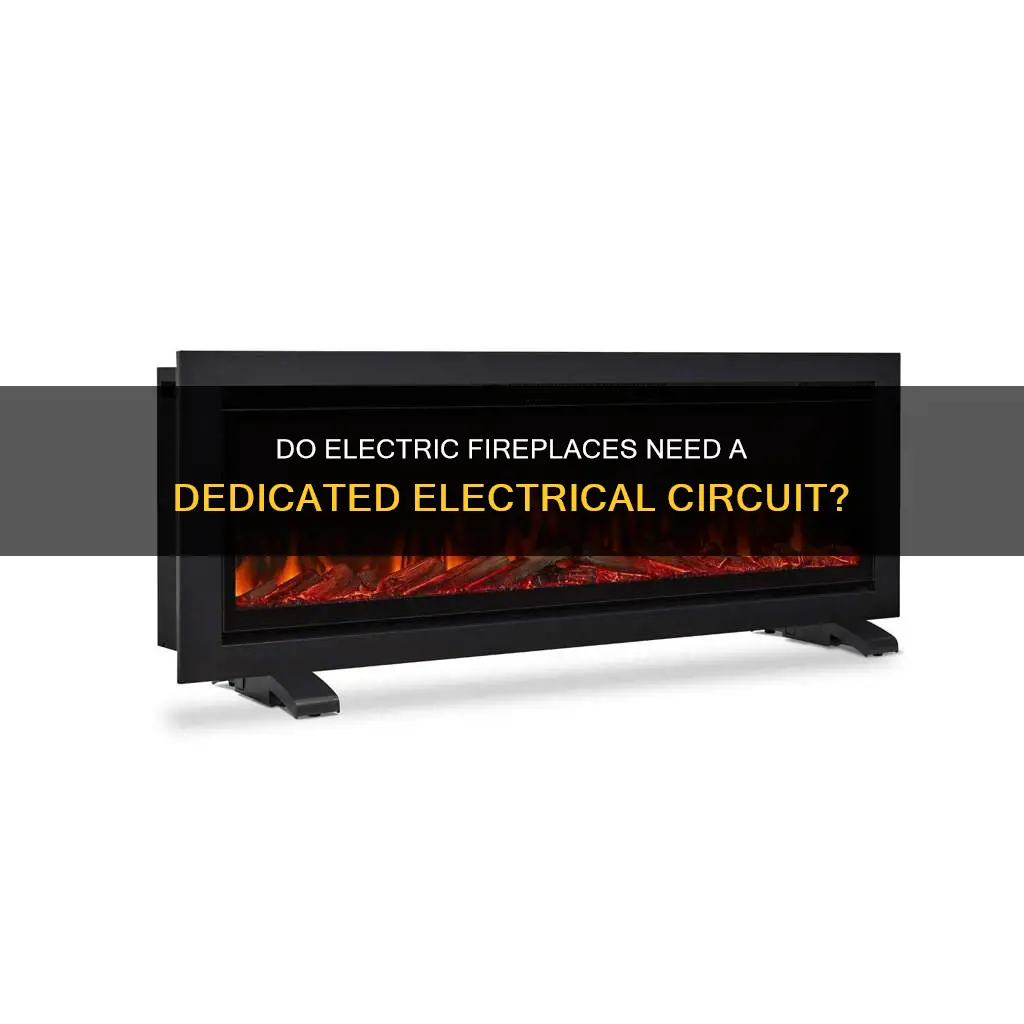

Electric fireplaces are a convenient way to heat your home and create a cosy atmosphere. They are generally considered safer than traditional fireplaces as they don't emit smoke or toxins, and there's no risk of carbon monoxide. However, they do require some electrical know-how to set up safely. One of the key questions when installing an electric fireplace is whether it needs a dedicated circuit. The answer depends on a few factors, including the type of fireplace, the power it draws, and the capacity of your existing circuits.
| Characteristics | Values |
|---|---|
| Dedicated circuit required | Yes, if the heater is at the maximum setting. No, if the heater is not being used. |
| Circuit type | 120-volt or 240-volt |
| Circuit amp | 15-amp or 20-amp |
| Other items on the same circuit | Not recommended |
| Hardwired or plug-in | Both options are available |
Explore related products
What You'll Learn
- Electric fireplaces with a heater draw more power than those without
- A dedicated circuit is not essential but preferred
- A 15-amp circuit is sufficient for some electric fireplaces
- A 20-amp circuit is better, but a vacuum may still trip the breaker
- A dedicated circuit is required by the National Electrical Code (NEC)
Electric fireplaces with a heater draw more power than those without
The power consumption of an electric fireplace with a heater is an important consideration when deciding whether to install one. While electric fireplaces are generally considered to be energy-efficient, with an efficiency rating of 99% because they immediately turn power into heat, they still require a significant amount of power to operate.
The high power consumption of electric fireplaces with heaters means that they may require a dedicated circuit. A dedicated circuit is a single outlet that is connected to its own circuit breaker in the electrical panel. This is important for electric fireplaces with heaters because they draw a significant amount of power. If the electric fireplace is not on a dedicated circuit, it may trip the breaker and cause a power outage.
The need for a dedicated circuit for an electric fireplace with a heater depends on several factors, including the circuit amp and the number of other appliances on the same circuit. For example, if you have a 15-amp circuit with multiple appliances, such as a TV, antenna, and lamp, you may need a dedicated circuit for the electric fireplace. On the other hand, if you have a 20-amp circuit and only use the heater for short periods, it may be okay to share the circuit with other appliances.
In summary, electric fireplaces with heaters draw more power than those without, and this higher power consumption may require a dedicated circuit to ensure safe and proper operation.
How Energy-Efficient Is Your PlayStation?
You may want to see also
Explore related products
A dedicated circuit is not essential but preferred
Electric fireplaces have built-in heaters that draw most of the power when turned on. Without the heaters, electric fireplaces draw very little power because the flames are created with LED lights.
If you have a 15-amp circuit, it is recommended to have a dedicated circuit for the heater. If you have a 20-amp circuit and only use the heater for short periods, it is probably okay if you're careful about what else you plug in.
If you do not have a dedicated circuit, you may opt to have the heater permanently disabled by a qualified technician. If you prefer to use the heater, you need to ensure that the electrical circuit has sufficient available wattage to allow the fireplace heater to operate. If your circuit breaker turns off when you run the fireplace heater, you need to invest in a dedicated line or stop using the heater.
Electric Wheelchairs: A Booming US Industry
You may want to see also
Explore related products
A 15-amp circuit is sufficient for some electric fireplaces
Electric fireplaces have built-in heaters that draw most of the power when turned on. The heaters can be permanently disabled by a qualified technician if you do not have access to a dedicated circuit.
Dedicated circuits are important for electric fireplaces because they are fixed appliances that create heat. If the fireplace is hardwired and uses over 50% of the branch circuit, it may not share receptacles or fixed appliances. Additionally, if the run for the 14/2 is over 60 ft, then 12-gauge wire is required for using 80% of the circuit. Most manufacturers require a 20-amp dedicated circuit to avoid warranty issues.
If you have a 15-amp circuit and want to install an electric fireplace, it is important to ensure that the electrical circuit has sufficient available wattage to allow the fireplace to operate. Most heaters have a low setting of around 750 watts on 120 volts, in addition to higher settings. If your circuit breaker turns off when you run the fireplace at the desired setting, you need to invest in a dedicated line or stop using the heater.
Electric Dreams: Indy's Electric IndyCar Revolution
You may want to see also
Explore related products
A 20-amp circuit is better, but a vacuum may still trip the breaker
Electric fireplaces have built-in heaters that draw most of the power when turned on. Without the heaters, electric fireplaces draw little power because the flames are created with LED lights. A 15-amp circuit is the minimum requirement for an electric fireplace. However, a 20-amp circuit is better, but a vacuum may still trip the breaker.
A dedicated circuit is required for an electric fireplace, especially if it is a fixed appliance that creates heat. Most manufacturers require a 20-amp dedicated circuit to avoid warranty issues. A dedicated circuit ensures that the electric fireplace has sufficient power and does not cause "noise" in the line, affecting the IPI (ignition) system.
If you have a 15-amp circuit, it is advisable to have a dedicated circuit for the heater. A 15-amp circuit can safely handle up to 1400 watts, which is about 12 amps. However, if you have other appliances and lights on the same circuit, you may be close to maxing it out.
With a 20-amp circuit, you are in a better position to handle the power requirements of an electric fireplace. However, it is important to be careful about what you plug into the same circuit. If someone plugs in a vacuum or another high-amp device, it can still trip the breaker. Therefore, while a 20-amp circuit is better, it is not a guarantee that the breaker will not trip.
To ensure the safe and proper use of your electric fireplace, it is always recommended to follow the instructions provided by the manufacturer and consult with a qualified technician if you have any doubts or concerns.
Net Metering and Tri-County Electric: What You Need to Know
You may want to see also
Explore related products
A dedicated circuit is required by the National Electrical Code (NEC)
Additionally, most manufacturers recommend and require a dedicated 20-amp circuit for their electric fireplaces to avoid any warranty issues and potential problems with the IPI (Ignition) system. While a dedicated circuit is not always mandatory, it is often the safest option to prevent overloading the circuit and ensure optimal performance.
The requirement for a dedicated circuit also depends on the specific electric fireplace model. Some larger models may require higher voltages, such as 240-volt plugs, which provide higher wattages and more heat production. In such cases, a dedicated circuit is necessary to handle the increased power requirements.
It's important to note that the heater component of an electric fireplace draws the most power. Therefore, if you intend to use the heater along with the flame effect, it is advisable to ensure that the electrical circuit has sufficient available wattage to accommodate the heater's operation. If your circuit breaker trips when using the heater, it is a clear indication that you need to invest in a dedicated circuit.
The Mystery of Chuck's Electrical Allergy Unveiled
You may want to see also
Frequently asked questions
A dedicated circuit is not required for all electric fireplaces. However, it is recommended. If you have a 15-amp circuit, a dedicated circuit is preferred but not essential. If you have a 20-amp circuit, it is probably okay if the heater is only used for short periods, and you are careful about what else you plug in.
If you don't have a dedicated circuit, you may need to have the heater permanently disabled by a qualified technician.
A dedicated circuit is a single outlet that is a dedicated line. This means that no other outlets are connected to the same breaker, and no other items will turn off when you turn off the breaker.
Turn off the breaker that goes to your fireplace outlet. If other items also turn off at the same time, you do not have a dedicated circuit.
