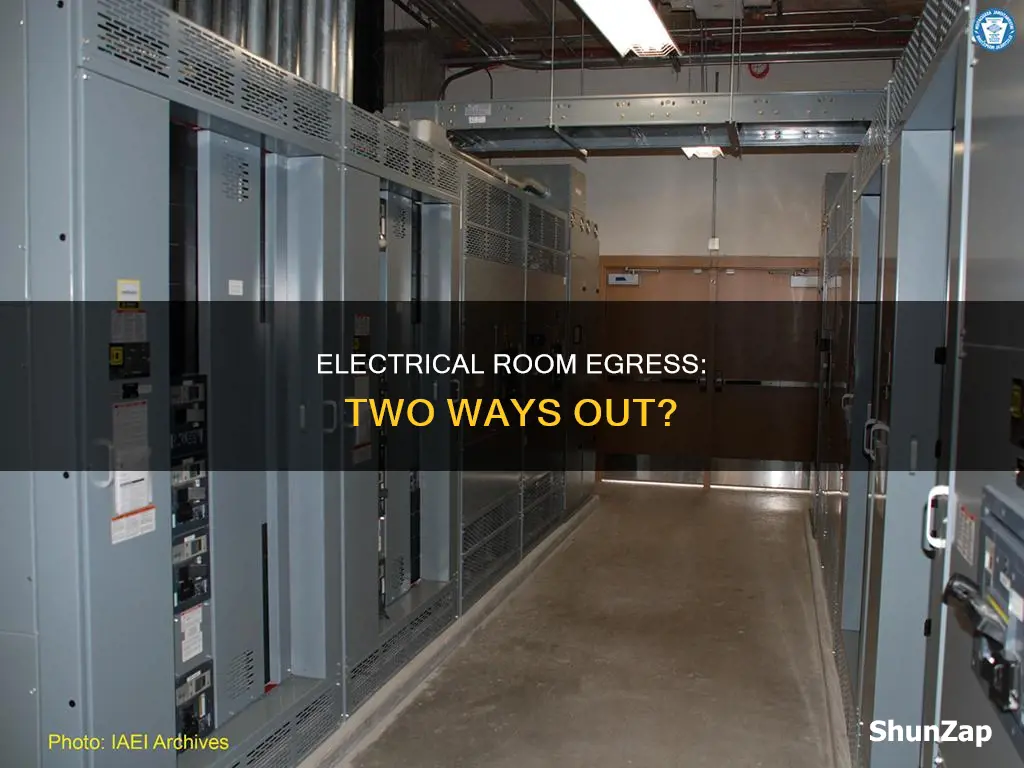

Do electrical rooms need 2 means of egress?
| Characteristics | Values |
|---|---|
| Entrance and egress requirements | Specific when the electrical room includes "large equipment" |
| Large equipment | Any equipment rated 1200 amps or more and over 6 feet wide |
| Entrance/egress | Must be at least 24 inches wide and 6.5 feet tall at each end of the working space |
| Number of entrances/egresses | Can be reduced to one if requirements in 110.26(C)(2)(a) or (b) are met |
| Unobstructed access | Requirements in Table 110.26(A)(1) must be doubled to have only one entry/egress |
| Door hardware | Personnel doors must open in the direction of egress and have panic hardware if specific conditions are met |
| Panic hardware | An exit device that allows simple egress by use of a crash bar/push bar; unlatches the door's latching mechanism |
| Fire exit hardware | Evaluated by UL 10C and UL 305 for both panic and fire exit hardware |
| Fire doors | Require positive latching and do not have mechanical dogging |
| Obstruction rules | No boxes, spare parts, or other items are allowed to block the escape route |
Explore related products
What You'll Learn
- Electrical rooms with large equipment must have an entrance/egress at least 24 inches wide and 6.5 feet tall at each end of the working space
- Doors must not impede entry or egress from the working space
- If equipment is rated at 800 amps or more, the door must open in the direction of egress
- Electrical rooms must have panic hardware to allow simple egress
- Fire exit hardware is different from panic hardware as it requires positive latching
Electrical rooms with large equipment must have an entrance/egress at least 24 inches wide and 6.5 feet tall at each end of the working space
The National Electrical Code (NEC) has strict requirements for electrical rooms with large equipment. According to Article 110.26, which covers spaces about electrical equipment, if an electrical room includes "large equipment," specific entrance and egress requirements must be met.
"Large equipment" is defined as any equipment with a rating of 1200 amps or more and a width of over 6 feet. If an electrical room contains such equipment, the room must have an entrance/egress that is at least 24 inches wide and 6.5 feet tall at each end of the working space. This ensures unobstructed access and a clear escape route in case of an emergency.
It is important to note that the "each end" requirement for entry/egress can be reduced to only one if certain conditions are met. Specifically, if the requirements in 110.26(C)(2)(a) or (b) can be satisfied, a single entrance/egress may be sufficient. These subsets allow for unobstructed access or a space where the requirements in Table 110.26(A)(1) are doubled. Additionally, the measurement from the nearest edge of the large equipment must not be less than the value listed in the table.
Another important consideration is the door hardware. Personnel doors in electrical rooms with equipment rated 800 amps or more, located less than 25 feet from the nearest edge of the working space, must open in the direction of egress and be equipped with listed panic hardware. This includes devices such as crash bars or push bars that allow for simple egress by unlatching the door's latching mechanism.
It is crucial to maintain these electrical rooms clear of obstructions at all times. Boxes, spare parts, or other items should never impede the escape route. By following these guidelines, electrical rooms with large equipment can provide adequate entrance and egress while complying with the relevant codes and ensuring the safety of personnel.
