Formula 1 cars have evolved significantly over the years, incorporating advanced technologies to enhance performance and efficiency. While traditionally powered by internal combustion engines, modern F1 cars now utilize a hybrid powertrain system known as the Energy Recovery System (ERS). This system combines a 1.6-liter turbocharged V6 internal combustion engine with two electric motors: the Motor Generator Unit-Kinetic (MGU-K) and the Motor Generator Unit-Heat (MGU-H). The MGU-K recovers energy from braking, while the MGU-H captures heat energy from the turbocharger. These electric motors not only improve fuel efficiency but also provide an additional power boost, allowing drivers to gain a competitive edge on the track. Thus, while F1 cars are not fully electric, they do indeed incorporate electric motors as a crucial component of their hybrid powertrain.
| Characteristics | Values |
|---|---|
| Electric Motor Usage | Yes, F1 cars use electric motors as part of their hybrid power units. |
| Type of Electric Motor | MGU-K (Motor Generator Unit - Kinetic) and MGU-H (Motor Generator Unit - Heat). |
| Function of MGU-K | Recovers kinetic energy during braking and provides additional power. |
| Function of MGU-H | Recovers thermal energy from turbocharger exhaust gases. |
| Power Output (MGU-K) | Up to 120 kW (160 hp) for short bursts. |
| Power Output (MGU-H) | Varies, but contributes significantly to overall efficiency. |
| Energy Storage | Energy Store (ES) battery, limited to 4 MJ per lap. |
| Total Power Unit Output | Approximately 1000+ hp (combined ICE and electric motors). |
| Introduction Year | Hybrid power units introduced in 2014. |
| Fuel Flow Rate Limit | 100 kg/h maximum fuel flow rate. |
| Efficiency | High thermal efficiency, with electric motors improving overall efficiency. |
| Weight Impact | Adds weight due to hybrid components, but regulated by FIA rules. |
| Manufacturer Involvement | Mercedes, Ferrari, Renault, and Honda (as of recent seasons). |
| Development Focus | Continuous development in energy recovery and deployment systems. |
| Environmental Impact | Reduced fuel consumption and emissions compared to pre-hybrid era. |
Explore related products
$16.99 $16.99
What You'll Learn
- Hybrid Power Units: F1 cars use hybrid systems combining electric motors with internal combustion engines
- Energy Recovery Systems: MGU-K and MGU-H recover kinetic and heat energy for electric power
- Battery Technology: High-performance batteries store energy for short bursts of electric power
- Electric-Only Modes: F1 cars can run briefly on electric power alone in specific scenarios
- Future Trends: Increasing electrification in F1 regulations to reduce carbon footprint
Hybrid Power Units: F1 cars use hybrid systems combining electric motors with internal combustion engines

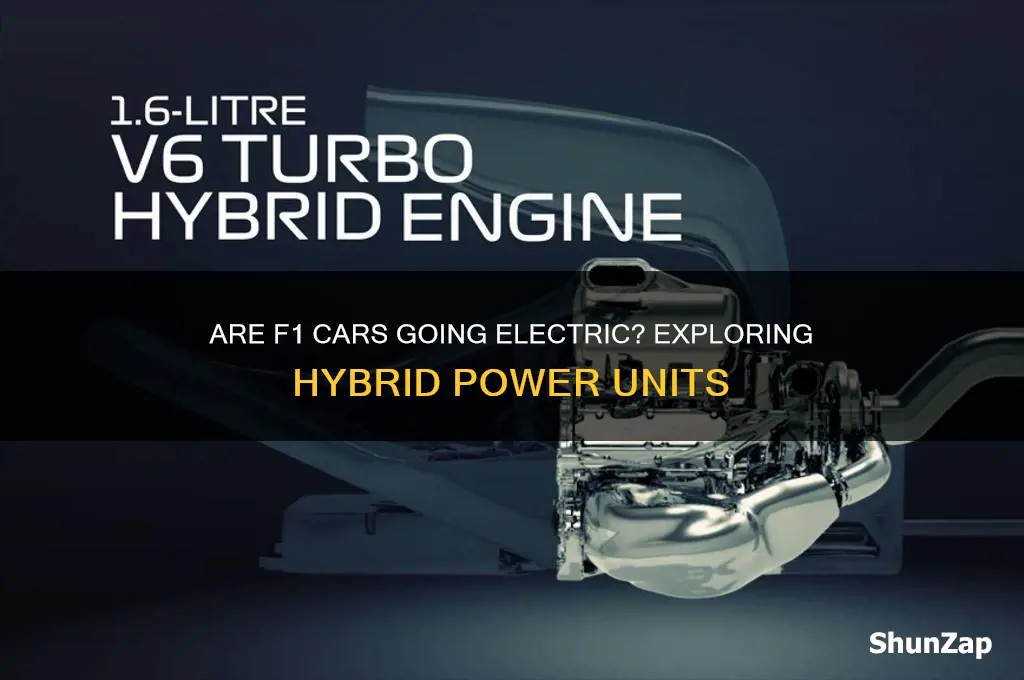

F1 cars are not fully electric, but they do incorporate electric motors as part of a sophisticated hybrid power unit. Since 2014, Formula 1 has embraced hybrid technology, combining a 1.6-liter turbocharged V6 internal combustion engine (ICE) with an Energy Store (battery) and two electric motors: the Motor Generator Unit-Kinetic (MGU-K) and the Motor Generator Unit-Heat (MGU-H). This system recovers and redeploys energy that would otherwise be wasted, boosting both efficiency and performance. The MGU-K, for instance, captures kinetic energy during braking, storing it in the battery to deliver an additional 160 horsepower for short bursts, while the MGU-H recovers heat energy from the turbocharger.
The integration of electric motors into F1’s hybrid power units serves multiple purposes. First, it aligns with the sport’s push toward sustainability, reducing fuel consumption by up to 50% compared to pre-hybrid era engines. Second, it enhances strategic depth during races. Drivers can deploy the stored electric power (up to 4 MJ per lap) for overtaking, defending, or conserving fuel, adding a layer of tactical complexity. Teams must carefully manage this energy deployment, balancing speed with efficiency, which has become a critical skill in modern F1 engineering and racing.
From a technical standpoint, the hybrid system is a marvel of engineering. The MGU-K operates at speeds up to 50,000 RPM, while the MGU-H spins at an astonishing 125,000 RPM, making it one of the fastest-spinning components in motorsport. The battery, or Energy Store, must be lightweight yet capable of handling extreme charge and discharge cycles. This system not only showcases F1’s innovation but also serves as a testbed for technologies that could eventually trickle down to road cars, such as improved hybrid efficiency and energy recovery systems.
Critics argue that the complexity of F1’s hybrid power units makes the sport less accessible, both for teams and fans. The cost of developing and maintaining these systems is astronomical, potentially widening the gap between top teams and smaller outfits. However, proponents counter that the hybrid era has elevated F1’s relevance in a world increasingly focused on electrification and sustainability. It’s a delicate balance between pushing technological boundaries and maintaining the sport’s competitive spirit, but one that F1 continues to navigate with its hybrid power units at the forefront.
For enthusiasts and aspiring engineers, understanding F1’s hybrid systems offers valuable insights into the future of motorsport and automotive technology. Practical tips for appreciating this technology include focusing on telemetry data during races to observe energy deployment strategies, and following team updates on how they optimize their power units. Additionally, comparing lap times and fuel efficiency between hybrid and non-hybrid eras can highlight the system’s impact. F1’s hybrid power units are not just about speed—they’re a testament to the sport’s ability to innovate while addressing global challenges like energy efficiency and environmental responsibility.
Exploring Tesla's Electric Car Range: How Far Can It Go?
You may want to see also
Explore related products
Energy Recovery Systems: MGU-K and MGU-H recover kinetic and heat energy for electric power
Modern Formula 1 cars are not fully electric, but they do incorporate advanced electric motor systems as part of their hybrid power units. At the heart of this innovation are the Motor Generator Units: the MGU-K and MGU-H, which form a sophisticated Energy Recovery System (ERS). These components are designed to capture and reuse energy that would otherwise be lost, significantly enhancing the car’s efficiency and performance. The MGU-K recovers kinetic energy during braking, while the MGU-H harvests heat energy from the turbocharger. Together, they convert this energy into electric power, which is either used immediately or stored in a battery for later deployment.
Consider the MGU-K, which operates similarly to regenerative braking systems in electric road cars. When the driver applies the brakes, the MGU-K acts as a generator, converting the car’s kinetic energy into electrical energy. This energy is then stored in the Energy Store (ES), a high-performance battery capable of holding up to 4 megajoules of energy per lap. The MGU-K can also function as a motor, delivering up to 120 kW (160 hp) of additional power to the rear wheels, providing a crucial boost during acceleration. This dual functionality ensures that energy is not only recovered but also strategically deployed to maximize speed and efficiency.
The MGU-H, on the other hand, addresses a different form of energy loss: heat from the turbocharger. Turbochargers in F1 engines spin at incredible speeds, generating significant heat that is often wasted. The MGU-H captures this thermal energy, converting it into electrical power. This system is particularly critical because it helps maintain the turbocharger’s speed during gear changes or when the driver lifts off the throttle, eliminating turbo lag and ensuring consistent power delivery. By integrating the MGU-H, F1 teams can achieve higher engine efficiency and more responsive performance.
Implementing these systems requires precision engineering and strategic decision-making. Teams must balance the energy recovery and deployment to optimize lap times while adhering to strict FIA regulations, which limit the total energy available per lap. For instance, the MGU-K’s power output is capped, and the Energy Store’s capacity is tightly controlled. Engineers must also ensure the systems are lightweight and compact, as every gram and millimeter counts in F1 car design. Practical tips for teams include monitoring energy deployment in real-time and adjusting strategies based on track conditions, such as prioritizing energy recovery on long straights or deploying stored energy in tight corners.
In conclusion, the MGU-K and MGU-H are not just components of F1’s hybrid power units; they are transformative technologies that redefine how energy is managed in racing. By recovering kinetic and heat energy, these systems reduce waste, enhance performance, and push the boundaries of what’s possible in motorsport. Their integration showcases the intersection of sustainability and innovation, proving that even in the high-octane world of F1, efficiency is a winning strategy.
Tesla's Electric Vehicle: Patented or Not?
You may want to see also
Explore related products
Battery Technology: High-performance batteries store energy for short bursts of electric power
Formula 1 cars have integrated electric motors since the introduction of the hybrid era in 2014, relying on high-performance batteries to store energy for short bursts of electric power. These batteries, known as the Energy Store (ES) in F1 terminology, are a critical component of the car’s hybrid power unit. Designed to operate under extreme conditions, they must deliver rapid energy discharge during acceleration and energy recovery during braking, all while maintaining minimal weight and maximum safety. The ES is a lithium-ion battery, optimized for high power density rather than long-term energy storage, reflecting the sport’s demand for instantaneous performance.
The battery’s role in F1 is twofold: harvesting energy through regenerative braking and deploying it to boost power output from the electric motor. During braking, the Motor Generator Unit-Kinetic (MGU-K) converts kinetic energy into electrical energy, which is stored in the battery. This energy is then released in controlled bursts, providing up to 160 horsepower for approximately 33 seconds per lap. The efficiency of this system is paramount, as even small improvements in energy recovery and deployment can translate to significant lap time gains. Teams invest heavily in battery management software to optimize this process, ensuring the energy is used precisely when needed.
One of the most challenging aspects of F1 battery technology is balancing performance with safety and reliability. The batteries operate at high voltages (around 800-1000V) and temperatures, requiring advanced cooling systems to prevent thermal runaway. Additionally, the ES must withstand the vibrations and shocks of racing while adhering to strict FIA regulations on weight (minimum 20kg) and dimensions. Manufacturers like Mercedes, Ferrari, and Renault continually push the boundaries of materials science, using proprietary cell chemistries and cooling techniques to maximize efficiency and durability.
For enthusiasts and engineers alike, understanding F1 battery technology offers insights into the future of electric and hybrid vehicles. The sport serves as a high-speed testbed for innovations that could eventually trickle down to consumer cars. For instance, the rapid charging and discharging cycles in F1 batteries mirror the demands of electric vehicles in urban environments, where quick bursts of power and efficient energy recovery are essential. By studying F1’s approach to battery management, one can glean practical tips for optimizing EV performance, such as minimizing energy waste during braking and maximizing power delivery during acceleration.
In conclusion, the high-performance batteries in F1 cars are a marvel of engineering, designed to store and deploy energy with precision and speed. Their development not only enhances the sport’s competitive edge but also drives advancements in battery technology that benefit the broader automotive industry. As F1 continues to evolve, its focus on efficiency and sustainability will likely inspire further breakthroughs, making these batteries a cornerstone of both racing and everyday transportation.
The Green Revolution: Overcoming Electric Vehicle Obstacles
You may want to see also
Explore related products
Electric-Only Modes: F1 cars can run briefly on electric power alone in specific scenarios
F1 cars are not purely electric vehicles, but they do incorporate hybrid systems that allow them to operate in electric-only modes under specific conditions. The MGU-K (Motor Generator Unit-Kinetic), part of the Energy Recovery System (ERS), enables this functionality. During braking, the MGU-K recovers kinetic energy and stores it in a battery. This stored energy can then be deployed to power the car electrically for short bursts, typically up to 33 seconds per lap, delivering an additional 160 horsepower. This feature is strategically used in scenarios where internal combustion engines are less efficient, such as during low-speed corners or when exiting the pit lane.
To maximize the effectiveness of electric-only modes, drivers and teams must carefully manage energy deployment. The FIA limits the total energy available per lap to 4 megajoules, requiring precise calculation and timing. For instance, using electric power on straights can conserve fuel, but it may compromise top speed due to the electric motor’s lower power output compared to the combustion engine. Teams often program the car’s software to automatically switch to electric mode in pre-determined zones, ensuring optimal energy usage without driver intervention. This balance between performance and efficiency is a critical aspect of modern F1 strategy.
One practical example of electric-only mode usage is during the formation lap, where cars operate silently on battery power to save fuel and comply with pit lane speed limits. This not only conserves resources but also reduces wear on the internal combustion engine. Additionally, in wet conditions, electric power can provide smoother acceleration, reducing the risk of wheelspin. However, drivers must be cautious not to deplete the battery too early, as the MGU-K’s energy is also crucial for overtaking maneuvers later in the race. This tactical decision-making highlights the complexity of managing hybrid systems in F1.
Comparatively, electric-only modes in F1 differ significantly from those in road cars. While electric vehicles (EVs) rely solely on battery power for extended periods, F1 cars use electric modes as a supplementary tool within a hybrid framework. The limited duration and strategic deployment in F1 reflect the sport’s focus on efficiency and performance, whereas EVs prioritize range and sustainability. This distinction underscores how F1’s hybrid technology serves as a testing ground for innovations that could eventually benefit consumer vehicles, such as improved energy recovery systems and battery management.
In conclusion, electric-only modes in F1 cars are a testament to the sport’s embrace of hybrid technology, offering strategic advantages in specific scenarios. By leveraging the MGU-K and careful energy management, teams can optimize performance while adhering to regulatory constraints. This feature not only enhances racing dynamics but also contributes to the broader development of sustainable automotive technologies. As F1 continues to evolve, the role of electric power will likely expand, further bridging the gap between motorsport and everyday transportation.
Electrical Vehicles: Understanding Their Basics and Benefits
You may want to see also
Explore related products
Future Trends: Increasing electrification in F1 regulations to reduce carbon footprint
Formula 1, a pinnacle of motorsport innovation, has historically been synonymous with roaring internal combustion engines. However, the sport is undergoing a quiet revolution, driven by the need to reduce its environmental impact. The question of whether F1 cars use electric motors is no longer a simple 'yes' or 'no'. Since 2014, hybrid power units have been mandatory, combining a 1.6-liter turbocharged V6 internal combustion engine with an Energy Store (battery) and two electric motors: the Motor Generator Unit-Kinetic (MGU-K) and the Motor Generator Unit-Heat (MGU-H). This hybrid system recovers energy that would otherwise be wasted during braking and from the turbocharger, significantly improving efficiency.
The current regulations already showcase a substantial step towards electrification, but future trends indicate an even more pronounced shift. The FIA, Formula 1's governing body, has announced plans to increase the power output of the electric motors relative to the internal combustion engine. By 2026, the target is to achieve a 50-50 power split between the electric and combustion components, up from the current 30-70 split. This change will not only reduce the carbon footprint of the sport but also push the boundaries of electric motor technology, potentially influencing the development of road cars.
One of the key challenges in this transition is managing the increased energy demands. The 2026 regulations will introduce a more powerful battery, capable of storing and delivering higher levels of energy. This will require advancements in battery technology, focusing on energy density, safety, and rapid charging capabilities. Teams will need to optimize their energy management strategies to maximize performance while adhering to strict energy recovery and deployment limits. For instance, the MGU-K will be allowed to recover and deploy more energy per lap, from 2 megajoules to 3 megajoules, necessitating more sophisticated control systems.
Another critical aspect of this electrification trend is the potential for cost reduction and sustainability. By standardizing certain components of the power unit, such as the battery and control electronics, the FIA aims to lower development costs and encourage new entrants. This move aligns with the broader automotive industry's shift towards electrification, where economies of scale and shared technology can drive down prices and accelerate innovation. Additionally, the use of sustainable fuels in the internal combustion engine, another 2026 regulation, will further reduce the sport's carbon footprint, making F1 a testbed for green technologies.
In conclusion, the increasing electrification in F1 regulations is not just about reducing the sport's environmental impact but also about setting new benchmarks for automotive technology. As F1 continues to evolve, it will play a pivotal role in demonstrating the potential of hybrid and electric powertrains, influencing both the racing world and the broader automotive industry. For fans and engineers alike, this shift promises a new era of innovation, where the roar of the engine is complemented by the silent power of electric motors, paving the way for a more sustainable future.
Are Electric Cars Worth the Investment? Pros, Cons, and Real Value
You may want to see also
Frequently asked questions
Yes, modern F1 cars use hybrid power units that combine a 1.6-liter turbocharged V6 internal combustion engine with an electric motor (MGU-K) and energy recovery systems.
The electric motor (MGU-K) in an F1 car provides additional power to the drivetrain, boosting acceleration and overall performance. It also recovers energy during braking.
The MGU-K can deliver up to 160 horsepower (120 kW) for short bursts, supplementing the power from the internal combustion engine.
No, F1 cars are not fully electric. They use a hybrid system where the electric motor works in conjunction with a gasoline engine, not as the sole power source.
Energy is stored in a battery (ES) and is recovered through braking (MGU-K) and exhaust heat (MGU-H). This stored energy is then used to power the electric motor during acceleration.
