Molly Ayala

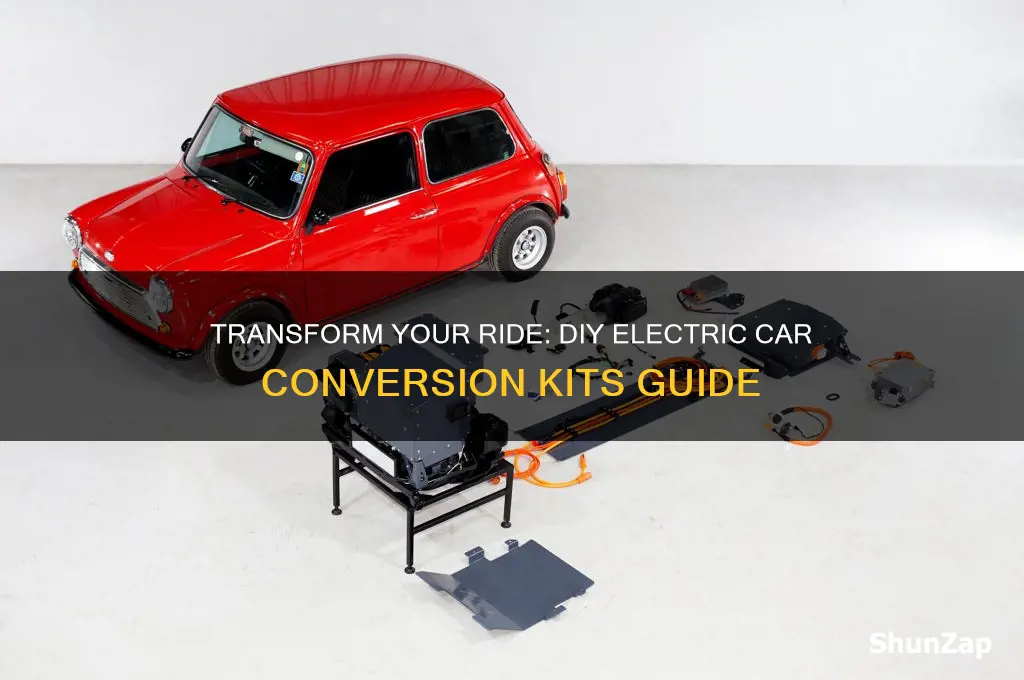

Do-it-yourself (DIY) electric car conversion kits have emerged as a cost-effective and eco-friendly solution for transforming conventional gasoline-powered vehicles into electric ones. These kits provide enthusiasts and environmentally conscious individuals with the necessary components, such as electric motors, batteries, controllers, and wiring, along with detailed instructions to undertake the conversion process independently. By repurposing existing vehicles, DIY electric car conversions not only reduce the carbon footprint associated with manufacturing new cars but also offer a sustainable alternative to traditional transportation. This growing trend empowers individuals to take control of their vehicle’s energy source, contributing to the broader adoption of electric mobility while saving money and promoting innovation in the automotive industry.
| Characteristics | Values |
|---|---|
| Price Range | $5,000 - $20,000 (varies by kit complexity and components) |
| Motor Power | 20 kW - 100 kW (depending on kit) |
| Battery Capacity | 10 kWh - 50 kWh (lithium-ion or lead-acid options) |
| Range per Charge | 50 miles - 200 miles (depends on battery capacity and vehicle efficiency) |
| Charging Time | 4 hours - 12 hours (varies by charger and battery type) |
| Top Speed | 60 mph - 100 mph (depending on motor and vehicle weight) |
| Compatibility | Fits most manual transmission vehicles (some kits for automatics) |
| Included Components | Motor, controller, battery pack, adapter plate, wiring harness, charger |
| Installation Time | 50 hours - 200 hours (DIY experience and kit complexity dependent) |
| Weight Added | 500 lbs - 1,500 lbs (battery and motor weight) |
| Warranty | 1 year - 3 years (varies by manufacturer) |
| Popular Brands | EV West, Netgain Motors, Manzanita Micro, EMW Electric Vehicles |
| Regulatory Compliance | Meets DOT and local EV conversion regulations (check local laws) |
| Support | Online forums, manuals, and technical support from manufacturers |
| Environmental Impact | Reduces carbon footprint by converting ICE vehicles to electric |
| Customization Options | Upgradeable motors, batteries, and controllers for performance tuning |
Explore related products
$12.95
What You'll Learn
- Battery Pack Options: Choose between lithium-ion, lead-acid, or custom battery solutions for your conversion
- Motor & Controller Kits: Select AC or DC motors with matching controllers for optimal performance
- Adapter Plate Designs: Ensure compatibility between your vehicle’s transmission and the electric motor
- Charging System Setup: Integrate onboard or external chargers for efficient battery recharging
- Wiring & Safety Gear: Use high-quality wiring, fuses, and safety disconnects for secure installations
Battery Pack Options: Choose between lithium-ion, lead-acid, or custom battery solutions for your conversion
When embarking on a DIY electric car conversion, selecting the right battery pack is a critical decision that will impact performance, range, and overall cost. The three primary options for battery packs are lithium-ion, lead-acid, and custom battery solutions, each with its own set of advantages and drawbacks. Understanding these options will help you make an informed choice tailored to your specific needs and budget.
Lithium-ion Battery Packs are the most popular choice for electric vehicle (EV) conversions due to their high energy density, lightweight design, and long cycle life. These batteries provide a superior range compared to lead-acid batteries, often delivering 100-150 miles per charge, depending on the vehicle and driving conditions. Lithium-ion batteries also have a higher charge/discharge efficiency, meaning less energy is wasted during operation. However, they come with a higher upfront cost, which can be a significant investment. Additionally, they require a sophisticated Battery Management System (BMS) to monitor and balance individual cells, ensuring safety and longevity. For DIY enthusiasts, lithium-ion batteries are available in various forms, including pre-assembled modules from manufacturers like Tesla or custom configurations using 18650 or prismatic cells.
Lead-acid Battery Packs are a more budget-friendly option and have been used in EV conversions for decades. They are widely available, easy to work with, and do not require a complex BMS, making them a simpler choice for beginners. However, lead-acid batteries have a lower energy density, which translates to a shorter range—typically 30-50 miles per charge. They are also heavier, which can affect vehicle performance and handling. Furthermore, lead-acid batteries have a shorter lifespan and require regular maintenance, such as checking water levels and cleaning terminals. Despite these limitations, they remain a viable option for those on a tight budget or for projects where range is not a primary concern.
Custom Battery Solutions offer the most flexibility but require a higher level of expertise and creativity. This approach involves sourcing individual cells or modules and designing a battery pack tailored to your vehicle’s specific requirements. Custom solutions can utilize lithium-ion, lithium iron phosphate (LiFePO4), or even experimental battery chemistries. This option allows for optimization of space, weight, and performance but demands careful planning, including thermal management, wiring, and safety considerations. Custom battery packs can be cost-effective if you have access to affordable cells, but they also carry a higher risk of failure if not properly engineered.
In summary, lithium-ion batteries are ideal for those seeking high performance and range, despite their higher cost. Lead-acid batteries are a cost-effective entry point for DIY conversions but come with trade-offs in range and maintenance. Custom battery solutions provide maximum flexibility but require advanced technical skills and careful execution. When choosing a battery pack, consider your budget, desired range, and technical expertise to ensure a successful and satisfying electric car conversion.
Are F1 Cars Going Electric? Exploring the Future of Racing
You may want to see also
Explore related products
Motor & Controller Kits: Select AC or DC motors with matching controllers for optimal performance
When embarking on a DIY electric car conversion, selecting the right motor and controller kit is crucial for achieving optimal performance, efficiency, and reliability. The first decision you’ll face is choosing between AC (Alternating Current) and DC (Direct Current) motors. AC motors are generally more efficient, offer higher torque at lower RPMs, and are better suited for high-performance applications. They are commonly used in modern electric vehicles due to their ability to handle regenerative braking and deliver smoother power delivery. However, AC systems require more complex controllers and may be more expensive. DC motors, on the other hand, are simpler, more affordable, and easier to install, making them a popular choice for DIY conversions. They are less efficient than AC motors but are still capable of delivering reliable performance for everyday driving.
Once you’ve decided on the motor type, the next step is to select a matching controller. The controller acts as the brain of the electric powertrain, regulating the power flow from the battery to the motor. For AC motors, you’ll need an AC motor controller, which typically includes features like regenerative braking and advanced programming options. Ensure the controller is compatible with your motor’s voltage and current ratings, as mismatches can lead to inefficiency or damage. For DC motors, DC controllers are simpler and more straightforward, but they still require careful selection to match the motor’s specifications. Look for controllers with features like adjustable current limits, thermal protection, and compatibility with your battery system.
Power and torque requirements are another critical factor when choosing a motor and controller kit. Calculate the power needed based on your vehicle’s weight, desired top speed, and driving conditions. AC motors often provide higher torque at lower speeds, making them ideal for heavy vehicles or hilly terrains. DC motors, while less torquey, can still be sufficient for lighter vehicles or flat driving environments. Ensure the controller can handle the peak current demands of the motor during acceleration or climbing, as this will directly impact performance and safety.
Cooling and durability should not be overlooked. Both motors and controllers generate heat under operation, and inadequate cooling can lead to overheating and reduced lifespan. AC motors and controllers often require more robust cooling systems due to their higher power outputs. DC systems, while less demanding, still benefit from proper ventilation or liquid cooling, especially in high-power applications. Choose kits that include or are compatible with efficient cooling solutions to ensure long-term reliability.
Finally, consider the ease of installation and integration with your vehicle. Some motor and controller kits come with mounting brackets, wiring harnesses, and detailed instructions, making the installation process smoother for DIY enthusiasts. Ensure the kit is compatible with your vehicle’s drivetrain, whether it’s front-wheel, rear-wheel, or all-wheel drive. Additionally, check for compatibility with your battery system and other components like chargers and BMS (Battery Management Systems). Investing time in research and selecting a well-matched motor and controller kit will pay off in the form of a seamless, efficient, and enjoyable electric vehicle conversion.
Charging Time for Toyota Electric Cars: What to Expect
You may want to see also
Explore related products
Adapter Plate Designs: Ensure compatibility between your vehicle’s transmission and the electric motor
When embarking on a DIY electric car conversion, one of the most critical components to address is the adapter plate design, which ensures seamless compatibility between your vehicle’s transmission and the electric motor. The adapter plate acts as the bridge between these two systems, allowing them to work together efficiently. Since electric motors and internal combustion engine (ICE) transmissions often have different mounting patterns, bolt holes, and shaft sizes, a custom or pre-designed adapter plate is essential. The first step in designing or selecting an adapter plate is to measure the bolt patterns of both the transmission and the electric motor. Precision is key, as even a slight misalignment can lead to vibrations, inefficiency, or mechanical failure.
Material selection for the adapter plate is another crucial consideration. Common materials include aluminum, steel, or a combination of both. Aluminum is lightweight and easier to machine, making it a popular choice for DIY enthusiasts. However, steel offers greater strength and durability, which may be necessary for high-torque applications. The thickness of the plate should also be determined based on the torque output of the electric motor and the structural integrity required to handle the load. Reinforcements, such as ribs or gussets, can be added to the design to enhance rigidity and prevent warping under stress.
The adapter plate must also address the alignment of the motor and transmission shafts. This often involves incorporating a pilot hole or bore to ensure concentricity. Additionally, some designs may require a spline or keyway system to transmit torque effectively. For vehicles with automatic transmissions, the adapter plate may need to integrate a torque converter or flexplate, while manual transmissions might require a custom clutch assembly. It’s important to consult the specifications of both the motor and transmission to ensure all components are compatible.
Another aspect of adapter plate design is the inclusion of mounting points for auxiliary components, such as motor controllers, cooling systems, or sensors. These features should be strategically placed to avoid interference with the drivetrain while maintaining accessibility for maintenance. Some DIY kits come with pre-drilled holes or modular designs that allow for easy customization, but if you’re designing your own plate, consider using CAD software to model the assembly and identify potential issues before fabrication.
Finally, testing and refinement are essential steps in the adapter plate design process. Once the plate is fabricated and installed, run the vehicle through a series of tests to check for vibrations, misalignment, or overheating. Use tools like dial indicators to verify shaft alignment and ensure the motor and transmission operate smoothly under load. If issues arise, adjustments may be necessary, such as adding shims, modifying bolt holes, or redesigning the plate entirely. A well-designed adapter plate not only ensures compatibility but also maximizes the efficiency and longevity of your electric vehicle conversion.
Electric Cars: Are They Easier to Maintain Than Traditional Vehicles?
You may want to see also
Explore related products
Charging System Setup: Integrate onboard or external chargers for efficient battery recharging
When setting up the charging system for your DIY electric car conversion, the first decision is whether to integrate an onboard charger or rely on an external charger. Onboard chargers are installed directly into the vehicle, allowing you to plug into a standard electrical outlet for recharging. This option is convenient as it eliminates the need for additional equipment, but it requires careful integration with the vehicle’s electrical system. Ensure the onboard charger is compatible with your battery pack’s voltage and chemistry, and that it has sufficient cooling mechanisms to prevent overheating during prolonged use. Popular onboard chargers for DIY conversions include models from manufacturers like Elcon or Brusa, which offer programmable settings for efficient charging.
If you opt for an external charger, you’ll need a standalone unit that connects to the vehicle’s charging port. External chargers are often more powerful and can reduce charging times significantly, especially when paired with Level 2 (240V) or DC fast-charging stations. However, they require a dedicated charging location and may not be as portable. When selecting an external charger, consider its output voltage, current, and compatibility with your battery management system (BMS). Brands like Delta-Q and Zivan offer reliable external chargers suitable for DIY electric vehicle projects. Always ensure the charger is UL or CE certified for safety and compliance.
Regardless of the charger type, the charging port is a critical component of the setup. Choose a port that supports the charging standard you intend to use, such as J1772 for Level 2 charging or CCS for DC fast charging. The port should be weatherproof and securely mounted to the vehicle’s exterior. Wiring the charging port to the battery pack requires thick, high-quality cables to handle the high currents involved in charging. Use a contactors or relays to safely connect and disconnect the charger from the battery pack, and ensure the circuit includes a pilot signal for communication between the charger and the vehicle.
Efficiency in recharging also depends on the battery management system (BMS). The BMS monitors the battery’s state of charge, temperature, and voltage, ensuring safe and optimal charging. Integrate the BMS with the charger to enable features like balanced charging, which ensures all cells in the battery pack charge evenly. Some advanced BMS units also support pre-charging, which gradually brings the battery pack up to the charger’s voltage to prevent electrical stress. Proper BMS integration is essential for maximizing battery lifespan and charging efficiency.
Finally, consider adding safety features to your charging system. Install a ground fault circuit interrupter (GFCI) to protect against electrical shocks, especially if using an onboard charger. A thermal cutoff can prevent overheating during charging, while a ventilation system ensures any gases released during charging are safely expelled. Additionally, use fuses or circuit breakers to protect the wiring and components from overcurrent. By prioritizing safety and efficiency, your charging system will not only recharge your battery effectively but also ensure the longevity and reliability of your DIY electric car conversion.
Electric Vehicle Revolution: Which State Leads the Charge?
You may want to see also
Explore related products
Wiring & Safety Gear: Use high-quality wiring, fuses, and safety disconnects for secure installations
When embarking on a DIY electric car conversion using a kit, the wiring and safety gear are critical components that cannot be overlooked. High-quality wiring is essential to ensure efficient power transmission and minimize energy loss. Opt for automotive-grade wires that are specifically designed to handle the high currents and voltages associated with electric vehicle systems. These wires are typically more durable, heat-resistant, and flexible, making them ideal for the demanding environment of a vehicle. Using subpar wiring can lead to overheating, short circuits, or even fires, so investing in the right materials is a non-negotiable aspect of a safe and reliable conversion.
Fuses and circuit protection devices are another cornerstone of a secure installation. Fuses act as a safeguard, interrupting the circuit if an overload or short circuit occurs, thereby preventing damage to the electrical system and reducing the risk of fire. When selecting fuses, ensure they are appropriately rated for the specific circuits they protect. High-current components like the motor controller or battery pack will require heavier-duty fuses compared to low-current circuits such as lighting or accessories. Always follow the manufacturer’s recommendations for fuse ratings and placement to maintain optimal safety.
Safety disconnects are a vital feature in any electric vehicle conversion, providing a quick and reliable way to isolate the high-voltage system during maintenance or emergencies. These disconnects should be easily accessible and clearly labeled, allowing anyone to shut off power swiftly if needed. Look for disconnects that meet industry standards and are rated for the voltage and current of your system. Proper installation of these devices ensures that you can work on your vehicle safely and that first responders can disable the electrical system in case of an accident.
The installation process itself demands meticulous attention to detail. Secure all wiring with appropriate clips, ties, or conduits to prevent chafing or interference with moving parts. Ensure that wires are routed away from hot surfaces, sharp edges, and areas prone to vibration. Proper labeling of wires and connectors is also crucial, as it simplifies troubleshooting and future maintenance. A well-organized wiring harness not only looks professional but also reduces the likelihood of errors that could compromise safety.
Lastly, integrating safety gear into your conversion kit is as important as the wiring itself. This includes items like insulation for high-voltage components, emergency shut-off switches, and warning labels. Insulation helps prevent accidental contact with live wires, while emergency switches provide an additional layer of protection. Always test the entire system thoroughly before driving the vehicle, checking for proper fuse functionality, secure connections, and the effectiveness of safety disconnects. By prioritizing high-quality wiring and safety gear, you ensure that your DIY electric car conversion is not only functional but also safe for everyday use.
Ford's Electric Vehicle Revolution: Profitable or Not?
You may want to see also
Frequently asked questions
A DIY electric car conversion kit is a package containing all the necessary components (motor, controller, batteries, adapters, etc.) to convert a gasoline-powered vehicle into an electric vehicle (EV). It’s designed for individuals with mechanical skills to perform the conversion themselves.
Yes, basic to intermediate mechanical and electrical skills are required. Familiarity with automotive systems, wiring, and safety protocols is essential. If you’re unsure, consulting a professional or working with an experienced DIYer is recommended.
Costs vary widely depending on the kit’s quality, range, and components, typically ranging from $5,000 to $20,000. Additional expenses may include tools, batteries, and unforeseen modifications.
The range depends on the battery capacity and efficiency of the conversion. Most kits offer between 50 to 150 miles per charge, but high-end setups can achieve more.
Legality varies by location. In many regions, converted EVs must pass safety inspections and meet emissions standards. Check local regulations and obtain necessary permits before starting the conversion.
