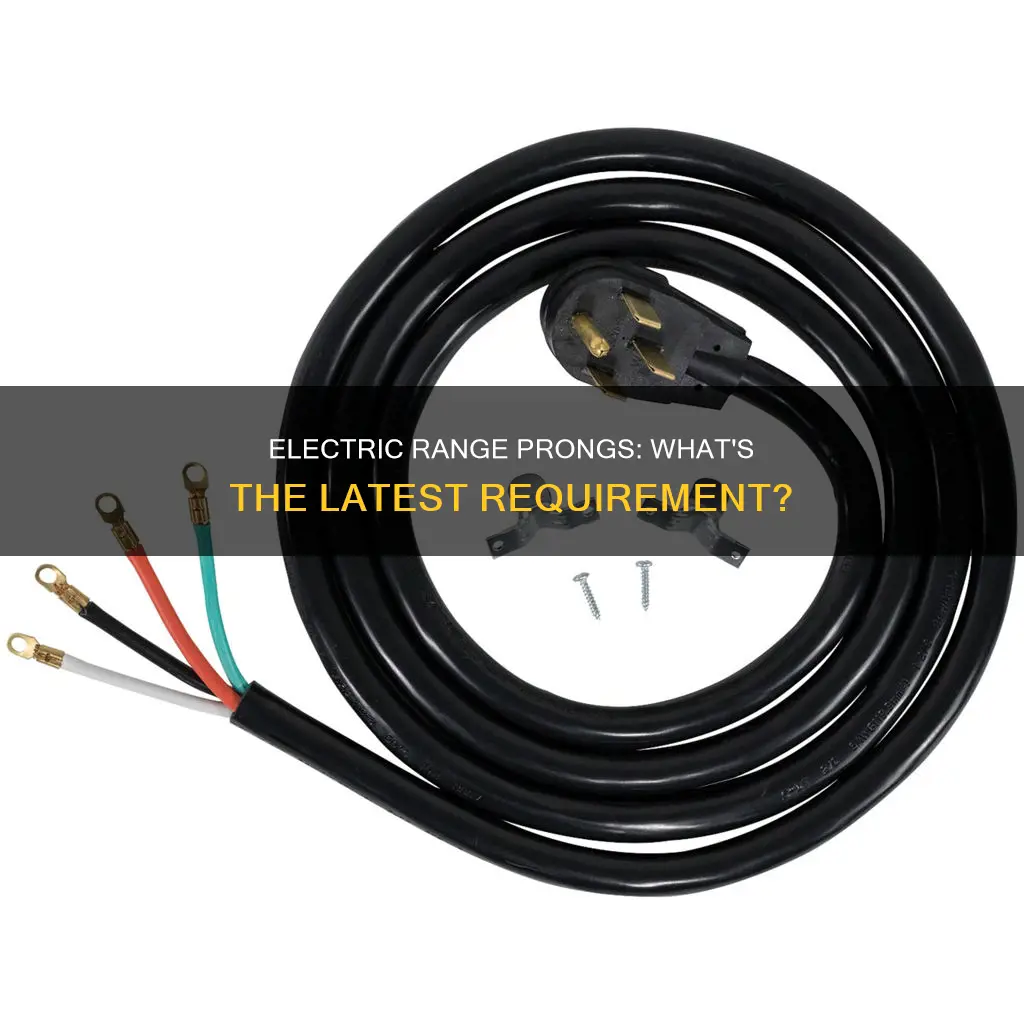

New electric ranges are sold without cords, allowing you to install the cord that fits the outlet in your wall. In 1996, the National Fire Protection Association updated the National Electrical Code (NEC) book to change wiring requirements for electric ranges and clothes dryers. New installations are now required to opt for 4-prong cord configurations, while older homes built before 1996 may still use 3-prong cord configurations.
| Characteristics | Values |
|---|---|
| Requirement of four-prong cords | In 1996, the National Fire Protection Association updated the National Electrical Code (NEC) book to change wiring requirements for electric ranges and clothes dryers. New installations are required to opt for four-prong cord configurations. |
| Safety | Four-prong cords have a separate ground wire, minimising the risk of electric shock. |
| Installation | It is recommended to hire an electrician to ensure the safe installation of a four-prong cord. |
| Compatibility | Four-prong cords are compatible with both new and old homes. |
| Adaptability | Adapters are available for sale online to convert between three-prong and four-prong configurations. |
Explore related products
What You'll Learn
The National Electrical Code (NEC)
The first four chapters cover definitions and rules for installations (voltages, connections, markings, etc.), circuits and circuit protection, methods and materials for wiring (wiring devices, conductors, cables, etc.), and general-purpose equipment (cords, receptacles, switches, heaters, etc.). The next three chapters deal with special occupancies (high-risk to multiple persons), special equipment (signs, machinery, etc.), and special conditions (emergency systems, alarms, etc.). Chapter 8 is specific to additional requirements for communications systems (telephone, radio/TV, etc.), and Chapter 9 comprises tables regarding conductor, cable, and conduit properties, among other things.
The NEC requirements vary depending on the room and the type of appliances used. For instance, in kitchens, the NEC generally allows a cooktop and wall oven to be powered by the same circuit, provided the combined electrical load does not exceed the safe capacity of that circuit. Electric ranges, in particular, require 240-volt, 50-amp circuits, and the NEC has required 4-conductor circuits for them since 1996. This means the receptacle has four slots to accept a 4-prong cord plug. However, the 4-conductor rule applies only when installing a new receptacle, as in new construction or during major kitchen remodelling. The NEC still permits the use of existing 3-slot receptacles that work with old-style 3-prong cords.
Electric Convertors: Do You Need Them in the Dominican Republic?
You may want to see also
Explore related products
Electric ranges and clothes dryers
In 1996, the National Fire Protection Association updated the NEC to change the wiring requirements for electric ranges and dryers. Newer installations are now required to use four-prong cords, which have two hot wires, a neutral wire, and a separate ground wire. This change was made to improve safety by minimising the risk of electric shock. The ground wire provides a safe path for electrical current to escape, reducing the risk of electrocution.
Older homes built before 1996 may still have three-prong outlets, which were previously considered code-compliant. These outlets have two hot wires and one neutral wire, lacking a dedicated ground connection. While it is permissible to continue using three-prong configurations in pre-1996 homes, it is important to note that three-prong cords can lead to electrical shorts and circuit breaker failures, increasing the risk of shock.
If you have a newer appliance with a four-prong cord and need to connect it to an older three-prong outlet, you can replace the cord with a three-prong one. However, this should be done with caution, and it is recommended to consult a licensed electrician to ensure safe installation. On the other hand, if you have an older appliance with a three-prong cord and want to use it with a newer four-prong outlet, you can replace the outlet with a three-prong one or install a four-prong cord on the appliance.
When installing or replacing cords and outlets, it is crucial to ensure that the power is turned off and unplugged. Working with electricity can be dangerous, and it is always recommended to seek professional help if you are unsure or lack experience.
Tire Rotation for Your Nissan Leaf: When and Why?
You may want to see also
Explore related products
3-prong vs 4-prong cords
If you live in a house built before 1996, your kitchen range outlet may require a three-prong cord. This is because, in 1996, the National Electric Code (NEC) updated its requirements for 240-volt appliances, changing them from three-wire cords and receptacles to four-wire cords and receptacles. This code only applies to homes built after 1996.
The three-prong cord was effective at powering appliances but had one significant flaw: the ground and neutral wires were grouped together, creating the potential for electrical shock. The three-wire cord consisted of two hot wires and a neutral wire. The two hot wires provided both phases, 180 degrees out of phase from one another, to handle the big electrical load of the range or dryer. The neutral wire acted as a return path for any 120-volt loads incorporated into the 240-volt range or dryer, such as the built-in light or timer.
The four-prong cord features two hot wires, a neutral wire, and a ground wire, eliminating the possibility of a ground current travelling to the machine. The fourth wire, or equipment grounding conductor, serves as the conductor attached to the metal frame and housing of the range. Its purpose is to return any fault current on the metal in the case of a short circuit.
If you have a three-prong outlet, you can change the cord to match the existing outlet. Similarly, if you have a three-prong cord, you can change it to a four-prong cord to match a newer outlet.
Electric Garbage Disposal: Easy Steps for Replacement and Installation
You may want to see also
Explore related products
Installation and safety
If you have a newer home, it is likely that your electric range is installed with a four-prong cord. However, if your home was built before 1996, your kitchen range outlet may require a three-prong cord. The National Electric Code (NEC) updated its requirements for 240-volt appliances in 1996, changing them from three-wire cords and receptacles to four-wire cords and receptacles. This new code only applies to homes built after 1996, but it is important to ensure that your electric range is installed correctly and safely.
Installation
If you have purchased a new electric range with a four-prong cord and your home only has a three-prong receptacle, you will need to safely install a new receptacle. It is recommended to consult an electrician to guide you through the process and make the necessary adjustments. They will be able to determine if there is a dedicated circuit for the range in your electrical panel and if there is access to the wiring behind the range location to identify a ground wire.
Safety
Upgrading to a four-prong range cord can improve the safety of your electric range. The fourth wire in the four-wire cord configuration is an equipment grounding conductor, which provides a path for electrical current to escape, minimising the risk of electrocution and fire. The three-wire connection lacks this safety ground, which can be dangerous if the oven malfunctions and the neutral wire breaks, potentially resulting in a lethal shock.
To ensure safety during the installation process, it is crucial to switch off the circuit for the appliance's outlet in the breaker panel. This added safety measure completely disconnects power and eliminates the risk of electrical hazards while working. It is also important to note that attempting to replace a range cord yourself can be dangerous due to the high risk of shock. Therefore, it is recommended to hire a professional to make any electrical cord, switch, or outlet adjustments in your home.
Electric Fences: Effective Dog Deterrent or Waste of Energy?
You may want to see also
Explore related products
Electricians and wiring changes
Electricians and trained electrical technicians can help with any wiring changes required to accommodate a new electric range. In the US, the National Fire Protection Association updated the National Electrical Code (NEC) in 1996, requiring new installations to opt for 4-prong cord configurations. This means that if your home was built after 1996, you will need a 4-prong cord for your new electric range.
If your home was built before 1996, it may still require a 3-prong cord, which is considered code-compliant. However, if you have a new electric range with a 4-prong cord, you can hire an electrician to install a new 4-prong receptacle to match the cord. This process typically takes about an hour and can be dangerous if you don't have experience with electrical work.
Alternatively, if you have an older home with a 3-prong outlet, you can change the cord on your new electric range to match the existing outlet. This involves purchasing a 3-prong cord and rewiring it to the back of the range. It is important to note that some local codes may require an electrician to perform this task.
In some cases, it may be possible to use an adapter plug to connect a new electric range with a 4-prong cord to an older 3-prong outlet. However, this is not always recommended, as it can be unsafe.
When installing or changing the cord on an electric range, it is essential to follow the correct procedure to ensure safe operation. This includes connecting the correct wires to the corresponding terminals and tightening all screws firmly. It is also important to test the range functions after installation to confirm proper operation.
Wiremold: Electrical Shield or Not?
You may want to see also
Frequently asked questions
Newer electric ranges have four-prong cords that fit into four-prong outlets. The National Fire Protection Association updated the National Electrical Code (NEC) book in 1996, requiring new installations to opt for four-prong cord configurations.
A four-prong cord has two hot wires, a neutral wire, and a separate ground wire. A three-prong cord has two hot wires and one neutral wire, lacking a dedicated ground wire.
No, you cannot plug a four-prong cord into a three-prong outlet. If you have a three-prong outlet, you can change the cord to match the existing outlet.
No, you cannot plug a three-prong cord into a four-prong outlet. If you have a newer home with a four-prong outlet, you can change the cord on your older appliance to a four-prong cord to match the new outlet.
