Finding the fuse for an electric car window can be a straightforward task if you know where to look. Most vehicles have a fuse box located either under the dashboard, in the engine compartment, or in the trunk, often marked with a diagram indicating which fuse corresponds to the power windows. The owner’s manual is an invaluable resource, as it typically provides a detailed fuse map and instructions for accessing the fuse box. Once you’ve located the correct fuse, you can check it for signs of damage, such as a broken filament, and replace it if necessary. This simple troubleshooting step can often resolve issues with non-functioning electric windows without the need for professional assistance.
| Characteristics | Values |
|---|---|
| Fuse Location | Typically found in the fuse box, which can be located under the dashboard, in the engine compartment, or in the trunk, depending on the car model. |
| Fuse Box Labeling | Fuse boxes are usually labeled with a diagram indicating which fuse corresponds to the power windows. Refer to the car's manual for accurate identification. |
| Fuse Type | Blade-type fuses are common in modern vehicles. The specific amperage (e.g., 20A, 30A) varies by car model. |
| Symptoms of a Blown Fuse | One or more power windows not functioning, window operation intermittent, or no response when using the window switch. |
| Tools Required | Fuse puller (often included in the fuse box cover) or a pair of needle-nose pliers. |
| Replacement Process | 1. Locate the fuse box and identify the power window fuse. 2. Remove the fuse using a fuse puller or pliers. 3. Inspect the fuse for a broken or melted wire inside. 4. Replace with a fuse of the same amperage if blown. |
| Precautions | Ensure the car is turned off before accessing the fuse box. Avoid using a fuse with a higher amperage than specified, as it can cause electrical damage. |
| Common Causes of Blown Fuses | Overloading the window motor (e.g., forcing a window closed), short circuits, or worn-out window regulators. |
| Professional Assistance | If the fuse blows repeatedly or the issue persists, consult a mechanic to diagnose underlying electrical problems. |
Explore related products
What You'll Learn
- Fuse Box Location: Identify where the fuse box is located in your electric car
- Fuse Diagram: Use the car’s manual to find the specific fuse for the window
- Fuse Testing: Learn how to test the fuse to check if it’s blown
- Fuse Replacement: Steps to safely replace a blown fuse with the correct type
- Common Issues: Troubleshoot other possible causes if the fuse isn’t the problem

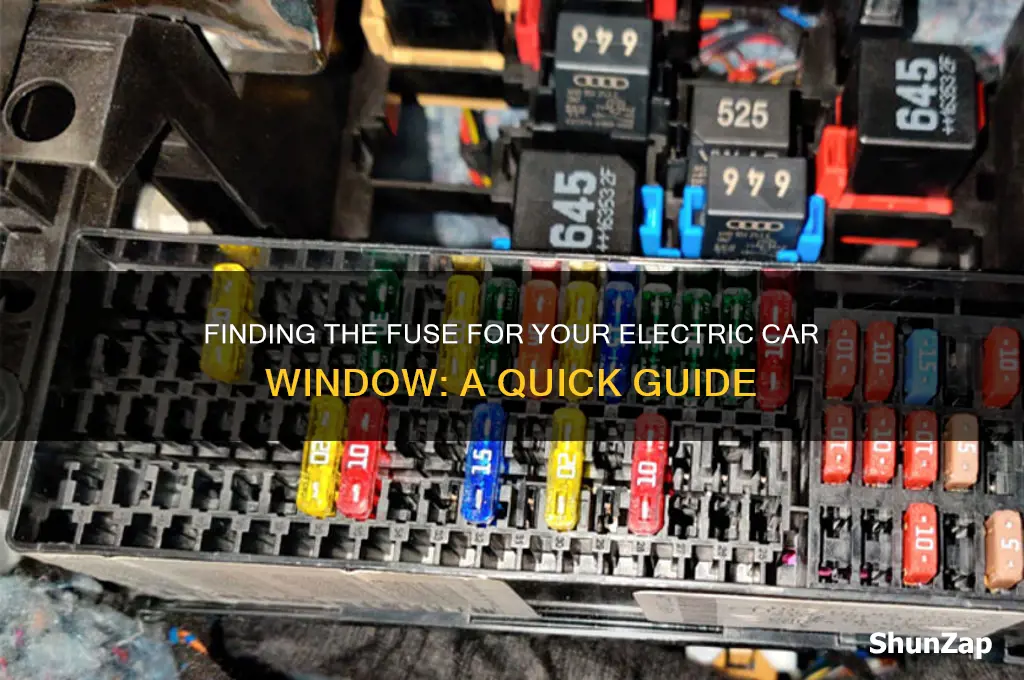

Fuse Box Location: Identify where the fuse box is located in your electric car
Electric car owners often encounter issues with power windows, and the first step to troubleshooting is locating the fuse box. Unlike traditional vehicles, electric cars house their fuse boxes in less obvious places due to compact designs and unique electrical systems. Typically, you’ll find the main fuse box under the dashboard on the driver’s side, but some models place it in the trunk, under the rear seats, or even in the engine compartment. Always consult your car’s manual for precise location details, as manufacturers often include diagrams tailored to your specific model.
Once you’ve identified the fuse box location, the next challenge is accessing it. In many electric vehicles, the fuse box is concealed behind a removable panel or cover. Use a flathead screwdriver or a trim removal tool to carefully pry off the panel without damaging it. Be cautious of sharp edges or clips that may require gentle manipulation. If the fuse box is in the trunk or under a seat, you may need to remove additional components like carpeting or storage bins. Patience and a systematic approach will prevent unnecessary frustration.
After accessing the fuse box, locating the specific fuse for the electric window can be tricky. Fuses are often labeled with codes or symbols, which correspond to a diagram in the car’s manual. For example, a fuse labeled “PWR WND” or “Window” typically controls the power windows. If the labels are unclear, use a fuse puller (or needle-nose pliers) to remove the fuse and inspect it for signs of damage, such as a broken filament. Always replace a blown fuse with one of the same amperage rating to avoid electrical issues.
A practical tip for electric car owners is to keep a spare set of fuses in the vehicle, as they are small, inexpensive, and easy to store. Additionally, familiarize yourself with the fuse box layout during routine maintenance checks, so you’re prepared if a window or other electrical component fails. While some issues may require professional assistance, knowing how to locate and inspect fuses empowers you to handle minor problems independently, saving time and potential repair costs.
Why BMW Uses Electric Water Pumps: Efficiency and Performance Explained
You may want to see also
Explore related products
Fuse Diagram: Use the car’s manual to find the specific fuse for the window
Electric car windows rely heavily on fuses to protect the circuit from overloading. When a window malfunctions, a blown fuse is often the culprit. The first step in troubleshooting is locating the specific fuse responsible for the window’s operation. This is where the car’s manual becomes an indispensable tool. Modern vehicles are complex, and fuse boxes can vary widely in layout and labeling. The manual provides a detailed fuse diagram, pinpointing the exact fuse for the power windows, saving time and frustration.
Analyzing the fuse diagram in the manual reveals a systematic approach to identifying the correct fuse. Typically, the diagram includes a numbered or labeled list of fuses, each corresponding to a specific function. For power windows, the fuse might be labeled as "PWR WND," "WINDOW," or a similar abbreviation. Cross-referencing this with the fuse box itself ensures accuracy. For instance, a 2018 Toyota Camry’s manual might indicate that the power window fuse is fuse #12, rated at 20 amps, located in the driver-side fuse box. This specificity eliminates guesswork and reduces the risk of mishandling other fuses.
While the manual is a primary resource, it’s essential to approach the process methodically. Start by verifying the fuse box location, as some vehicles have multiple fuse boxes (e.g., under the hood, in the cabin, or in the trunk). Once located, compare the physical fuse box to the diagram to ensure alignment. Use a fuse puller or needle-nose pliers to extract the suspected fuse carefully, avoiding damage. Inspect the fuse for visible signs of burning or a broken filament, which confirm it’s blown. If unsure, a multimeter can test continuity, ensuring the fuse is indeed faulty before replacing it with one of the same amperage.
A comparative look at different vehicle models highlights the importance of the manual’s fuse diagram. For example, a Ford Focus may have the power window fuse in a different position than a Honda Civic, despite both being compact cars. This variation underscores why relying on generic advice or online forums can be misleading. The manual’s diagram is tailored to the specific make, model, and year of the vehicle, ensuring precision. Ignoring this resource could lead to unnecessary part replacements or even electrical damage.
In conclusion, the fuse diagram in the car’s manual is a critical tool for identifying the specific fuse for an electric car window. It provides a clear, vehicle-specific guide that simplifies troubleshooting. By following the manual’s instructions and exercising caution during the process, drivers can efficiently resolve window issues without professional help. This approach not only saves time but also reinforces the importance of understanding a vehicle’s unique systems.
Why AC Units Consume High Electricity: Understanding Energy Usage
You may want to see also
Explore related products
Fuse Testing: Learn how to test the fuse to check if it’s blown
A blown fuse is often the culprit behind a malfunctioning electric car window. Before replacing the window motor or switch, it's crucial to test the fuse, as this simple component can save you time and money. Fuse testing is a straightforward process that requires minimal tools and can be done by most car owners.
Understanding Fuse Basics
Fuses are designed to protect electrical circuits by interrupting the flow of current when it exceeds safe levels. In the context of electric car windows, the fuse is typically located in the vehicle’s fuse box, which can be found under the dashboard, in the engine compartment, or in the trunk. Consult your car’s manual to identify the specific fuse for the power windows. Fuses are rated by amperage, so ensure you know the correct rating before testing or replacing one.
Steps to Test a Fuse
To test a fuse, you’ll need a multimeter, a tool that measures voltage, current, and resistance. First, locate the fuse box and identify the fuse for the electric window. Using the multimeter set to the continuity or resistance mode, touch one probe to each end of the fuse. A functional fuse will show a reading close to zero ohms, indicating a complete circuit. If the reading is infinite or "OL" (open loop), the fuse is blown and needs replacement. Alternatively, visually inspect the fuse for a broken or melted wire inside the glass casing, though this method is less reliable.
Cautions and Practical Tips
Always disconnect the car battery before handling fuses to avoid electrical shock. If you don’t have a multimeter, you can temporarily swap the suspect fuse with another of the same rating in the fuse box to see if the window operates. However, this method is less precise and risks damaging other circuits. Keep a spare set of fuses in your vehicle, as they are inexpensive and commonly available at auto parts stores.
Testing a fuse is a quick and effective way to diagnose electric car window issues. By understanding fuse basics, following proper testing steps, and taking necessary precautions, you can confidently determine whether a blown fuse is the root of the problem. This simple skill empowers car owners to tackle minor electrical issues without professional help, saving both time and money.
Vinyl Electrical Tape: The Ultimate Insulation and Repair Solution
You may want to see also
Explore related products
Fuse Replacement: Steps to safely replace a blown fuse with the correct type
A blown fuse is often the culprit behind a malfunctioning electric car window. Before diving into replacement, locate your vehicle’s fuse box, typically found under the dashboard, in the engine bay, or near the battery. Consult your car’s manual for the exact location and fuse diagram, which identifies the fuse responsible for the window circuit. This diagram is your roadmap, ensuring you target the correct fuse and avoid unnecessary troubleshooting.
Once identified, safely replace the blown fuse with the correct type. Fuses are rated by amperage, and using the wrong rating can damage your vehicle’s electrical system. For example, a 15-amp fuse should never be replaced with a 20-amp fuse, even if it fits. Always match the amperage specified in the fuse diagram or on the fuse itself. Automotive fuses are typically blade-type, available at most auto parts stores for under $10 per pack.
To replace the fuse, start by turning off the ignition and ensuring all electrical components are off. Use a fuse puller (often included in fuse packs) or a pair of needle-nose pliers to remove the blown fuse. Inspect the fuse for a broken or melted wire inside the transparent casing—a clear sign it’s blown. Insert the new fuse firmly into the slot, ensuring it clicks into place. Avoid forcing it, as this can damage the fuse box.
After replacement, test the electric window to confirm the issue is resolved. If the fuse blows again immediately, there may be an underlying electrical problem, such as a short circuit, requiring professional diagnosis. Regularly inspecting fuses during routine maintenance can prevent unexpected failures, especially in older vehicles where electrical systems may degrade over time.
In summary, replacing a blown fuse for an electric car window is a straightforward task when approached methodically. By locating the correct fuse, using the proper amperage, and following safety precautions, you can restore functionality without risking further damage. Always treat electrical systems with care, and when in doubt, consult a professional to ensure your vehicle remains safe and reliable.
Starting Your Nissan Leaf: A Beginner's Guide to Electric Driving
You may want to see also
Explore related products
Common Issues: Troubleshoot other possible causes if the fuse isn’t the problem
If the fuse for your electric car window checks out, the issue likely lies elsewhere in the system. Start by inspecting the window switch, a common culprit. Over time, switches can wear out due to frequent use, causing internal contacts to fail. To test, press the switch and listen for a faint clicking sound from the motor. If silent, the switch may be faulty. Replacement is straightforward: remove the door panel, disconnect the switch’s wiring harness, and swap it with a new one. Ensure the new switch matches your vehicle’s make and model for compatibility.
Next, examine the window regulator and motor assembly. The regulator, often made of plastic or metal, can break or become misaligned, preventing the window from moving smoothly. A grinding noise or sluggish operation indicates potential regulator failure. To inspect, partially remove the door panel and observe the regulator’s condition. If damaged, replacement is necessary. Motor failure is less common but can occur due to burnout from excessive use. Test the motor by applying direct power; if it doesn’t respond, it needs replacement. Always disconnect the battery before working on electrical components to avoid short circuits.
Wiring issues are another frequent cause of window malfunctions. Frayed or corroded wires disrupt the electrical connection, halting window operation. Inspect the wiring harness running from the switch to the motor for visible damage. Use a multimeter to test for continuity; a break in the circuit confirms a wiring problem. Repairing damaged wires involves stripping and reconnecting them, but replacing the entire harness is often more reliable. Water intrusion, common in older vehicles, can corrode connections, so check for signs of moisture and clean affected areas with electrical contact cleaner.
Lastly, consider the window’s mechanical alignment. Over time, the window can detach from the regulator or become misaligned, causing it to bind or tilt. Symptoms include uneven movement or the window falling into the door. Reattaching the window to the regulator requires removing the door panel and carefully repositioning the glass. Ensure the window tracks are clean and free of debris to prevent further issues. If misalignment persists, professional adjustment may be needed to avoid recurring problems. Addressing these issues systematically ensures a thorough diagnosis and effective repair.
Electric Vehicle Hotspots: Where Are They Concentrated?
You may want to see also
Frequently asked questions
The fuse for an electric car window is usually located in the vehicle's fuse box, which can be found in the engine bay, under the dashboard, or in the trunk, depending on the car model.
Refer to your car's owner manual to identify the specific fuse for the electric window. It will be labeled with a diagram or description indicating its function.
If the fuse repeatedly blows, there may be an electrical issue, such as a short circuit or overloaded wiring. Consult a professional mechanic to diagnose and fix the problem.
Yes, you can replace the fuse yourself if you have the correct replacement fuse and follow safety precautions. Ensure the car is off and use tools like fuse pullers if needed.
If replacing the fuse doesn't fix the issue, the problem could be with the window motor, switch, or wiring. A mechanic can help diagnose and repair the underlying cause.
