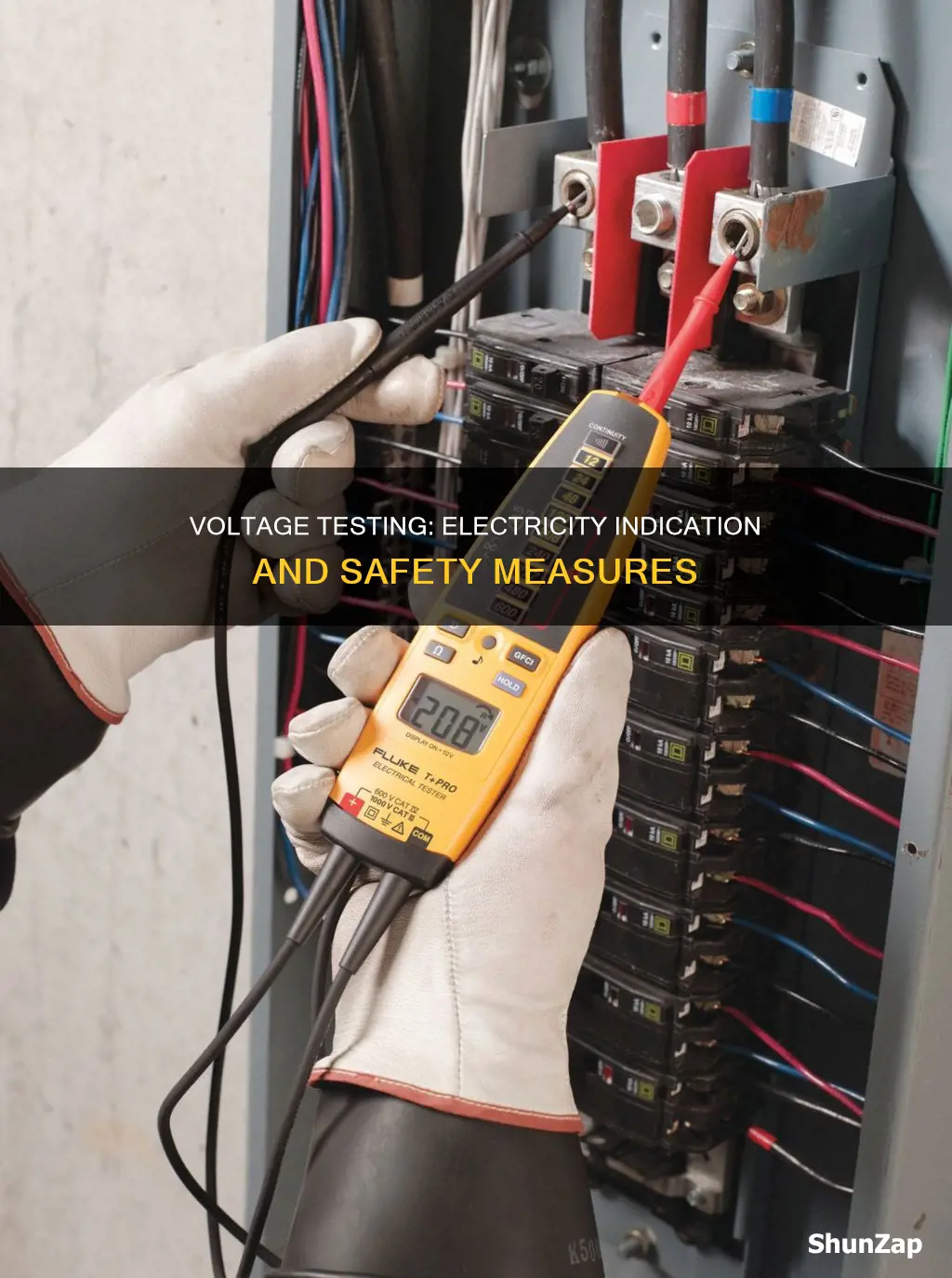

Voltage testers are tools that can help keep you safe when working with electrical systems. They can be used to determine whether electricity is present in a circuit, outlet, or light switch. There are several types of voltage testers available, including contact voltage testers, non-contact voltage testers, and receptacle testers. Multimeters are another tool used to test voltage and can also be used to conduct a polarity test to determine if all conductors in an electrical installation are properly connected. It's important to note that voltage testers can give false readings, so it is recommended to test them before every use and to wear protective gear when working with electrical systems.
| Characteristics | Values |
|---|---|
| Test instrument | Multimeter, test light, voltage tester, proximity tester, solenoid tester, electronic tester, clamp meter, continuity tester, receptacle tester, polarity tester |
| Test instrument features | LCD display, numerical reading, vibration, beep, flash, light |
| Preparation | Turn off power, disconnect outlet from wiring, wear protective equipment, check for internal damage, wriggle test leads, check safety compliance ratings, check voltage range |
| Test procedure | Insert probes into slots, touch probes to wires, plug into outlet, hold tester an inch away from slot |
| Results | Tester lights up, beeps, vibrates, flashes, lights indicate correct grounding and wiring |
Explore related products
What You'll Learn
A multimeter can be used to test outlets
A multimeter is a handheld device that measures voltage and other properties. It is also known as a volt-ohm-milliammeter (VOM) or multi-tester. It is used by electricians, inspectors, and homeowners to troubleshoot electrical problems, including whether an outlet has power, is properly grounded, or is wired correctly. Multimeters are a versatile tool that can be used to test outlets.
Before testing an outlet with a multimeter, it is important to read the instructions that came with the device and be careful not to touch the metal prongs as you could be electrocuted. It is also important to make sure that the multimeter is capable of testing the voltage of the outlet. If the voltage is too high for the multimeter to measure, you may break it by trying to take the measurement. It is also recommended to wear personal protective equipment, including insulated gloves, rubber mats or shoes, and safety glasses that protect against electrical hazards.
To test an outlet, insert one probe into each slot and read the line voltage measurement. A properly working outlet gives a reading of 110 to 120 volts. If there is no reading, check the wiring and the outlet. A properly grounded outlet registers voltage when one probe of a voltage detector or a multimeter set to measure voltage is inserted into the small outlet slot, and the other probe is placed on the receptacle's centre screw. If the light fails to turn on, the outlet is not grounded correctly and you should conduct a polarity test.
A polarity test determines whether all the conductors in an electrical installation are properly connected and not mistakenly reversed, which can be dangerous. To do a polarity test, insert one probe of a voltage detector or a multimeter into the large slot and the other against the screw (scrape off any paint to ensure good contact). If the voltage detector lights, that means the hot and neutral wires are reversed and the wiring should be further checked. Before you begin, turn off the power. Then disconnect the outlet from the wiring. Set your multimeter to Ohms. Put a probe into one of the outlet slots and the other probe on the nearest terminal screw. The multimeter should indicate continuity. Test the remaining slot and terminal. Then test the ground slot to the grounding terminal.
Electric Mirrors in Edge Titanium: A Comprehensive Overview
You may want to see also
Explore related products
Test lights indicate when voltage is present
Test lights are a simple yet effective way to indicate when voltage is present in a circuit. They are a valuable tool for electricians and DIY enthusiasts alike, providing a clear visual cue that voltage is present. Test lights are primarily used to determine when voltage is present in a circuit, and they are also used to test receptacles.
A test light is a test instrument with a bulb connected to two test leads. The bulb illuminates when voltage is present in the circuit being tested. The most common type of test light is a neon test light, which has a bulb filled with neon gas and uses two electrodes to ionize the gas. These bulbs have a very high resistance, so they draw very little current when taking a measurement. This means they have a long lifetime compared to other bulbs.
Test lights are advantageous because they are inexpensive, small enough to carry in a pocket, and simple to operate. However, they support a limited voltage range and cannot determine the actual voltage of a circuit. They also must not be used to test ground fault circuit interrupters (GFCIs) or ground fault interrupters (GFIs) because the neon bulb does not draw enough current to trip the GFCI.
Before using a test light, it is important to check it on a known energized circuit within its rating to ensure it is working correctly. It is also crucial to confirm that the test light is suitable for the specific circuit being tested. When testing, attach one test lead to the circuit or ground, and the other to the hot side. If the test light illuminates, voltage is present. Finally, remove the test light safely by disconnecting the leads.
Electricity Deposits: Rutherford County's Support for Residents
You may want to see also
Explore related products
A polarity test checks for correct wiring
A voltage test can indicate the presence of electricity in a circuit. Test instruments such as a multimeter, solenoid tester, or test light can be used to determine voltage. However, it is important to note that test lights can only indicate the presence of voltage and cannot determine the actual voltage of a circuit. Multimeters, on the other hand, can measure electrical properties such as voltage, current, and resistance. They are also the best standard test instrument for making accurate contact measurements to determine if a circuit is energized.
Now, onto polarity tests and their role in ensuring correct wiring.
A polarity test is crucial to ensure that the Positive or Negative conductors (or the Line and Neutral conductor in an AC circuit) are connected correctly. This is especially important in AC installations, where the Live and Neutral conductors must be connected the right way around within electrical accessories like wall sockets or plugs. A simple mistake in wiring polarity can have dangerous consequences, such as causing permanent damage to devices or even leading to short circuits.
To perform a polarity test, you can use a voltage detector, a multimeter, or a test light. Here are the steps to follow:
- Using a Voltage Detector or Multimeter: Turn off the power and disconnect the outlet from the wiring. Set your multimeter to Ohms. Insert one probe of the voltage detector or multimeter into the large slot, and the other probe against the screw, scraping off any paint to ensure good contact. If using a multimeter, it should indicate continuity.
- Using a Test Light: Verify that the test light has a voltage rating higher than the highest potential voltage in the circuit. Ensure that the exposed metal tips of the test light leads do not touch any fingers or metal parts that are not being tested. Connect the test light leads from the neutral slot to the hot slot. If the wiring is correct, the test light bulb will illuminate.
By conducting a polarity test, you can ensure that the wiring is correct and avoid potential issues caused by reversed polarity.
Marv's Electric Chair Survival: Unraveling the Mystery
You may want to see also
Explore related products
Continuity testers check for open or closed circuits
A voltage test can indicate the presence of electricity in a circuit. Test lights, for example, illuminate when voltage is present in the circuit being tested. Multimeters are another instrument used to test voltage. They can also be used to test continuity.
To test continuity, stick two terminals on your multimeter against two ends of an electrical current. Testing continuity in a wire, current, or fuse is a good idea if you’re installing or repairing any electrical components in an outlet, fuse box, car, or appliance. Continuity refers to how much resistance there is in a closed electrical current. This is an important element to check with a multimeter because poor continuity can cause fires, shocks, or damage to your electrical devices.
Always turn off, unplug, or flip the breaker on the signal that you’re testing to prevent shocks or fires. If you’re testing an open current, put it anywhere on the plate of an outlet or the frame of an appliance. This will connect the two terminals using the wire, outlet, or fuse as a conduit. If you’re testing a switch, there should be no continuity reading when you flip the switch to the off position. If you’re testing a fuse, put the red terminal anywhere on the body of the fuse, but don't let your two terminals touch.
Sprinkler Controls: Power Source and Functionality Explained
You may want to see also
Explore related products
Proximity testers may not always indicate voltage
Proximity testers are used to detect the presence of voltage in a circuit. While they are useful tools, they may not always indicate voltage due to various factors and limitations.
Firstly, proximity voltage detectors rely on proximity to detect voltage. This proximity is influenced not only by distance but also by the strength of the magnetic field surrounding an energised conductor. The distance between the tester and the electrical source must account for factors such as air, insulation, breaker material, and twist locks. If the insulated test point touches grounded metal, or if the user is isolated from the ground, the tester may not indicate voltage accurately.
Additionally, proximity testers have limitations in detecting voltage through certain materials. For example, they may not work effectively through shielded cables or heavily insulated cords, as the insulation can prevent the electric field from reaching the tester. The depth of the wire can also impact detection, as deeper wires may be beyond the tester's range.
Furthermore, proximity testers can be affected by electromagnetic interference (EMI) from nearby devices, leading to false positives or false negatives. The sensitivity of the tester can be influenced by factors such as low battery power, incorrect usage, or the specific characteristics of the circuit being tested.
To ensure accurate results, it is crucial to verify the functionality of the proximity tester before and after use. This includes testing it on a known live source, adhering to manufacturer guidelines, and regularly inspecting the tester for any signs of damage or low battery power, which could impact its performance.
In summary, while proximity testers are valuable tools for detecting voltage, they may not always indicate voltage due to factors such as proximity, material limitations, electromagnetic interference, and tester sensitivity. To ensure reliable results, proper usage, regular maintenance, and adherence to safety guidelines are essential.
Electric Sheep Dreams: Androids and Their Virtual Lives
You may want to see also
Frequently asked questions
Turn off the power and disconnect the outlet from the wiring. Set your multimeter to Ohms and put a probe into one of the outlet slots, then put the other probe on the nearest terminal screw. The multimeter should indicate continuity. Test the remaining slot and terminal, then test the ground slot to the grounding terminal.
A test light is a test instrument with a bulb connected to two test leads. The bulb illuminates when voltage is present in the circuit being tested. Test lights are inexpensive, small, and simple to operate, but they support a limited voltage range and cannot determine the actual voltage of a circuit.
There are three main types of voltage testers: contact voltage testers, non-contact voltage testers, and receptacle testers. Contact voltage testers use two metal probes to test the flow of electricity. Non-contact voltage testers can detect an electrical current from about an inch away without coming into direct contact with the outlet or exposed wiring. Receptacle testers plug directly into a three-prong outlet to provide information about the electrical current.
