Oil temperature sensors are used in vehicles to monitor the viscosity of the oil and prevent engine damage. They are electrical resistors that decrease resistance as the temperature increases. The Engine Control Module (ECM) sends an electrical current to the sensor and calculates the oil temperature by measuring the voltage of the return signal. This data is critical for maintaining engine performance and preventing viscosity-related issues. The placement of the sensor is important, with some preferring to place it directly in the pan to monitor the oil that is about to be fed to the engine. Others opt for locations like the oil filter housing or the side of the engine oil pan. When installing an oil temperature gauge, one must consider the type of kit, whether mechanical or electrical, and follow the appropriate instructions, which may involve drilling holes and connecting wires.

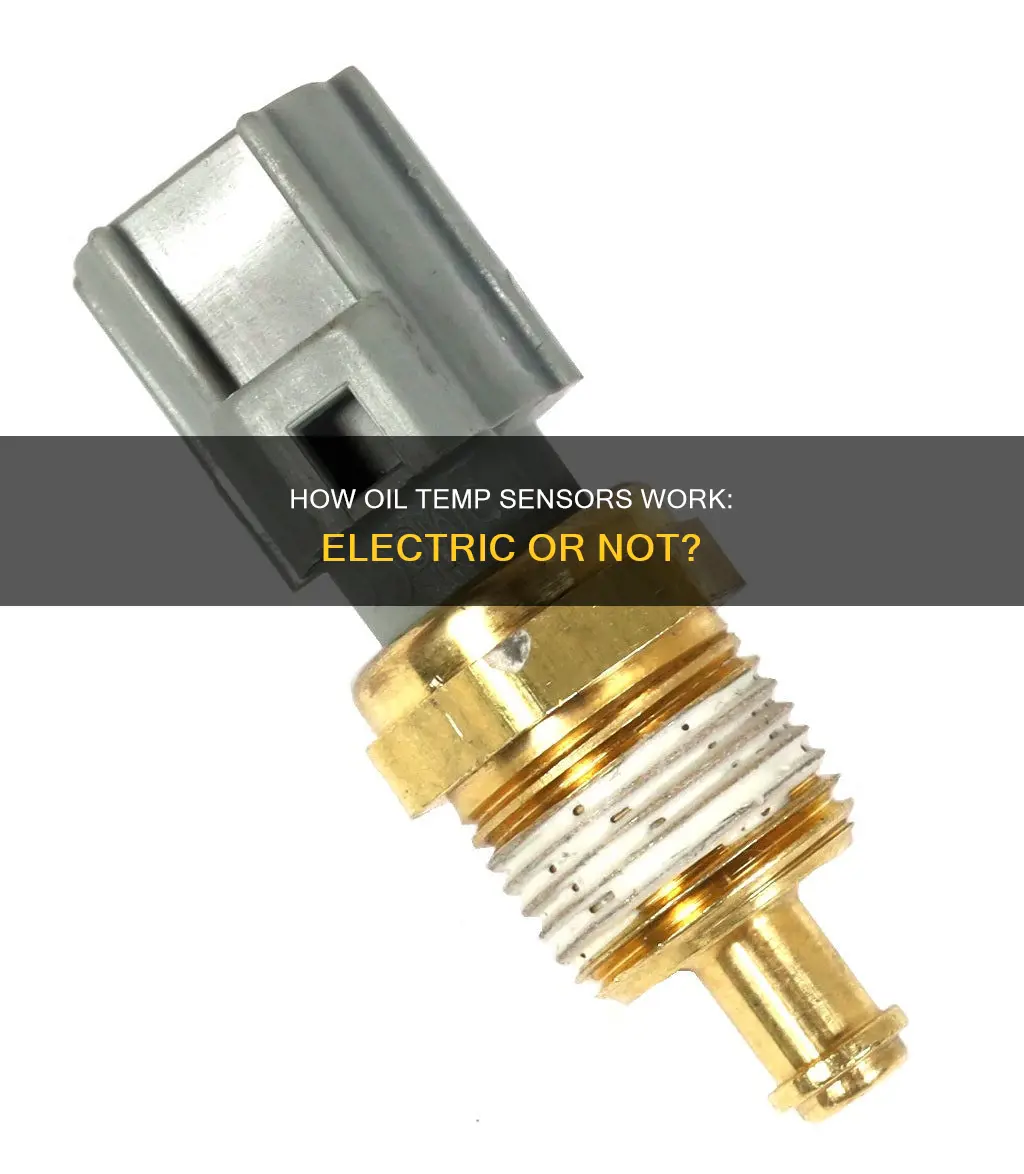

Does an oil temp sensor require electricity?
| Characteristics | Values |
|---|---|
| Electricity requirement | Yes, oil temperature sensors require electricity to function. |
| Function | Oil temperature sensors provide data to the Engine or Powertrain Control Module (ECM/PCM) to calculate engine oil viscosity under operating conditions. |
| Location | Common locations include the oil filter housing, the side of the engine oil pan, or an exterior depression on the bottom of the oil pan. |
| Installation | Installation may require drilling an extra hole in the sump casing to fit the temperature sender unit. Electrical oil temperature gauges require wiring to a fused ignition-controlled circuit, the sidelight circuit, and an earth point. |
| Maintenance | A defective oil temperature sensor can transmit incorrect data, leading to potential engine performance issues. |
| Optimal location | For the most accurate readings, the sensor should be immersed in the oil flow, ideally before the oil cooler. |
Explore related products
What You'll Learn
Oil temperature sensors are electrical resistors
Thermistors are temperature-dependent resistors, changing resistance with changes in temperature. They are very sensitive and react to very small changes in temperature. They are best used when a specific temperature needs to be maintained and when monitoring temperatures within 50°C of ambient. Thermistors are inexpensive, sturdy, and respond predictably to changes in temperature. They are ideal when very precise temperatures are required.
The word "thermistor" is a portmanteau of "thermal" and "resistor". The varying resistance with temperature allows these devices to be used as temperature sensors, or to control current as a function of temperature. Some thermistors have decreasing resistance with temperature, while others have increasing resistance with temperature. This allows them to be used for limiting current to cold circuits or for limiting current to hot circuits.
Negative-temperature-coefficient (NTC) thermistors have less resistance at higher temperatures, while positive-temperature-coefficient (PTC) thermistors have more resistance at higher temperatures. NTC thermistors are commonly used as temperature sensors, while PTC thermistors are used as self-resetting overcurrent protectors and self-regulating heating elements.
Data's Electrical Signal Transformation: Understanding the Process
You may want to see also
Explore related products
They decrease resistance as their temperature increases
An oil temperature sensor (OTS or EOT) is a type of electrical resistor that provides data to the Engine or Powertrain Control Module (ECM/PCM) to calculate engine oil viscosity. The OTS is a thermistor, a device whose resistance changes with temperature.
When discussing resistance and temperature, it is important to consider the material in question. Materials can be broadly categorized into insulators, semiconductors, and conductors. Conductive metals, for instance, tend to increase in resistance as temperature increases due to the presence of many free electrons. As temperature increases, these electrons bounce around instead of conducting in a uniform direction, leading to increased resistance.
However, there are materials that exhibit the opposite behavior, where their resistance decreases as temperature increases. These materials are said to have a negative temperature coefficient. At high temperatures, insulators, for example, can experience a decrease in resistance due to the creation of free electrons through the vigorous vibration of atoms. This results in a higher number of electrons available to carry the current, reducing resistance.
Thermistors, which are used in oil temperature sensors, are an example of components with negative temperature coefficients. They are specifically designed to decrease in resistance as their temperature increases. This unique property allows the thermistor in an oil temperature sensor to accurately measure the temperature of the oil by calculating the voltage of the return signal.
In summary, oil temperature sensors rely on thermistors that decrease in resistance as their temperature increases. This phenomenon is observed in materials with negative temperature coefficients, where the resistance decreases at higher temperatures due to the increased presence of free electrons or other material-specific characteristics.
How Transformers and WiFi Work Together
You may want to see also
Explore related products
Sensors can be placed in the sump pan for accurate readings
An oil temperature sensor (OTS) is a thermistor, a type of electrical resistor that decreases in resistance as the temperature increases. The Engine Control Module/Powertrain Control Module (ECM/PCM) sends an electrical current to the sensor to calculate its resistance and, consequently, the oil temperature.
Some people choose to install their sensors in the oil filter housing, which is located directly above the oil filter, or on the side of the engine oil pan. However, placing the sensor in the sump provides a more accurate reading of the total heat impact on the oil. This is because the sump temperature reflects the heat impact on the oil reserve, whereas the oil filter housing or oil galley may be influenced by the cooling system or other factors.
Additionally, placing the sensor before the oil cooler allows you to measure the temperature of the oil going into the bearings. This is important because the temperature of the oil in the pan may differ from the temperature of the oil entering the engine, depending on the size of the cooler. By measuring the temperature before and after the cooler, you can understand the true engine temperature and the impact of the cooler on the oil temperature.
It is worth noting that some vehicles, such as certain BMW models, have their sensors placed in an exterior depression on the bottom of the oil pan. This placement allows for accurate readings while also keeping the sensor protected.
Electric Clutch: Does It Wear Out?
You may want to see also
Explore related products
Faulty sensors can cause engine damage
An oil temperature sensor (OTS) is a thermistor, a type of electrical resistor that decreases in resistance as its temperature increases. The Engine Control Module (ECM) or Powertrain Control Module (PCM) sends a 5-volt electrical current to the sensor. By measuring the voltage of the return signal, the ECM/PCM calculates sensor resistance and, consequently, the oil temperature.
A faulty OTS can transmit incorrect or no data to the ECM/PCM. In the absence of OTS data, the ECM/PCM may restrict engine performance to prevent viscosity-critical conditions. Variable valve timing and cylinder deactivation functions will be disabled, and the driver may experience hard starting, prolonged warm-up, and decreased fuel economy.
OTS malfunction can cause partial engine shutdown, with the engine entering a 'limp-home' mode. This can result in a decline in engine performance, with the engine idling roughly and loudly, misfiring, or no longer accelerating smoothly. The engine may also overheat, leading to increased wear and tear and, potentially, engine damage.
Other sensors in a vehicle, such as the oxygen sensor and the coolant temperature sensor, also play a vital role in engine performance. A faulty oxygen sensor can lead to inefficient fuel combustion, inaccurate fuel injection levels, and the release of harmful pollutants. A malfunctioning coolant temperature sensor can cause the engine to overheat, potentially resulting in serious engine damage.
Therefore, it is essential to regularly maintain and repair vehicle sensors to ensure optimal engine performance and prevent engine damage.
Unplug to Save: Reducing Your Electric Bill and Appliance Lifespan
You may want to see also
Explore related products
Oil temperature sensors can be mechanical or electrical
Oil temperature sensors (OTS) are used to measure the temperature of oil in automobiles and light trucks. This data is then used by the Engine or Powertrain Control Module (ECM/PCM) to calculate engine oil viscosity under operating conditions.
The electrical oil temperature sensors have a probe that extends into the oil. The ECM/PCM sends a 5-volt electrical current to the sensor. By measuring the voltage of the return signal, the oil temperature can be calculated.
A defective oil temperature sensor may transmit incorrect data or no data at all to the ECM/PCM. This can cause the ECM/PCM to restrict engine performance to prevent viscosity critical conditions. On diesel-powered light trucks, this may cause hard starting, prolonged warm-up, and decreased fuel economy.
To diagnose a faulty oil temperature sensor, retrieving stored Diagnostic Trouble Codes (DTCs) is the first step. DTCs such as P0195 and P0197 through P0199 indicate an electrical circuit fault in the sensor, its wiring, or the connection to the ECM/PCM.
AC vs Fan: Which Appliance Consumes More Electricity?
You may want to see also
Frequently asked questions
Yes, an oil temperature sensor requires electricity. It is a thermistor, a type of electrical resistor that decreases in resistance as its temperature increases.
The best location for an oil temp sensor is in the pan, directly immersed in the flowing oil. This is because the oil in the pan is what will be fed to the engine and is, therefore, the best representation of the actual oil temperature.
The Engine Control Module (ECM) or Powertrain Control Module (PCM) sends a 5-volt signal, or an electrical current, to the sensor. By measuring the voltage of the return signal, it calculates sensor resistance and, from that, the oil temperature.
Oil temperature gauges can be either mechanical or electrical. If you are using an electric gauge, refer to the wiring instructions and connect the wires to a fused ignition-controlled circuit, the sidelight circuit, and an earth point.
