Electric cars, like their traditional internal combustion engine counterparts, are equipped with fuses as a critical component of their electrical systems. These fuses serve as protective devices, designed to interrupt the flow of excessive current that could otherwise damage sensitive electronic components or pose safety risks. In electric vehicles (EVs), fuses are strategically placed throughout the high-voltage and low-voltage circuits to safeguard systems such as the battery pack, motor controllers, charging systems, and auxiliary electronics. Understanding the role and location of fuses in electric cars is essential for maintenance, troubleshooting, and ensuring the longevity and safety of the vehicle's electrical infrastructure.
| Characteristics | Values |
|---|---|
| Do Electric Cars Have Fuses? | Yes |
| Purpose of Fuses | Protect electrical circuits from overcurrent, short circuits, and electrical faults |
| Types of Fuses in Electric Cars | Blade fuses, high-voltage fuses, bolt-in fuses, and specialized fuses for battery management systems |
| Location of Fuses | Typically found in the fuse box(es) located in the cabin, trunk, or near the battery pack |
| Voltage Ratings | Low-voltage (12V) for auxiliary systems and high-voltage (up to 800V) for propulsion systems |
| Ampere Ratings | Vary based on the circuit, ranging from a few amps to hundreds of amps for high-power components |
| Differences from ICE Vehicles | Higher voltage and current handling capabilities due to electric drivetrains and battery systems |
| Maintenance | Regular inspection recommended; fuses may need replacement if blown or damaged |
| Safety Considerations | High-voltage fuses require specialized handling and should only be replaced by trained technicians |
| Examples of Protected Components | Battery management systems, inverters, chargers, lighting, infotainment, and HVAC systems |
| Advancements | Smart fuses with diagnostic capabilities and self-resetting features are being developed |
Explore related products
What You'll Learn
- Fuse Types in Electric Vehicles: Different fuses used in electric cars for various electrical systems
- Fuse Box Location: Where to find the fuse box in electric vehicles for maintenance
- Fuse Functionality: Role of fuses in protecting electric car circuits from overcurrent
- Fuse Replacement: Steps to replace a blown fuse in an electric vehicle safely
- Fuse-Free Designs: Some electric cars use alternatives to traditional fuses for circuit protection
Fuse Types in Electric Vehicles: Different fuses used in electric cars for various electrical systems
Electric vehicles (EVs) rely on a complex network of electrical systems, each requiring specific protection to ensure safety and functionality. Fuses play a critical role in this protection, acting as sacrificial devices that interrupt excessive current flow to prevent damage or fire. Unlike traditional vehicles, EVs use a variety of fuse types tailored to their high-voltage and low-voltage systems. For instance, blade fuses are commonly found in the 12V auxiliary systems, protecting components like lights and infotainment, while high-voltage fuses safeguard the battery and inverter, often rated at 500V or higher. Understanding these differences is essential for maintenance and troubleshooting.

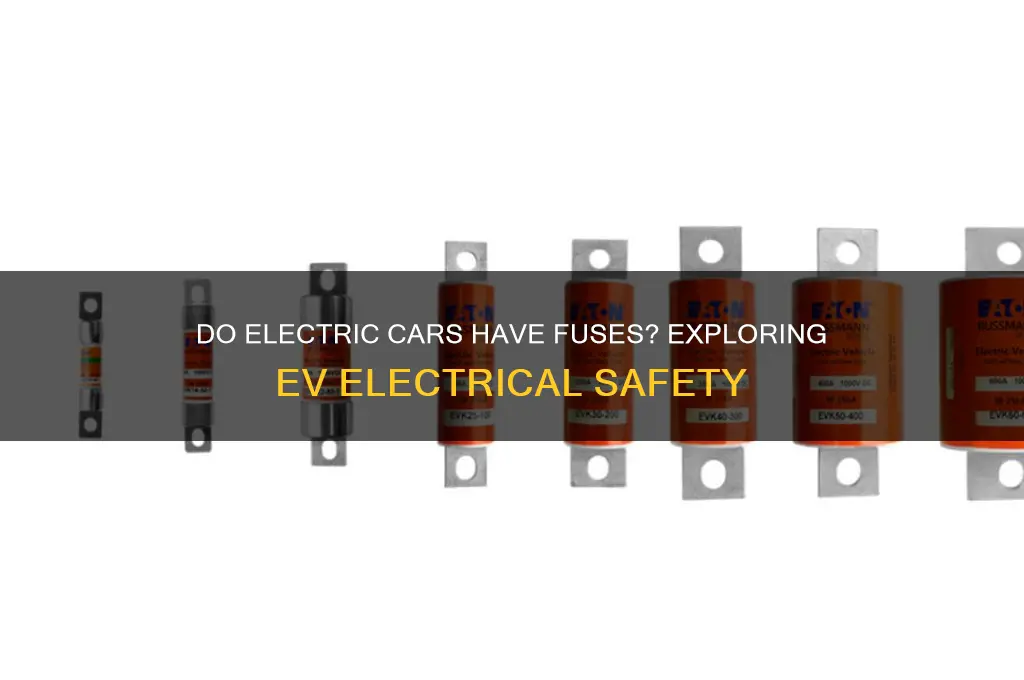

One of the most distinctive fuse types in EVs is the high-voltage fuse, designed to handle the substantial power demands of the battery and drivetrain. These fuses are typically rated for currents ranging from 200A to 500A and voltages up to 800V, depending on the vehicle’s architecture. They are often located in the high-voltage junction box, a critical component that distributes power from the battery to the motor and other systems. For example, the Tesla Model 3 uses high-voltage fuses rated at 400A to protect its battery pack. When replacing these fuses, it’s crucial to use the exact specifications provided by the manufacturer to avoid system failure or safety risks.
In contrast, low-voltage systems in EVs, such as the 12V auxiliary battery, use blade fuses similar to those in conventional vehicles. These fuses protect components like the radio, interior lights, and control modules. A typical EV might have a fuse box under the hood or in the cabin, housing blade fuses rated from 5A to 30A. For DIY enthusiasts, identifying and replacing these fuses is straightforward, but always consult the vehicle’s manual for the correct fuse ratings and locations. A blown fuse in the 12V system can cause seemingly unrelated issues, such as a non-functional dashboard display, so systematic troubleshooting is key.
Another specialized fuse type in EVs is the bolt-in or cartridge fuse, often used in high-current applications like the air conditioning compressor or DC-DC converter. These fuses are larger and more robust than blade fuses, capable of handling currents up to 200A. They are typically found in the power distribution unit (PDU) and require careful handling due to their high-energy capacity. For example, the Nissan Leaf uses bolt-in fuses in its PDU to protect the DC-DC converter, which steps down high-voltage power for the 12V system. When working with these fuses, ensure the vehicle is powered off and follow proper safety protocols to avoid electric shock.
Lastly, resettable fuses, or polyswitches, are gaining popularity in EVs for their ability to self-reset after a minor overcurrent event. These are often used in low-power circuits where frequent fuse replacement would be impractical. For instance, some EVs use polyswitches in USB charging ports to protect against short circuits. While convenient, these fuses are not suitable for high-current applications and should only be used where specified by the manufacturer. Understanding the specific fuse types and their applications in EVs empowers owners and technicians to maintain these vehicles effectively, ensuring longevity and safety.
