Beatrice Lang
Electric car engines, unlike their internal combustion counterparts, do not generate heat through the burning of fuel, but they still require efficient cooling systems to manage the heat produced by the electric motor, battery pack, and power electronics. Cooling is essential to maintain optimal performance, prevent overheating, and ensure the longevity of these components. Electric vehicles typically employ liquid cooling systems, where a coolant circulates through the motor, inverter, and battery, absorbing heat and transferring it to a radiator or heat exchanger. Additionally, some designs incorporate air cooling or phase-change materials to supplement the cooling process. The efficiency of these systems is critical, as it directly impacts the vehicle’s range, power delivery, and overall reliability, making cooling a key consideration in electric vehicle engineering.
| Characteristics | Values |
|---|---|
| Cooling Method | Liquid cooling (most common), air cooling (less common) |
| Coolant Type | Ethylene glycol-based coolant (similar to traditional cars) |
| Cooling System Components | Radiator, coolant pump, thermostat, cooling lines, heat exchanger |
| Temperature Range | Typically maintained between 20°C to 40°C (68°F to 104°F) |
| Heat Sources | Electric motor, battery pack, power electronics (inverter, converter) |
| Efficiency | High efficiency due to precise temperature control |
| Environmental Impact | Lower environmental impact compared to internal combustion engines |
| Maintenance | Requires periodic coolant checks and replacement (every 5-10 years) |
| Weight | Adds ~20-30 kg (44-66 lbs) to the vehicle due to cooling system components |
| Cost | Slightly higher upfront cost due to additional components |
| Noise Level | Quieter operation compared to air-cooled systems |
| Lifespan | Designed to last the lifetime of the vehicle with proper maintenance |
| Integration with Battery Cooling | Often integrated with battery thermal management systems for efficiency |
| Thermal Management | Advanced thermal management systems to optimize performance and longevity |
| Examples of Manufacturers | Tesla, Nissan, Chevrolet, BMW, Audi (using liquid cooling systems) |
Explore related products
What You'll Learn
Air cooling systems for electric motors
Electric motors in vehicles generate heat, and managing this thermal energy is crucial for performance and longevity. Air cooling systems, a traditional method, have evolved to meet the demands of modern electric vehicles (EVs). Unlike liquid cooling, which uses a coolant to dissipate heat, air cooling relies on the flow of air over the motor to regulate temperature. This method is simpler, lighter, and often more cost-effective, making it a viable option for smaller EVs or those with less demanding thermal requirements. However, its effectiveness hinges on design and environmental conditions, as air’s lower heat capacity compared to liquid coolants poses unique challenges.
Designing an efficient air cooling system requires careful consideration of airflow dynamics. Engineers often incorporate fins or heat sinks on the motor housing to increase surface area, enhancing heat dissipation. Additionally, strategic placement of vents and ducts ensures a consistent flow of air, even at low vehicle speeds. For instance, Tesla’s early models, like the Roadster, utilized air cooling for their motors, leveraging the vehicle’s movement to draw air through the system. While this approach is less complex than liquid cooling, it demands precision in design to avoid hotspots and ensure uniform cooling across the motor.
One of the key advantages of air cooling is its minimal maintenance requirements. Unlike liquid systems, which may leak or require coolant replacement, air cooling systems are virtually maintenance-free. This simplicity makes them particularly appealing for entry-level EVs or applications where ease of use is prioritized. However, this benefit comes with a trade-off: air cooling is generally less efficient at handling high thermal loads, limiting its use in high-performance EVs that generate significant heat during operation.
Environmental factors play a significant role in the effectiveness of air cooling systems. In extreme temperatures, whether hot or cold, the ambient air’s ability to absorb heat diminishes, potentially compromising the system’s performance. For example, driving in desert conditions can reduce cooling efficiency, while icy environments may restrict airflow due to blocked vents. Manufacturers mitigate these issues by integrating sensors and fans to regulate airflow dynamically, ensuring optimal cooling regardless of external conditions.
Despite its limitations, air cooling remains a practical solution for specific EV applications. Its lightweight nature contributes to overall vehicle efficiency, and its simplicity reduces manufacturing and maintenance costs. For urban EVs with lower power outputs and shorter ranges, air cooling can provide sufficient thermal management without the added complexity of liquid systems. As EV technology advances, air cooling systems continue to evolve, offering a balance between performance and practicality for niche markets.
Electric Revolution: Compact Vehicles for a Sustainable Future
You may want to see also
Explore related products

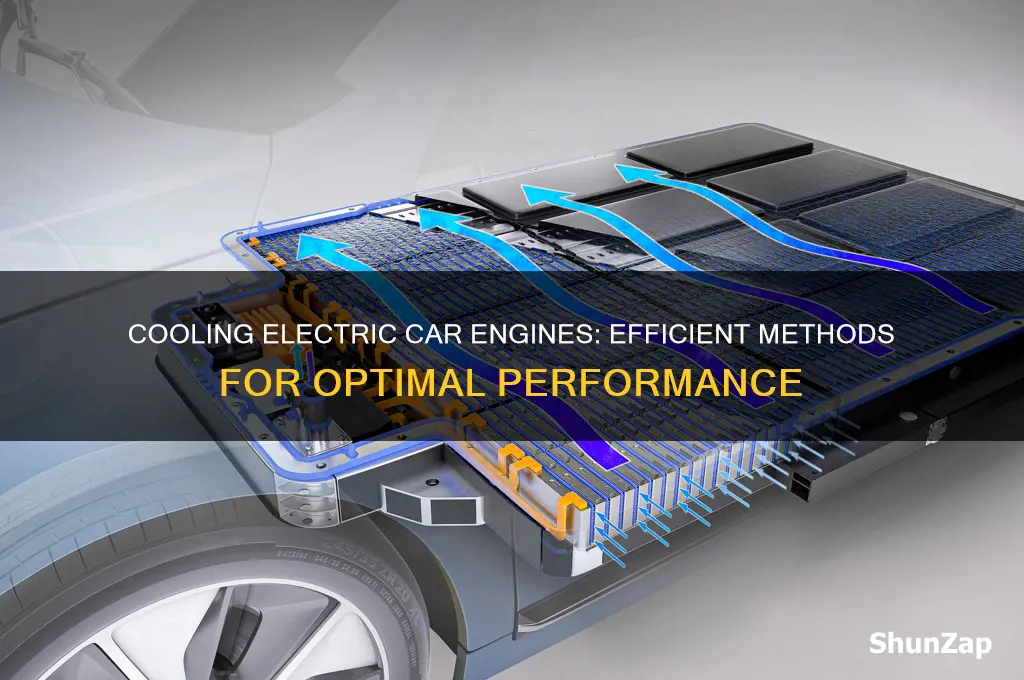

Liquid cooling methods in battery packs
Electric vehicle (EV) battery packs generate significant heat during operation, particularly under high-load conditions or fast charging. Liquid cooling systems have emerged as the most effective method to manage this thermal energy, ensuring optimal performance, longevity, and safety. Unlike air cooling, which relies on passive airflow, liquid cooling uses a closed-loop system of coolant (often a mixture of water and glycol) to directly absorb and dissipate heat from the battery cells. This method is essential for maintaining the narrow temperature range (typically 15°C to 35°C) required for lithium-ion batteries to operate efficiently.
The design of liquid cooling systems varies across manufacturers, but the core principle remains consistent. Coolant circulates through channels integrated into the battery pack, often in direct contact with the cells or their modules. For instance, Tesla’s Model S uses a cold plate design where coolant flows beneath the battery cells, while the Porsche Taycan employs a more intricate system with coolant channels between individual cells. The coolant then passes through a radiator or heat exchanger, where it is cooled before recirculating. This process ensures that heat is continuously removed, preventing thermal runaway—a critical safety concern in EVs.
Implementing liquid cooling requires careful consideration of coolant composition and flow rate. Ethylene glycol-based coolants are commonly used due to their high thermal capacity and anti-corrosion properties, but propylene glycol is preferred in some applications for its lower toxicity. The flow rate must be optimized to balance cooling efficiency and energy consumption; too slow, and heat accumulates; too fast, and the system wastes energy. Advanced systems, like those in the Lucid Air, use variable-speed pumps to adjust flow rates dynamically based on battery temperature and driving conditions.
One challenge in liquid cooling is ensuring uniform temperature distribution across the battery pack. Hotspots can form if coolant flow is uneven, leading to accelerated degradation of specific cells. To address this, manufacturers like BMW and Mercedes-Benz incorporate thermal interface materials (TIMs) between the cells and cooling plates, enhancing heat transfer. Additionally, some systems use phase-change materials (PCMs) that absorb excess heat during peak loads, further stabilizing temperatures.
Despite its advantages, liquid cooling is not without drawbacks. The system adds complexity, weight, and cost to the vehicle. Coolant leaks, though rare, pose a risk of electrical shorts or corrosion. Maintenance is also critical; coolant levels and pump functionality must be regularly checked, and the system should be flushed and refilled every 5–10 years, depending on the manufacturer’s guidelines. However, these trade-offs are outweighed by the benefits of improved battery life, faster charging, and enhanced safety, making liquid cooling the gold standard for high-performance EVs.
Electric Vehicle Market: A Multi-Billion Dollar Opportunity
You may want to see also
Explore related products
Thermal management in power electronics
Electric vehicle (EV) powertrains generate significant heat, particularly within power electronics components like inverters and converters. These components, responsible for converting DC battery power to AC motor power, operate at high currents and frequencies, producing heat that must be managed to prevent performance degradation and failure. Effective thermal management is critical to maintaining efficiency, reliability, and longevity in electric car engines.
Understanding the Heat Sources
Power electronics in EVs experience heat generation from two primary sources: switching losses and conduction losses. Switching losses occur during the rapid on-off cycles of semiconductor devices (e.g., IGBTs or MOSFETs), while conduction losses arise from the resistance of these devices when they are in the "on" state. For instance, a typical silicon carbide (SiC) MOSFET in an EV inverter can handle currents up to 200 A and switching frequencies of 20 kHz, but this efficiency comes at the cost of heat dissipation. Without proper cooling, junction temperatures can exceed 150°C, accelerating degradation and reducing the device’s lifespan.
Cooling Strategies for Power Electronics
Material Innovations and Design Considerations
Advancements in materials and design play a pivotal role in enhancing thermal management. Direct bond copper (DBC) and active metal brazing (AMB) substrates improve heat dissipation by providing low-thermal-resistance interfaces between the semiconductor chips and heat sinks. Additionally, thermal interface materials (TIMs) like thermal pastes or pads reduce contact resistance, ensuring efficient heat transfer. Designers must also consider thermal cycling and mechanical stresses, as repeated temperature fluctuations can cause delamination or cracking in components. Finite element analysis (FEA) simulations are often employed to optimize heat sink geometries and coolant flow paths, ensuring maximum efficiency.
Practical Implementation and Maintenance
Implementing thermal management systems requires careful integration with the vehicle’s overall cooling architecture. For instance, combining the power electronics cooling loop with the battery or motor cooling system can reduce complexity and weight, but it demands precise control to avoid cross-contamination or thermal imbalances. Maintenance involves monitoring coolant levels, inspecting for leaks, and ensuring proper flow rates. Coolant degradation or pump failures can lead to hotspots, so regular diagnostics using thermal imaging or embedded temperature sensors are essential. For DIY enthusiasts, retrofitting aftermarket liquid cooling solutions for EV conversions must prioritize compatibility with existing components and adherence to safety standards.
Future Trends and Takeaways
As power electronics push toward higher power densities and wider bandgap semiconductors (e.g., SiC, GaN), thermal management will become even more critical. Innovations like jet impingement cooling, where coolant is directed as high-velocity jets onto hot spots, or embedded cooling channels within semiconductor packages, are on the horizon. For EV manufacturers and engineers, the takeaway is clear: thermal management is not an afterthought but a core design principle. Balancing efficiency, cost, and reliability requires a holistic approach, from material selection to system integration, ensuring that electric car engines remain cool under pressure.
The Birth of the First Baker Electric Car: A Historical Overview
You may want to see also
Explore related products
Radiator design for electric vehicles
Electric vehicle (EV) radiators are not just scaled-down versions of their internal combustion engine (ICE) counterparts. Unlike ICEs, EVs generate heat primarily from the battery pack and electric motor, which produce heat more consistently but at lower temperatures. This shifts the radiator’s role from managing extreme, intermittent heat to maintaining steady thermal balance. As a result, EV radiators are often smaller, lighter, and strategically placed to optimize airflow while minimizing energy consumption from cooling systems.
Designing an EV radiator involves balancing thermal efficiency with aerodynamic performance. Since EVs prioritize range and energy conservation, every component must contribute to reducing drag and improving efficiency. Radiators are typically integrated into the front module, positioned behind the grille or lower bumper to capture incoming air. Advanced designs incorporate variable airflow controls, such as active shutters, which open only when cooling is required, reducing unnecessary drag. Materials like aluminum or composite alloys are favored for their lightweight properties and thermal conductivity, ensuring the radiator performs without adding significant weight.
One critical innovation in EV radiator design is the integration of liquid cooling systems. These systems circulate coolant through the battery pack, motor, and inverter, absorbing heat before passing through the radiator for dissipation. The coolant’s flow rate and temperature are precisely regulated to prevent overheating without overcooling, which can reduce efficiency. For instance, Tesla’s Model S uses a glycol-based coolant system that maintains the battery pack within a narrow temperature range (20–40°C) to optimize performance and longevity. This closed-loop system is a departure from traditional air-cooled methods, showcasing the unique demands of EV thermal management.
Comparatively, EV radiators also differ in their heat exchanger designs. While ICE radiators focus on high-temperature dissipation, EV radiators are optimized for lower, more consistent heat loads. Microchannel or flat-tube designs are common, as they offer higher surface area-to-volume ratios, enhancing heat transfer efficiency. Additionally, some EVs incorporate phase-change materials (PCMs) within the radiator to absorb excess heat during peak loads, releasing it gradually when demand decreases. This approach ensures thermal stability without overburdening the cooling system.
In practice, EV radiator design requires careful consideration of vehicle-specific factors. For city-focused compact EVs, radiators may prioritize space efficiency and low-speed cooling, while high-performance EVs like the Porsche Taycan demand robust systems capable of handling sustained high-power outputs. Maintenance-wise, EV radiators are generally less prone to clogging or corrosion due to their sealed coolant systems, but periodic checks for debris or leaks are still essential. As EV technology evolves, radiator designs will continue to adapt, blending thermal management with the overarching goal of maximizing efficiency and sustainability.
The Dawn of Electric Lights on Trains: A Historical Overview
You may want to see also
Explore related products
Phase-change materials in cooling systems
Electric vehicle (EV) batteries generate significant heat during operation, requiring efficient cooling systems to maintain optimal performance and longevity. Phase-change materials (PCMs) are emerging as a promising solution in this domain, offering unique thermal management capabilities. These substances absorb and release large amounts of heat during phase transitions, such as melting or solidifying, providing a stable temperature regulation mechanism. For instance, paraffin wax, a common PCM, can store up to 200 kJ/kg of thermal energy during its phase change, making it an effective medium for battery cooling.
Incorporating PCMs into EV cooling systems involves strategic placement around battery packs. When the battery temperature rises, the PCM absorbs excess heat by transitioning from solid to liquid, preventing overheating. Conversely, during cooler conditions, the stored heat is gradually released as the PCM solidifies, maintaining a consistent temperature range. This passive cooling method reduces reliance on active systems like liquid cooling or air conditioning, thereby decreasing energy consumption and increasing overall efficiency.
One practical example is the use of PCM-infused thermal pads or encapsulants directly applied to battery cells. These materials are engineered to have a phase-change temperature slightly above the battery’s ideal operating range (typically 25–40°C). For a lithium-ion battery, a PCM with a melting point of 35°C can effectively mitigate temperature spikes during high-load operations, such as rapid charging or acceleration. Manufacturers like Tesla and BMW are exploring PCM integration to enhance thermal stability in their EV batteries.
Despite their advantages, PCMs present challenges. Their volume expansion during phase change requires accommodating designs to prevent structural stress. Additionally, ensuring uniform heat distribution within the PCM layer is critical for effectiveness. Researchers are addressing these issues by developing composite PCMs with enhanced thermal conductivity, such as embedding graphite or metal particles. These innovations aim to optimize PCM performance while minimizing design complexities.
For EV owners and engineers, understanding PCM applications can guide decisions on thermal management upgrades. Retrofitting existing systems with PCM-based solutions may involve adding PCM modules to battery housings or replacing conventional cooling fluids with PCM-enhanced alternatives. While initial costs may be higher, the long-term benefits include extended battery life, reduced maintenance, and improved energy efficiency. As PCM technology advances, it is poised to become a cornerstone of sustainable EV cooling strategies.
Choosing the Right PVC Conduit for Underground Electrical Installations
You may want to see also
Frequently asked questions
Electric car engines, or electric motors, are typically cooled using liquid cooling systems that circulate coolant through the motor and other components to dissipate heat.
Yes, electric cars often use radiators as part of their cooling system to help regulate the temperature of the coolant and maintain optimal operating conditions for the motor and battery.
While electric motors generate less heat than combustion engines, they still produce enough heat during operation, especially under high loads or fast charging, to require cooling to prevent overheating and ensure efficiency.
Some smaller or less powerful electric vehicles may use air cooling, where airflow around the motor helps dissipate heat. However, most modern electric cars rely on liquid cooling for better efficiency and performance.
