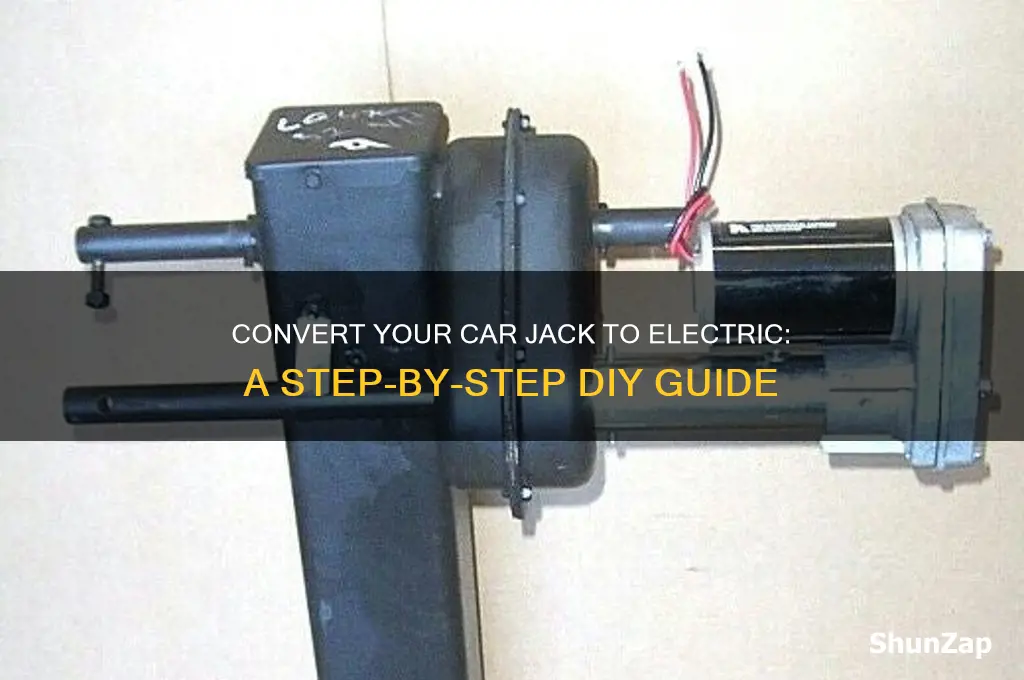

Converting a car to an electric jack system involves replacing the traditional manual or hydraulic jack with an electrically powered mechanism, offering convenience and efficiency. This process typically requires integrating a compact electric motor, a control unit, and a power source, often the vehicle’s battery, to lift the car with minimal effort. The conversion can be particularly useful for drivers seeking a quicker and more user-friendly solution for tire changes or maintenance tasks. However, it demands careful planning, compatibility checks, and adherence to safety standards to ensure the system operates reliably without compromising the vehicle’s structural integrity. Whether opting for a DIY approach or professional installation, understanding the components and steps involved is essential for a successful conversion.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC (from car battery) or portable power pack |
| Lifting Capacity | Typically 1-2 tons (2000-4000 lbs), depending on the model |
| Lifting Height | Usually 6-18 inches (15-45 cm), varies by design |
| Motor Type | Electric motor (usually brushed or brushless) |
| Control Mechanism | Push-button or remote control (wired/wireless) |
| Safety Features | Overload protection, automatic stop at max height, built-in LED light |
| Portability | Compact and lightweight for easy storage in car trunk |
| Conversion Kit Availability | Limited; often requires DIY modifications |
| Cost | $50-$200 (depending on features and brand) |
| Compatibility | Works with most passenger cars and light trucks |
| Charging Time | Not applicable (powered directly from car battery) |
| Weight | Typically 5-15 lbs (2.3-6.8 kg) |
| Material | Steel or aluminum alloy for durability |
| Warranty | Usually 1-2 years, varies by manufacturer |
| DIY Conversion Feasibility | Moderate (requires electrical and mechanical skills) |
| Common Brands | ARB, Superjack, Pro-Lift, and DIY kits |
Explore related products
What You'll Learn
- Types of Electric Jacks: Understand hydraulic, scissor, and floor jack conversions for electric power
- Battery Requirements: Determine voltage, capacity, and compatibility for reliable electric jack operation
- Motor Selection: Choose suitable electric motors based on torque, speed, and efficiency needs
- Control Systems: Design switches, remotes, or apps for precise and safe jack control
- Safety Features: Integrate overload protection, auto-stop, and stability mechanisms for secure usage
Types of Electric Jacks: Understand hydraulic, scissor, and floor jack conversions for electric power
Hydraulic jacks have long been the backbone of car lifting, relying on fluid pressure to generate force. Converting these to electric power involves integrating a motor-driven pump system that automates the hydraulic process. This setup retains the jack’s high lifting capacity while eliminating manual effort. For example, a 2-ton hydraulic floor jack can be paired with a 12V DC motor and a solenoid valve system, allowing precise control via a remote or switch. The key advantage here is scalability—hydraulic systems can handle heavier loads, making them ideal for SUVs or trucks. However, the conversion requires careful calibration to prevent fluid leaks and ensure safety, particularly when dealing with high-pressure components.
Scissor jacks, often found as OEM equipment, are lightweight and compact but traditionally hand-cranked. Electric conversions for these jacks typically involve replacing the manual screw mechanism with a threaded rod driven by a small electric motor. A common approach is to use a 12V gear motor with a speed reducer to maintain torque while minimizing power consumption. This conversion is straightforward and cost-effective, often requiring less than $100 in parts. However, scissor jacks have limited lifting height and capacity, usually maxing out at 1.5 tons, so they’re best suited for compact cars or emergency use. Always ensure the motor’s torque matches the jack’s load to avoid overheating or failure.
Floor jacks, prized for their stability and high lift range, are prime candidates for electric conversion due to their robust design. The process involves mounting an electric motor to the pump mechanism, often using a belt or gear drive system. For instance, a 3-ton floor jack can be converted using a 24V brushless motor with a planetary gearbox, providing smooth and controlled lifting. This setup can be powered by a car battery or portable power station, making it versatile for both garage and roadside use. The challenge lies in aligning the motor’s output with the jack’s piston movement, requiring precision engineering to avoid binding or uneven lifting. When done correctly, this conversion transforms a labor-intensive tool into a convenient, push-button solution.
When choosing a conversion type, consider the jack’s intended use and your technical skill level. Hydraulic conversions offer the most power but demand expertise in fluid systems, while scissor jack upgrades are beginner-friendly but limited in scope. Floor jack conversions strike a balance, providing significant lifting capacity with moderate complexity. Regardless of the type, always prioritize safety—install limit switches to prevent over-extension, and use reinforced mounting brackets to handle the added motor weight. With the right approach, converting a manual jack to electric power can enhance efficiency and reduce physical strain, making car maintenance more accessible for all ages and abilities.
Why IP65 Rated Tools Are Essential for Safe Electrical Work
You may want to see also
Explore related products
Battery Requirements: Determine voltage, capacity, and compatibility for reliable electric jack operation
Converting a car jack to electric operation hinges on selecting the right battery, a decision that demands precision. Voltage, the electrical potential difference driving current flow, must align with the jack’s motor specifications. Most automotive electric jacks operate efficiently between 12V and 24V, mirroring standard car battery voltages. Exceeding this range risks motor burnout, while falling short results in underperformance. Always consult the jack’s manual or manufacturer guidelines to confirm compatibility.
Capacity, measured in ampere-hours (Ah), determines how long the battery can sustain operation before depletion. A 20Ah to 50Ah battery typically suffices for intermittent jack use, but heavier-duty applications, like lifting trucks or SUVs, may require 100Ah or more. Calculate the required capacity by estimating the jack’s current draw (in amps) and desired runtime. For instance, a jack drawing 10A for 30 minutes needs a minimum of 5Ah (10A × 0.5 hours). Factor in a 20% buffer to account for inefficiencies.
Compatibility extends beyond voltage and capacity to include physical dimensions, terminal type, and safety features. Lithium-ion batteries, though compact and lightweight, may require additional circuitry to prevent over-discharge. Lead-acid batteries, while bulkier, are cost-effective and widely compatible. Ensure the battery’s terminals match the jack’s connectors or use adapters. Incorporate a battery management system (BMS) for lithium-ion setups to monitor voltage, temperature, and charge cycles, enhancing safety and longevity.
Practical tips: Opt for deep-cycle batteries designed for sustained discharges rather than starter batteries, which prioritize short bursts. Test the setup under load before relying on it for critical tasks. Store batteries in a cool, dry place to preserve capacity, and recharge them promptly after use to prevent sulfation (in lead-acid types). For portability, consider modular battery packs with quick-disconnect terminals, allowing easy swapping during extended operations.
In summary, reliable electric jack operation depends on a battery that meets voltage, capacity, and compatibility criteria. Prioritize precision in selection, factor in usage demands, and integrate safety measures to ensure longevity and performance. A well-chosen battery transforms a manual jack into a versatile, efficient tool, bridging the gap between convenience and functionality.
Has Ford Halted Electric Car Production? Exploring the Latest Updates
You may want to see also
Explore related products
Motor Selection: Choose suitable electric motors based on torque, speed, and efficiency needs
Selecting the right electric motor for a car jack conversion demands a precise understanding of torque requirements. The motor must deliver enough force to lift the vehicle’s weight, typically ranging from 2,000 to 6,000 pounds, depending on the car. Calculate the necessary torque by multiplying the vehicle’s weight by the mechanical advantage of the jack’s screw mechanism. For instance, a 4,000-pound car with a screw system offering a 1:10 ratio requires a motor capable of 400 pound-feet of torque. High-torque DC motors, such as those used in industrial applications, are often suitable, but ensure the motor’s stall torque exceeds the calculated value to avoid overheating or failure under load.
Speed is another critical factor, as it determines how quickly the jack lifts the vehicle. A balance must be struck between speed and torque, as increasing one often reduces the other. For car jacks, a lifting speed of 5 to 10 millimeters per second is practical, ensuring both efficiency and safety. Brushless DC motors are ideal for this application due to their high efficiency and ability to maintain consistent speed under varying loads. Pair the motor with a gearbox to optimize speed and torque, ensuring the jack operates smoothly without sacrificing power.
Efficiency is paramount, especially in battery-powered systems, as it directly impacts runtime and energy consumption. Motors with efficiency ratings above 85% are recommended to minimize energy loss as heat. Permanent magnet DC motors or brushless DC motors are excellent choices, as they offer high efficiency across a wide range of loads. Consider the duty cycle of the jack—how long it operates versus rests—to select a motor that can handle the thermal load without overheating. For example, a motor with a 30-minute duty cycle is sufficient for occasional use, while continuous-duty motors are better for frequent or prolonged operation.
Practical tips include testing the motor under load before final installation to ensure it meets performance criteria. Use a current sensor to monitor power draw, as excessive current indicates inefficiency or overload. Additionally, incorporate a cooling system, such as a heatsink or fan, if the motor operates near its thermal limit. Finally, choose a motor with a compatible voltage rating for your power source, typically 12V or 24V for automotive applications, to ensure seamless integration with the vehicle’s electrical system. By carefully evaluating torque, speed, and efficiency, you can select a motor that transforms a manual jack into a reliable, electric-powered tool.
Kamala Harris' Eco-Friendly Ride: Does She Drive an Electric Car?
You may want to see also
Explore related products
![[EFN Clearance] Electric Car Jack Kit with Impact Wrench, 5 Ton/11023 LBS 12V Electric Hydraulic Jack with Lifting Range: 6.1~17.7in, Safety Hammer for Tesla SUV MPV Sedan Truck Tire Change (Purple)](https://m.media-amazon.com/images/I/91VTEWzt5lL._AC_UL320_.jpg)
Control Systems: Design switches, remotes, or apps for precise and safe jack control
Converting a car jack to an electric system demands meticulous control system design to ensure precision and safety. The first step involves selecting the right interface: switches, remotes, or apps. Each option has unique advantages. Switches offer tactile feedback and simplicity, ideal for users who prefer direct, hands-on control. Remotes provide convenience and distance operation, reducing physical strain during jacking. Apps, on the other hand, leverage smartphone technology for advanced features like height presets, real-time diagnostics, and integration with vehicle systems. The choice depends on user preference, technical expertise, and desired functionality.
Designing a control system requires careful consideration of safety features. Incorporate limit switches to prevent over-extension or retraction, ensuring the jack operates within safe mechanical boundaries. Emergency stop buttons should be prominently placed on both physical remotes and app interfaces to halt operation instantly in case of malfunction. For app-based systems, implement fail-safe protocols that automatically retract the jack if the app loses connection or detects an anomaly. These safeguards are non-negotiable, as they protect both the vehicle and the user from potential hazards.
Precision is equally critical in electric jack control systems. Utilize microcontrollers like Arduino or Raspberry Pi to program incremental height adjustments, typically in 1-millimeter increments. For remotes, incorporate joystick controls with variable speed settings to allow fine-tuned movement. Apps can include slider interfaces with numerical height displays for exact positioning. Calibrate the system to account for load variations, ensuring consistent performance regardless of vehicle weight. Regularly test the system under different conditions to validate accuracy.
User experience plays a pivotal role in control system design. For switches and remotes, prioritize ergonomic layouts and intuitive labeling to minimize confusion. Apps should feature user-friendly dashboards with clear icons and tooltips, catering to both tech-savvy and novice users. Include tutorial modes or onboarding screens to guide first-time users through operation steps. Feedback mechanisms, such as audible alerts or haptic responses, enhance usability by confirming actions and signaling completion.
Finally, future-proofing the control system ensures longevity and adaptability. Design the hardware and software to support over-the-air updates, enabling feature enhancements and bug fixes without physical modifications. Incorporate modular components that allow for easy upgrades, such as swapping out remotes for app integration or adding sensors for advanced functionality. By prioritizing scalability, the electric jack system remains relevant as technology evolves, providing lasting value to users.
Electric Car Battery Weight: How Heavy Are They Really?
You may want to see also
Explore related products
Safety Features: Integrate overload protection, auto-stop, and stability mechanisms for secure usage
Converting a car jack to an electric model isn’t just about convenience—it’s about ensuring the system operates safely under all conditions. Overload protection is the first line of defense. Integrate a circuit breaker or fuse rated to handle the jack’s maximum load capacity, typically 2–3 tons for passenger vehicles. This prevents motor burnout if the jack encounters resistance beyond its limit, such as lifting a vehicle on uneven ground or attempting to raise a load exceeding its rated capacity. Without this feature, the motor could overheat, leading to permanent damage or even fire hazards.
Auto-stop functionality is equally critical for preventing accidents. Program the jack’s control system to halt automatically when it reaches a predefined height or encounters unexpected resistance. For example, set the auto-stop to activate at 18–20 inches, the standard maximum lift height for most vehicles. This prevents over-extension, which could destabilize the jack or damage the vehicle’s undercarriage. Pair this with a pressure sensor to detect sudden changes in load, ensuring the jack stops immediately if it begins to tilt or slip.
Stability mechanisms are the unsung heroes of electric jack safety. Incorporate a wide base with non-slip pads to distribute weight evenly and prevent shifting on slippery surfaces. Add extendable support legs that deploy automatically when the jack is activated, increasing the contact area with the ground. For added security, include a tilt sensor that triggers an alarm or shuts down the system if the jack deviates more than 5 degrees from vertical. These features are particularly vital when working on uneven terrain or soft surfaces like gravel or grass.
Finally, combine these safety features with user-friendly controls to minimize human error. Equip the jack with a digital display showing real-time load weight, lift height, and stability status. Include a manual override button for emergency stops, clearly labeled and easily accessible. Regularly test the safety mechanisms—for instance, simulate an overload condition monthly to ensure the circuit breaker trips as intended. By prioritizing these safeguards, you transform a basic tool into a reliable, secure device that protects both the vehicle and the user.
Electric Stove Voltage Guide: Power Requirements for Your Kitchen Appliance
You may want to see also
Frequently asked questions
A car electric jack is a powered device used to lift vehicles for maintenance or repairs. Converting it typically involves modifying or upgrading its components for better performance, compatibility, or functionality.
Yes, you can convert a manual jack into an electric one by adding a motor, power source, and control system. However, it requires technical skills and proper safety measures.
You’ll need a motor, battery or power supply, wiring, switches, a control unit, and possibly a mounting bracket. Basic tools like wrenches, screwdrivers, and a soldering iron are also required.
It can be safe if done correctly, but improper modifications can lead to failure or accidents. Ensure the jack is stable, the motor is powerful enough, and all electrical connections are secure.
Yes, there are conversion kits available that include motors, power supplies, and control systems. These kits simplify the process but still require some technical knowledge for installation.
