The depth at which electrical lines are buried depends on several factors, including wire type, voltage, and type of soil. The National Electric Code (NEC) specifies that high-voltage underground cables must be buried at least two feet underground. However, the depth can vary between 6 and 24 inches depending on the specific circumstances. It is important to contact the local electrical authority before beginning any digging to ensure safety and compliance with local regulations.
| Characteristics | Values |
|---|---|
| Burial depth | Between 6 and 24 inches, depending on wire type and voltage |
| Burial depth without conduit or GFCI protection | Deeper than with protection |
| Burial depth with rigid, non-metallic conduit (e.g. PVC) | 18 inches |
| Burial depth with metal conduit | Shallower than with non-metallic conduit |
| Burial depth with UF cable | 24 inches |
| Burial depth with GFCI-protected direct-buried Type UF cable | 12 inches |
| Burial depth with galvanized rigid metal electrical conduit and individual insulated wires | 6 inches |
| Burial depth with PVC conduit and individual insulated wires | 18 inches |
| Required burial depth | Governed by the National Electric Code (NEC) or National Electrical Code |
| Required burial depth with high-voltage underground cables | At least 2 feet |
| Required burial depth with wires in conduit | Depends on state and city electrical codes, and voltage of wires |
| Required distance between water pipes and electrical lines | At least 12 inches |
| Required action before digging | Call local electrical authority to avoid wires and gas lines |
| Required action before installation | Check local and municipal laws and regulations; apply for construction and electrical permits if required |
Explore related products
What You'll Learn
- The National Electric Code (NEC) states that high-voltage underground cables must be buried at least two feet deep
- The burial depth depends on the type of soil and whether you use a conduit
- Underground Feeder Cable (UF cable) is designed for burial and should be buried at a depth of 24 inches
- Electrical wires are not always required by law to be placed in a conduit, but it is highly recommended
- Before burying electrical wires, call your local electrical authority to ensure you don't dig into any wires or gas lines
The National Electric Code (NEC) states that high-voltage underground cables must be buried at least two feet deep
The National Electric Code (NEC) is a set of safety standards for electrical installation developed by the National Fire Protection Association (NFPA). The NEC governs the appropriate depth for burying electrical wires, which depends on the wire type and its voltage.

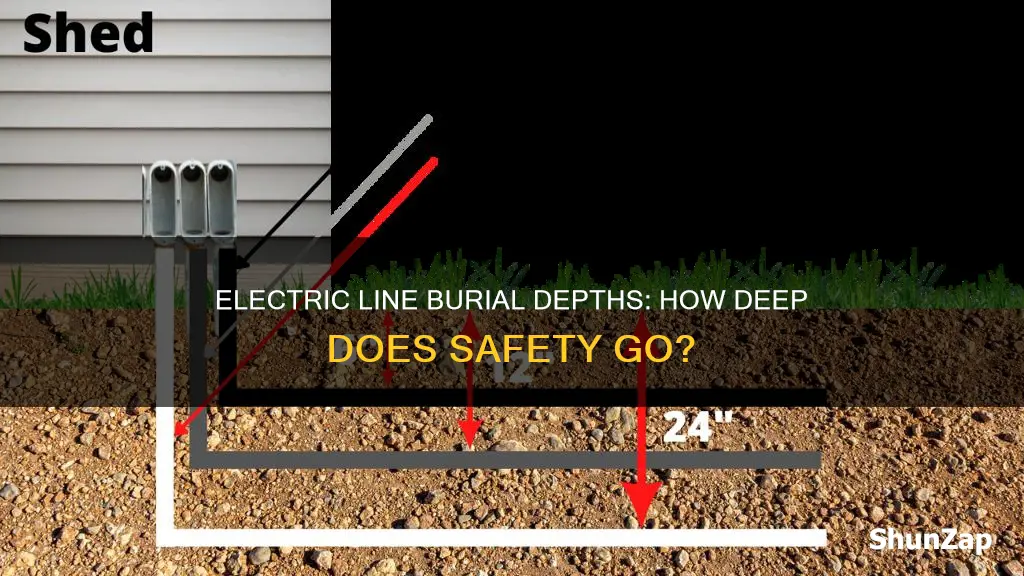

The NEC states that high-voltage underground cables must be buried at least two feet deep. This equates to 24 inches, and these cables are often placed in a trench. Direct-buried cable is alone at the bottom of the trench without conduit or GFCI protection, so it must be installed deeper in the ground.
The burial depth of electrical wiring also depends on the type of soil and whether a conduit is used. If the soil is granular and easy to dig, you can save money on electrical materials by digging deeper and potentially avoiding the need to install a protective conduit. Conversely, if the soil is rocky or heavy clay, or there are lots of tree roots, you can dig less and protect the wiring with a metal or plastic conduit.
Walk-behind trenching machines that dig down to 24 inches are available for rent at hardware stores, home centres, and equipment rental outlets. The burial depth of outdoor wiring in a conduit depends on the conduit type. For example, PVC conduit must be buried at least 18 inches deep, while galvanized metal electrical conduits must be buried at least six inches deep.
Before starting any electrical work, it is important to check local and municipal laws and regulations on cable burial. It is also recommended to contact the local electrical authority to ensure you don't dig into any wires or gas lines.
