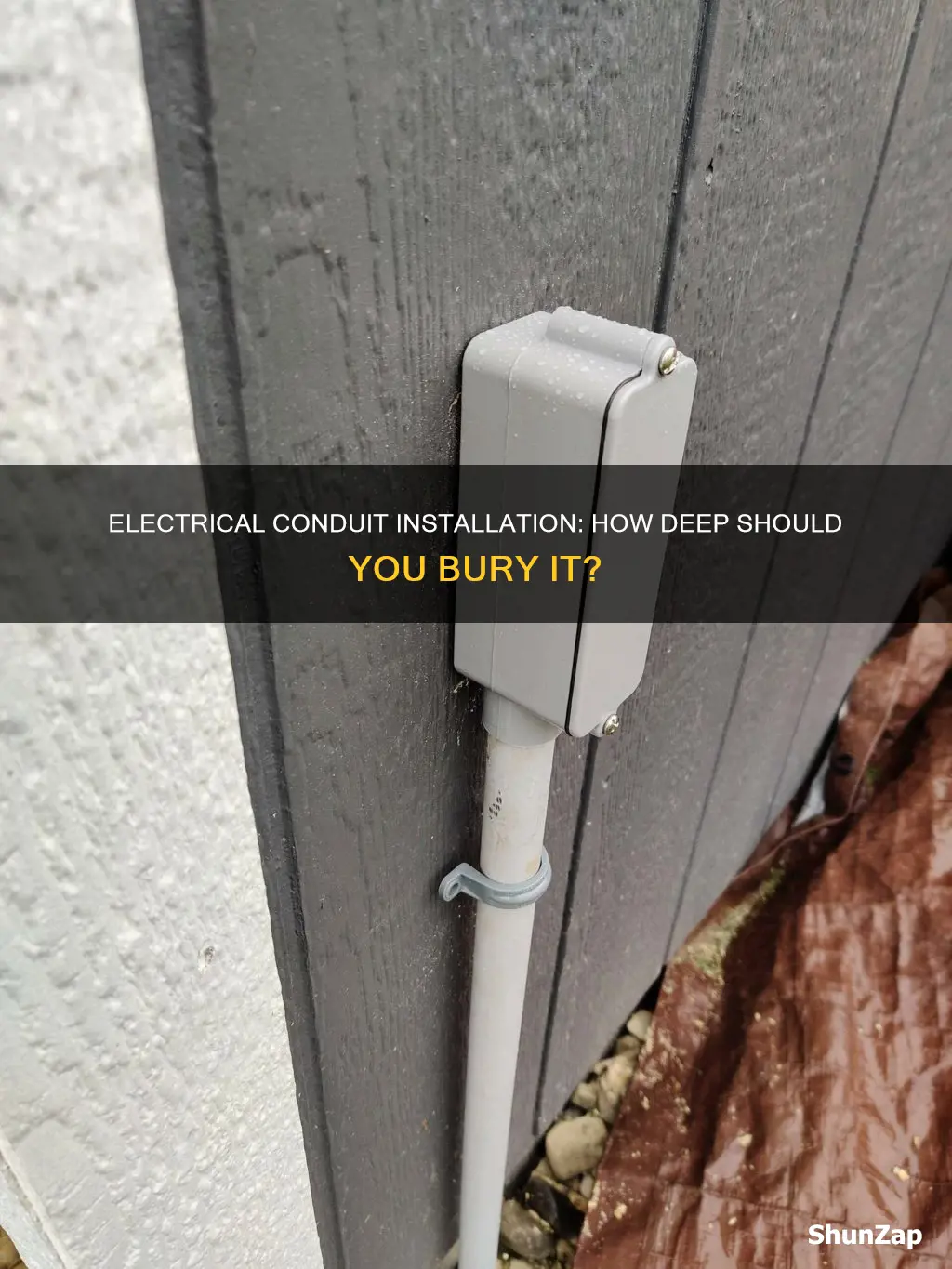

Electrical conduits are essential for safely transporting power through hidden pathways. The depth at which they are buried is critical to any construction or landscaping project, ensuring the safety and longevity of the electrical system. The burial depth depends on various factors, including the type of conduit, the nature of the installation, and local building codes and regulations. For example, PVC conduit requires a minimum cover depth of 18 inches for residential installations and 24 inches for non-residential installations, while galvanized metal electrical conduits can be buried as shallow as 6 inches deep. It's crucial to follow the National Electrical Code (NEC) and consult local authorities to ensure compliance and safe installation.
| Characteristics | Values |
|---|---|
| Purpose of Burial | Protection from physical damage, environmental hazards, and accidental human contact |
| Burial Depth | Minimum 18 inches for residential installations and 24 inches for non-residential installations |
| Type of Conduit | Liquid-tight conduits like LFMC or LFNC |
| Location | Depends on various factors, including local building codes and regulations |
| Climate | In regions with extreme cold conditions, deeper burial might be necessary |
| Installation | Direct burial is not recommended for EMT due to its thinner walls |
| Conduit Material | Metal and non-metal, including PVC, steel, aluminum, and flexible conduit |
| National Electrical Code (NEC) | Outlines specific safety requirements for outdoor electrical wiring |
Explore related products
What You'll Learn
Burial depth varies by location and purpose
The burial depth of electrical conduits is critical to any construction or landscaping project. It ensures the safety and longevity of the electrical system and minimises the risk of accidents. The depth at which electrical conduits must be buried varies by location and purpose.
Firstly, the burial depth depends on the type of conduit being used. For instance, the National Electrical Code (NEC) states that PVC conduit must be buried at least 18 inches deep for residential installations and 24 inches for non-residential installations. In contrast, galvanised metal electrical conduits only need to be buried at least 6 inches deep.
Secondly, the burial depth is influenced by the location of the installation. Different regions have varying soil types, and some areas experience extreme cold conditions, which can affect the depth at which conduits must be buried. For example, in places like Alaska, Minnesota, and parts of Canada, deeper burial is required to protect the wiring from extreme cold temperatures.
Thirdly, the purpose of the conduit installation also determines the burial depth. If the installation is located under a road, driveway, or other areas with vehicular traffic, a greater burial depth may be necessary to provide extra protection against damage.
Finally, it is important to consider local building codes and regulations when determining the burial depth. These codes are in place to protect owners from loss and ensure the safety and reliability of the electrical system. Consulting local authorities or building codes is crucial to determining the specific depth required for a particular location.
In summary, the burial depth of electrical conduits varies depending on the type of conduit, the location of the installation, the purpose of the installation, and the applicable building codes and regulations. Properly burying the conduit at the recommended depth is essential to protect the wiring from damage, ensure electrical safety, and prevent issues such as electrical shorts, power outages, and potential fires.
Understanding Digital Electric Meters: A Beginner's Guide
You may want to see also
Explore related products
Burial depth depends on the conduit type
The burial depth of electrical conduit depends on several factors, including the type of conduit, the nature of the installation, and local building codes and regulations.
PVC Conduit
PVC (polyvinyl chloride) conduit is commonly used for underground installations due to its resistance to corrosion and moisture. According to the National Electrical Code (NEC), PVC conduit requires a minimum burial depth of 18 inches for residential installations and 24 inches for non-residential installations.
Galvanized Metal Electrical Conduit
Galvanized EMT (metal electrical conduit) with individual conductors inside can be buried at a minimum depth of 6 inches. The EMT's durability allows it to withstand potential damage from a shovel or other causes of shorting the wiring.
Liquid-Tight Conduit
Liquid-tight conduits, such as LFMC (metal conduit with a PVC cover) or LFNC (flexible non-metallic conduit), are recommended for their crush and corrosion resistance. The NEC guidelines suggest a burial depth of at least 24 inches for these conduits.
Location and Climate Considerations
It is important to note that burial depth requirements can vary based on location and climate conditions. For example, regions with extreme cold temperatures, such as Alaska, Minnesota, and parts of Canada, may require deeper burial to protect the wiring from year-round freezing conditions.
Consulting local authorities, building codes, and utility company requirements is crucial to determining the appropriate burial depth for electrical conduits, ensuring compliance and safe installation.
Auto Electric Repairs: Don's Moore, OK Services
You may want to see also
Explore related products
Local building codes and regulations
The National Electrical Code (NEC) provides a baseline for electrical conduit burial depth requirements, but local codes and specific environmental factors may necessitate deeper burial. For example, the NEC requires a minimum cover depth of 18 inches for residential installations of RMC and IMC conduits, while EMT conduits, if permitted by local codes, should also have a minimum depth of 18 inches. However, your local regulations may require a greater depth, especially for installations under roads, driveways, or other areas with vehicular traffic to provide extra protection against damage.
In commercial settings, the required burial depth can vary based on the type of conduit and expected load. While the NEC recommends a minimum depth of 24 inches for non-metallic conduit, local codes may specify a different depth. For instance, metal conduit in commercial settings may only require 6 to 12 inches of burial depth according to local regulations. Additionally, certain locations, such as under airport runways, will have specific depth requirements outlined by the NEC or local codes.
It is worth noting that local building codes may also dictate the type of conduit material used. For instance, fiberglass conduit is often a superior choice in industrial and commercial environments due to its flexibility, safety, and longevity benefits. Consulting with local experts or authorities can help determine the most suitable conduit material for your specific project and location.
Finally, local building inspection departments play a crucial role in ensuring compliance with electrical conduit burial projects. They can provide guidance on whether an electrical permit and inspections are required for your project. The electrical inspector will verify the depth of the trench and inspect the wiring before it is covered, ensuring the safety and correctness of the installation. Therefore, it is essential to contact your local building inspection department and follow their instructions to avoid any issues.
Electric Razors: Checked Bags Safety
You may want to see also
Explore related products
Protecting wiring from wind damage and extreme weather
Burying electrical conduit at the correct depth is essential for protecting wiring from wind damage and extreme weather. The depth varies depending on several factors, including the type of conduit, the location, and local building codes.
As a general rule, most safety codes require electrical conduits to be buried at a minimum depth of 24 inches. This depth provides adequate protection from physical damage, environmental hazards, and accidental human contact, reducing the risk of electrical shorts, power outages, and fires.
However, the burial depth can be as little as 18 inches under concrete or roadways since the added protection of the concrete reduces the risk of damage. In areas with heavy frost or extreme cold, deeper burial may be necessary to avoid frost heave, with depths of 30 inches or more in some cases. For example, in regions like Alaska, Minnesota, and parts of Canada, deeper burial is required to protect the wiring from extreme cold temperatures.
The type of conduit material also influences the required burial depth. For instance, PVC conduit, one of the most commonly used types, typically requires a minimum depth of 18 inches for residential installations and 24 inches for non-residential installations. On the other hand, rigid metal conduits carrying circuits rated 1,000 volts or less usually need to be buried at a minimum depth of 6 inches.
Additionally, the soil conditions can affect the required depth. In areas with rocky or unstable soil, deeper burial may be needed to ensure adequate protection for the wiring.
It is crucial to consult local building codes and authorities to determine the specific burial depth required for a project, as non-compliance can result in fines and safety hazards. Properly protecting the wiring from wind damage and extreme weather through correct conduit burial depth ensures the safety and longevity of the electrical system.
Electric Scooters: Ohio's Street Legality Question
You may want to see also
Explore related products
Burial depth and preventing human contact
The burial depth of electrical conduits is crucial for preventing accidental human contact and ensuring electrical safety. Shallow conduits are more susceptible to damage from digging or heavy machinery, which can lead to electrical shorts, power outages, and potentially dangerous fires. Therefore, it is essential to follow the recommended burial depths to safeguard both workers and the wires themselves.
The National Electrical Code (NEC) serves as a general guideline for burial depths, recommending a minimum depth of 24 inches for liquid-tight conduits like LFMC or LFNC. However, this is just a starting point, and the actual depth may vary depending on factors such as location, climate, and the type of conduit. For example, in regions with extreme cold, such as Alaska, Minnesota, and parts of Canada, deeper burial may be necessary to protect the wiring from deep ground freezes.
The type of conduit also plays a significant role in determining the required burial depth. PVC conduit, one of the most frequently used types, needs to be buried at a minimum depth of 18 inches for residential installations and 24 inches for non-residential installations. Galvanized metal electrical conduits, on the other hand, can be buried at a shallower depth of 6 inches. The choice of conduit depends on the specific needs of the installation, considering factors like corrosion and moisture resistance.
To ensure compliance with local codes and regulations, it is crucial to consult the relevant authorities before proceeding with any electrical conduit installation. By adhering to the recommended burial depths and considering the specific location and environmental factors, we can effectively prevent human contact, protect the wiring, and ensure the overall safety and longevity of the electrical system.
The Quiet Power of Caterpillar D6 Sxe Electric
You may want to see also
Frequently asked questions
The depth at which electrical conduit should be buried depends on a variety of factors, including the type of conduit, the location of the installation, and the local building codes. As a general rule, conduit should be buried at a depth of at least 18 inches, but in some cases, it may need to be buried deeper. For example, in places with extreme cold conditions, such as Alaska, Minnesota, and parts of Canada, deeper burial is necessary to protect the wiring from freezing.
There are several types of electrical conduits, including PVC (polyvinyl chloride), steel, aluminum, and flexible conduits. Each type has its own advantages and disadvantages, and the choice depends on the specific needs of the installation. Here are the recommended burial depths for some common types of electrical conduits:
- PVC conduit: 18 inches for residential installations and 24 inches for non-residential installations.
- Galvanized metal electrical conduit: 6 inches deep.
- Liquid-tight conduits (LFMC or LFNC): 24 inches deep.
- Direct-burial underground feeder cable: 24 inches deep or more.
Burying electrical conduits at the correct depth is crucial for several reasons. Firstly, it protects the conduits from physical damage, environmental hazards, and accidental human contact. Shallow conduits are more vulnerable to damage from digging or heavy machinery. Secondly, proper burial depth ensures compliance with building codes and safety standards, such as the National Electrical Code (NEC). Failing to adhere to these codes can result in violations, fines, and failed inspections. Lastly, burying conduits at the appropriate depth helps to prevent issues like electrical shorts, power outages, and potentially dangerous fires.
