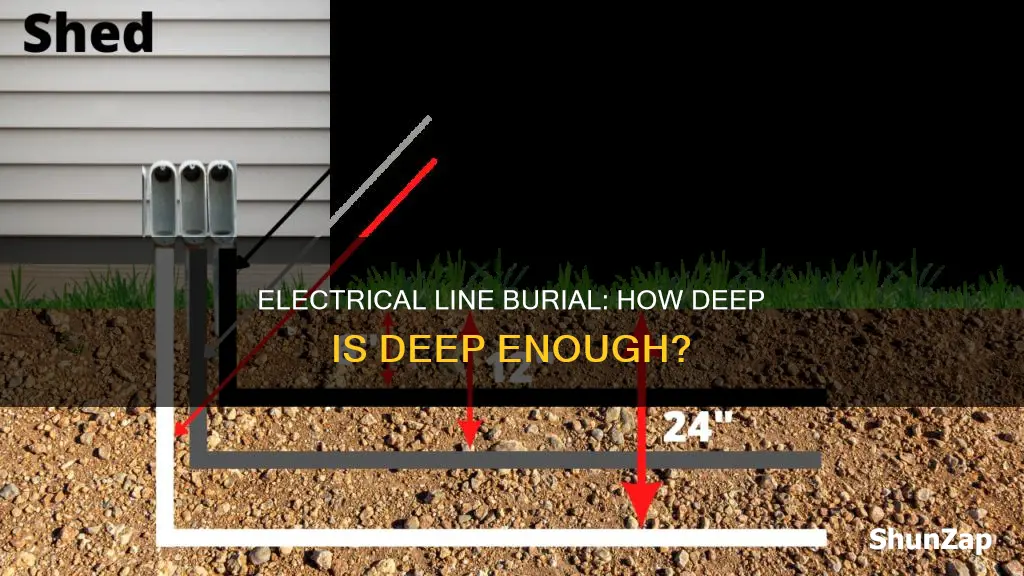

The depth at which electrical lines should be buried depends on the type of wiring and the method used. The National Electrical Code (NEC) outlines specific safety requirements for all outdoor outlets across residential, commercial, and industrial settings. For example, direct-bury cables (high voltage) must be buried at least 24 inches (2 feet) deep unless in a conduit, while low-voltage wires (under 30 volts) must be buried at least 6 inches deep. If you are installing electrical wiring, it is important to follow the NEC and check with your local building inspection department to ensure your work is safe and up to code.
| Characteristics | Values |
|---|---|
| Minimum depth for electrical lines | 18 inches |
| Minimum depth for galvanized EMT (metal electrical conduit) with individual conductors inside | 6 inches |
| Minimum depth for PVC conduit | 18 inches |
| Minimum depth for direct burial low-voltage wires | 6 inches |
| Minimum depth for direct-burial underground feeder cable | 24 inches |
| Minimum depth for direct-buried high-voltage cables | 24 inches |
Explore related products
What You'll Learn
Burial depth depends on the conduit type
The burial depth of electrical lines depends on several factors, including the type of conduit, the nature of the installation, and local building codes. The National Electrical Code (NEC) provides guidelines for the burial depth of electrical conduits, but it's important to refer to local codes and regulations as well.
For residential installations, the NEC requires a minimum cover depth of 6 inches for RMC and IMC, which offer excellent protection against physical damage. EMT, with its thinner walls, is typically not recommended for direct burial and requires a minimum depth of 18 inches if permitted by local codes.
PVC conduit, a common type of non-metal conduit, is required to be buried at a minimum depth of 18 inches. It is important to note that PVC conduit should not be placed in direct sunlight due to its low UV stability. If you're installing PVC conduit with individual insulated wires, the burial depth should be 18 inches.
Galvanized rigid metal electrical conduit, on the other hand, can be installed at a shallower depth of 6 inches. This type of conduit is made with galvanized steel and threaded fittings, providing strength and durability.
The burial depth also depends on the voltage of the wiring. Low-voltage landscape wires and landscape lighting wires must be buried at a minimum depth of 6 inches. All other direct burial wires, such as high-voltage direct bury cables, must be buried deeper, typically at a minimum of 24 inches.
Electric Ovens and Carbon Monoxide: What's the Real Danger?
You may want to see also
Explore related products
Minimum depth requirements
The minimum depth requirements for burying electrical lines depend on several factors, including the type of conduit, the voltage, and local regulations. Here is a detailed overview of the minimum depth requirements:
Conduit Type:
The type of conduit used plays a crucial role in determining the minimum burial depth. For instance, if you're using galvanized rigid metal electrical conduit or EMT (Electrical Metal Tubing) with individual conductors inside, a minimum depth of 6 inches is sufficient. This type of conduit is designed to withstand physical damage, such as from shovels or other potential causes of shorting the wiring.
PVC (Polyvinyl Chloride) conduit, on the other hand, requires a greater burial depth. PVC conduit must be installed at a minimum depth of 18 inches. This increased depth is necessary to provide adequate protection for the electrical lines.
Voltage:
The voltage of the electrical lines also determines the minimum burial depth. High-voltage direct-bury cables must be buried deeper than low-voltage wires. While high-voltage cables should be installed at a minimum depth of 24 inches, low-voltage wires, typically those under 30 volts, can be buried at a minimum depth of 6 inches.
Local Regulations and Safety Standards:
It is essential to adhere to local regulations and safety standards when installing underground electrical wiring. The National Electrical Code (NEC) provides specific guidelines for outdoor electrical installations. The NEC requires all outdoor outlets to be protected by a GFCI (Ground-Fault Circuit Interrupter) and mandates that direct-bury high-voltage cables be buried at least 24 inches deep unless they are placed in a conduit.
Additionally, local building inspection departments can provide guidance on whether electrical permits and inspections are required for your project. An electrical inspector will verify the depth of the trench and inspect the wiring before it is covered, ensuring that your installation meets the necessary safety standards.
Soil Conditions:
The depth of burial can also be influenced by the soil conditions. If the soil is rocky or composed of heavy clay, or if there are numerous tree roots, you may need to protect the wiring in metal or plastic conduit. In such cases, you can opt for conduit-protected wiring, which requires less digging.
In summary, the minimum depth requirements for burying electrical lines range from 6 inches to 24 inches, depending on the conduit type, voltage, local regulations, and soil conditions. It is essential to carefully plan your project, considering the specific requirements of the wiring you intend to use, to ensure a safe and compliant installation.
Electric Tea Kettles: Healthy or Hazardous?
You may want to see also
Explore related products
Protecting wiring from physical damage
The depth at which electrical wires should be buried depends on the wire type and voltage, and local regulations. It is important to check local and municipal laws and regulations on cable burial, as well as with local utilities, to identify the location of any existing underground utilities. The depth can vary from 6 to 24 inches, with high-voltage cables typically requiring a greater depth of at least 24 inches, while low-voltage wires can be as shallow as 6 inches.
Using a conduit is an effective way to protect wiring from physical damage. Conduits provide a protective shell around the wires, shielding them from moisture, dirt, animals, and other environmental factors. There are different types of conduits available, such as PVC and metal, each with specific depth requirements. For example, PVC conduit must be buried at least 18 inches deep, while galvanized metal electrical conduits require a minimum depth of 6 inches.
In addition to depth and conduit considerations, there are other ways to protect wiring from physical damage. It is recommended to use clean fill when backfilling trenches to prevent damage to conduits and wires. Using a trenching machine can also help ensure a straight path for the wiring, reducing the risk of damage. Mapping out the wiring route and adding warning tape above the trench can also help prevent future accidents.
Overall, protecting wiring from physical damage involves a combination of adhering to depth requirements, using appropriate conduits, and employing careful installation and maintenance practices.
The Dynamic Link: Electricity, Magnetism, and Motion
You may want to see also
Explore related products
Safety requirements for electrical installations
When installing electrical lines, safety is paramount. There are several safety requirements that must be followed to ensure the protection and longevity of the electrical system, prevent accidents, and comply with building codes. Here are some detailed instructions and requirements for safe electrical installations:
Planning and Permits:
Before beginning any electrical installation, it is crucial to plan the project carefully. This includes determining the wiring path, selecting the appropriate wiring method and circuit, and consulting local and municipal laws, regulations, and building codes. In some cases, permits and inspections may be required, so it is important to contact the local building inspection department or authority to obtain necessary approvals. Calling 811 before digging is also essential to prevent any potential hazards from existing utility lines.
Wiring Methods and Materials:
The National Electrical Code (NEC) provides guidelines for allowable wiring methods and materials. It is important to select the appropriate wiring method, such as PVC or direct burial cables, based on the specific requirements of the installation. The type of soil and voltage of the wire are also important factors to consider when choosing wiring materials. Using wiring rated for underground use and ensuring protection from moisture and physical damage are crucial steps.
Burial Depth:
The depth at which electrical lines should be buried depends on various factors, including the type of conduit, the nature of the installation, and local regulations. As a general rule, most safety codes require a burial depth of at least 24 inches for direct burial cables to provide adequate protection. However, when using conduits, the depth may vary. For example, PVC conduits should be buried at a minimum depth of 18 inches, while galvanized metal electrical conduits require a depth of at least 6 inches. Burial depth may also be influenced by the location, with deeper burials required in areas with extreme temperatures and deep ground freezes.
Conduit Protection:
Conduits play a vital role in protecting electrical wiring from environmental factors, physical damage, and corrosion. They also help organize and separate multiple cables, reducing entanglement risks. When installing conduits, it is important to ensure they are properly installed and sealed to prevent moisture intrusion and protect against mechanical stress. Conduits can be made of materials like PVC, steel, aluminum, or flexible materials, each with its own advantages and disadvantages.
Ground-Fault Circuit Interrupters (GFCIs):
According to the NEC, all outdoor outlets must be protected by a GFCI, regardless of the setting. GFCIs provide safety measures by interrupting the circuit in the event of a ground fault. When GFCIs are exposed to the elements, they must be covered with an in-use cover to maintain protection. Additionally, temporary outdoor wiring and outlets near water sources must comply with NEC safety requirements to ensure safety.
Warning Measures:
To prevent accidents and ensure safety, it is important to place warning tape or ribbons above the trench before backfilling. This helps identify the presence of electrical lines and prevents accidental damage during future excavations or maintenance work.
By following these safety requirements and staying informed about specific local and national codes, you can ensure that your electrical installations are safe, reliable, and compliant with regulations.
Electric Sheep Annotations: Exploring Androids' Dreams and Their Meanings
You may want to see also
Explore related products
How to install underground wiring
The depth at which electrical lines should be buried varies according to the type of wiring and conduit used. The National Electrical Code (NEC) outlines specific safety requirements for outdoor electrical wiring, which vary for residential, commercial, and industrial settings.
For example, galvanized metal electrical conduits must be buried at least 6 inches deep, while PVC conduits need to be at least 18 inches deep. Direct-buried high-voltage cables must be placed at a minimum depth of 24 inches unless they are inside a conduit. Low-voltage wires (under 30 volts) and landscape lighting wires need to be buried at a minimum of 6 inches. All other direct burial wires must be at least 24 inches deep.
Before beginning any installation, it is important to call your local building inspection department to learn about any necessary permits and inspections. The electrical inspector will verify the trench depth and wiring before it is covered, ensuring your work is safe and up to code.
Now, let's go through the process of installing underground wiring step by step:
Firstly, determine the path of your wiring. Identify any potential obstacles, such as tree roots or rocky soil, and decide whether you will need to use metal or plastic conduit to protect the wiring. Consider renting a walk-behind trenching machine to make digging easier.
Once you have planned your route and gathered the necessary equipment, it is time to start digging. Ensure your trench is deep enough for the type of wiring you are using, referring to the depth guidelines mentioned earlier.
If you are using conduit, install it first. For galvanized metal conduits, the recommended depth is 6 inches, while PVC conduits should be buried at least 18 inches deep. Pull the wires through the conduit once it is completely installed from end to end. Remember to use wires rated for wet locations, such as Type THWN-2.
If you are not using conduit, you will need to use direct-bury cables. These high-voltage cables must be buried at a minimum depth of 24 inches. For low-voltage applications, such as landscape lighting, a depth of 6 inches is sufficient.
Finally, remember to follow essential safety precautions. All outdoor outlets must be protected by a GFCI (Ground-Fault Circuit Interrupter), and direct-bury cables must be properly rated for their depth and location. Use clean fill to backfill trenches, avoiding rocks, sharp objects, or corrosive materials, to prevent damage to conduits and wires.
General Electric: Is It Still Operational?
You may want to see also
Frequently asked questions
The depth at which electrical lines should be buried depends on the type of wire and whether it is placed within a conduit or not. The National Electrical Code (NEC) outlines specific safety requirements for all outdoor outlets across residential, commercial, and industrial settings. For example, direct-bury cables (high voltage) must be buried at least 24 inches (2 feet) deep unless in a conduit.
The minimum depth at which electrical lines can be buried is 6 inches. This is applicable to low-voltage landscape wires (under 30 volts) and landscape lighting wires (30V, Type UF or similar).
The depth at which electrical lines can be buried is dependent on the type of wire and conduit used. There does not appear to be a maximum depth outlined in the National Electrical Code (NEC). However, it is important to note that deeper burials may require more extensive trenching and increased costs.
