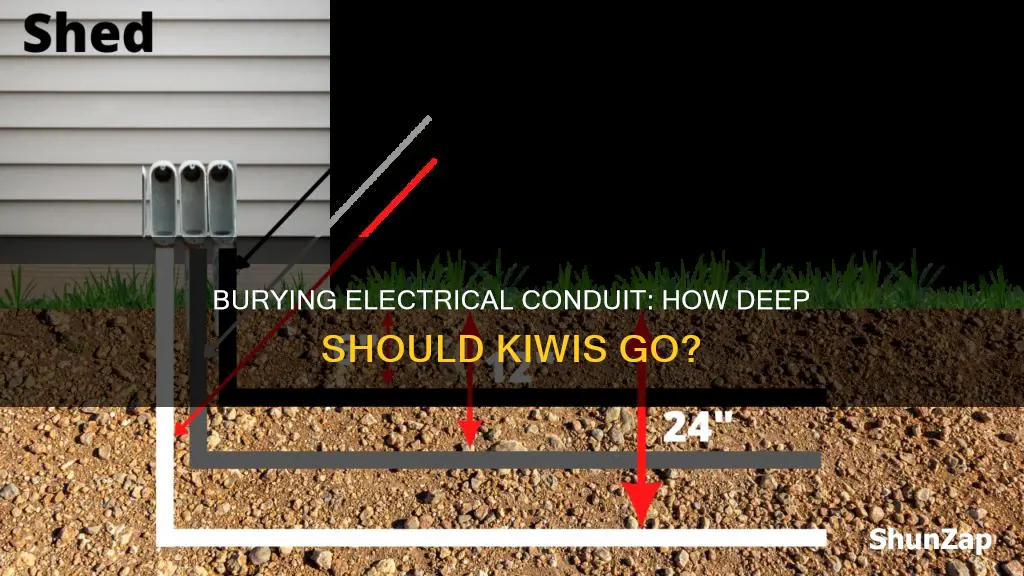

Burying electrical cables is a common DIY project for homeowners, but it's important to get it right. The depth at which electrical conduit should be buried depends on a variety of factors, including the type of conduit, the nature of the installation, and local building codes and regulations. The National Electrical Code (NEC) outlines specific safety requirements for all outdoor outlets, including burial depth requirements. The minimum depth for electrical cable varies depending on the type of conduit and the voltage of the wires. For example, low-voltage landscape wires require a minimum depth of 6 inches, while other direct burial wires must be buried at least 24 inches deep. PVC conduit, a popular choice for its resistance to corrosion and moisture, should be buried to a minimum depth of 18 inches for residential installations and 24 inches for non-residential installations. It's important to consult local codes and regulations to ensure compliance and safe installation.
| Characteristics | Values |
|---|---|
| Minimum depth for electrical cable | 500mm from the surface to the top of the conduit or 300mm from the underside of a 75mm+ concrete slab to the top of the conduit |
| Minimum depth for direct burial cables | 24 inches |
| Minimum depth for PVC conduit | 18 inches |
| Minimum depth for galvanized metal electrical conduits | 6 inches |
| Minimum depth for low-voltage wires | 6 inches |
| Minimum depth for landscape lighting wires | 6 inches |
| Minimum depth for pool, spa, and fountain lighting wires | 6 inches |
| Minimum depth for residential installations | 6 inches |
| Minimum depth for non-residential installations | 18 inches |
Explore related products
What You'll Learn
Burial depth depends on conduit type
The burial depth of electrical conduit depends on several factors, including the type of conduit, the nature of the installation, and local building codes and regulations.
According to the National Electrical Code (NEC), the required burial depth for conduits can vary. For instance, PVC conduit, one of the most frequently used types, requires a minimum cover depth of 18 inches for residential installations and 24 inches for non-residential installations. Galvanized metal electrical conduits, on the other hand, need to be buried at a minimum depth of 6 inches. The NEC also specifies that low-voltage landscape wires must be buried at a minimum depth of 6 inches, while all other direct burial wires need to be at least 24 inches underground.
In New Zealand, the rules specify a minimum depth of 500mm from the surface to the top of the conduit or 300mm from the underside of a 75mm+ concrete slab to the top of the conduit. This allows for a conduit diameter of up to 100mm while remaining compliant with regulations.
It is important to note that local codes and regulations may differ from the NEC, so it is crucial to consult these before beginning any electrical conduit installation project. Additionally, the type of soil can impact the depth of burial, with rocky or heavy clay soils requiring different considerations than granular, easily-diggable soils.
Electrical Maintenance Licensing in Washington: What You Need to Know
You may want to see also
Explore related products
Local building codes matter
The depth at which electrical conduits should be buried is influenced by factors such as the type of conduit, the nature of the installation, and local building codes. For example, PVC (polyvinyl chloride) conduit, a commonly used type, is required to be buried at a minimum depth of 18 inches for residential installations according to the NEC. In contrast, galvanized metal electrical conduits, a type of rigid metal conduit, typically require a burial depth of only 6 inches. The specific type of conduit chosen depends on the particular needs of the installation, as each type has its advantages and disadvantages.
Local building codes also dictate the installation requirements for different voltage levels. Low-voltage landscape wires, for instance, typically need to be buried at a minimum depth of 6 inches, while all other direct burial wires must be installed at a greater depth of 24 inches. Additionally, local codes address the compatibility of different voltage wires within the same conduit or trench. Low-voltage wires (12-24V) and higher-voltage circuits (120/240V) cannot share the same conduit but may occupy the same trench if they are in separate conduits.
Furthermore, local building codes consider the location of the installation. For instance, if the conduit installation is under a road, driveway, or other areas with vehicular traffic, the required burial depth may be greater to provide enhanced protection against potential damage. Similarly, local codes may require deeper burial for installations in areas with rocky soil, heavy clay, or extensive tree roots to safeguard against physical damage. Therefore, it is essential to be aware of the specific requirements of your local building codes to ensure compliance and the safe and reliable functioning of your electrical system.
The US Electric Grid: A Failing System?
You may want to see also
Explore related products
$40.49
Trench depth options
The National Electrical Code (NEC) provides specific safety requirements for outdoor electrical wiring in residential, commercial, and industrial settings. According to the NEC, the required depth for burying electrical conduits is typically 18 inches for residential installations and 24 inches for non-residential installations.
However, the depth can vary depending on the specific circumstances. For example, if the installation is under a road, driveway, or other areas with vehicular traffic, a greater burial depth may be required to provide extra protection against damage.
- PVC conduit: Requires a minimum depth of 18 inches for residential installations and 24 inches for non-residential, according to the NEC.
- Galvanized metal electrical conduits: These should be buried at a minimum depth of 6 inches.
- Low-voltage landscape wires: Must be buried at a minimum depth of 6 inches.
- All other direct burial wires: Require a minimum depth of 24 inches.
- Pool, spa, and fountain lighting wires: Should be buried at a minimum depth of 6 inches.
- Underground Feeder (UF) cables: Can be rated for direct burial without conduit and should be buried at a minimum depth of 24 inches.
- GFCI-protected direct-buried Type UF cable: Should be installed at a depth of 12 inches.
- Type UF cable without conduit or GFCI protection: Should be installed at a depth of 24 inches.
It is important to note that these are general guidelines, and specific requirements may vary based on local codes and regulations. Consulting with local authorities or professionals is essential to ensure compliance and safe installation.
Electric Razor Shaving: Pain or Pleasure?
You may want to see also
Explore related products
$24.95
Underground wiring safety
Minimum Depth Requirements
There are minimum depth requirements for burying electrical cables to ensure safety and compliance with regulations. The exact depth can vary depending on the specific circumstances and local regulations. In some cases, the minimum depth may be specified as a distance from the surface to the top of the conduit, or from the underside of a concrete slab to the top of the conduit. It's important to consult local regulations and authorities to determine the required minimum depth for your specific project.
Voltage Considerations
The voltage of the electrical cable can also influence the minimum depth requirements. Different standards and regulations, such as AS/NZS 3000, ESR 59, and Clause 3.11, outline the requirements for underground wiring, including the depth of burial. However, it's important to note that there may be exceptions or modifications outlined in other sections or standards for specific types of installations.
Waterproofing and Cable Type
Waterproofing is crucial for underground wiring. Even with a perfectly waterproof conduit, moist air and condensation can still accumulate inside. Therefore, it is important to use wet-rated cables in all outside conduits, as defined by electrical standards. Additionally, it is recommended to separate data cables from power cables to prevent interference and ensure the data cables are exterior-grade to avoid rotting underground.
Safe Working Practices
Working near underground cables requires strict adherence to safety guidelines. Before commencing any work, it is essential to identify the location of underground cables to prevent damage to the network. Services like beforeUdig provide free online plans detailing the locations of underground cables and other utilities. For work near power lines or underground power cables, it is important to maintain safe distances as outlined in the New Zealand Electrical Code of Practice for Electrical Safe Distances (NZECP 34:2001). MainPower NZ also offers services to locate and mark underground electrical cables and provide on-site safety supervision if needed.
Super Home Warranty: Electric Outlay Covered?
You may want to see also
Explore related products
Burial wiring protection
The National Electrical Code (NEC) provides specific safety requirements for outdoor electrical wiring in residential, commercial, and industrial settings. According to the NEC, direct-bury cables must be buried at least 24 inches deep unless they are in a conduit. Low-voltage wires (12-24V) must be buried at least 6 inches deep and cannot share the same conduit as 120/240V circuits, but they can share a trench if they are in separate conduits.
The type of conduit also determines the required burial depth. For example, PVC conduit must be buried at least 18 inches deep, while galvanized metal electrical conduits only need to be buried at least 6 inches deep. If the installation is located under a road, driveway, or other areas with vehicular traffic, deeper burial may be required to provide extra protection against damage.
In addition to depth requirements, it is essential to use wiring rated for underground use and to protect the wiring from moisture and physical damage. Warning tape should be placed above the trench to prevent future accidents, and outdoor circuits should have GFCI (Ground-Fault Circuit Interrupter) protection. Before beginning any installation, it is crucial to consult local codes, regulations, and utility company requirements to ensure compliance and safe installation.
In New Zealand, specific regulations and standards, such as AS/NZS 3000, ESR 59, and Clause 3.11, outline the requirements for underground wiring, including the depth of burial. While there may not be a specific minimum depth requirement, the cable must be buried deep enough to avoid damage.
Electric Evolution: New York's Subway Power Transition
You may want to see also
Frequently asked questions
The minimum depth for burying electrical conduits depends on the type of conduit, the nature of the installation, and the local building codes. As a general rule, conduits should be buried to a depth of at least 18 inches, but in some cases, a depth of 24 inches is required.
The depth of burial for electrical conduit is determined by the type of conduit, the type of wire or cable, the soil type, and local building codes and safety requirements.
According to the National Electrical Code (NEC), PVC conduit requires a minimum cover depth of 18 inches for residential installations and 24 inches for non-residential installations. However, it is important to note that these guidelines may not apply to all locations in NZ, and local codes and regulations should be consulted to ensure compliance and safe installation.
