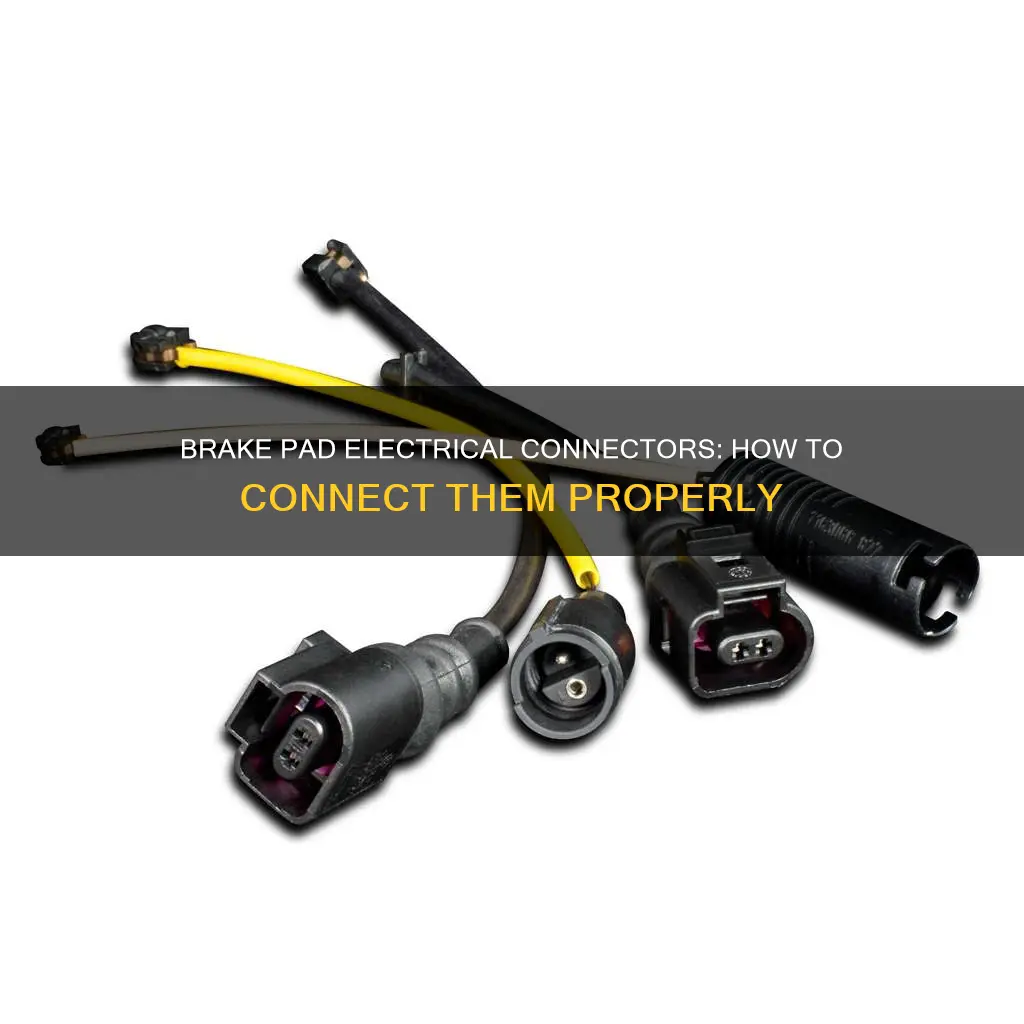

Brake pad electrical connectors are an essential component of modern vehicles, playing a critical role in ensuring the safety and functionality of the braking system. These connectors are designed to provide accurate readings of brake pad depth, offering drivers advanced warnings about worn brake pads. This technology has evolved significantly over the past decade, allowing for more precise estimates of brake wear and empowering drivers to make informed decisions about brake pad replacement. In this discussion, we will delve into the intricacies of how these electrical connectors function, their impact on vehicle performance, and the maintenance considerations they entail.
Explore related products
What You'll Learn
Electric brake pad wear sensors
Electronic brake pad wear sensors are found on a variety of vehicles, including domestic models like Cadillac and Chevy, as well as BMW, Porsche, Mercedes Benz, and Audi vehicles. These sensors provide a more precise reading of brake pad depth than the squealer metal tabs that produce a noise, which many drivers tend to ignore.
The system uses a loop of wire embedded in the friction material or attached to the backing plate. This loop is set at the minimum wear specification, and when the friction material wears down to this level, the loop is broken, and the resistance in the circuit changes. This change in resistance is detected by the system, which then alerts the driver. Modern brake pad wear sensors do more than just warn the driver of worn brake pads; they also estimate the remaining mileage and work with the rest of the brake system.
Brake pad wear sensors have been around for over 40 years, but in the last decade, they have evolved to estimate brake wear more accurately. This evolution has allowed drivers to choose the right time to replace their brake pads. The system wear sensors use data such as wheel speed, mileage, brake pressure, brake disc temperature, and brake operating time to determine the remaining life of the pads. This information is displayed in the information centre or with a warning lamp that changes from yellow to red as the pads wear down.
Most basic brake pad wear systems have a sensor in the front and rear of one corner of the vehicle, usually on the inboard brake pad because it typically wears the fastest. Higher-end systems may have sensors on every inboard brake pad, and more exotic vehicles with carbon/ceramic rotors may have a sensor on every pad.
Electric Patient Lifts: Medicare Coverage Explained
You may want to see also
Explore related products
Brake pad sensor cables
The sensor cables are strategically embedded within the friction material of the brake pads or attached to the backing plate. This placement allows the sensors to accurately gauge the depth of the brake pads, providing critical data for maintenance and replacement decisions. When the brake pads wear down to the minimum specification, the sensor loop is broken, triggering a change in the circuit's resistance.
Modern brake pad wear sensors do more than just warn the driver about worn brake pads. They actively collaborate with the rest of the brake system to provide mileage estimates until the brake pads need replacement. This advanced functionality is made possible by the presence of two resistor circuits in parallel at two depths within the sensor. The first circuit is positioned higher, while the second one is set at a lower depth.
Electricity Off, No Waves: A Simple Solution to Radiation
You may want to see also
Explore related products
Brake controller installation
Brake pad electrical connectors are part of a vehicle's brake system, which includes brake pad wear sensors and other electronic components. These connectors play a crucial role in ensuring the safe operation of the braking system. While designs may vary, the fundamental purpose is to monitor brake pad wear and provide accurate readings to the driver, helping to prevent potential issues and ensure timely maintenance.
Now, for the brake controller installation, follow these steps:
Firstly, ensure you have the correct mounting hardware, such as self-tapping screws, and a suitable location for the brake controller. Typically, it is installed on the bottom of the bumper or the dash, ensuring it is easily visible while driving without obstructing your view. Mark the desired location and use a drill to create holes for the fasteners. Attach the mounting bracket to the bumper or chosen location, being cautious not to damage any vehicle electronics. Secure the bracket with the provided fasteners, being careful not to overtighten the screws.
Next, attach the brake controller to the mounting bracket using the included bolts. If you have a CB radio or other RF transmitter, maintain a safe distance from these sensitive electronics. Once the brake controller is securely in place, supply power to the unit. This is usually done using a factory power feed wire located under the hood, near the fuse box. Connect this wire to the auxiliary power terminal on the fuse box.
For wireless brake controllers, such as the CURT Echo®, a Bluetooth connection to your smartphone may be used instead of splicing wires. Alternatively, Elecbrakes offers a 10-minute installation with their wireless, trailer-mounted solution, requiring no modifications to your vehicle.
Finally, test the brake controller to ensure it is functioning correctly. For safety, it is recommended to disconnect the vehicle battery during the installation process, preventing injury and potential damage to the electronics.
Electric Scooter Rentals: San Diego's Easy, Breezy Commute
You may want to see also
Explore related products
Trailer brake controller installation
A trailer brake controller is an electronic device that integrates with a vehicle's braking system to activate and release the electric brakes on a trailer. It ensures that the trailer brakes in sync with the vehicle being towed, providing smoother and safer stops.
Before installing a trailer brake controller, it is important to check if your vehicle is compatible. You can do this by referring to your vehicle's manual or consulting the manufacturer. If your vehicle is equipped with a trailer wiring harness, you can proceed with the installation.
- Disconnect the negative battery cable: This is an important safety precaution to prevent any electrical shorts or shocks during the installation process.
- Choose a suitable location: Find a convenient and accessible location on your dashboard or centre console to mount the brake controller. Ensure it is within reach but does not obstruct other controls. In most cases, under the dash to the left or right of the steering column is a good placement.
- Drill mounting holes: Use a drill and appropriate drill bits to create mounting holes where you will secure the brake controller. Mark the locations before drilling to ensure accuracy.
- Secure the mounting bracket: Using the provided screws and brackets, fasten the brake controller securely into the chosen location. Make sure you avoid drilling through components on the other side of the dash.
- Connect the wires: The brake controller will typically have four wires that need to be connected. Consult the instruction manual provided with the controller for wire-specific instructions.
- Route the wires: The brake wire should be routed through the firewall into the vehicle and connected to the brake controller. It is best to run the brake wire through an existing grommet or knockout. If none is found, you may need to drill a hole.
- Connect to the vehicle's wiring harness: The brake controller wiring harness is usually located under the dashboard on the driver's side. It may be taped up or tucked away for protection. Connect the brake controller to the vehicle's wiring harness.
- Secure the connector: The 7-way connector should be mounted securely using self-tapping screws. A typical location is on the bottom of the bumper.
- Protect the connections: Use a black loom, a hard plastic tube, to cover the 12-volt hot lead and brake wire connections at the trailer connector. This protects the connections and gives your installation a professional appearance.
- Test and maintain: Once the installation is complete, test the brake controller periodically to ensure it is functioning correctly. Regularly inspect the wires and connectors for wear and tear, and clean the controller and mounting area to prevent dust and grime buildup.
It is important to note that each trailer brake controller may have specific instructions, so always refer to the instruction manual provided with the device. Additionally, some wireless plug-and-play options may have simplified installation processes, so be sure to choose the appropriate controller for your needs.
Electric Furnace Maintenance: What You Need to Know
You may want to see also
Explore related products
Brake pad wire connectors
Electric brake pad wire connectors are an essential component of a vehicle's braking system. They play a critical role in ensuring the safe and efficient operation of the brakes. While designs can vary depending on the vehicle's year, make, and model, the fundamental purpose of these connectors is to facilitate the proper functioning of the brakes.
One of the primary functions of brake pad wire connectors is to maintain the integrity of the electrical circuit that controls the brakes. These connectors ensure that the electrical current flows smoothly between the brake controller and the brake pads themselves. This is crucial for activating the brakes effectively when the driver applies pressure to the brake pedal.
In some modern vehicles, brake pad wire connectors are also utilised for advanced brake pad wear sensors. These sensors are designed to monitor the condition of the brake pads and provide accurate readings on brake pad depth. When the friction material on the brake pads wears down to the minimum specification, the sensor loop is broken, altering the resistance in the circuit. This triggers a warning to the driver, indicating that it's time to replace the brake pads.
Additionally, certain vehicles, such as Mercedes-Benz models, employ electronic parking brake modules to measure rear pad life. This system counts the number of motor rotations required to engage the rear brake pads. By connecting the sensors in series, these systems can accurately assess brake pad wear and provide valuable insights to both the driver and technician before it becomes a safety concern.
It is important to note that brake pad wire connectors are typically designed to be durable and long-lasting. However, due to the heat generated by the brakes, the wiring and clips that hold the sensors may eventually need to be replaced. Fortunately, these components are readily available at auto parts stores or from aftermarket suppliers, ensuring that vehicle owners can maintain the safety and performance of their braking systems.
Electrical Signals: Neurons' Intricate Communication Process
You may want to see also
Frequently asked questions
Brake pad electrical connectors are components that link the brake pads to the vehicle's electrical systems, such as the brake controller.
Firstly, disconnect the vehicle battery. Then, mount the brake controller onto the dashboard and plug it in using a vehicle-specific wiring harness. If your vehicle lacks a plug-and-play harness, splice in wiring to connect the controller.
A brake controller enhances control over the braking system, offering more precision than hydraulic brakes.
If your vehicle has a factory-installed 4-way trailer connector, you will need to install additional wiring for a brake controller.
