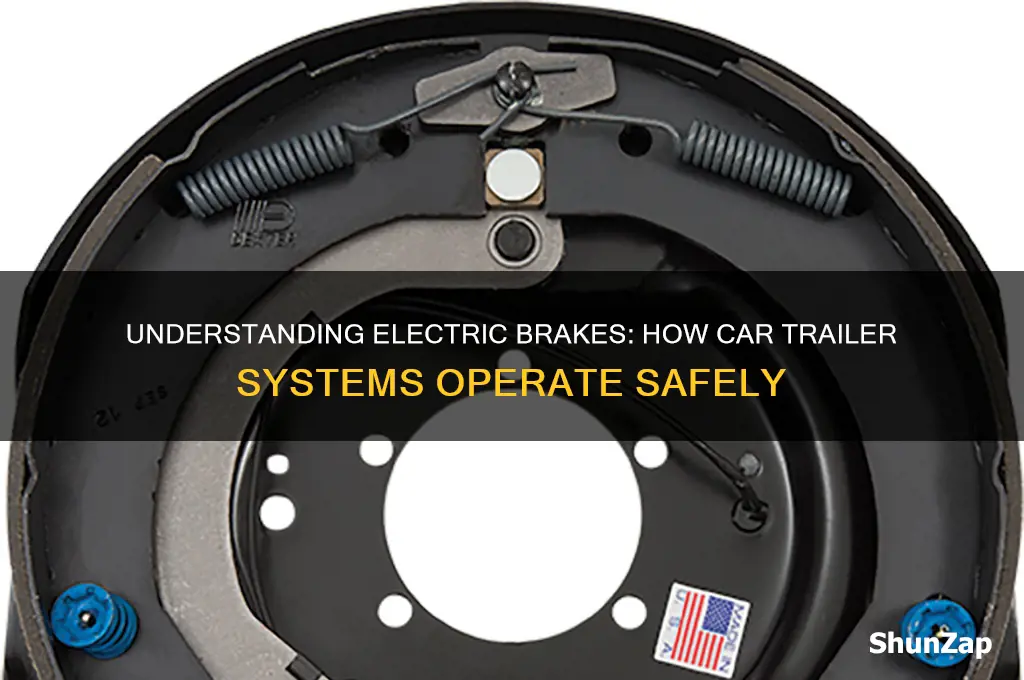

Electric brakes on a car trailer operate by using an electric actuator to apply braking force to the trailer's wheels, independent of the towing vehicle's braking system. When the driver applies the brakes in the towing vehicle, an electric current is sent from the brake controller, typically mounted in the cab, through the trailer wiring harness to the trailer's electric brake magnets. These magnets then engage the brake shoes against the drums, creating friction that slows the trailer. This system ensures that both the towing vehicle and the trailer decelerate simultaneously, improving safety and control, especially during heavy braking or when hauling substantial loads. Proper installation, calibration, and maintenance of the brake controller and trailer wiring are essential for optimal performance.
Explore related products
What You'll Learn
- Electric Brake Components: Actuator, magnets, drums, shoes, wiring harness, and controller
- Activation Process: Controller sends current, magnets pull shoes, friction stops trailer
- Wiring Setup: Connects vehicle’s brake system to trailer via harness and plug
- Adjustment Techniques: Ensure proper shoe-to-drum clearance for optimal braking performance
- Maintenance Tips: Inspect wiring, clean components, and replace worn parts regularly
Electric Brake Components: Actuator, magnets, drums, shoes, wiring harness, and controller
Electric brakes on car trailers rely on a precise interplay of components to ensure safe stopping power. At the heart of this system is the actuator, a device that converts electrical signals into mechanical force. When the driver applies the brakes in the towing vehicle, the brake controller sends an electrical current through the wiring harness to the trailer’s actuator. This actuator then engages the braking mechanism, applying friction to slow the trailer independently of the towing vehicle. Without a functional actuator, the electric brake system becomes inert, highlighting its critical role in trailer safety.
Within the actuator, magnets play a pivotal role in generating the force needed to apply the brakes. When the electrical current reaches the actuator, it energizes the magnets, creating a magnetic field that pulls the armature toward the brake drum. This movement triggers the brake shoes to press against the drum, creating friction that slows the trailer’s wheels. The strength of the magnetic field directly correlates to the braking force, making the magnets a key determinant of stopping efficiency. Regular inspection of the magnets for wear or damage is essential to maintain consistent braking performance.
The drums and shoes form the physical interface where braking action occurs. The drum, a cylindrical component mounted on the trailer’s wheel hub, rotates with the wheel. When the actuator engages, the brake shoes are forced outward against the inner surface of the drum, creating friction that slows rotation. Over time, both drums and shoes wear down due to this constant contact, requiring periodic adjustment or replacement. Proper alignment and clearance between the shoes and drum are critical to prevent overheating or uneven wear, which can compromise braking effectiveness.
Connecting all these components is the wiring harness, a network of cables that transmits electrical signals from the towing vehicle to the trailer’s brakes. This harness must be durable and weather-resistant to withstand exposure to the elements and road debris. A faulty or damaged wiring harness can lead to intermittent or complete brake failure, making regular inspections and maintenance non-negotiable. Ensure all connections are clean, secure, and free from corrosion, especially at the trailer plug and actuator terminals.
Finally, the controller acts as the brain of the electric brake system, regulating the amount of power sent to the trailer’s actuator based on the driver’s input. Modern controllers often feature adjustable settings to account for trailer weight and road conditions, allowing for smoother and more controlled braking. For optimal performance, calibrate the controller according to the trailer’s loaded weight and test the system before each trip. A well-tuned controller not only enhances safety but also extends the lifespan of brake components by preventing excessive wear.
Together, these components form a robust system that ensures trailers stop safely and efficiently. Understanding their functions and maintaining them diligently is key to preventing accidents and prolonging the life of your trailer’s braking system.
Key Components: Constructing an Electrical Relay with Coil and Contacts
You may want to see also
Explore related products
Activation Process: Controller sends current, magnets pull shoes, friction stops trailer
Electric brakes on a car trailer are activated through a precise sequence of events, beginning with the controller sending an electrical current to the trailer’s braking system. This current is typically generated when the driver applies the tow vehicle’s brakes, triggering the controller to respond proportionally. The strength of the current corresponds to the force needed to stop the trailer, ensuring synchronized braking between the tow vehicle and the load. This initial step is critical, as it initiates the chain reaction that ultimately brings the trailer to a halt.
Once the current reaches the trailer’s brake magnets, they become energized, creating an electromagnetic field. This field exerts a pulling force on the brake shoes, which are positioned near the trailer’s drums. The magnets’ strength is directly tied to the current’s intensity, allowing for variable braking power based on the driver’s input. For instance, a gentle tap on the brakes sends a lower current, resulting in a softer pull on the shoes, while a harder press increases the current and the braking force. This proportional control is essential for safe and efficient stopping, especially when hauling heavy or sensitive cargo.
As the magnets pull the brake shoes inward, they press against the rotating drum, creating friction. This friction converts the trailer’s kinetic energy into heat, gradually slowing the wheels. The design of the drum and shoes ensures even contact, maximizing stopping power while minimizing wear. Regular maintenance, such as checking for proper shoe thickness (typically replaced when worn below 1/8 inch) and ensuring the drums are free of debris, is crucial to maintaining this efficiency. Without adequate friction, the braking system’s effectiveness diminishes, compromising safety.
The final result of this activation process is the trailer’s deceleration, achieved through the controlled application of friction. Unlike hydraulic or surge brakes, electric brakes offer the advantage of independent control, allowing the driver to adjust braking force as needed. This is particularly useful in slippery conditions or when towing uneven loads. For optimal performance, ensure the trailer’s wiring is intact and the controller is calibrated to the trailer’s weight, typically ranging from 2,000 to 12,000 pounds. By understanding this activation process, trailer operators can better maintain their systems and respond to braking issues proactively.
Lamp vs. Main Light: Which Consumes More Electricity?
You may want to see also
Explore related products
Wiring Setup: Connects vehicle’s brake system to trailer via harness and plug
Electric trailer brakes rely on a seamless wiring connection between the towing vehicle and the trailer, a process facilitated by a dedicated harness and plug system. This setup ensures that the trailer's brakes activate in sync with the vehicle's braking system, enhancing safety and control during towing. The wiring harness, typically a multi-core cable, transmits the necessary electrical signals from the vehicle's brake controller to the trailer's brake actuators. This connection is established through a standardized plug, commonly a 7-pin or 5-pin configuration, which ensures compatibility and ease of use across different vehicles and trailers.
Installation Steps:
Begin by locating the vehicle's brake controller, usually mounted under the dashboard. Connect the wiring harness to the controller, ensuring the wires are matched correctly to their corresponding functions (e.g., brake signal, ground, and power). Route the harness from the controller to the rear of the vehicle, securing it away from moving parts and heat sources. Attach the harness to the trailer plug, which is typically mounted near the hitch receiver. Test the connection using a multimeter to verify signal transmission before attaching the trailer.
Compatibility and Cautions:
Not all vehicles and trailers use the same plug configurations, so verify compatibility before installation. For instance, a 7-pin plug often includes additional circuits for auxiliary functions like reverse lights or battery charging, while a 5-pin plug focuses solely on braking and turn signals. Avoid overloading the wiring harness by ensuring the brake controller is rated for the trailer's brake system. Inspect the harness and plug regularly for wear, corrosion, or loose connections, as these can lead to brake failure.
Practical Tips:
Use dielectric grease on the plug contacts to prevent corrosion and ensure a reliable connection. If the vehicle lacks a factory-installed brake controller, consult the manufacturer’s guidelines for compatible aftermarket options. For trailers with electric-over-hydraulic brakes, ensure the wiring setup supports the higher amperage requirements. Always perform a test drive in a safe area to confirm the brakes engage smoothly and proportionally to the vehicle’s braking force.
Takeaway:
A properly installed wiring setup is the backbone of an effective electric trailer brake system. By understanding the components, following precise installation steps, and adhering to safety precautions, you can ensure a reliable connection that enhances towing safety and performance. Regular maintenance and compatibility checks further guarantee long-term functionality, making this setup a critical aspect of trailer operation.
Who Uses SOLIDWORKS Electrical? Industries and Professionals Explained
You may want to see also
Explore related products
Adjustment Techniques: Ensure proper shoe-to-drum clearance for optimal braking performance
Electric trailer brakes rely on precise shoe-to-drum clearance for effective stopping power. Too much clearance reduces friction, leading to weak braking and increased stopping distances. Too little clearance causes constant drag, overheating, and premature wear. Finding the sweet spot—typically 0.002 to 0.005 inches (0.05 to 0.13 mm)—ensures the shoes engage the drum fully when the electromagnet activates, without unnecessary resistance during travel.
Adjusting this clearance involves manipulating the star wheel or eccentric mechanism on the brake assembly. Start by loosening the locknut and turning the star wheel clockwise to decrease clearance or counterclockwise to increase it. Use a feeler gauge to measure the gap between the shoe and drum, making incremental adjustments until the specified range is achieved. Tighten the locknut securely to maintain the setting. This process requires patience and precision, as over-tightening can distort the brake components.
A common mistake is neglecting to check clearance after initial adjustments. Road conditions, temperature fluctuations, and normal wear can alter the gap over time. Periodically re-inspect the clearance, especially after long trips or heavy braking events. Additionally, ensure the brake shoes are properly aligned and not glazed or contaminated with grease, as these factors can compromise performance even with correct clearance.
For DIY enthusiasts, investing in a brake adjustment tool simplifies the process. These tools often include a built-in gauge and provide consistent pressure to avoid over-tightening. Professional mechanics may use specialized equipment for more precise measurements, but the fundamental principles remain the same. Regular maintenance and proper adjustment not only enhance safety but also extend the lifespan of the braking system, saving time and money in the long run.
Are Electric Cars Dead? Debunking Myths and Exploring Their Future
You may want to see also
Explore related products
![Power Stop Z36-1334 Rear Z36 Truck and Tow Brake Pads For Ford F-250 Super Duty 2010-2012, Ford F-350 Super Duty 2010-2012, Ford F-450 Super Duty 2010-2012 [Model Specific]](https://m.media-amazon.com/images/I/61wtTTA4SxL._AC_UY218_.jpg)
![POWERSTOP Front Brake Kit-OE For 2006-2011 Honda Civic [Model Specific] Brake Rotors & Ceramic Brake Pads Replacement, KOE2384](https://m.media-amazon.com/images/I/71onTg3tW0L._AC_UY218_.jpg)
Maintenance Tips: Inspect wiring, clean components, and replace worn parts regularly
Electric trailer brakes rely on a delicate interplay of wiring, magnets, and friction—a system that demands vigilance to function safely. Regular wiring inspections are your first line of defense. Road debris, weather exposure, and general wear can fray or corrode wires, leading to intermittent braking or complete failure. Use a multimeter to test for continuity and resistance, focusing on connections at the trailer plug, brake magnets, and breakaway battery. Look for cracks in the insulation, loose terminals, or signs of overheating. A single compromised wire can render your brakes ineffective, so address issues immediately.
While wiring forms the nervous system, the brake components themselves require equal attention. Dust, grease, and moisture accumulate on brake drums, pads, and magnets, reducing efficiency and accelerating wear. Clean these parts quarterly with a wire brush and brake cleaner, ensuring no residue remains. Inspect brake shoes for thickness—most manufacturers recommend replacement when the lining thins to 1/16 inch. Examine the magnets for scoring or glazing, as these defects diminish braking power. A clean, well-maintained brake assembly not only performs better but also extends the lifespan of adjacent parts.
Replacing worn parts is non-negotiable in trailer brake maintenance. Brake drums, for instance, develop grooves over time, compromising their ability to dissipate heat and engage the shoes effectively. Measure drum diameter with calipers; if it exceeds the manufacturer’s maximum specification (typically 0.060 inches out-of-round), replace it. Similarly, worn brake pads or shoes reduce stopping power and increase stopping distances. Always replace parts in pairs to maintain balance. Keep a log of replacements, noting mileage or usage hours, to anticipate future needs.
Finally, proactive maintenance pays dividends in safety and cost savings. Establish a routine inspection schedule tied to usage—monthly for frequent haulers, quarterly for occasional users. Carry a basic toolkit (multimeter, wire brush, brake cleaner) during trips to address minor issues promptly. Invest in a breakaway kit with a charged battery and test it regularly, as this system activates brakes if the trailer disconnects from the tow vehicle. By treating maintenance as a priority, not an afterthought, you ensure your electric brakes remain reliable, protecting both your cargo and others on the road.
Winter Energy Spike: Understanding Higher Electricity Usage in Cold Months
You may want to see also
Frequently asked questions
Electric trailer brakes use an electric actuator connected to the trailer’s brake system. When the tow vehicle’s brake is applied, an electric current is sent from the brake controller in the tow vehicle to the trailer’s brakes, activating the actuator to apply friction to the brake drums or rotors, slowing the trailer.
No, electric trailer brakes are powered by the tow vehicle’s electrical system. The brake controller, typically installed in the tow vehicle, sends the necessary electric current to the trailer brakes when the vehicle’s brakes are applied.
No, electric trailer brakes are designed to work in conjunction with the tow vehicle’s braking system. They are activated by the brake controller in response to the tow vehicle’s brake input and cannot function independently.
The braking power of electric trailer brakes is adjusted using the brake controller in the tow vehicle. The controller allows you to set the gain or sensitivity, determining how much braking force is applied to the trailer relative to the tow vehicle’s braking input.
