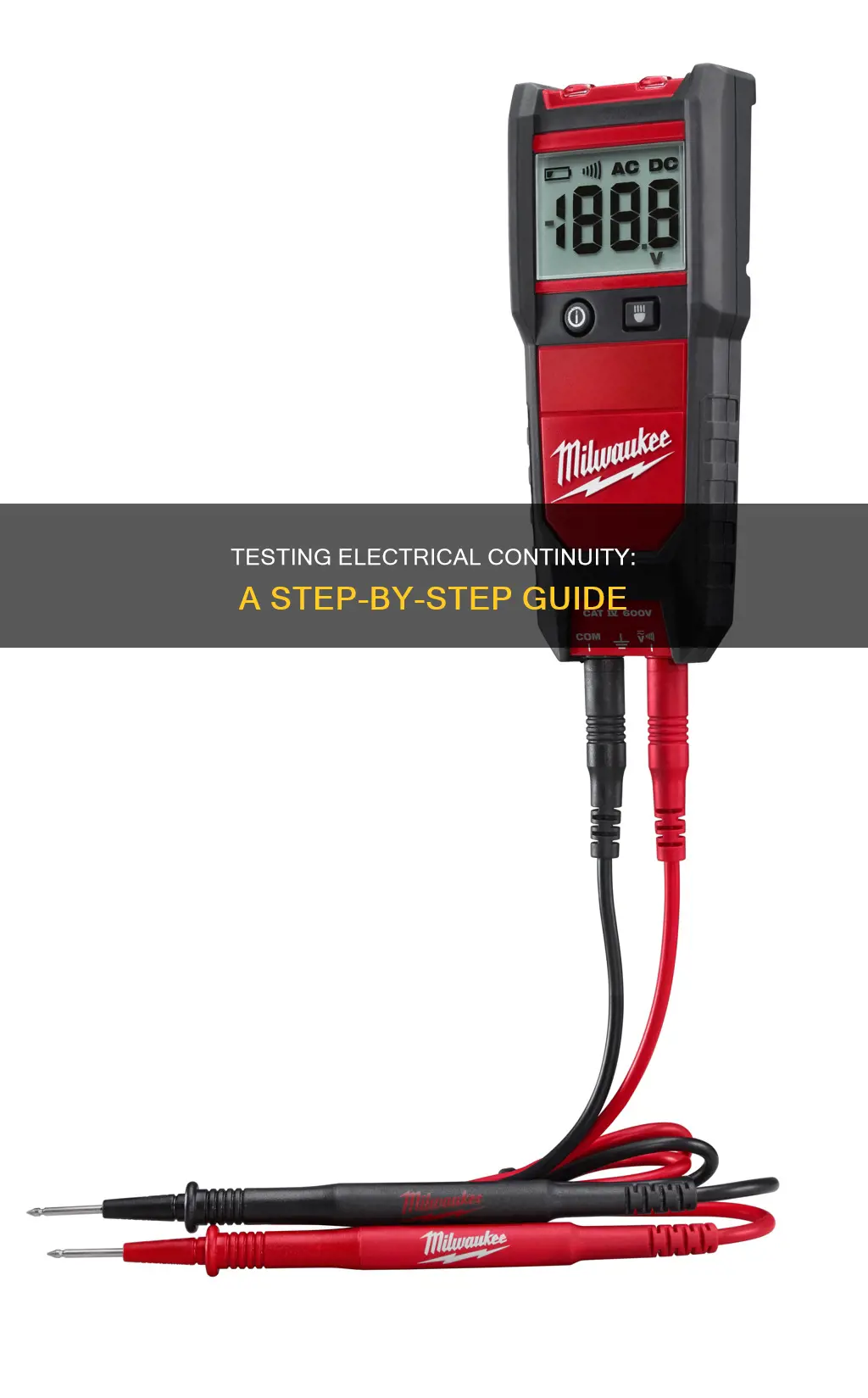

Testing for electrical continuity is the process of checking an electrical circuit to see if a current can flow through it without interruptions. This is done by placing a small voltage or current across the chosen path. If electron flow is inhibited by broken conductors, damaged components, or excessive resistance, the circuit is open. Multimeters are often used to test for continuity, as they can measure voltage, current, and resistance. They can also be used to test diodes and capacitors, and automatically adjust measuring sensitivity.
| Characteristics | Values |
|---|---|
| Devices used | Multimeter, specialized continuity tester |
| Purpose | To check if an electrical circuit is complete |
| Steps | Ensure multimeter is in continuity mode, disconnect power source, position probes on both sides of the connected area or joint, listen for beep or tone |
| Result Interpretation | Beep or low resistance value indicates a complete circuit; no beep or high resistance indicates a break in the circuit |
| Applications | Testing components, ensuring proper grounding, reverse engineering circuit boards, detecting broken wires, locating wonky connections, verifying electrical connections |
Explore related products
$7.99
What You'll Learn
Using a multimeter
Testing continuity in a wire, current, or fuse is important when installing or repairing electrical components in an outlet, fuse box, car, or appliance. Continuity refers to the amount of resistance in a closed electrical current, and poor continuity can cause fires, electrical shocks, or damage to electrical devices.
To test continuity using a multimeter, first, turn off and unplug the device you are testing. Then, turn the dial on the multimeter to the continuity setting. This setting may be signified by a diode symbol (a triangle with a line on the right side) or a symbol that looks like sound waves. If your multimeter does not have a dedicated continuity setting, turn the dial to the lowest number in resistance mode (measured in ohms, or Ω).
Next, connect the black and red terminals to their corresponding slots. Plug the black cord into the slot labelled "COM" (short for "common"), and the red cord into the slot labelled "mAVΩ" or "AVΩ" (standing for "measure amperage, voltage, ohms").
Now, to test the continuity of a joint, position the probes on each side of the joint. If you hear a continuous beep, or even a faint, disjointed tone, the traces are touching, continuity has been detected, and a short circuit may be present. If there is no sound, the connection is weak and may need to be repaired.
You can also test the calibration of the continuity setting by touching the two terminals together and holding them in place. This should trigger the audible response, indicating that the multimeter is functioning correctly.
Sign Sensitivity in Electric Flux Magnitude: Understanding the Relationship
You may want to see also
Explore related products
Testing for wonky connections
Before you begin testing, ensure that your multimeter is in continuity mode and that the circuit you are testing is disconnected from its power source. If it is a battery, remove it. This is important to avoid causing electrical shorts, which can lead to blown fuses, electrical shocks, and potential fires.
Now, you can begin testing for wonky connections. Position the multimeter probes on both sides of the connected area or joint that you want to test. If you are testing the continuity of a joint, place the probes on each side of it. If you hear a continuous beep, the connection is strong. If you hear a faint or disjointed tone, or no sound at all, the connection is weak and needs to be repaired.
If you discover a weak connection, there are a few things you can do to fix it. Try applying pressure to areas where conductive traces overlap to strengthen the bond, and/or apply a conductive fabric tape patch to the impacted joint to reinforce it.
Exploring Nord Electro 6: Where's the Transpose Key?
You may want to see also
Explore related products
Verifying electrical connections
Firstly, ensure that your multimeter is in continuity mode. Modern multimeters have an LED display that allows you to select this mode. Disconnect the circuit you are testing from its power source to avoid interference and potential hazards. If it is a battery-operated circuit, remove the battery.
Next, identify the components you want to test, such as wires, switches, or connectors. Place the multimeter probes on both sides of the connected area, joint, or terminal. For switches, place the probes on the two terminals, and ensure the switch is in the "on" position. If the circuit is complete and continuous, the multimeter will beep, indicating low resistance and a sufficient electrical connection. A continuous tone and a conductivity measurement on the multimeter's screen confirm this.
If there is a weak connection, you may hear a faint or disjointed tone, or no sound at all. In this case, the screen may display zero or no measurement of conductivity. This indicates a break in the circuit, and repairs may be needed. You can use a conductive patch to fix weak connections.
Additionally, be cautious when working with powered systems. It is recommended to power down the system and check that the VCC and GND are correctly wired to the pins on the microcontroller and other devices. This helps prevent potential electrical hazards.
By following these steps, you can effectively verify electrical connections and ensure the integrity and safety of your electrical circuits.
Magnetic and Electric Forces: Similarities in Nature and Beyond
You may want to see also
Explore related products
Detecting broken wires
Multimeters
One common method is to use a multimeter, which can be a digital multimeter (DMM) or a clamp multimeter. The multimeter is set to continuity mode, and the probes are placed on both ends of the wire to be tested. If the multimeter beeps and shows low resistance, the wire is intact. If there is no beep and the multimeter shows infinite or high resistance, the wire is broken. Modern multimeters have an LED display that allows you to select the parameter to measure, such as voltage, current, or resistance.
Non-Contact Voltage Detectors
Non-contact voltage detectors, such as voltage pens or electric pens, can be used to safely test for the presence of voltage without touching the wire. These tools are useful for detecting live wires and can help identify breaks in the circuit.
Wire Tracker Devices
When dealing with hidden wires, such as those underground or inside walls, specialised devices like the NOYAFA NF-826 Underground Wire Tracker can be used. This device combines a non-contact voltage detector, a broken wire detector, and a digital multimeter. It can quickly and accurately locate broken wires and breakpoints without the need for destructive methods like digging or drilling.
Audio Detectors and Cable Fault Testers
Audio detectors and cable fault testers are other non-invasive techniques that can be employed to detect broken wires. These tools enhance repair efficiency by protecting cable insulation while accurately pinpointing cable breakages.
Visual Inspection
In some cases, visual inspection may be possible to detect broken wires. If the wire is exposed, you can look for signs of damage, such as dry rot, rodent damage, or loose connection points. Additionally, smoke or sparks coming from the wire may indicate a problem, such as fried wires due to improper selection.
The Intriguing Link Between Gravity, Electricity, and Magnetism
You may want to see also
Explore related products
Troubleshooting
If you're experiencing issues with your electrical circuit, a multimeter can help you identify the problem. Here are some troubleshooting steps to guide you through the process:
Firstly, ensure your multimeter is in continuity mode. Modern multimeters have an LED display where you can select this mode. Disconnect the circuit from its power source to avoid any interference during testing. If it's a wall switch, leave the breaker on to prevent electricity from "leaking" in from other circuits, but disconnect the wires from the switch.
If you're testing a joint, position the multimeter probes on both sides of the joint. If the connection is weak, you'll hear a faint or disjointed tone, or no sound at all. This indicates that the joint is not continuous, and there is no electrical connection.
In the case of a short circuit, carefully examine your circuit to identify any accidental overlap of traces. Check if you've reversed the polarity of LEDs or forgotten insulating bridges. Once you've identified the issue, make adjustments and test again.
To verify your multimeter's accuracy, test a known good conductor, such as a piece of wire. The meter should beep and show low resistance. If it doesn't, your multimeter may need calibration or repair, so check the battery and test leads for any issues.
Continuity tests can be performed on various components, such as wires, switches, and connectors, to ensure proper electrical flow. If you detect voltage during testing, turn off the power to the circuit to avoid damage to the multimeter or electrical hazards.
Electric Wheelchairs: Medicare Part B Coverage Explained
You may want to see also
Frequently asked questions
A continuity test is used to check if an electrical circuit is complete, meaning the current can flow without interruptions.
You'll need a multimeter or a continuity tester. A digital multimeter (DMM) with a continuity function is ideal as it can give both visual and audible feedback.
First, ensure your multimeter is in continuity mode and that the circuit you are testing is disconnected from its power source. Then, position the multimeter probes on both sides of the connected area or joint that you want to test. If you hear a beep, it indicates a very low resistance value, meaning the circuit is complete. If there is no beep, the connection is weak and needs to be repaired.
It's important to turn off the power to the circuit before proceeding. Continuity tests should be performed on unpowered circuits to avoid damaging the multimeter or causing electrical hazards.
An infinite resistance reading means that the circuit is open, meaning there is a break in the circuit, or the component being tested (e.g. a wire or fuse) is faulty.
