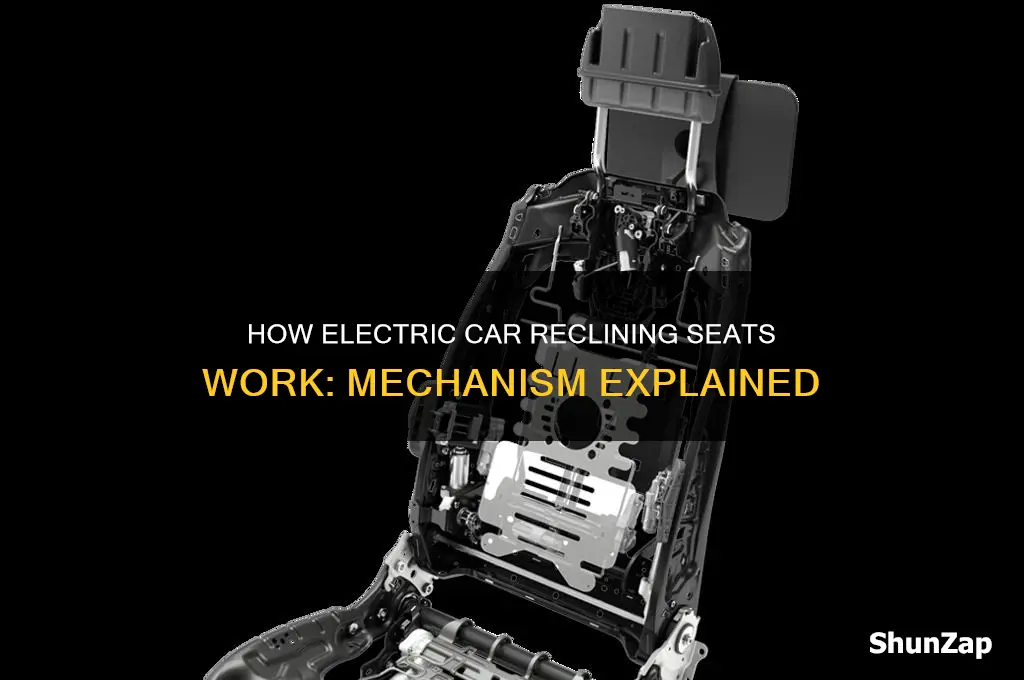

Reclining seats in cars, especially those equipped with electric mechanisms, operate through a sophisticated system designed to enhance comfort and adjustability. These seats typically feature a motorized actuator connected to a series of gears and linkages that control the seat's backrest and base movement. When the driver or passenger activates the recline function via a button or switch, an electric motor engages, driving the gears to tilt the backrest backward or forward while simultaneously adjusting the seat's base to maintain proper support. This mechanism is often integrated with sensors and limit switches to ensure safe operation and prevent overextension. The electric reclining system is powered by the vehicle's battery, providing seamless and effortless adjustments tailored to individual preferences, making long drives more comfortable and ergonomic.
Explore related products
What You'll Learn
- Electric Motor Operation: Powers seat movement via gears and linkages for smooth reclining adjustments
- Control Switch Mechanism: Activates motor functions, allowing precise seat positioning with button or lever inputs
- Track and Rail System: Guides seat movement along predefined paths for stable and controlled reclining
- Safety Lock Features: Prevents accidental reclining or movement, ensuring secure seating during vehicle operation
- Power Supply Integration: Connects motor to car’s electrical system for consistent and reliable functionality
Electric Motor Operation: Powers seat movement via gears and linkages for smooth reclining adjustments
Electric motors are the unsung heroes behind the seamless reclining adjustments in modern car seats. These compact yet powerful devices convert electrical energy into mechanical motion, driving the gears and linkages that enable precise seat positioning. Unlike manual systems, which rely on physical effort, electric motors offer effortless control, often activated by a button or switch. This mechanism ensures smooth, consistent movement, enhancing both comfort and convenience for the driver or passenger.
The operation begins when the user activates the reclining function, sending an electrical signal to the motor. The motor’s rotor spins, engaging a series of gears that amplify torque while reducing speed, ensuring controlled movement. These gears are connected to linkages—metal or plastic components that translate rotational motion into linear or angular displacement. For instance, a rack-and-pinion system might be employed, where the motor’s rotation turns a pinion gear, sliding a rack to adjust the seatback angle. This interplay of gears and linkages is critical for achieving the desired recline without jerking or resistance.
One of the key advantages of electric motor operation is its adaptability to various seat designs. Whether it’s a compact sedan or a luxury SUV, the motor’s power output and gear ratios can be tailored to suit the specific requirements of the vehicle. For example, heavier seats may require a higher-torque motor, while premium models might incorporate microcontrollers for finer adjustments. Additionally, safety features such as anti-pinch technology can be integrated, automatically reversing the motor if an obstruction is detected during movement.
Maintenance of this system is relatively straightforward but requires periodic attention. Dust and debris can accumulate in the gears and linkages, leading to friction or uneven movement. Regular cleaning and lubrication of these components can prevent wear and ensure longevity. Users should also avoid overloading the system by applying excessive force or attempting manual adjustments while the motor is engaged. Following these precautions will keep the electric reclining mechanism operating smoothly for years.
In conclusion, electric motor operation is a sophisticated yet practical solution for powering car seat reclining mechanisms. By harnessing the precision of gears and linkages, it delivers smooth, reliable adjustments that enhance the driving experience. Understanding its functionality not only highlights its engineering ingenuity but also empowers users to maintain and troubleshoot the system effectively. Whether for daily commutes or long journeys, this technology exemplifies how innovation can transform even the simplest features into sources of comfort and convenience.
Are Electric Cars Truly Zero Emission? Uncovering the Hidden Truth
You may want to see also
Explore related products
![3-5/8 inch Replacement Recliner Chair Mechanism Furniture Tension Springs Long Neck Style [3.46'' Inside Hook to Hook] (Pack of 1)](https://m.media-amazon.com/images/I/717BTJXuQPL._AC_UY218_.jpg)
Control Switch Mechanism: Activates motor functions, allowing precise seat positioning with button or lever inputs
Electric reclining car seats rely on a sophisticated control switch mechanism to translate user inputs into precise seat adjustments. This mechanism acts as the brain of the system, interpreting signals from buttons or levers and activating the appropriate motor functions. When you press a button to recline the seatback, for example, the control switch sends an electrical signal to the corresponding motor, initiating a controlled movement. This process involves a series of relays, transistors, and microcontrollers working in harmony to ensure smooth and accurate positioning.
The design of the control switch mechanism prioritizes user-friendliness and safety. Buttons or levers are strategically placed within easy reach of the driver or passenger, often integrated into the seat side panel or armrest. These inputs are typically backlit for visibility in low-light conditions and may feature tactile feedback, such as a click or vibration, to confirm activation. To prevent accidental adjustments, some systems incorporate a two-stage activation process, requiring the user to press and hold a button for a brief period before the motor engages.
A key aspect of the control switch mechanism is its ability to provide precise control over seat positioning. This is achieved through the use of incremental motor movements, where each button press or lever adjustment corresponds to a specific degree of rotation or linear displacement. For instance, a single press of the recline button might move the seatback by 2 degrees, allowing for fine-tuning of the seating angle. Advanced systems may also incorporate memory functions, storing preferred seat positions for multiple users and automatically adjusting the seat upon recognition of a specific key fob or biometric input.
When troubleshooting issues with electric reclining seats, the control switch mechanism is often a primary area of concern. Common problems include unresponsive buttons, erratic motor behavior, or complete system failure. In such cases, it's essential to inspect the wiring harness for loose connections or damaged cables, as these can disrupt the flow of electrical signals. Additionally, the control module itself may require calibration or replacement if internal components have malfunctioned. Regular maintenance, such as cleaning the button contacts and applying dielectric grease to connectors, can help prevent these issues and ensure the longevity of the system.
To maximize the benefits of a control switch mechanism, users should familiarize themselves with the specific features and limitations of their vehicle's reclining seat system. This includes understanding the range of motion for each adjustable component, as well as any safety constraints designed to prevent overextension or interference with other vehicle systems. For example, some seats may have a maximum recline angle of 30 degrees to maintain airbag effectiveness, while others might restrict forward movement to avoid contact with the steering wheel or dashboard. By using the control switch mechanism thoughtfully and within its intended parameters, drivers and passengers can enjoy a comfortable and customizable seating experience.
Versatile Electric Skillet Uses: Cooking, Baking, and Beyond Explained
You may want to see also
Explore related products
![3inch Replacement Recliner Chair Spring Mechanism Furniture Tension Springs for Sofa Bed and Others Short Neck Style [2.82'' Inside Hook to Hook] (Pack of 1)](https://m.media-amazon.com/images/I/61AF-9x89WL._AC_UY218_.jpg)
Track and Rail System: Guides seat movement along predefined paths for stable and controlled reclining
Electric car seats recline with precision, and the track and rail system is the unsung hero behind this seamless motion. Imagine a miniature railway embedded within your seat frame, comprising sturdy metal tracks and corresponding rails attached to the seat base. As the electric motor activates, gears engage with these rails, propelling the seat along the predefined path. This guided movement ensures the seat reclines smoothly, without wobbling or deviating from its intended trajectory.
Think of it as a train on a track, but instead of transporting passengers across landscapes, it adjusts your seating position for optimal comfort.
The beauty of this system lies in its simplicity and reliability. Unlike complex linkages prone to wear and tear, tracks and rails offer a durable solution. The predefined path eliminates guesswork, guaranteeing consistent reclining angles every time. This predictability is crucial for safety, preventing sudden shifts or uneven adjustments that could compromise driving control. Furthermore, the system's modular design allows for easy maintenance and potential upgrades, ensuring your reclining seat remains functional for years to come.
Pro Tip: When choosing a car with electric reclining seats, inquire about the quality of the track and rail system. Look for robust materials like hardened steel and precision engineering for long-lasting performance.
While the track and rail system excels at controlled movement, it's not without limitations. The predefined path restricts customization, offering a set range of reclining angles. This might be a drawback for those seeking highly personalized seating positions. Additionally, the system's complexity can contribute to higher manufacturing costs, potentially impacting the overall price of the vehicle.
Consideration: If extreme reclining angles or highly customizable seating are priorities, explore alternative mechanisms like multi-pivot systems, though they may sacrifice the stability and durability offered by tracks and rails.
Despite these considerations, the track and rail system remains a cornerstone of electric reclining seat technology. Its combination of stability, control, and reliability makes it a trusted choice for manufacturers and a source of comfort for drivers seeking adjustable seating positions. Understanding this mechanism empowers you to make informed decisions when choosing a car and appreciate the engineering ingenuity behind your comfortable ride.
Understanding Electrical Symbols: Essential Tools for Circuit Design and Communication
You may want to see also
Explore related products
Safety Lock Features: Prevents accidental reclining or movement, ensuring secure seating during vehicle operation
Electric car seats with reclining mechanisms are engineered for comfort and convenience, but their functionality must never compromise safety. This is where safety lock features come into play, acting as a critical safeguard against unintended seat movement. These locks are designed to secure the seat in a fixed position, preventing accidental reclining or adjustment during vehicle operation. Whether it's a sudden stop, a sharp turn, or a momentary distraction, the safety lock ensures the seat remains stable, reducing the risk of injury to occupants.
The mechanism of a safety lock typically involves a latch or pin system integrated into the seat’s frame. When engaged, this lock physically restricts the movement of the reclining mechanism, often by interlocking with a corresponding groove or slot. In electric reclining seats, this process is usually automated, activated by a button or switch on the seat’s control panel. For instance, pressing the "lock" button sends a signal to the seat’s motor, which engages the lock and holds the seat in place. This feature is particularly vital in vehicles with advanced electric seat systems, where the ease of adjustment could otherwise lead to unintentional shifts.
One practical example of safety lock implementation is in family vehicles, where children or restless passengers might accidentally trigger the recline function. Here, the lock can be engaged manually by the driver or programmed to activate automatically when the vehicle is in motion. Some systems even include a visual or auditory alert to confirm the lock is engaged, providing an additional layer of reassurance. For parents or caregivers, this feature is indispensable, ensuring that young passengers remain securely seated without constant supervision.
While safety locks are essential, their effectiveness depends on proper usage and maintenance. Regularly inspect the lock mechanism for wear or damage, as a malfunctioning lock could fail to prevent unintended movement. Additionally, familiarize yourself with the seat’s controls to avoid accidental disengagement of the lock. For electric seats, ensure the vehicle’s battery is in good condition, as power issues could affect the lock’s functionality. By integrating these practices, drivers can maximize the safety benefits of reclining seat locks, ensuring a secure and comfortable ride for all occupants.
Measuring Electric Current: The Essential Instrument for Accurate Readings
You may want to see also
Explore related products
Power Supply Integration: Connects motor to car’s electrical system for consistent and reliable functionality
Electric reclining car seats rely on a seamless power supply integration to function consistently and reliably. This integration involves connecting the seat’s motor to the vehicle’s electrical system, ensuring the mechanism operates smoothly without draining the battery or causing electrical faults. The process begins with a dedicated wiring harness that links the motor to the car’s 12-volt power source, typically routed through the fuse box to protect against overloads. This connection is critical, as it provides a stable power flow that enables precise control over the reclining motion, whether via buttons, levers, or touchscreens.
One key aspect of power supply integration is the use of relays and control modules. Relays act as switches, managing the high current required by the motor while isolating it from sensitive control circuits. Control modules, often integrated into the seat’s electronics, regulate power delivery based on user input, ensuring the motor operates at the correct speed and stops at the desired position. For example, when a passenger presses the recline button, the control module activates the relay, sending power to the motor until the seat reaches the programmed angle, typically between 10° and 30° of recline.
Practical considerations include voltage regulation and power consumption. Modern vehicles often incorporate voltage regulators to maintain a steady 12-volt supply, even when the engine is off, preventing sudden stops or jerky movements. Additionally, the system is designed to draw minimal power—usually less than 20 amps during operation—to avoid straining the alternator or battery. For hybrid or electric vehicles, power supply integration may include smart management systems that prioritize seat functionality without compromising driving range.
A critical caution is ensuring compatibility between the seat’s electrical components and the vehicle’s system. Aftermarket installations, for instance, require careful matching of wiring gauges, connectors, and fuse ratings to prevent overheating or short circuits. Manufacturers often provide detailed diagrams or kits to simplify this process, but professional installation is recommended to avoid voiding warranties or causing damage. Regular inspections of wiring and connections are also advised, especially in older vehicles, to detect wear or corrosion that could disrupt functionality.
In conclusion, power supply integration is the backbone of electric reclining seat mechanisms, bridging the gap between user command and mechanical action. By connecting the motor to the car’s electrical system with precision and safeguards, it ensures a reliable, efficient, and safe reclining experience. Whether in a luxury sedan or a family SUV, this integration exemplifies how automotive engineering balances convenience with technical rigor, turning a simple adjustment into a seamless part of the driving experience.
Best Pickup Options for Cecilio Electric Violins: A Comprehensive Guide
You may want to see also
Frequently asked questions
An electric reclining car seat uses a motorized mechanism powered by the vehicle’s electrical system. When activated via a button or switch, the motor drives a series of gears and linkages to tilt the seatback forward or backward, adjusting the recline angle smoothly.
The mechanism typically includes an electric motor, gears, a control module, a switch or button, and a track or frame system. The motor powers the gears, which move the seatback along the track or frame to achieve the desired recline position.
Most electric reclining seats do not have a manual override, as the mechanism is fully motorized. If the motor fails, the seat may need to be repaired or replaced by a professional.
The recline angle is controlled by the vehicle’s electronic control unit (ECU) or a dedicated seat control module. The motor stops moving the seatback once the desired angle is reached, as detected by sensors or limit switches in the mechanism.
Yes, electric reclining seats are designed with safety in mind. They are tested to meet safety standards and include locking mechanisms to secure the seatback in place during normal driving and in the event of a collision.
