The mean electrical axis is the average of all the instantaneous mean electrical vectors occurring sequentially during ventricular depolarization. It is important to understand the mean electrical axis as it helps diagnose conduction abnormalities, ventricular hypertrophy, and the origin of arrhythmias. To determine the mean electrical axis, a multilead ECG is required, with the patient's limbs perpendicular to their long axis. Four methods exist for estimating the mean electrical axis, with the first two considered more accurate. The first method involves finding an isoelectric lead, where the positive and negative deflections of the QRS complex are equal. The lead perpendicular to the isoelectric lead identifies the mean electrical axis. The second method involves choosing the lead with the smallest net deflection and extrapolating to determine the approximate mean electrical axis. The third method involves using a hexaxial lead system, where the mean electrical axis is determined by the predominant orientation of the QRS complex. The fourth method is the quadrant method, which uses the relative magnitudes of the R waves in leads I and III to determine the mean electrical axis.
| Characteristics | Values |
|---|---|
| Definition | The mean electrical axis is the average of all the instantaneous mean electrical vectors occurring sequentially during depolarization of the ventricles. |
| Detection | An electrocardiogram (ECG) is required to identify the exact nature of an arrhythmia. |
| Types of ECG | A single lead II ECG tracing is generally used to diagnose arrhythmias, but a multilead ECG is necessary to detect changes in the mean electrical axis. |
| Normal Range | In cats, the normal mean electrical axis is between 0 and +160 degrees. In dogs, it is between +40 and +100 degrees. |
| Right Axis Shift | In dogs, a right axis shift is between +100 and -90 degrees. In cats, it is between +160 and -90 degrees. |
| Left Axis Shift | In dogs, a left axis shift is between +40 and -90 degrees. In cats, it is between 0 and -90 degrees. |
| Hexaxial Lead System | The hexaxial lead system includes leads I, II, III, avR, avL, and avF, which are positioned at different angles around the heart. |
| Positive and Negative Poles | Each lead has a positive and negative pole. A wave of depolarization traveling toward the positive pole results in a positive deflection, while a wave traveling away from the positive pole results in a negative deflection. |
| Amplitude | The amplitude (height) of an ECG R wave is proportional to how parallel the wave front of depolarization is to the lead. |
| Calculation Methods | Four basic methods exist for estimating the mean electrical axis. The first two methods are considered more accurate, while the latter two are reasonable approximations. |
| Example Calculation | In the example of six limb leads, aVL is biphasic at -30 degrees. The positive perpendicular axis to aVL is +60 degrees, resulting in a mean electrical axis of approximately +60 degrees. |
Explore related products
What You'll Learn
The mean electrical axis in dogs and cats

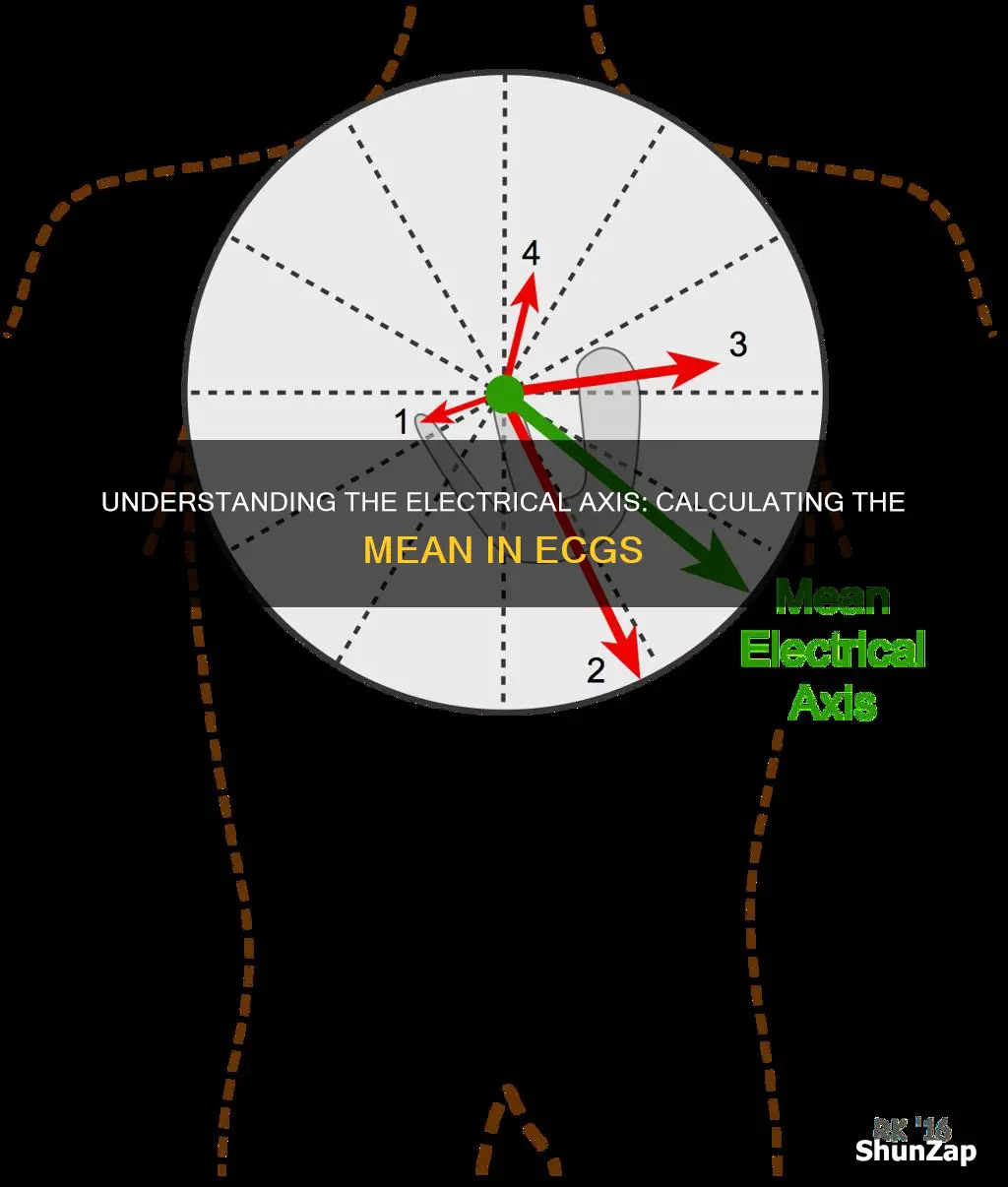

The mean electrical axis is the average of all the instantaneous mean electrical vectors occurring during the ventricular depolarization of the ventricles. To detect changes in the mean electrical axis, a multilead ECG is required. This is a useful diagnostic tool as it helps to diagnose conduction abnormalities, detect ventricular hypertrophy, and differentiate the origin of arrhythmias.
In dogs, the normal range of the mean electrical axis is between +40 and +100 degrees. A right axis shift is defined as a mean electrical axis between +100 and -90 degrees, while a left axis shift occurs when the mean electrical axis is between +40 and -90 degrees.
In cats, the normal range of the mean electrical axis is between 0 and +160 degrees. A right axis shift occurs when the mean electrical axis is between +160 and -90 degrees, and a left axis shift occurs when it is between 0 and -90 degrees.
To determine the mean electrical axis in both dogs and cats, a six-lead ECG is required, with the patient positioned in right lateral recumbency and their limbs perpendicular to the long axis of their body. Four basic methods exist for estimating the mean electrical axis, with the first two considered more accurate than the latter two, which are reasonable approximations. The first method involves finding an isoelectric lead by identifying a lead in which the positive and negative deflections of the QRS complex are equal. The lead that is perpendicular to the isoelectric lead is the one that will identify the mean electrical axis. The second method involves choosing a lead with the smallest net deflection and extrapolating to determine the approximate mean electrical axis.
