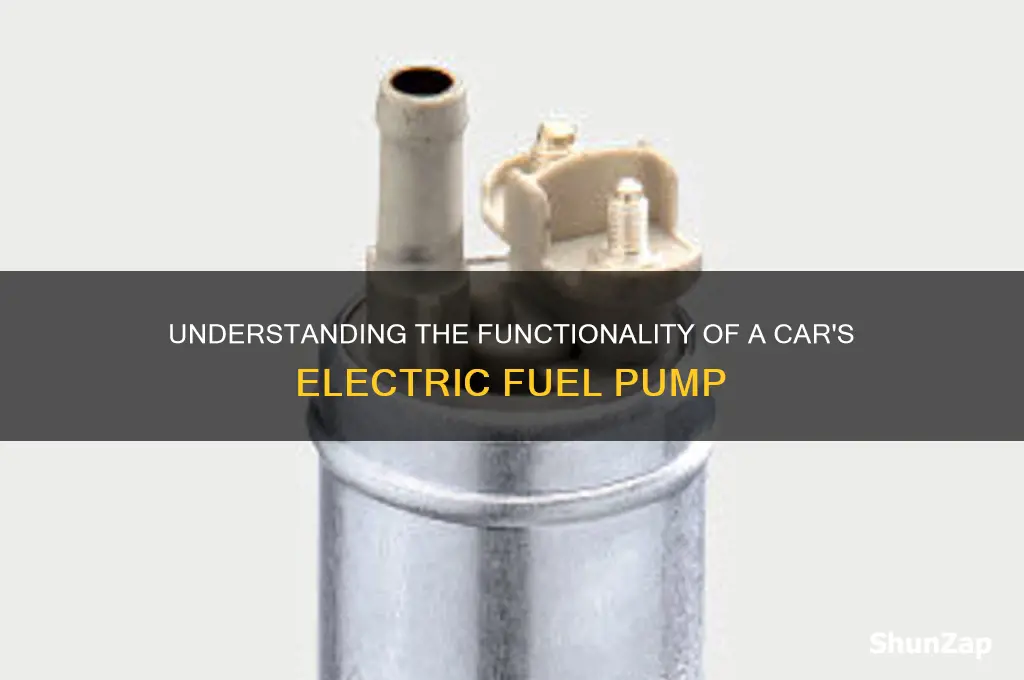

A car's electric fuel pump is a critical component of the fuel delivery system, responsible for transferring fuel from the tank to the engine. Unlike mechanical pumps, which are driven by the camshaft or other engine components, electric fuel pumps are powered by the vehicle's electrical system and are typically located inside or near the fuel tank. When the ignition is turned on, the pump activates, drawing fuel through a filter and pressurizing it before sending it through the fuel lines to the engine. This process ensures a consistent and precise fuel supply, which is essential for efficient combustion. Modern electric fuel pumps often include a check valve to maintain pressure in the fuel lines when the pump is off, reducing startup time and improving overall engine performance. Understanding how this system works is key to diagnosing and maintaining a vehicle's fuel delivery efficiency.
| Characteristics | Values |
|---|---|
| Power Source | Electrical (powered by the vehicle's battery and alternator) |
| Location | Typically mounted inside the fuel tank (in-tank) or near the fuel tank |
| Operation Principle | Uses an electric motor to drive a diaphragm or turbine to pump fuel |
| Fuel Delivery | Delivers fuel from the tank to the engine at a consistent pressure |
| Pressure Regulation | Maintains fuel pressure within a specific range (e.g., 30-60 PSI) |
| Control Mechanism | Controlled by the engine control unit (ECU) or a dedicated fuel pump relay |
| Flow Rate | Varies by vehicle, typically 50-100 liters per hour |
| Durability | Designed to operate for the vehicle's lifetime with minimal maintenance |
| Noise Level | Generally quiet compared to mechanical fuel pumps |
| Compatibility | Works with gasoline and diesel engines (design may vary) |
| Safety Features | Includes thermal protection to prevent overheating |
| Efficiency | High efficiency, as it only operates when the engine is running |
| Maintenance | Requires periodic inspection; in-tank pumps are less accessible for repair |
| Cost | More expensive than mechanical pumps but offers better reliability |
| Environmental Impact | Reduces fuel vapor emissions compared to mechanical pumps |
| Integration | Often integrated with fuel level sensors and pressure regulators |
Explore related products
What You'll Learn
- Pump Mechanism: Explains the internal components like the motor, impeller, and diaphragm that move fuel
- Power Supply: Details how the pump receives electricity from the car’s battery and ECU
- Fuel Delivery: Describes how the pump pressurizes and delivers fuel to the engine
- Pressure Regulation: Covers the role of the fuel pressure regulator in maintaining optimal pressure
- Safety Features: Discusses fail-safes like inertia switches and relays to prevent pump damage
Pump Mechanism: Explains the internal components like the motor, impeller, and diaphragm that move fuel
The electric fuel pump in a car is a critical component responsible for delivering fuel from the tank to the engine. At the heart of its operation is the pump mechanism, which consists of several internal components working in harmony to ensure a steady and pressurized flow of fuel. The primary components include the motor, impeller, and in some designs, a diaphragm. These parts are engineered to handle the demands of modern fuel systems efficiently.
The motor is the driving force of the electric fuel pump. Typically a high-speed electric motor, it converts electrical energy from the vehicle’s battery into mechanical energy. This motor is designed to operate continuously and withstand the harsh conditions inside the fuel tank, including exposure to gasoline or diesel. When the ignition is turned on, the motor activates, initiating the pumping process. Its efficiency and reliability are crucial, as any failure can lead to engine stalling or poor performance.
Connected to the motor is the impeller, a rotating component with blades or vanes that create suction and pressure to move the fuel. As the motor spins the impeller, it draws fuel into the pump through the inlet and forces it out through the outlet. The impeller’s design is optimized to minimize turbulence and maximize flow rate, ensuring a consistent supply of fuel to the engine. In centrifugal fuel pumps, the impeller plays a central role in generating the necessary pressure to overcome the resistance in the fuel lines.
In some fuel pump designs, a diaphragm is used instead of or in conjunction with an impeller. The diaphragm is a flexible membrane that moves back and forth, creating a pumping action. As the motor drives a cam or lever to flex the diaphragm, it alternately creates a vacuum to draw fuel in and pressure to push it out. Diaphragm pumps are often found in older or simpler fuel systems and are valued for their simplicity and reliability, though they are less common in modern vehicles due to their lower efficiency compared to impeller-based designs.
The interaction between the motor, impeller, and diaphragm (if present) is precisely engineered to maintain the correct fuel pressure and flow rate required by the engine. Additionally, the pump mechanism includes check valves to ensure one-way fuel flow and prevent backflow, as well as a pressure regulator to maintain optimal pressure in the fuel lines. Together, these components form the core of the electric fuel pump, ensuring that fuel is delivered efficiently and reliably to the engine under all operating conditions.
