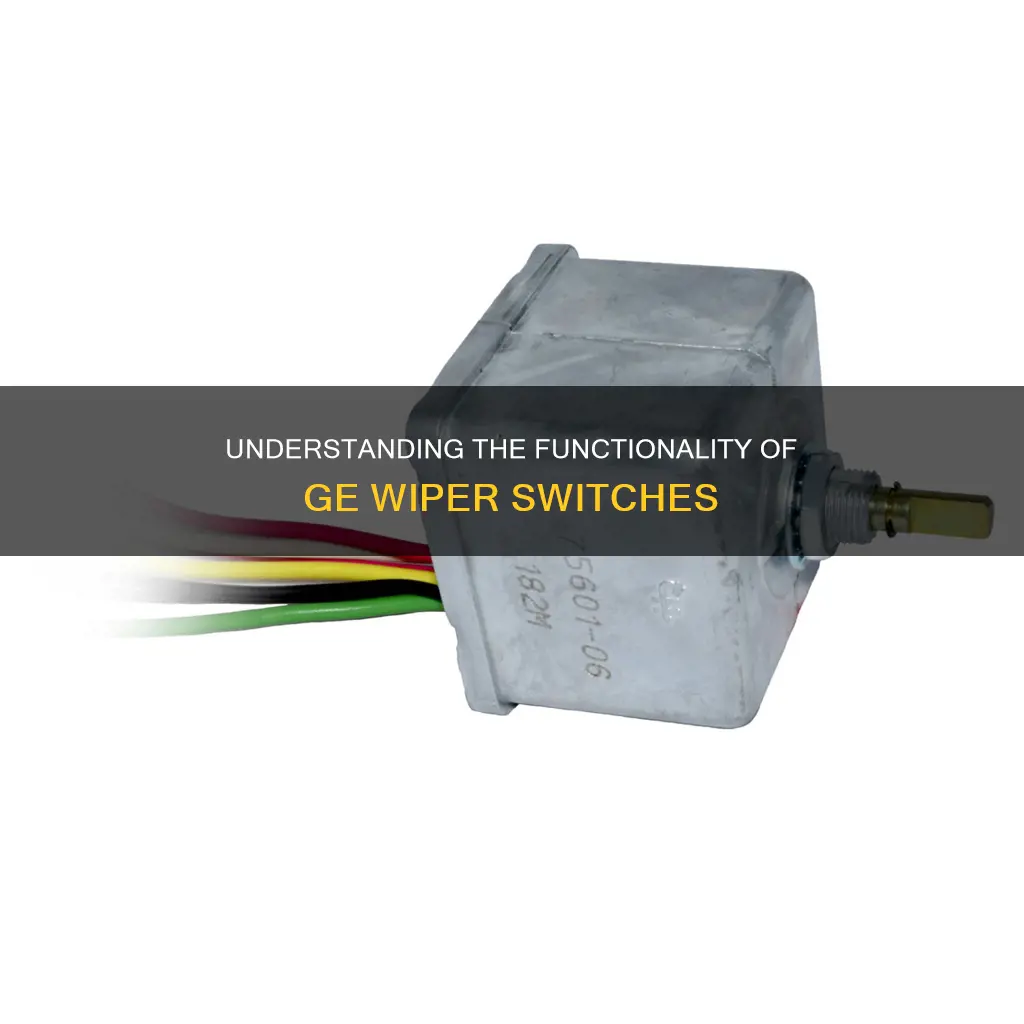

A wiper switch is a component of a car's wiper system that controls the operation of the wiper motor and, in some cases, a windshield washer pump. When the wiper switch is turned on, it sends a signal to the control module, which operates the wiper relay. The wiper relay then provides power to the wiper motor, causing it to rotate and move the wiper arms across the windshield. Wiper switches can vary in terms of speed settings and compatibility with washer pumps, and they play a crucial role in maintaining visibility while driving in various weather conditions.
| Characteristics | Values |
|---|---|
| How it works | When the wiper switch is turned on, it sends a signal to the control module, which operates the wiper relay. The relay then sends 12-volt power to the wiper motor, which rotates a small arm that moves the wiper arms. |
| Control module | Also known as the Body Control Module (BCM) or front BCM (FBCM). Honda calls it the Multiplex Integrated Control System (MICU). |
| Number of relays | There could be up to 3 relays: one for the high-speed circuit, one for the low-speed circuit, and one for the intermittent wipers circuit. |
| Relay location | Wiper relays can be installed in the fuse box under the hood or in other locations. In some cars, the relay is built into the Body Control Module (BCM). |
| Relay issues | It's not uncommon for a wiper relay to fail or stick, causing the wiper motor to malfunction or work even when the switch is turned off. This can be caused by turning on the wipers when they are frozen to the windshield, which can damage the relay or the wiper motor itself. |
| Troubleshooting | If the wipers don't work, a mechanic can test the wiper motor circuit to diagnose the problem. If the motor runs but the wipers don't, it's a mechanical problem with the linkage. If the motor doesn't react, it's an electrical problem. |
| Self-parking | The wiper switch energizes the main relay, turning on the wipers. It also heats a bimetallic contact strip, which eventually cuts the supply to the relay and activates self-parking. |
Explore related products
What You'll Learn
Wiper switch compatibility
When it comes to wiper switch compatibility, there are several factors to keep in mind. Firstly, it is essential to identify the correct type of wiper switch for your vehicle. This includes considering the specific year, make, and model of your car, as wiper switches can vary significantly between different vehicles. For example, in a discussion on the GMC Motorhome Forum, users talk about the electric windshield wiper conversion and the compatibility of different wiper systems with their GMC vehicles.
Secondly, the wiper switch must be compatible with the wiper motor. In some cases, a direct-replacement switch may be the best option, especially if you are dealing with a stock electric wiper motor. As mentioned in the Classic Broncos forum, using a switch designed for a different motor circuit can lead to frustration and may not work with the stock motor.
Additionally, the complexity of modern wiper systems, which often include multiple settings and functions, further emphasizes the need for compatibility. For instance, some wiper switches have intermittent settings, allowing the wipers to operate at varying speeds. Ensuring that any modifications or replacements of the wiper switch are compatible with the vehicle's existing system is crucial to maintaining the proper functioning of the wipers.
Finally, when dealing with electrical components like wiper switches, it is important to consider the wiring and electrical system of the vehicle. Wiring diagrams, such as those referenced in the Polaris General Forum, can be invaluable when installing or troubleshooting wiper switches. Proper wiring ensures that the wiper switch functions correctly and safely, preventing issues like blown fuses or a wiper that won't turn off.
In summary, wiper switch compatibility is a critical aspect of maintaining and modifying a vehicle's wiper system. By considering factors such as vehicle make and model, wiper motor type, system complexity, and electrical compatibility, you can ensure that your wiper switch functions reliably and safely.
Electric Berry Lemonade: Caffeinated or Not?
You may want to see also
Explore related products
Wiper motor problems
One of the most common signs of a faulty wiper motor is unusual slowness or a jerky, hesitant movement across the windscreen. This is often caused by clogged components in the wiper system, such as linkages or motor mechanism parts. It can also be due to faulty electrical components like wires and connectors, resulting in a low current in the wiper motor system.
If you notice that you cannot change the speed of your wipers, it could be due to a faulty wiper switch or a faulty wiper control module. The wipers may also stop working entirely, which often indicates that the motor has burned out or there is an electrical problem within the wiper motor wiring system.
To troubleshoot wiper motor problems, you should check for voltage at the switch or motor and inspect the wiring, connectors, and switch contacts. If the wipers stop in the wrong place when powered off, it is usually due to a faulty park switch or a faulty ECU. In this case, opening the gearbox and cleaning or replacing the park limit switch is recommended.
It is important to regularly inspect and replace any damaged wiper blades. Additionally, always ensure that your wiper blades are parked in the correct position at the bottom of the windscreen to prevent damage to the system.
Electrons and Electric Fans: A Cool Spin on Similarities
You may want to see also
Explore related products
Wiper relay issues
One of the most common symptoms of a faulty wiper relay is the intermittent setting not working, with the wipers only functioning on high or low settings. This is usually due to a faulty intermittent wiper relay switch, which can be easily replaced. The wipers may also move at varying speeds, indicating an issue with the relay.
In some cases, the wipers may continue to run even after turning off the ignition. This could be due to a faulty switch, which may need to be replaced. Additionally, if you notice a strange humming noise when operating the wipers, it could be a sign that the wiper motor is not receiving adequate power due to a bad relay.
To diagnose and address wiper relay issues, it is recommended to consult a certified professional, especially if you're unfamiliar with automotive electrical systems. They can provide guidance, repairs, or replacements to ensure optimal visibility and safe driving conditions.
Understanding Computer Language: Electrical Signals Decoded
You may want to see also
Explore related products
Wiring the wiper motor
Wiring a wiper motor can be a complex task, and it is important to understand the components and their functions before beginning. In this case, we are focusing on the General Electric wiper switch, which typically involves wiring the wiper motor, a windshield washer pump, and a rocker switch.
Firstly, it is essential to determine the type of wiper system you are working with. Some vehicles use a hydraulic wiper system, while others may have an electric wiper system. This will impact the wiring process and the components required.
For the wiring process, you will need to gather the necessary materials, including a relay harness, a busbar (add-on), and a switch. The switch can be a simple on/off toggle switch or a multi-function switch, depending on your preference and the features you want to include. Additionally, you will need to identify the correct wiring diagram for your specific setup. This diagram will guide you in connecting the wiper motor, pump, switch, and busbar connection points.
When wiring the wiper motor, it is crucial to ensure that the power source can handle the electrical load. In some cases, powering the wiper motor directly from the ignition may blow fuses. To avoid this, you can use a relay to power the wiper motor, triggered by the ignition-switched power. This setup ensures that the wipers receive sufficient power without overloading the fuses.
Additionally, pay close attention to the "park" function of the wiper motor. This function allows the wiper arms to return to a predetermined position when turned off, typically through a cam lobe that separates the contacts. You can adjust the parking position of the wiper arms by eliminating the park circuit, allowing you to choose whether they park on the driver's or passenger side.
Electric Ukulele: A Beginner's Guide to Getting Started
You may want to see also
Explore related products
Upgrading to electric wipers
The first step in the process is to dismantle the original wiper system. This will involve removing the old wiper motor and switch, as well as any associated wiring. It is important to note that the process can vary depending on the specific vehicle, so it is recommended to refer to a guide or tutorial specific to your car's year, make, and model.
Once the old system has been removed, the new electric motor will need to be modified to ensure compatibility with the car. This may include building a drive hub and installing an adapter plate, as well as potentially replacing wiring or adding new bolts and washers. A conversion kit can be extremely helpful at this stage, as it will include all the necessary parts and instructions.
After the new electric motor is installed, the wiring will need to be connected. This process can be complex, and it is important to ensure that it is done correctly to avoid any issues. The wiring diagram provided with the new motor should be followed carefully. It is also recommended to consult a professional or an expert forum if you are unsure about the process.
Finally, the new wiper system should be tested to ensure it is functioning correctly. This includes checking the various settings, such as low, high, and park, to ensure the wipers are operating as expected.
Electrical Wiring for Your Kitchen Island: How Deep Should You Go?
You may want to see also
Frequently asked questions
If the wiper motor runs or attempts to run but the wipers don't work, it's a mechanical problem with the linkage. If the motor doesn't react when the switch is operated, it's an electrical problem.
If the wiper motor circuit is faulty, it will need to be tested. If one of the shafts is seized, a mechanic may suggest cleaning and lubricating the shafts without replacing parts.
If the wiper continues to run and will not shut off unless you turn off the ignition, the wiper relay may be faulty.
