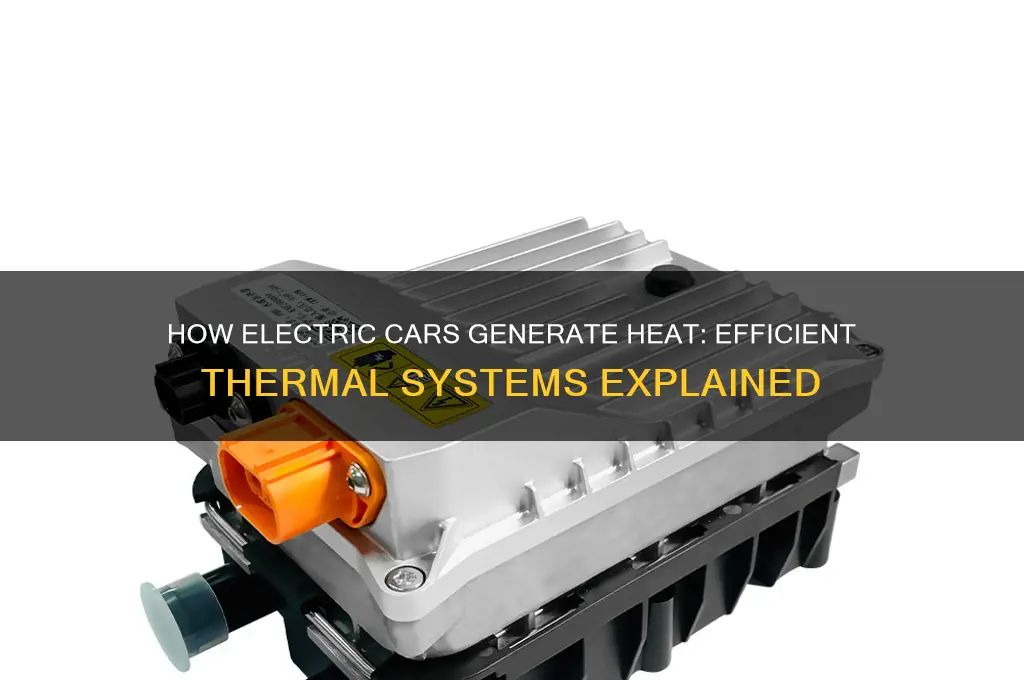

Electric cars generate heat primarily through their electric powertrain and battery systems, which produce thermal energy as a byproduct of operation. Unlike traditional internal combustion engines, which rely on the combustion process for heat, electric vehicles (EVs) utilize resistance in their components, such as the electric motor, power electronics, and battery, to create warmth. During driving, the motor and inverter convert electrical energy into mechanical energy, generating heat due to electrical resistance and friction. Additionally, the battery pack produces heat during charging and discharging cycles, which is managed by advanced thermal systems to maintain optimal performance and prevent overheating. To provide cabin heating, EVs often employ electric resistance heaters or heat pumps, which efficiently transfer thermal energy from the outside air or the vehicle’s battery and powertrain into the interior, ensuring passenger comfort without relying on fossil fuels.
| Characteristics | Values |
|---|---|
| Primary Heat Source | Electric resistance heating (PTC heaters) |
| Energy Source | High-voltage battery pack |
| Heat Generation Mechanism | Electric current passing through a resistive element generates heat |
| Efficiency | ~99% efficient in converting electrical energy to heat |
| Heat Distribution | Cabin air is blown over the heating element by the HVAC system |
| Secondary Heat Source | Waste heat from the electric motor and power electronics (in some models) |
| Climate Control | Heat pumps (in newer models) for improved efficiency in cold climates |
| Heat Pump Efficiency | Up to 3-4 times more efficient than resistance heating |
| Battery Impact | Reduced range in cold weather due to increased energy demand for heating |
| Preconditioning | Ability to preheat the cabin while plugged in to save battery range |
| Environmental Impact | Lower emissions compared to combustion engine vehicles, especially with renewable energy sources |
| Cost of Heating | Lower operating costs compared to fuel-based heating systems |
| Maintenance | Fewer moving parts, resulting in lower maintenance requirements |
| Temperature Control | Precise and quick temperature adjustments via digital controls |
| Safety Features | Overheat protection and automatic shut-off mechanisms |
| Integration with Battery Thermal Management | Some systems use battery cooling systems to assist in cabin heating |
Explore related products
What You'll Learn
- Battery Thermal Management: How batteries produce heat during operation and methods to regulate temperature
- Resistive Heating Elements: Use of electric resistance to generate heat for cabin warming
- Heat Pump Systems: Efficiently transferring heat from outside air or components to warm the cabin
- Motor Waste Heat Recovery: Capturing and utilizing heat generated by electric motors for heating
- PTC Heaters: Positive Temperature Coefficient heaters for rapid cabin heating in cold conditions
Battery Thermal Management: How batteries produce heat during operation and methods to regulate temperature
Electric vehicle (EV) batteries generate heat primarily through two mechanisms: ohmic resistance and entropy change during electrochemical reactions. During operation, as electrons flow through the battery’s internal components, resistance in the materials causes energy loss in the form of heat. This is particularly noticeable during high-current operations, such as rapid charging or discharging (e.g., acceleration). Additionally, the electrochemical reactions within the battery cells inherently produce heat due to the entropy change associated with lithium-ion movement between the anode and cathode. These processes are unavoidable and contribute to the battery’s thermal output, which must be carefully managed to ensure optimal performance and safety.
Effective battery thermal management is critical to maintaining the temperature of EV batteries within an ideal operating range, typically between 20°C and 40°C. If temperatures exceed this range, battery efficiency decreases, degradation accelerates, and safety risks, such as thermal runaway, increase. Conversely, cold temperatures reduce battery capacity and increase internal resistance. To regulate temperature, EVs employ various methods, including liquid cooling systems, which circulate coolant through channels near the battery pack to absorb and dissipate heat. These systems are highly efficient and are commonly used in high-performance EVs due to their ability to handle significant thermal loads.
Another method of thermal management is air cooling, which uses fans or natural convection to direct air over the battery pack. While simpler and less costly than liquid cooling, air cooling is less effective at managing high heat loads and is typically used in smaller or less power-intensive EVs. Phase-change materials (PCMs) are also employed in some systems, where materials absorb and store heat during operation and release it when temperatures drop, helping to stabilize battery temperature passively. Each method has its advantages and is chosen based on the specific requirements of the vehicle and its battery system.
Thermal insulation plays a complementary role in battery thermal management by minimizing heat loss in cold conditions and preventing excessive heat absorption in hot environments. Insulating materials are applied around the battery pack to maintain a stable internal temperature, reducing the workload on active cooling systems. Additionally, battery management systems (BMS) monitor temperature in real time and adjust cooling or heating mechanisms as needed. For instance, during fast charging, the BMS may increase cooling to counteract the additional heat generated, ensuring the battery remains within safe operating limits.
In colder climates, battery heating systems are essential to maintain performance and prevent damage. These systems often use resistive heating elements or waste heat recovery from other vehicle components, such as the motor or power electronics, to warm the battery pack. Some EVs also utilize direct current (DC) heating, where the battery itself generates heat through controlled internal resistance, though this method can consume additional energy. By combining cooling, heating, and insulation strategies, EV manufacturers ensure that battery thermal management is robust and adaptable to various operating conditions, maximizing efficiency, longevity, and safety.
Choosing the Right Screws for Round Electrical Box Covers
You may want to see also
Explore related products
Resistive Heating Elements: Use of electric resistance to generate heat for cabin warming
Electric vehicles (EVs) employ various methods to generate heat for cabin warming, and one of the most common and efficient techniques is the use of resistive heating elements. These elements leverage the principle of electric resistance to convert electrical energy into heat, providing a direct and effective way to warm the interior of the vehicle. Unlike traditional internal combustion engine (ICE) vehicles, which use waste heat from the engine for cabin warming, EVs must generate heat intentionally, making resistive heating a practical solution.
Resistive heating elements work by passing an electric current through a material with high electrical resistance, such as nichrome or tungsten. As the current flows through the resistive material, it encounters opposition, which causes the material to heat up due to the dissipation of electrical energy as thermal energy. This process is governed by Joule’s Law, which states that the heat generated is proportional to the square of the current, the resistance of the material, and the time the current flows. In an EV, these heating elements are typically integrated into the HVAC (Heating, Ventilation, and Air Conditioning) system, where they warm the air before it is distributed throughout the cabin.
The design and placement of resistive heating elements in an EV are crucial for efficiency and effectiveness. They are often located in the HVAC unit, where they can quickly heat the air passing through the system. Some EVs also use additional resistive elements in the seats or steering wheel to provide localized warmth, enhancing passenger comfort. The power output of these elements can be adjusted based on the desired cabin temperature, allowing for precise control over the heating process. This flexibility ensures that energy is used efficiently, minimizing the impact on the vehicle’s battery range.
One of the advantages of resistive heating elements is their simplicity and reliability. They have no moving parts, reducing the likelihood of mechanical failure, and they can be activated almost instantly, providing rapid cabin warming. However, their efficiency is directly tied to energy consumption, as they draw power directly from the battery. To mitigate this, modern EVs often incorporate advanced thermal management systems that balance heating needs with energy conservation, such as pre-conditioning the cabin while the vehicle is still plugged in or using heat pumps in conjunction with resistive elements.
Despite their energy consumption, resistive heating elements remain a popular choice for EVs due to their effectiveness and ease of integration. They are particularly useful in colder climates where quick and reliable cabin warming is essential. As EV technology continues to evolve, innovations in resistive heating, such as improved materials and smarter control algorithms, are expected to enhance their efficiency further. For now, resistive heating elements remain a cornerstone of EV cabin warming systems, providing comfort and convenience to drivers and passengers alike.
Choosing the Right Pick Size for Electric Guitar Playing
You may want to see also
Explore related products
Heat Pump Systems: Efficiently transferring heat from outside air or components to warm the cabin
Heat pump systems in electric vehicles (EVs) are a highly efficient method for warming the cabin, especially in colder climates. Unlike traditional internal combustion engine (ICE) vehicles, which use waste heat from the engine, EVs rely on electrical systems to generate warmth. A heat pump works by transferring heat from the outside air—even in cold conditions—into the vehicle’s cabin. This process is similar to how a refrigerator operates but in reverse. The system uses a refrigerant that absorbs heat from the external environment, compresses it to increase its temperature, and then releases it into the cabin. This method is significantly more energy-efficient than resistive heating, which directly converts electrical energy into heat and can drain the battery quickly.
The core components of a heat pump system include a compressor, evaporator, condenser, and expansion valve. When activated, the evaporator absorbs heat from the outside air, even at low temperatures, by converting the refrigerant from a liquid to a gas. The compressor then pressurizes this gas, raising its temperature. The hot, compressed refrigerant flows to the condenser, where it releases heat into the cabin air, warming the interior. The refrigerant then passes through the expansion valve, which reduces its pressure and temperature, preparing it to repeat the cycle. This continuous loop ensures a steady supply of warmth without excessive energy consumption.
One of the key advantages of heat pump systems is their ability to maintain efficiency in cold weather. While resistive heaters become less effective as temperatures drop, heat pumps can still extract heat from outside air down to sub-zero levels. Modern heat pumps are designed with advanced controls and insulation to minimize heat loss and maximize performance. Some systems also incorporate waste heat recovery, capturing thermal energy from the EV’s battery or electric motor to further enhance efficiency. This dual approach ensures that the cabin remains comfortable without significantly impacting the vehicle’s range.
Heat pump systems are particularly beneficial for extending the driving range of electric vehicles in winter. Resistive heating can consume a large portion of the battery’s energy, reducing the distance an EV can travel on a single charge. In contrast, heat pumps use a fraction of the energy, preserving battery life and maintaining range. For example, studies have shown that heat pumps can reduce energy consumption for cabin heating by up to 50% compared to resistive heaters. This efficiency is crucial for addressing range anxiety, a common concern among EV owners in colder regions.
In addition to their efficiency, heat pump systems contribute to the sustainability of electric vehicles. By reducing the reliance on resistive heating, they lower the overall energy demand of the vehicle, which can decrease greenhouse gas emissions, especially when the electricity used to charge the EV comes from renewable sources. Furthermore, the integration of heat pumps aligns with the broader goal of minimizing the environmental impact of transportation. As EV technology continues to evolve, heat pump systems are becoming a standard feature in many models, ensuring that drivers can enjoy a warm and comfortable ride without compromising on efficiency or sustainability.
Choosing the Right Electrical Box for Stud-Free Installations
You may want to see also
Explore related products
Motor Waste Heat Recovery: Capturing and utilizing heat generated by electric motors for heating
Electric vehicles (EVs) primarily generate heat through the operation of their electric motors and power electronics. During driving, these components produce waste heat as a byproduct of energy conversion and resistance. Traditionally, this heat is dissipated into the environment, but advancements in technology have led to innovative methods for capturing and utilizing this waste heat, particularly for cabin heating. Motor waste heat recovery is a promising approach that not only improves energy efficiency but also reduces the reliance on battery-powered heating systems, thereby extending the vehicle's range.
The process of motor waste heat recovery involves redirecting the excess heat generated by the electric motor and power electronics to the vehicle's heating system. This is achieved through the use of heat exchangers and thermal management systems. When the motor operates, it produces heat due to electrical resistance and mechanical friction. Instead of allowing this heat to escape, it is captured and transferred to a coolant or refrigerant, which then circulates through the vehicle's heating system. This method is particularly effective in cold climates, where cabin heating demands are high and can significantly drain the battery.
One of the key challenges in implementing motor waste heat recovery is ensuring efficient heat transfer without compromising the motor's performance. Advanced materials and designs, such as high-conductivity heat sinks and optimized coolant flow paths, are employed to maximize heat capture while maintaining the motor's thermal stability. Additionally, smart thermal management systems use sensors and algorithms to monitor temperature levels and adjust heat distribution in real time, ensuring that the motor operates within safe limits while providing consistent cabin heating.
Another aspect of motor waste heat recovery is its integration with other vehicle systems. For example, the recovered heat can be used not only for cabin heating but also for defrosting windows, preheating the battery pack, or even supporting the operation of heat pumps. This multifunctional approach enhances the overall efficiency of the vehicle and reduces the load on the battery, leading to longer driving ranges. Furthermore, combining waste heat recovery with regenerative braking systems can create a synergistic effect, where both technologies work together to minimize energy losses and maximize energy reuse.
Implementing motor waste heat recovery systems requires careful consideration of cost and complexity. While the technology offers significant benefits, it must be balanced with the need for affordability and simplicity in EV design. Manufacturers are exploring modular solutions that can be easily integrated into existing vehicle architectures, reducing development and production costs. As research and development in this area continue, we can expect to see more widespread adoption of motor waste heat recovery systems, contributing to the sustainability and efficiency of electric vehicles.
In conclusion, motor waste heat recovery represents a valuable opportunity to enhance the energy efficiency of electric vehicles by capturing and utilizing the heat generated by electric motors. By redirecting this waste heat for cabin heating and other thermal needs, EVs can reduce their reliance on battery-powered systems, improve range, and provide a more comfortable driving experience in cold conditions. As technology advances and costs decrease, this approach is poised to become a standard feature in the next generation of electric vehicles, driving the industry toward greater sustainability and performance.
The History of Cloth-Covered Electrical Wiring: When Were They Used?
You may want to see also
Explore related products
PTC Heaters: Positive Temperature Coefficient heaters for rapid cabin heating in cold conditions
Electric vehicles (EVs) face unique challenges when it comes to cabin heating, especially in cold climates. Unlike traditional internal combustion engine (ICE) vehicles, which generate excess heat as a byproduct of combustion, EVs must actively produce heat for passenger comfort. One of the most efficient and widely adopted solutions for rapid cabin heating in EVs is the use of Positive Temperature Coefficient (PTC) heaters. These heaters leverage the properties of PTC materials to provide quick and reliable warmth, ensuring a comfortable driving experience even in freezing conditions.
PTC heaters operate based on the principle of self-regulating resistance. The heating element in a PTC heater is made from a semiconductor material whose resistance increases as its temperature rises. When the heater is first activated, the material has low resistance, allowing a high current to flow and generate heat rapidly. As the temperature increases, the resistance rises, reducing the current and stabilizing the heat output. This self-regulating feature prevents overheating and ensures energy efficiency, making PTC heaters ideal for EVs where energy management is critical.
In an electric car, PTC heaters are typically integrated into the HVAC (Heating, Ventilation, and Air Conditioning) system. When the driver activates the heating function, the PTC heater quickly warms the air passing through the system, delivering hot air into the cabin. This process is significantly faster than traditional heating methods, which often rely on the slow warming of engine coolant. Additionally, PTC heaters can be powered directly by the vehicle’s battery, eliminating the need for a separate heat source and simplifying the overall system design.
One of the key advantages of PTC heaters is their ability to provide rapid cabin heating in cold conditions. Unlike heat pumps, which may struggle at extremely low temperatures, PTC heaters perform consistently across a wide temperature range. This reliability makes them a preferred choice for EVs operating in harsh winter climates. Furthermore, their compact size and lightweight design allow for easy integration into the vehicle’s existing systems without adding significant weight or complexity.
Another benefit of PTC heaters is their safety and durability. The self-regulating nature of PTC materials reduces the risk of thermal runaway, a common concern with conventional heating elements. Additionally, PTC heaters are resistant to thermal shock and have a long operational lifespan, minimizing maintenance requirements. These features align with the overall goals of electric vehicles, which prioritize safety, efficiency, and sustainability.
In summary, PTC heaters are a highly effective solution for rapid cabin heating in electric cars, particularly in cold conditions. Their self-regulating properties, quick heating capabilities, and compatibility with EV systems make them an essential component of modern electric vehicle HVAC designs. As the demand for EVs continues to grow, PTC heaters will play a crucial role in ensuring that drivers and passengers remain comfortable, regardless of the external temperature.
How Generators Convert Mechanical Energy into Electric Current
You may want to see also
Frequently asked questions
Electric cars use a resistive heating element or a heat pump to generate heat for the cabin. The resistive heater works like an electric toaster, converting electricity into heat, while a heat pump moves heat from the outside air or the vehicle’s battery into the cabin more efficiently.
Yes, some electric cars can use waste heat from the battery or electric motor to help warm the cabin, especially in colder climates. However, this is often supplemented by a dedicated heating system for faster and more consistent warmth.
Yes, heat pumps are more efficient than resistive heaters because they move heat rather than generate it directly. This reduces the energy draw from the battery, extending the vehicle’s range in cold weather.
Electric cars use electric defrosting systems, including heated windshields and resistive heating elements in the windows, to melt ice and fog. These systems are powered by the battery and work independently of the cabin heating.
Yes, electric cars can lose range in cold weather because heating the cabin and battery requires additional energy. However, features like heat pumps, pre-conditioning, and efficient thermal management systems help minimize this impact.
